This universal tablet wall mount will handle any tablet upto a thickness of 10mm and float it 14.5mm away from the wall. Leaving you plenty of space to run a power cable behind the tablet if you need, and also creating a nice aesthetic.

PRINTING

You'll want this to be sturdy, so I went a little heavier on the infill for this particular print.

Walls: 4
Top/Bottom Layers: 5
Infill: Gyroid @ 40%
Supports: Yes

Note: If you orient the print so it is sitting upright, the same as it would be on the wall you will only need supports on the bottom of the backing block. The screw holes do NOT need support so you can block those in your slicer. They will print fine without supports.

INSTALLATION

Honestly, pretty straight forward. I recommend using a level to make sure everything is nice and, well level? I also recommend just hand screwing this. You don't need this torqued down. It's not holding much weight, just snug it down.

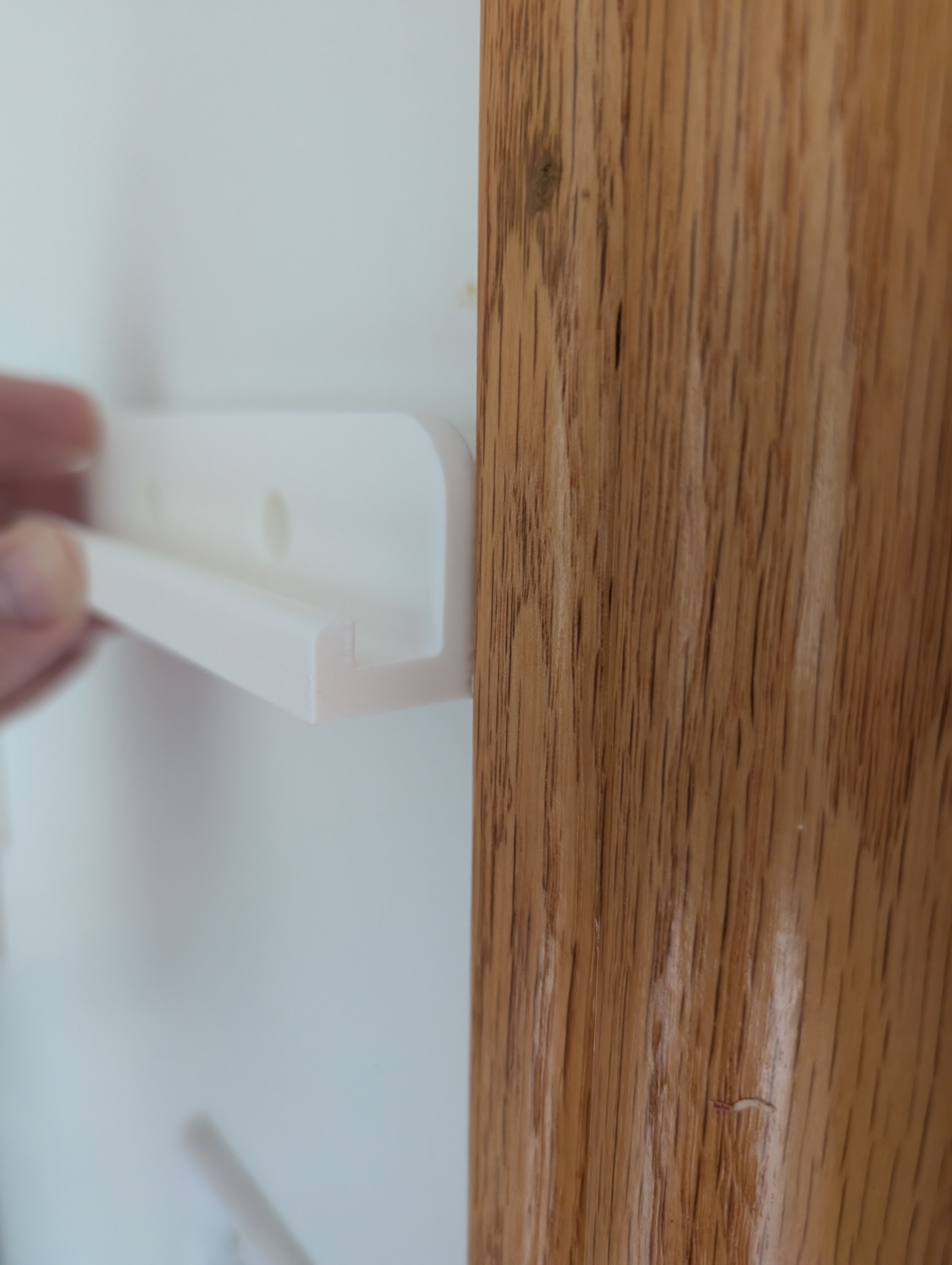

1. Install the bottom bracket first using the level.
2. Sit your tablet on the mount, and sit the top bracket over in place at the top of the tablet.
3. Slide your tablet out enough to expose one screw hole in the top bracket. This will ensure that the spacing of the top and bottom brackets stays correct while you install the first screw.
4. Slide the tablet out further to expose the second screw hole and install the second screw into the bracket.

{optional step}
5. My tablet is ~8mm thick. So I added a 2mm gasket tape to the back of the bracket, you can do the same if you find your table tis loose in the brackets.

BOM:
