Compact Cable Winder Box with Screw Lock (Parametric)

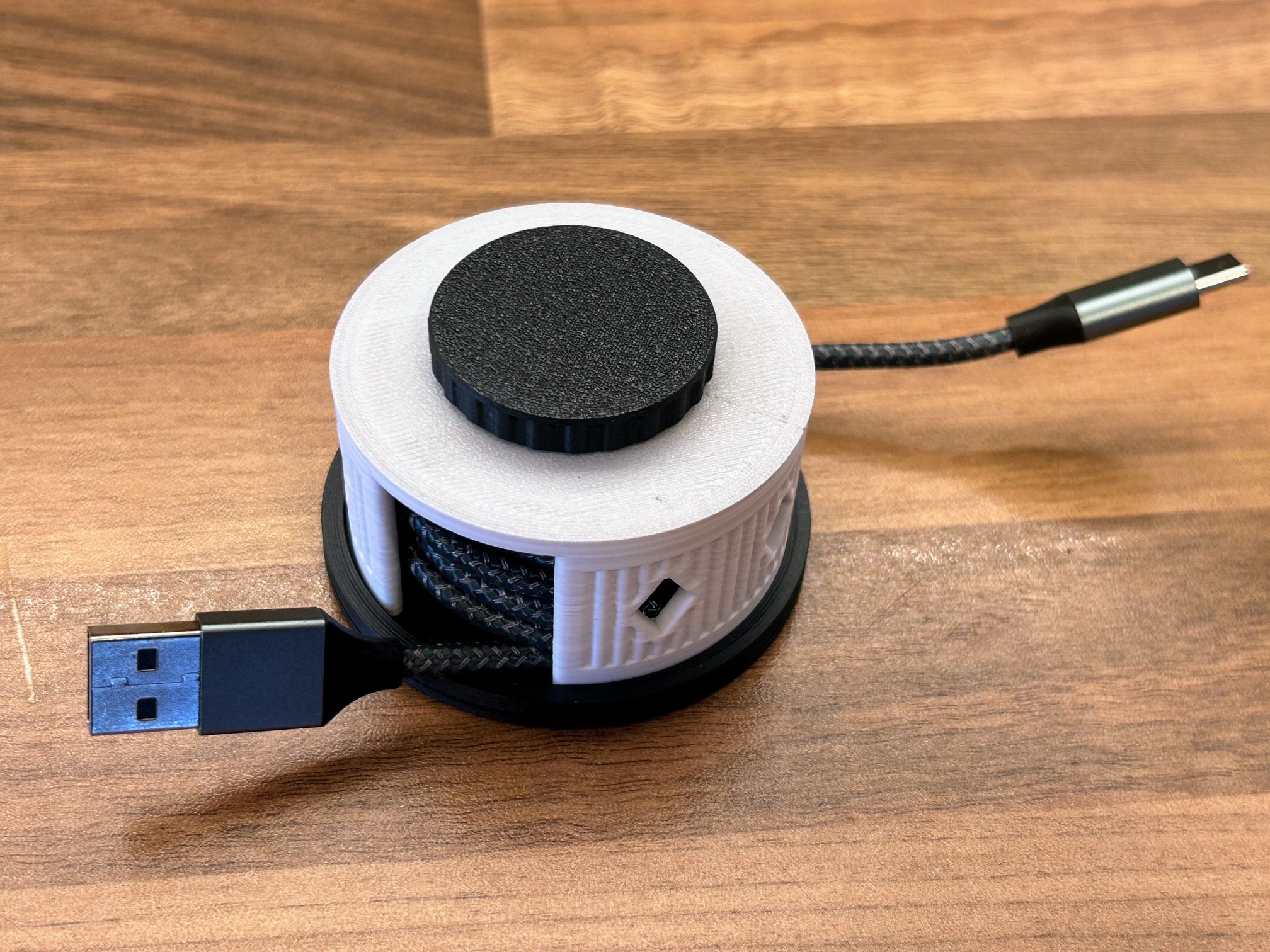

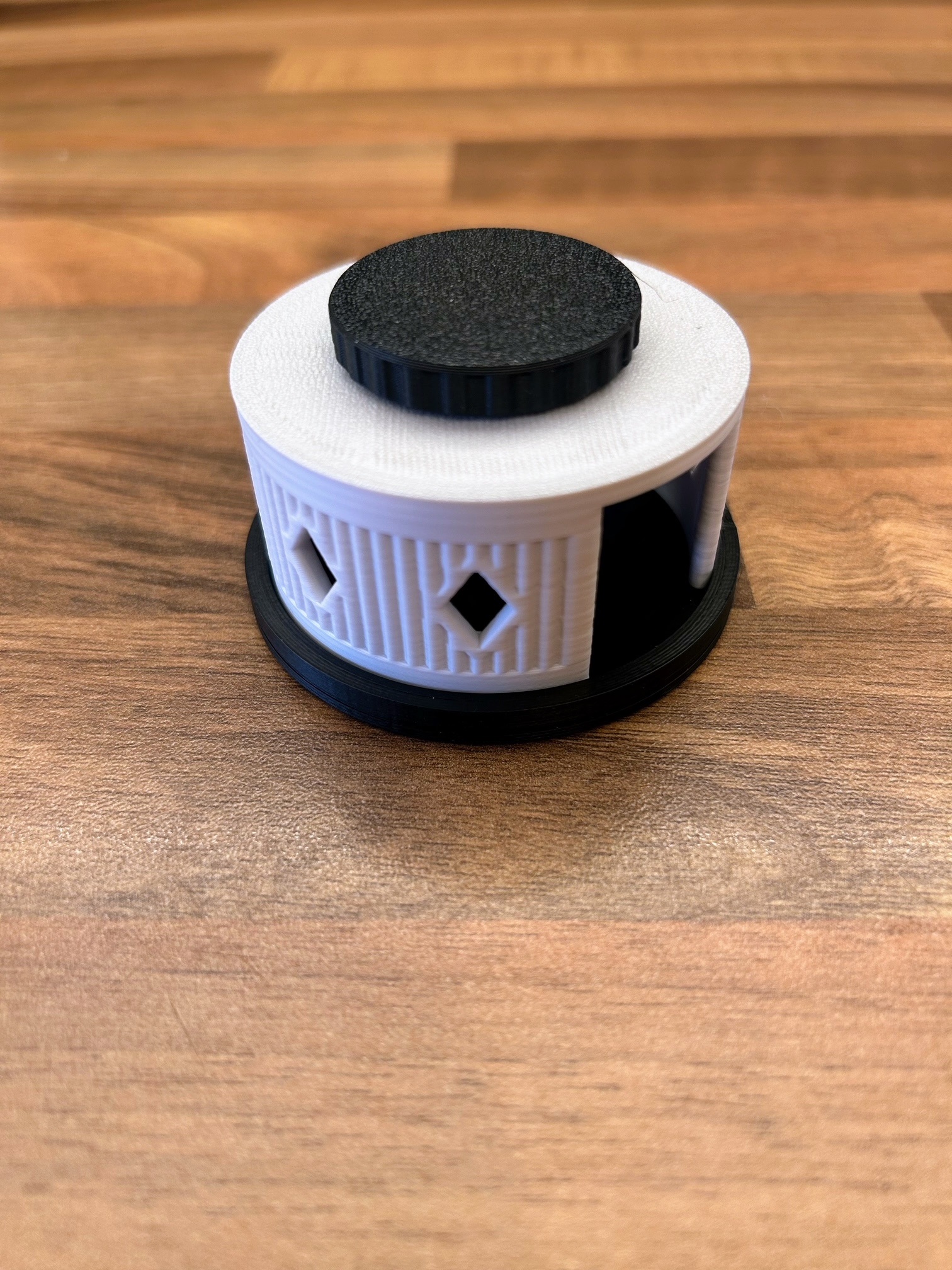

A compact and practical cable winder box designed to keep your cables neatly stored and tangle-free. The internal core allows easy winding, while the screw-on lid securely holds everything in place. The screw is intentionally designed to be slightly longer to ensure smooth lid operation and reliable winding.

Features:

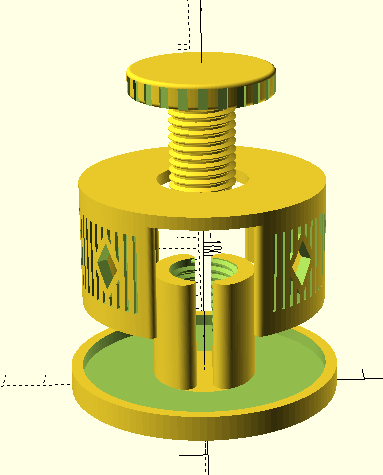

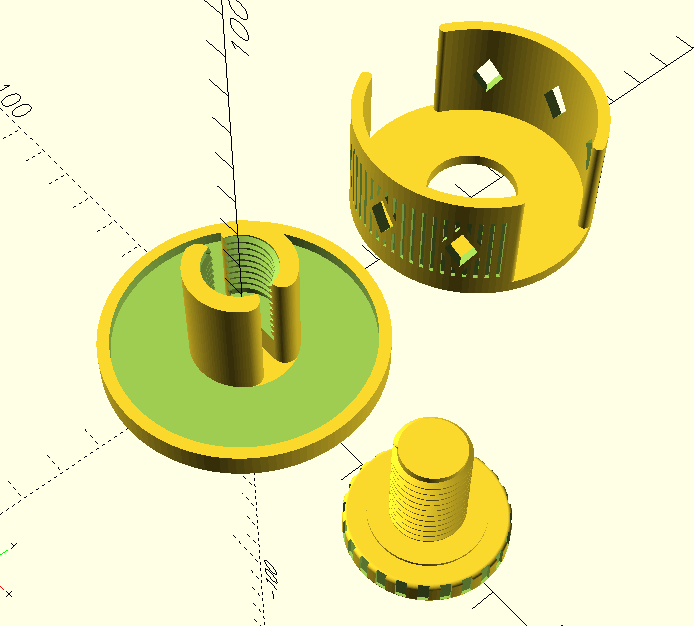

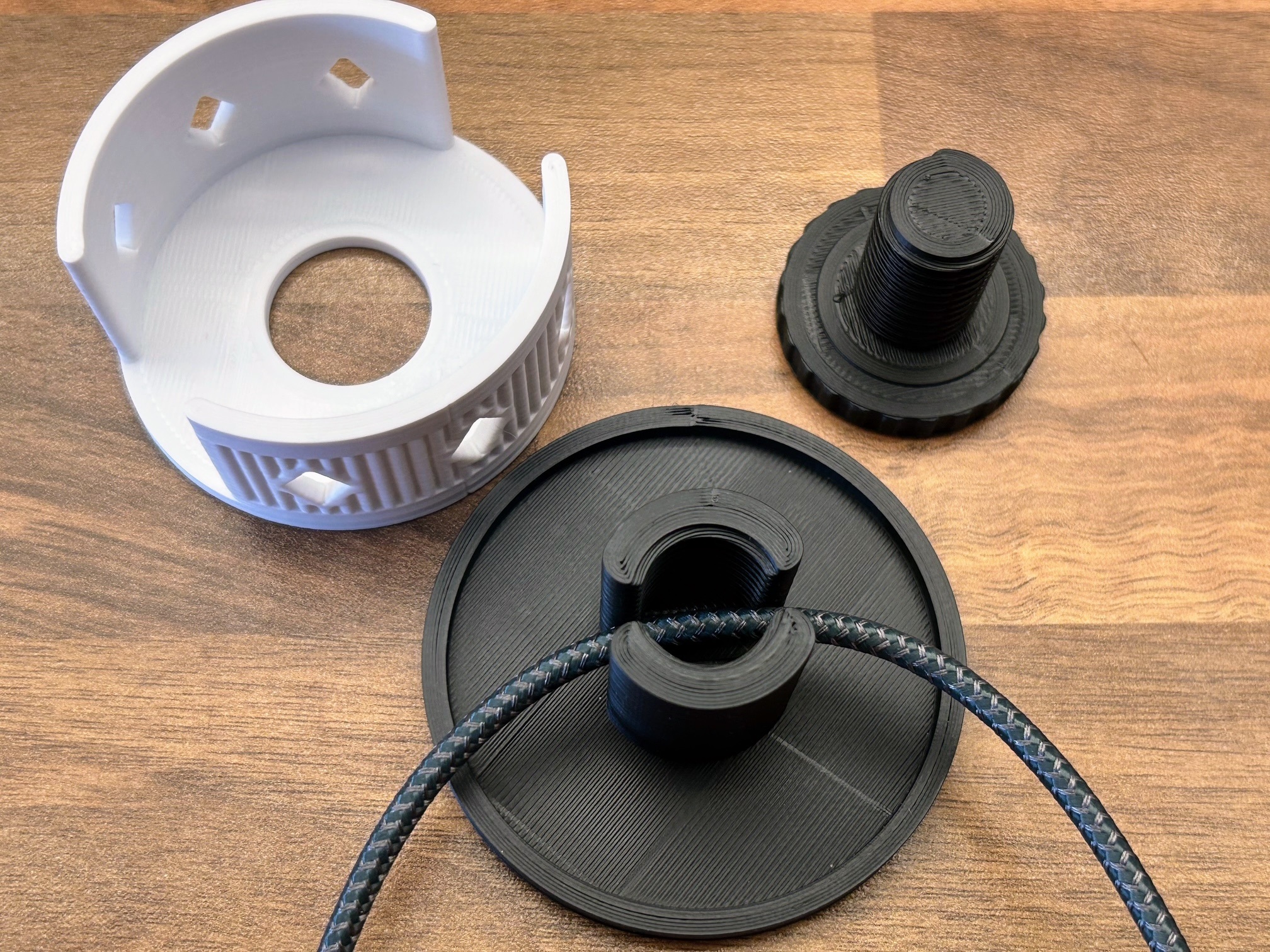

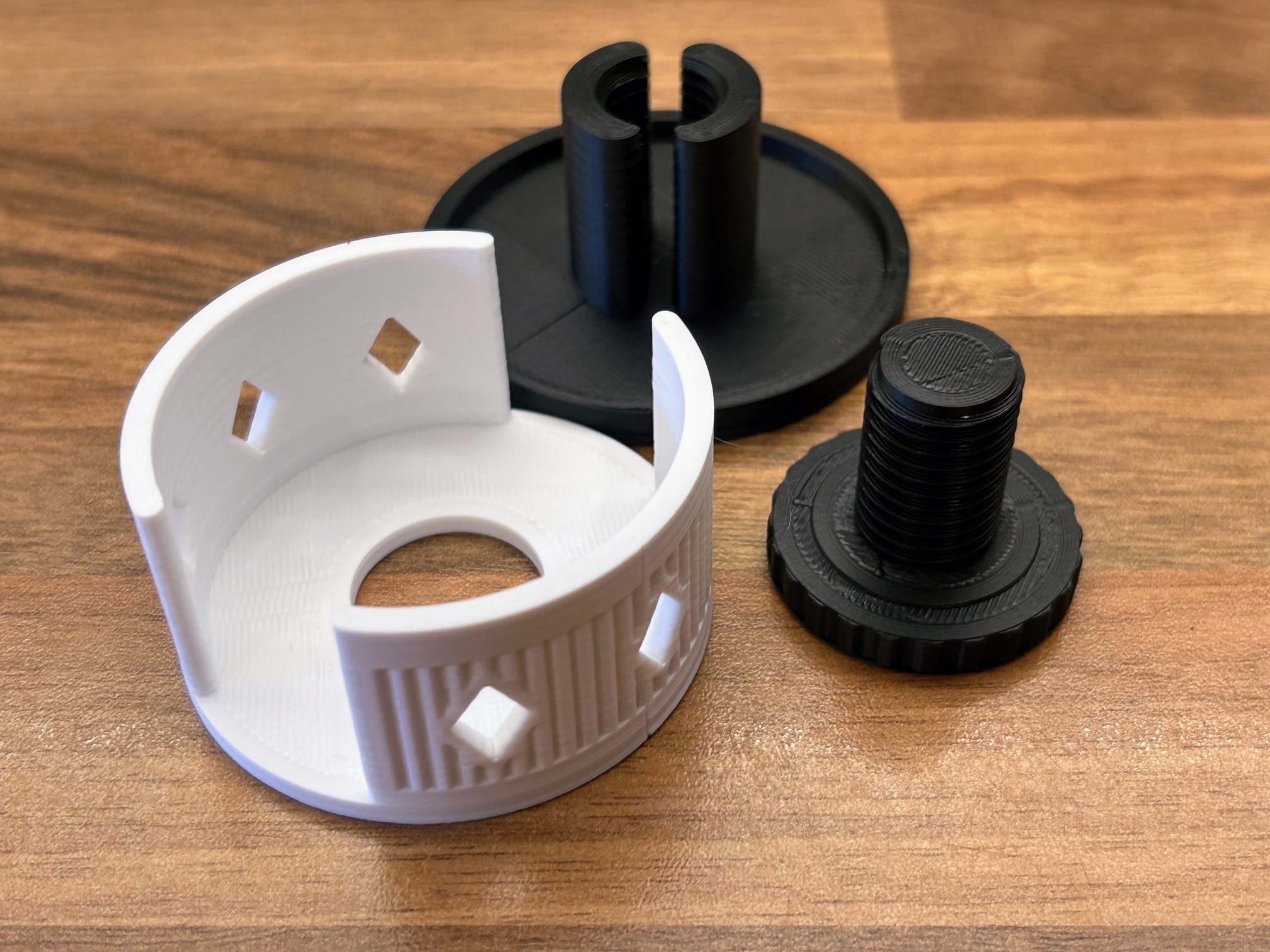

• Integrated winding core with cable slot

• Screw lock mechanism for secure closure

• Knurled screw head for better grip

• Parametric design for easy customization

Print Settings:

• Layer height: 0.2 mm

• Wall thickness: 2 mm

• Top/Bottom thickness: 3 mm

• No supports required

• Print lid and screw upside down for best results

Dependencies:

• OpenSCAD version: 2026.03.22

• BOSL2 library (threading and helper functions):
  [https://github.com/BelfrySCAD/BOSL2](https://github.com/BelfrySCAD/BOSL2)
  Please make sure to follow the BOSL2 license terms when using or modifying this design.

Typical use cases:

• Headphone cables

• USB cables

Disclaimer:

This model is provided as-is without any warranty.  Use at your own risk. Not intended for high-voltage/current or safety-critical applications. The author is not responsible for any damage or injury resulting from its use.
