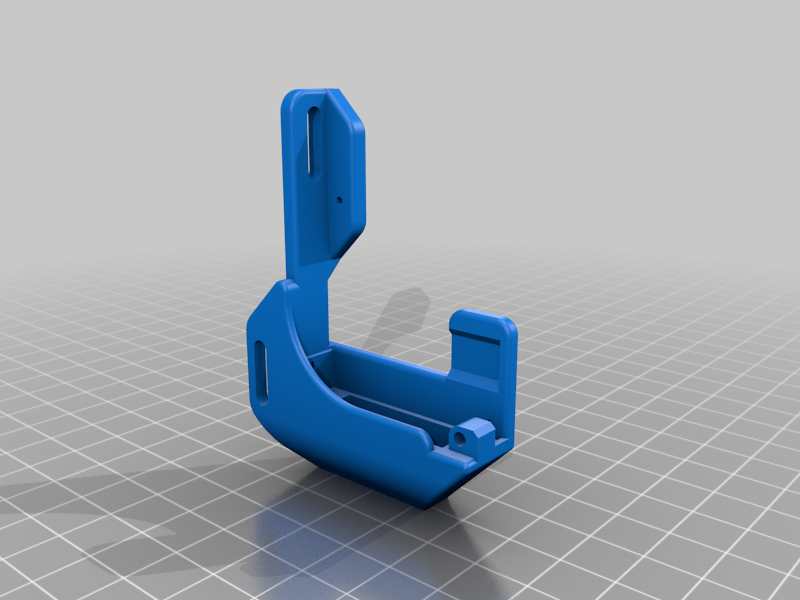

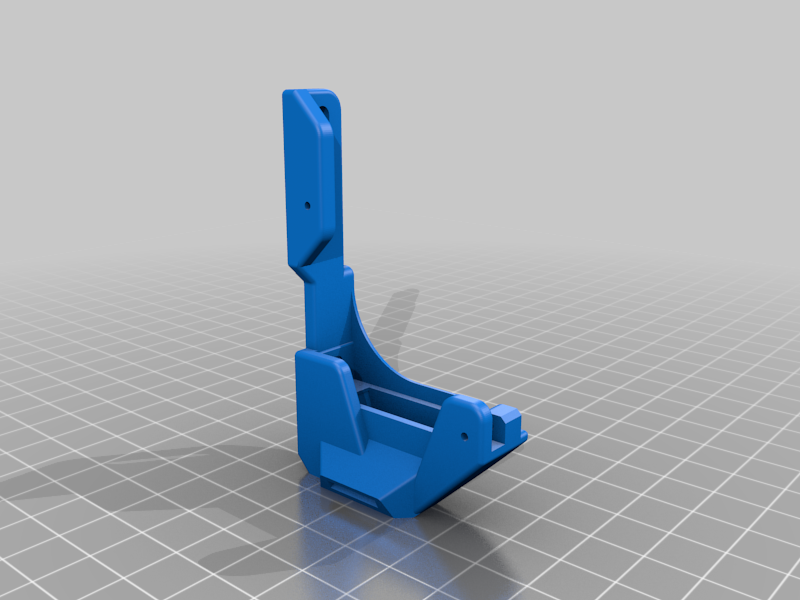

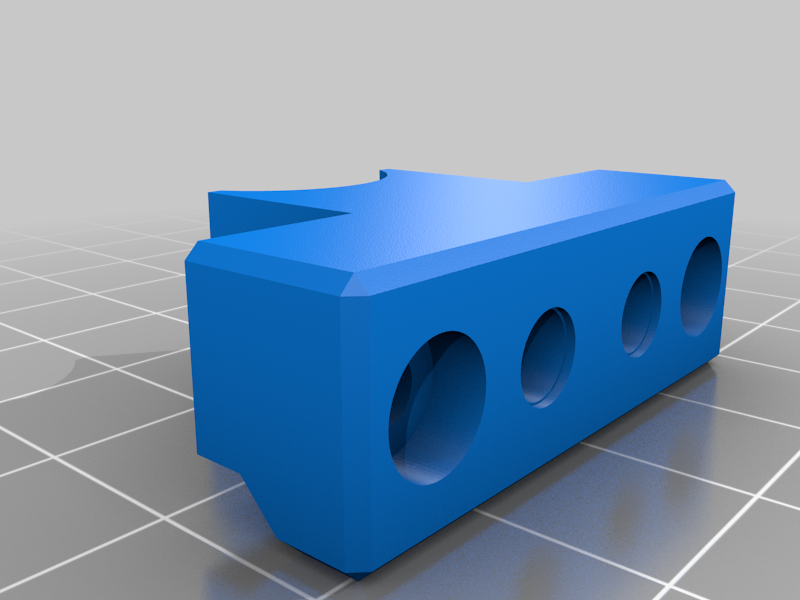

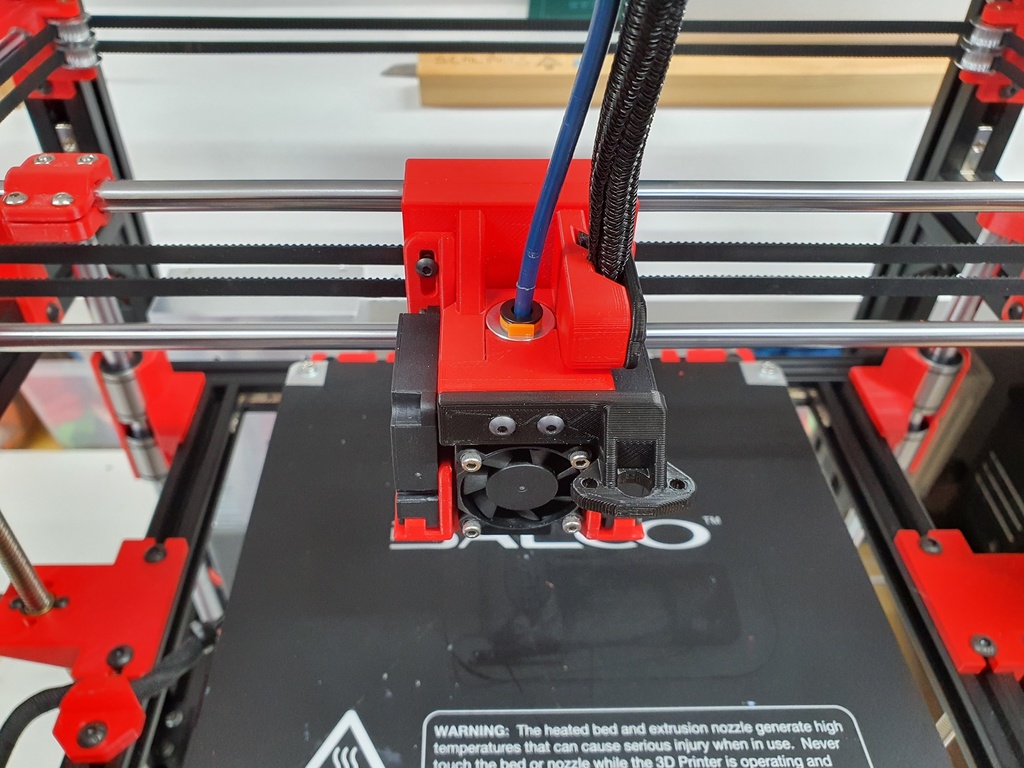

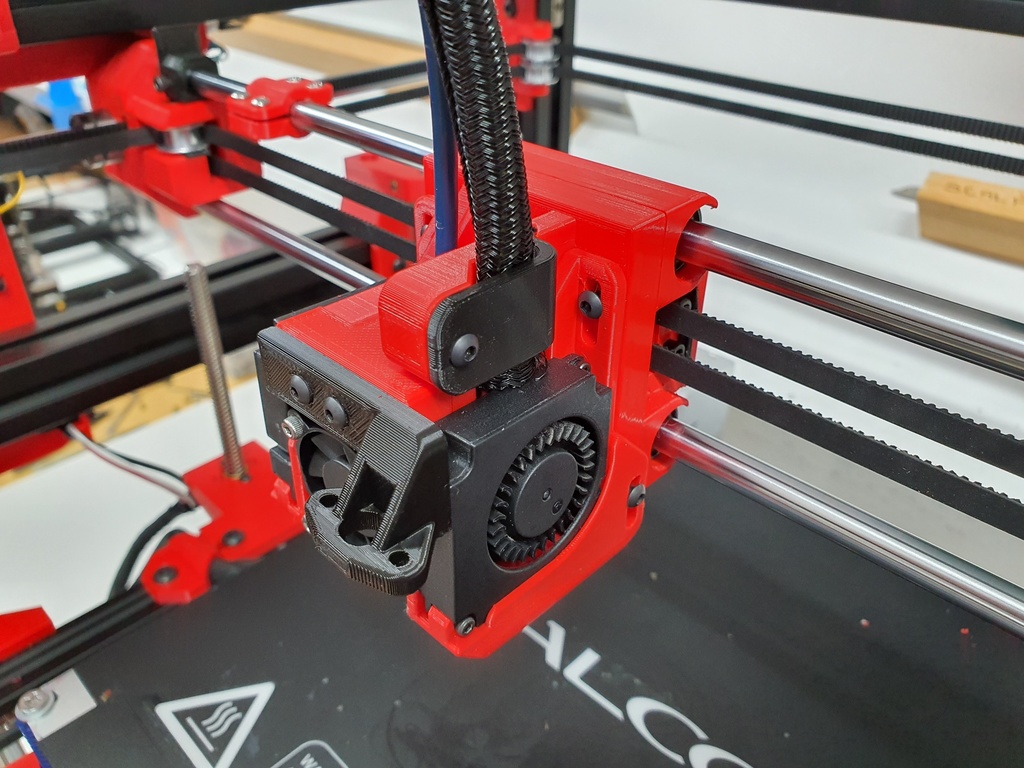

This is a compact dual 4010 duct assembly for the Hypercube Evolution.

1.Please note: I use sensor less homing for the X Axis so therefore to date have not included any allowance for an optical end stop. I am not totally happy with the current arrangement so will be looking at the inclusion of a traditional\optical end stop in the future.

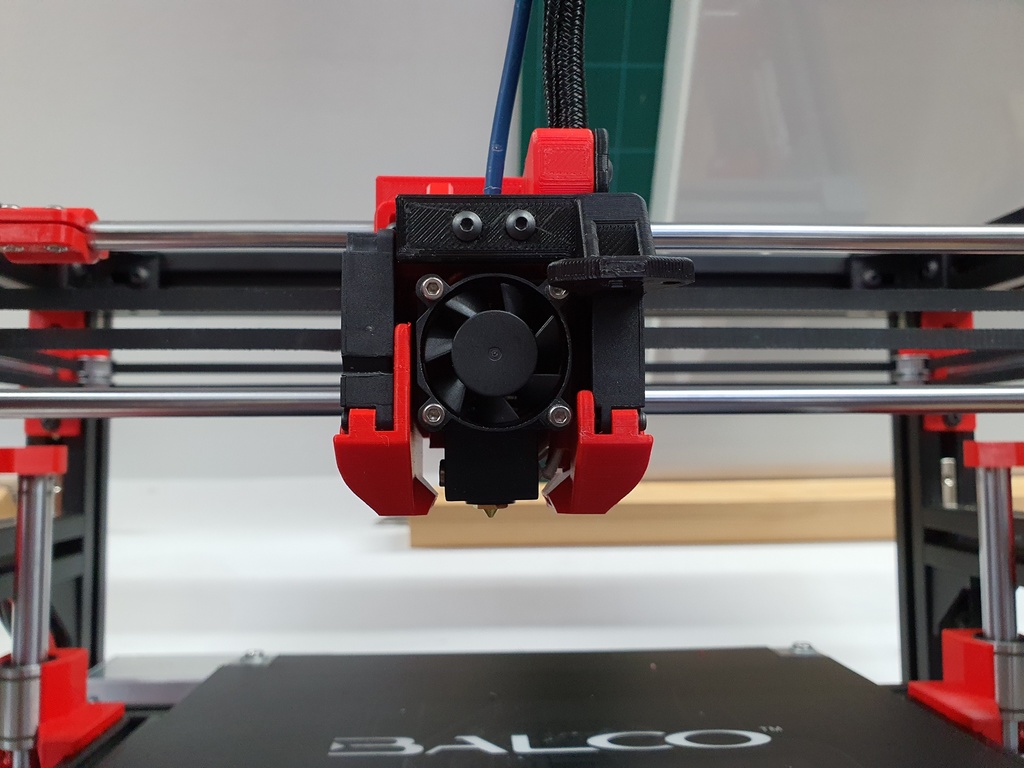

2.The overall width of this things is only 6 mm wider than the original Scott3d assembly so therefore should not offset too much build volume.

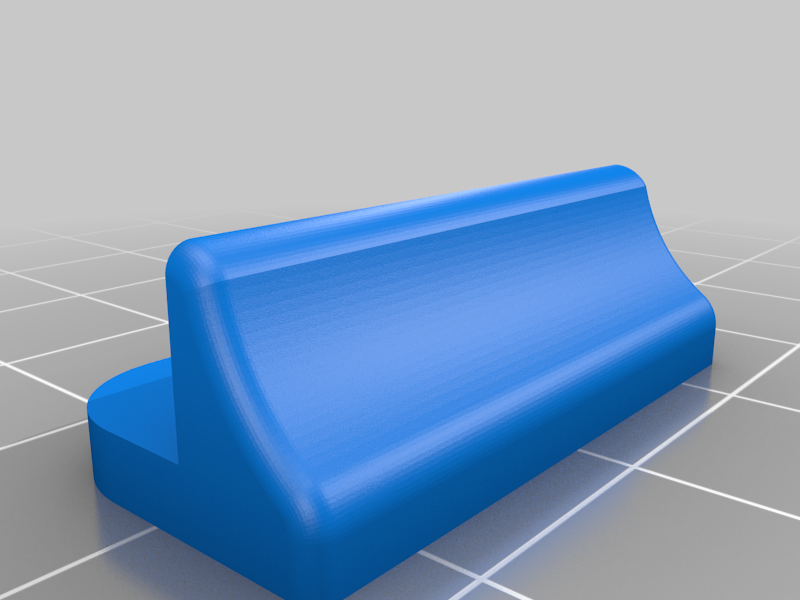

3.The fan ducts are based generally on my recent Hydra Duct design.

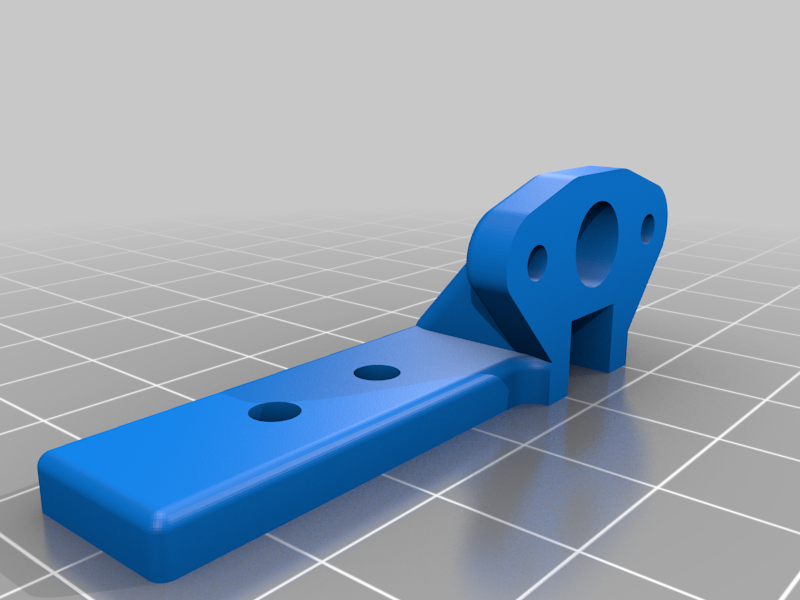

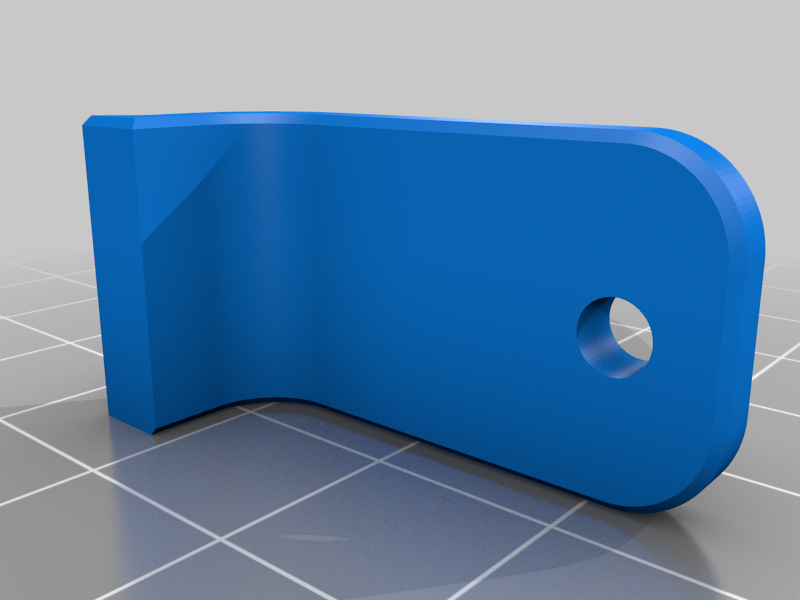

4.The offsets for the BLTouch are x= 22 y= -37. The bracket allows for use with the provided springs.

I have included a step file if anyone wants to use this has a base for their own design.

Printed in Amazon Basics Red PETG on and Ender 3 Pro.
