Descrição
#edit1 - made some adjustment to the tolerances on part collet and plank_grabber

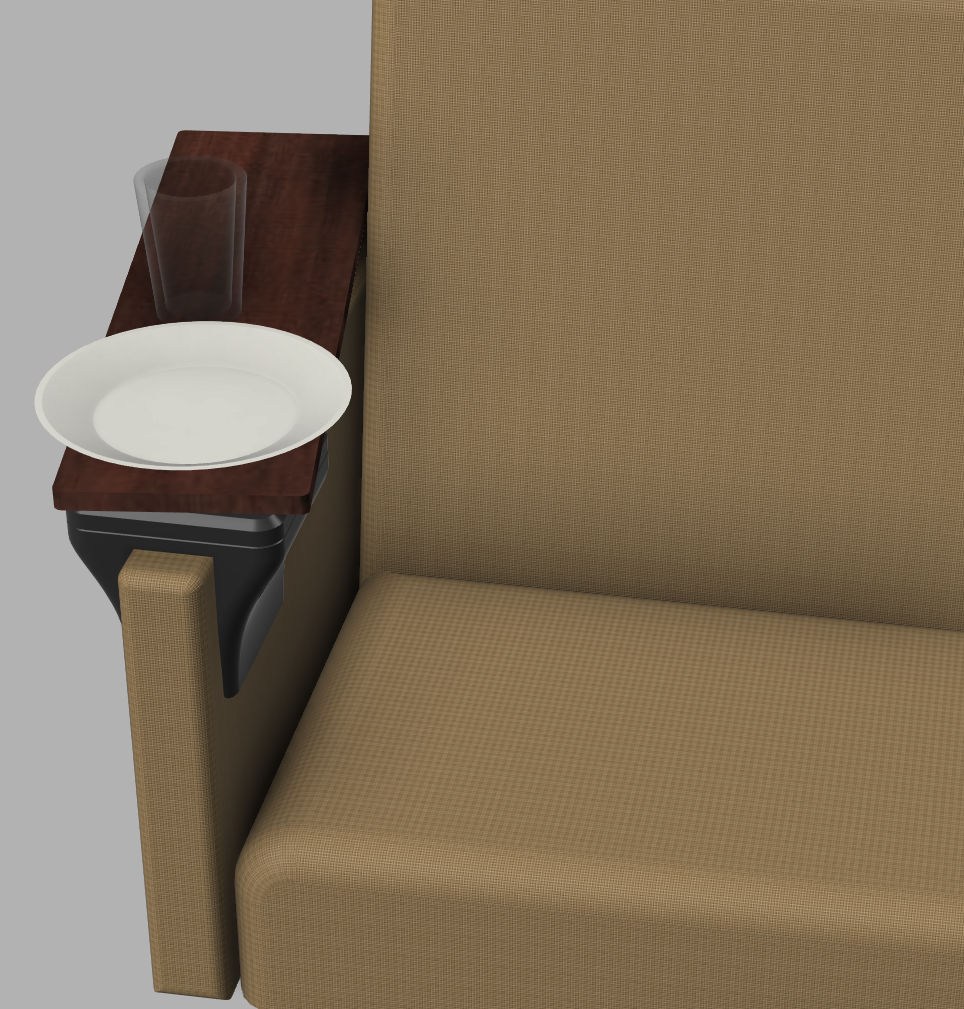

This is semi compliceted swingable tabel that mounts on the armrest.
Design should be combined with wood piece for looks and stability.
I recomend printing with strong or extra strong settings.(min. 5 wals, 30% infill for everything except legs )
No support needed!
BOM:
10 pcs. - 4mmx diam. x 12-15mm lenght. - wood screews
12 pcs - M4x16mm screws and hex nuts
4 pcs - 10diam x5mm magnet
1 pcs - wood plank for tabel (min 110mm wide and lenght optional*)
*u can use wider planks (rekomend 150mm) . Lenght should be at lest 150mm longer then legs**

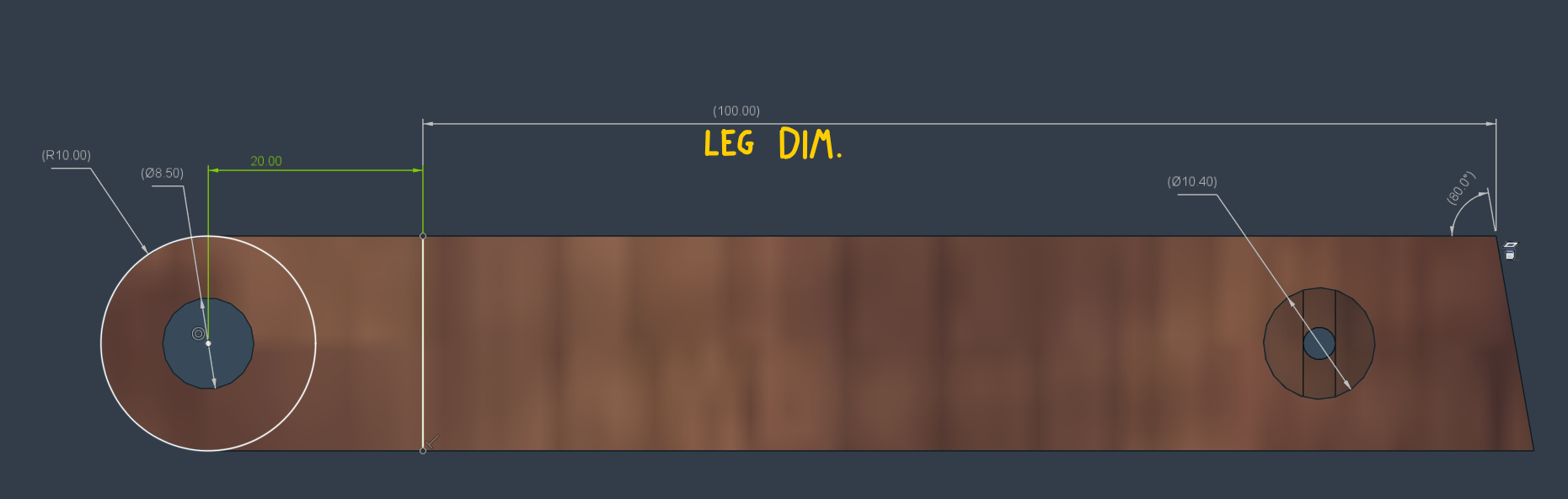

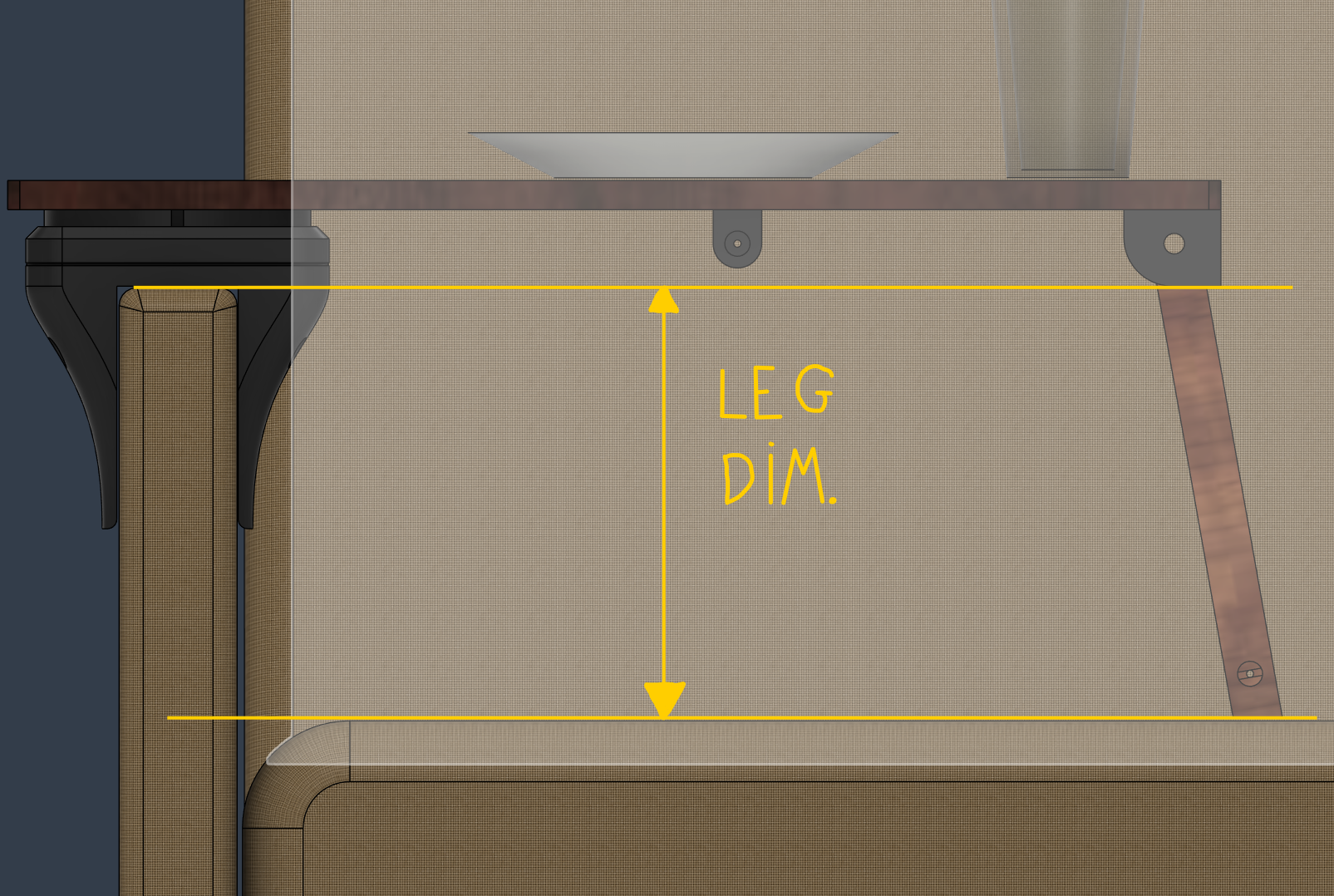

**legs lenght will depend on your sofa, look pictures for proper legs dimencions to print. U will need to print 1-3cm longer legs if u have very soft sofa, because legs will dig into soft sofas. U can also make legs from 20x 20mm wood stick.
Swingable armrest table with legs
Publicado em 17 de abr de 2026
