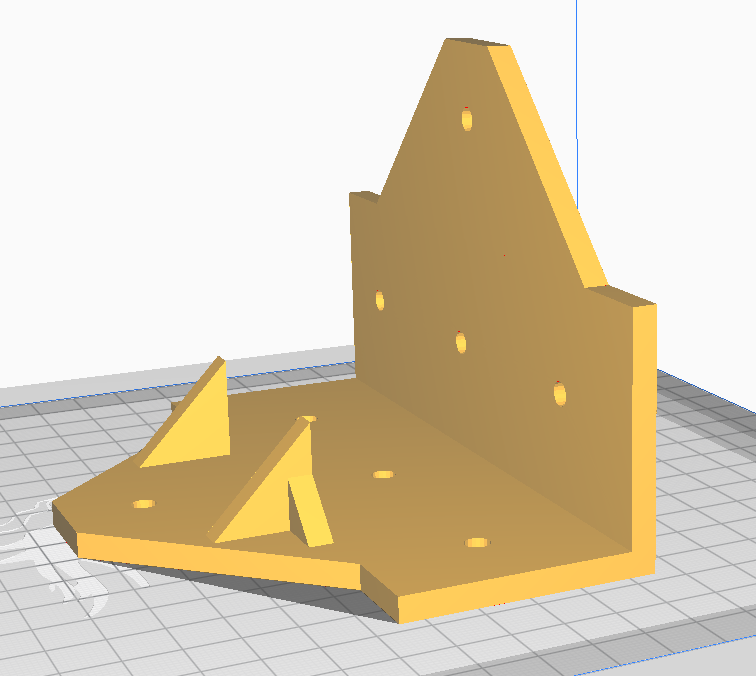

I don't have an Ikea around, so I ordered some Parsons tables from Amazon and needed some brackets to stack them. This bracket has guides integrated to align it and hold it in place while you fasten it. I only put the guides on 1 side so you wouldn't need supports, and so you could install it with the legs already in place.

I used a 0.6mm nozzle to speed up the print time.

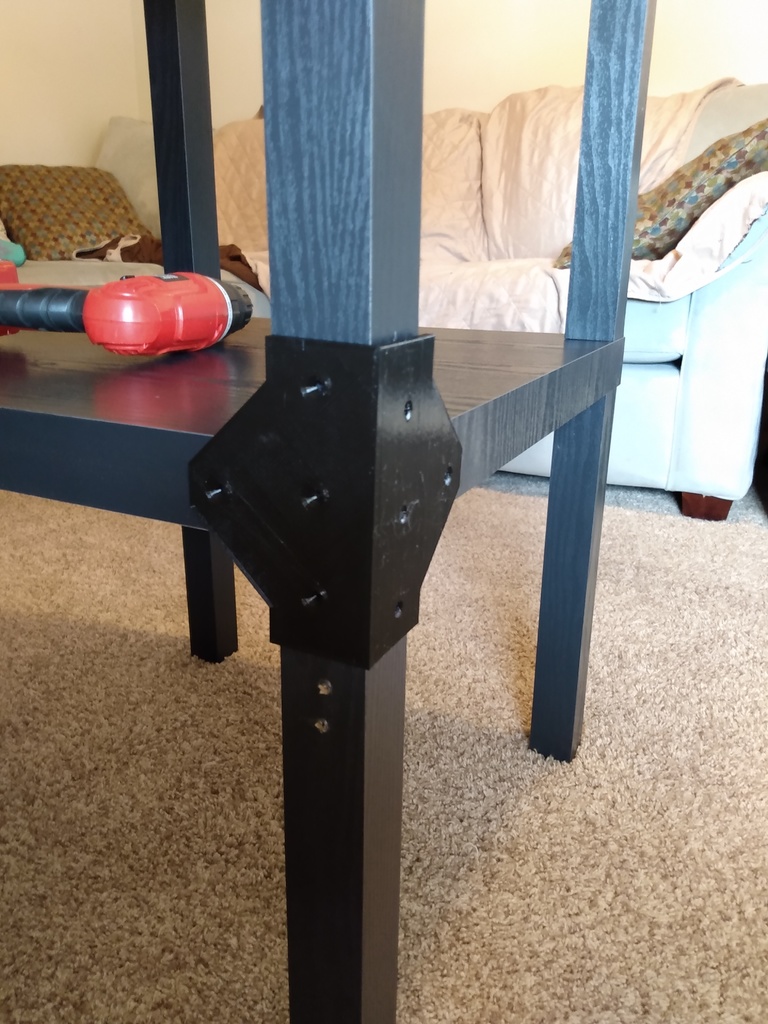

Those holes in the picture are from me testing different pilot hole sizes for the table. A 3/32" hole is as big as I would go, anything bigger and I was stripping screws too easily.

Hardware required:

'#10 x 3/4" Wood Screws

Print Settings

Printer Brand:

Creality

Printer:

Rafts:

No

Supports:

Resolution:

0.2 mm

Infill:

Filament: Doesn't matter PETG

Category: 3D Printing
