This is a remix of Finch's "parametic rounded sliding top box v1.1" from Thingiverse

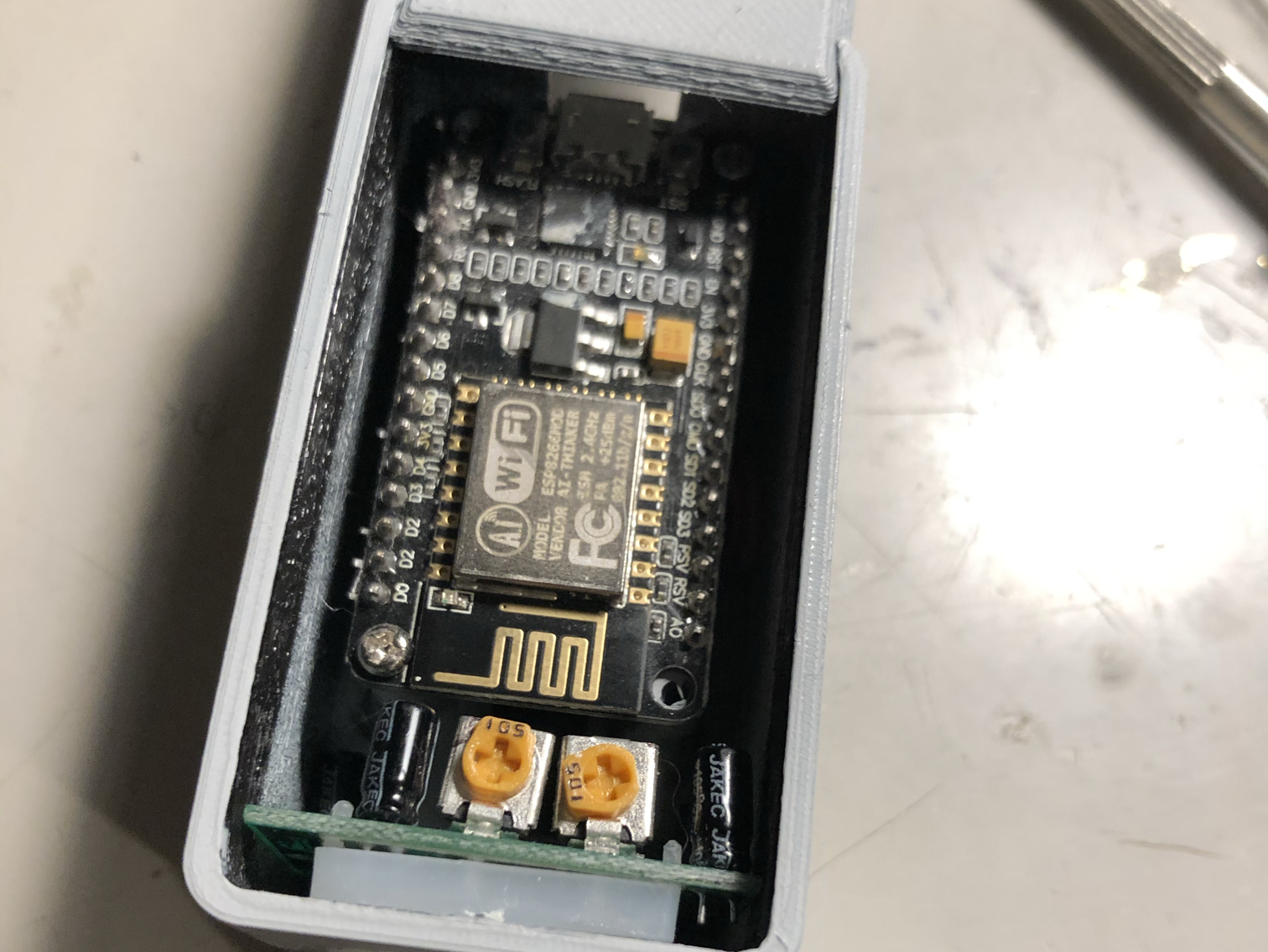

It fits a NodeMCU and a PIR looking "frontwards". Inside there are stands for the NodeMCU.

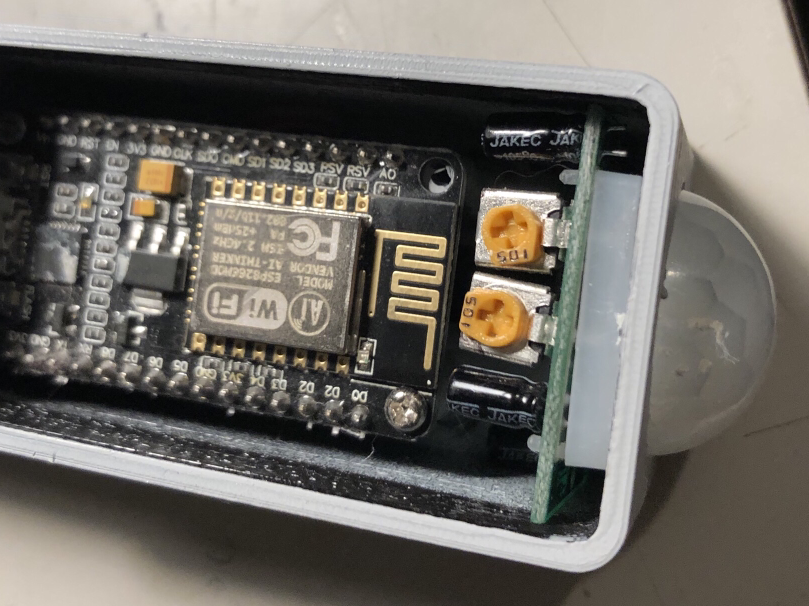

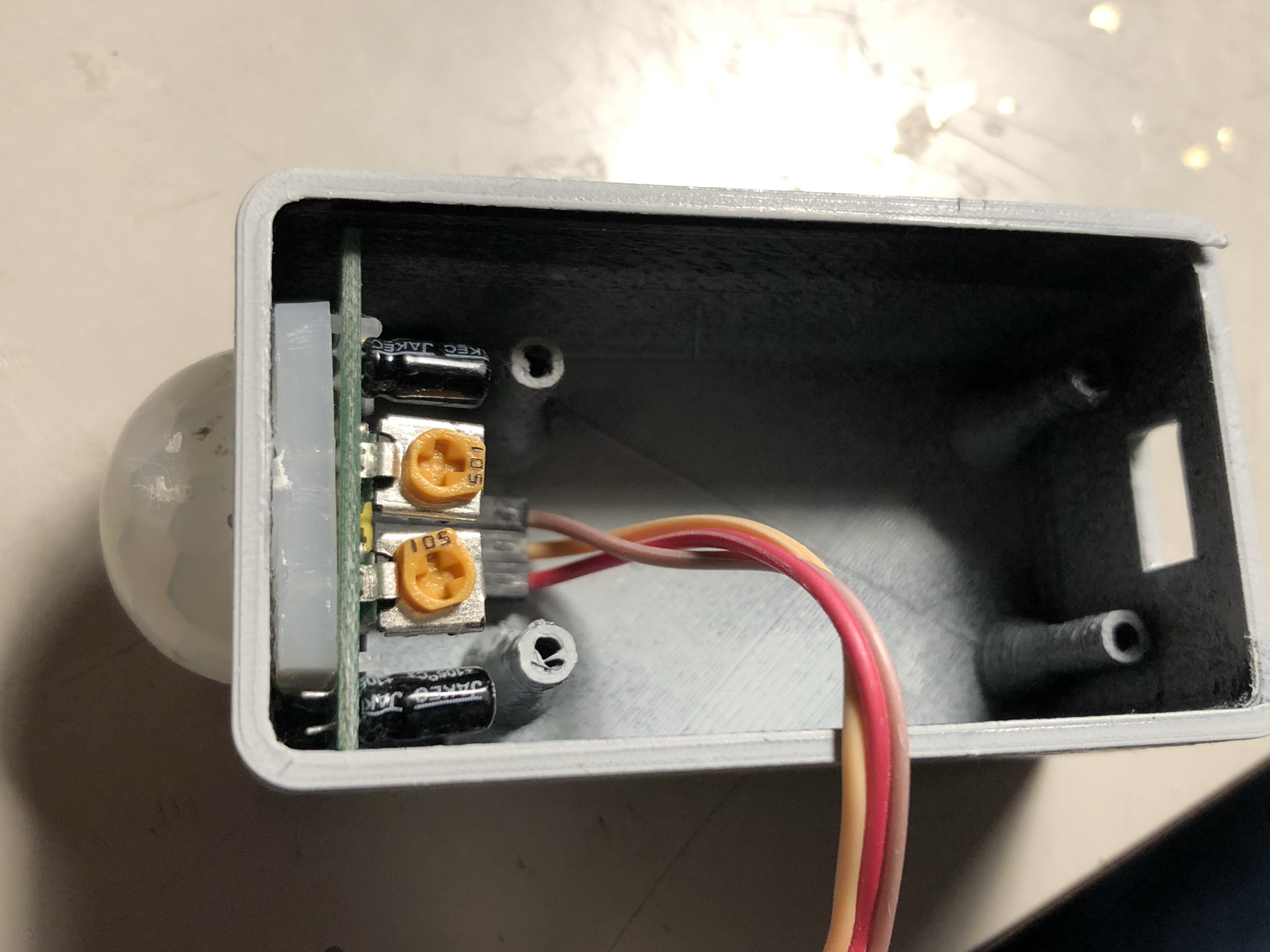

The PIR is a close fit: you have to unmount the "lens" part and clip it into the box (from inside) before you can add the electronics part or the PIR. This is due to the NodeMCU stands.

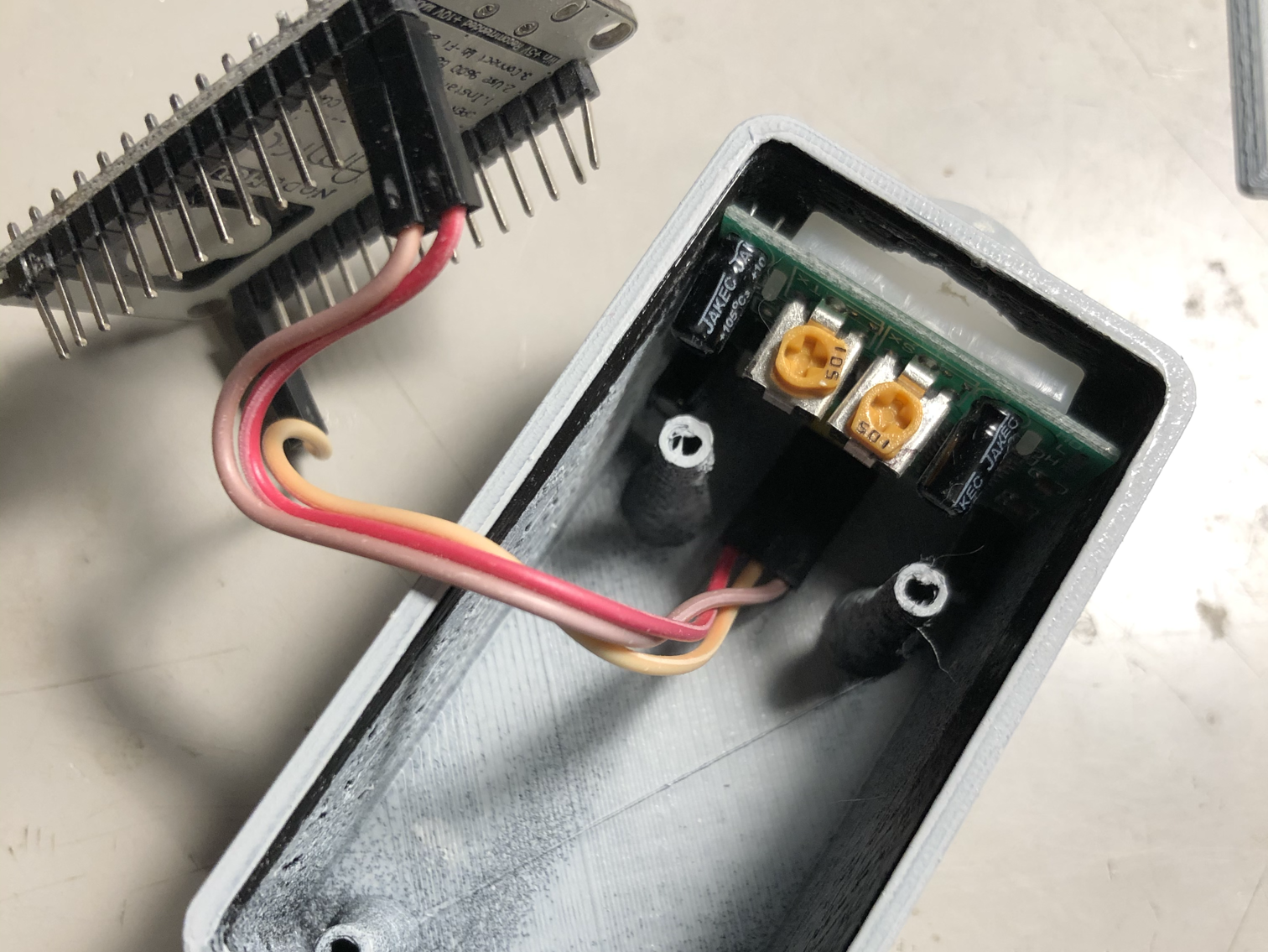

The NodeMCU has enough room to the bottom of the box to allow for Dupont cables on the pins (see my photos)

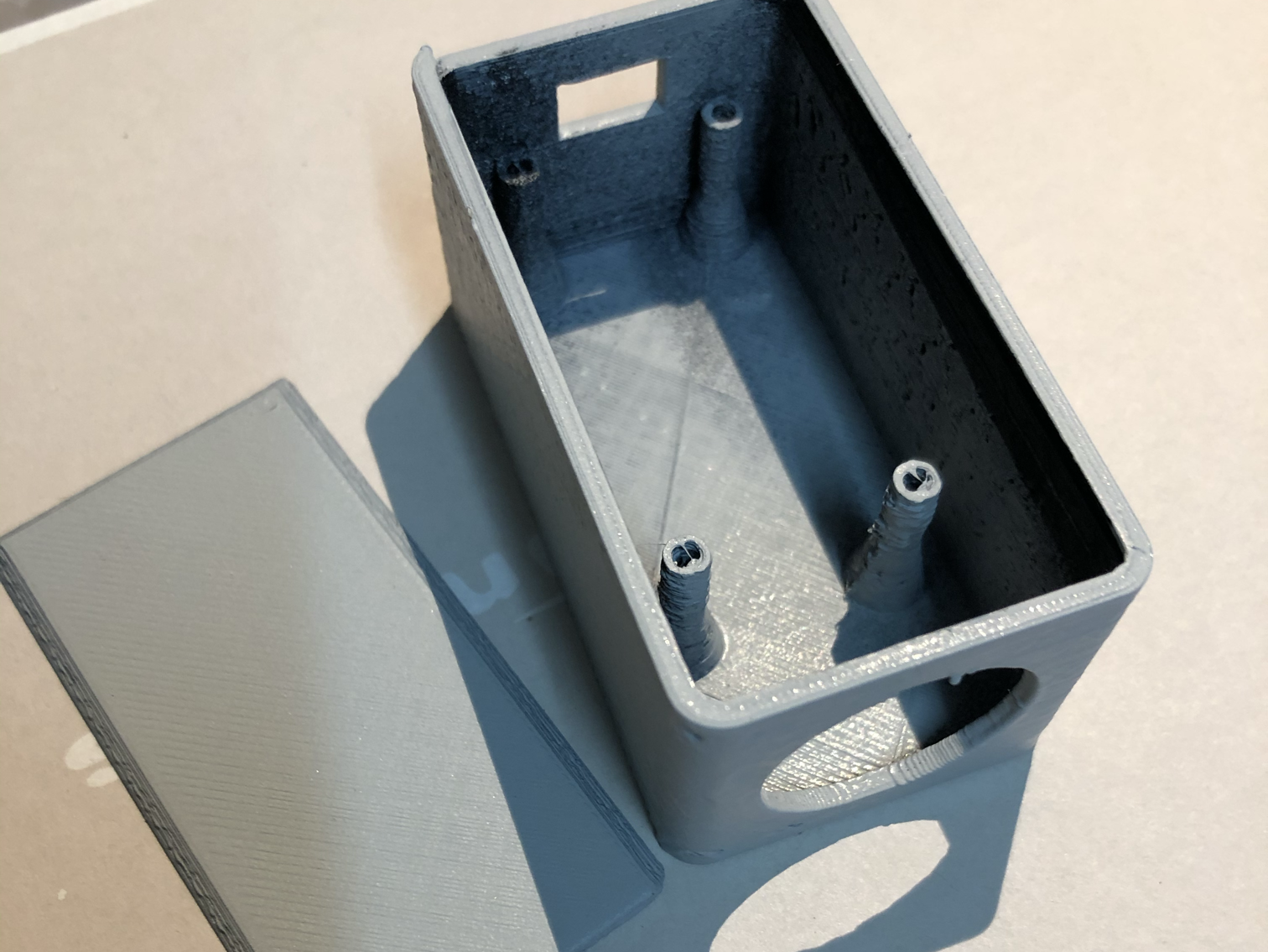

I printed it in black PLA and sprayed it with a grey primer.

As always with my Things, I add the OpenSCAD file.
Enjoy, have fun remixing and let me know when you've made one, and what for!

Print instructions

Category: Electronics

Print Settings

Printer Brand: TEVO
Printer: Tarantula
Rafts: No
Supports: No
Resolution: 0.2 mm
Infill: 30%
Filament: Das Filament PLA black
