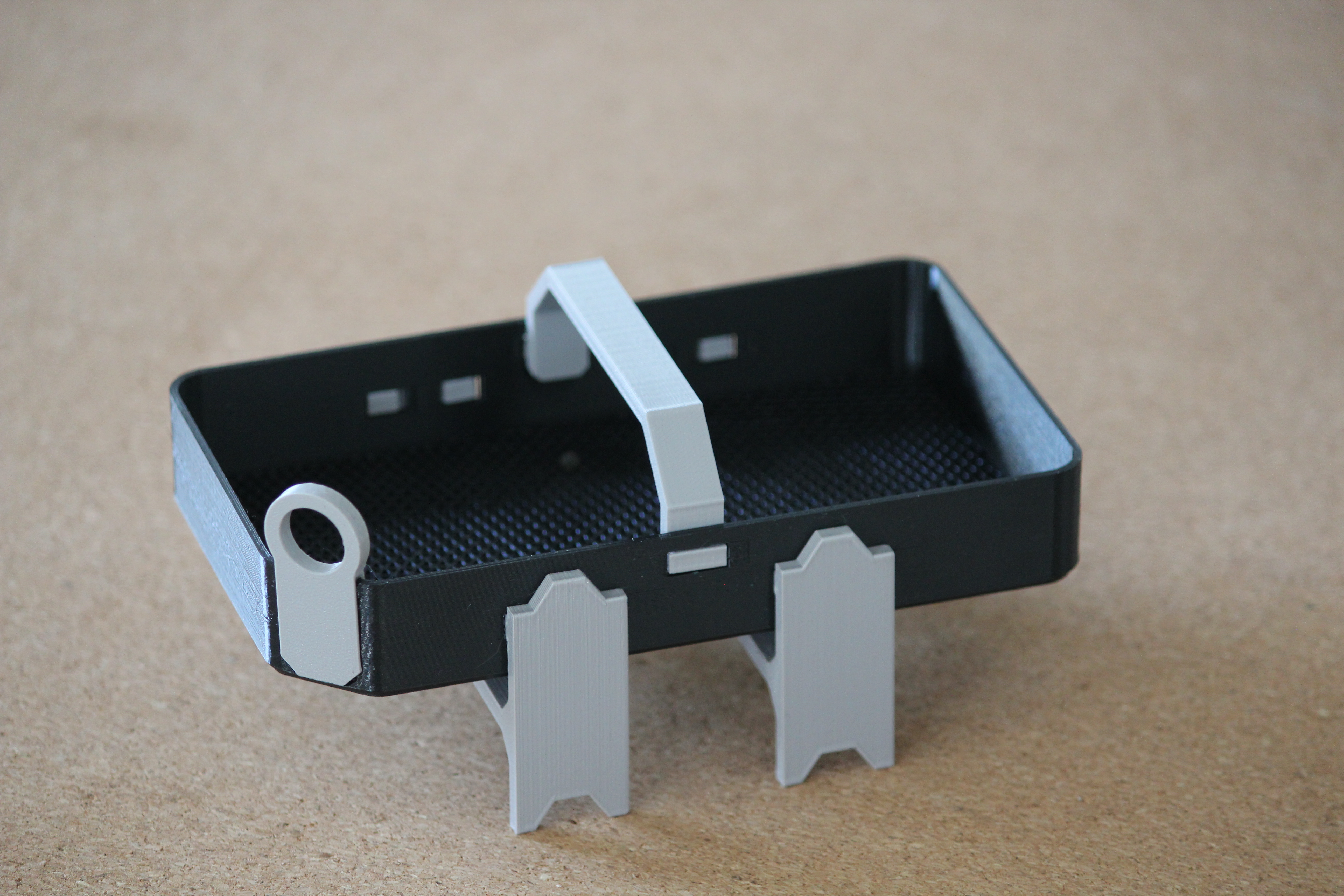

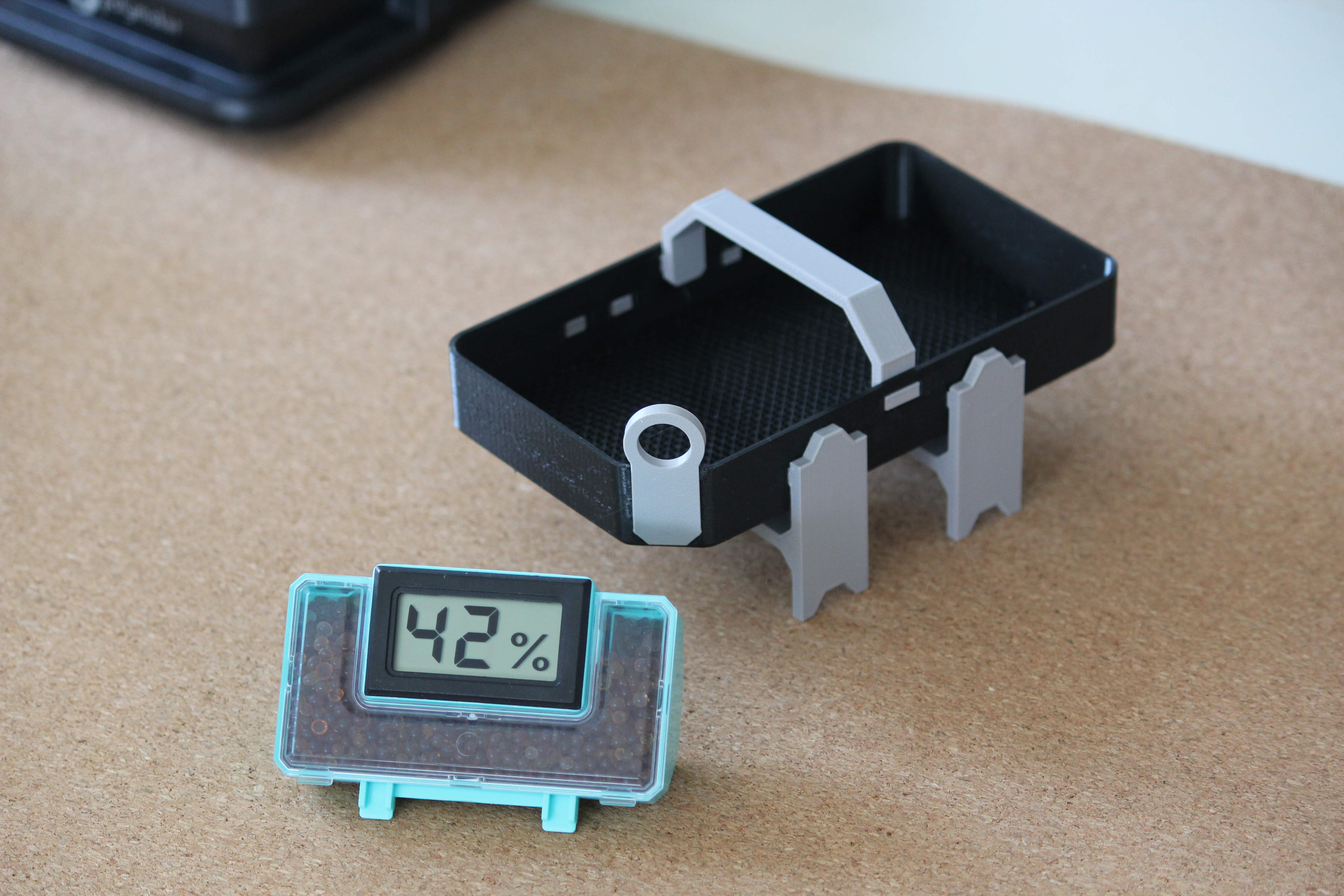

Dry a lot of desiccant (or just a bit) with this stackable basket system. Requires a Polydryer drybox and the Polydryer itself.

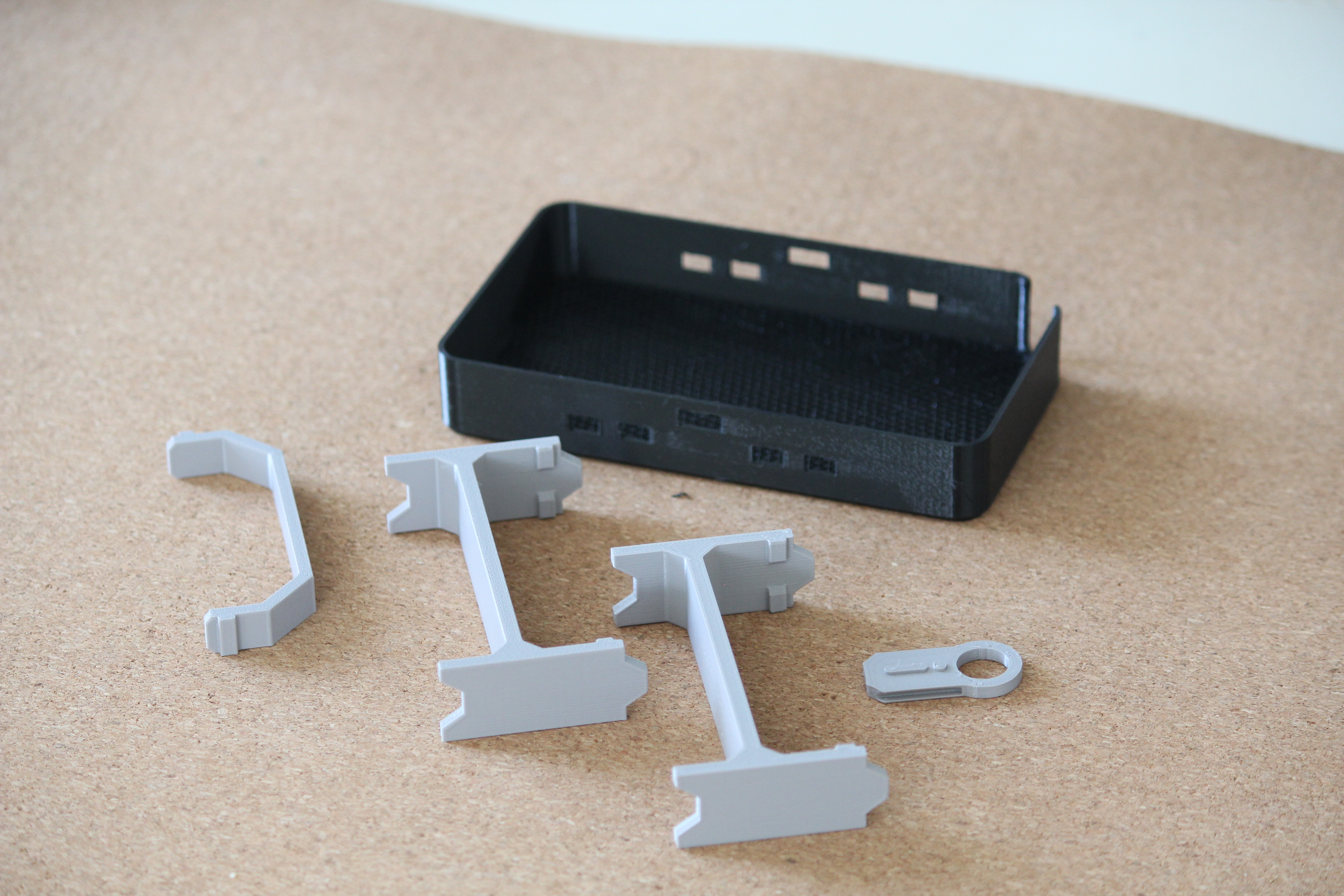

All parts can be easily snapped together. Make sure the "i" of the tab is oriented towards the inside of the basket.

Use setting 2 or 3 for about 6 hours or until the beads have turned to their dry colour.

Features

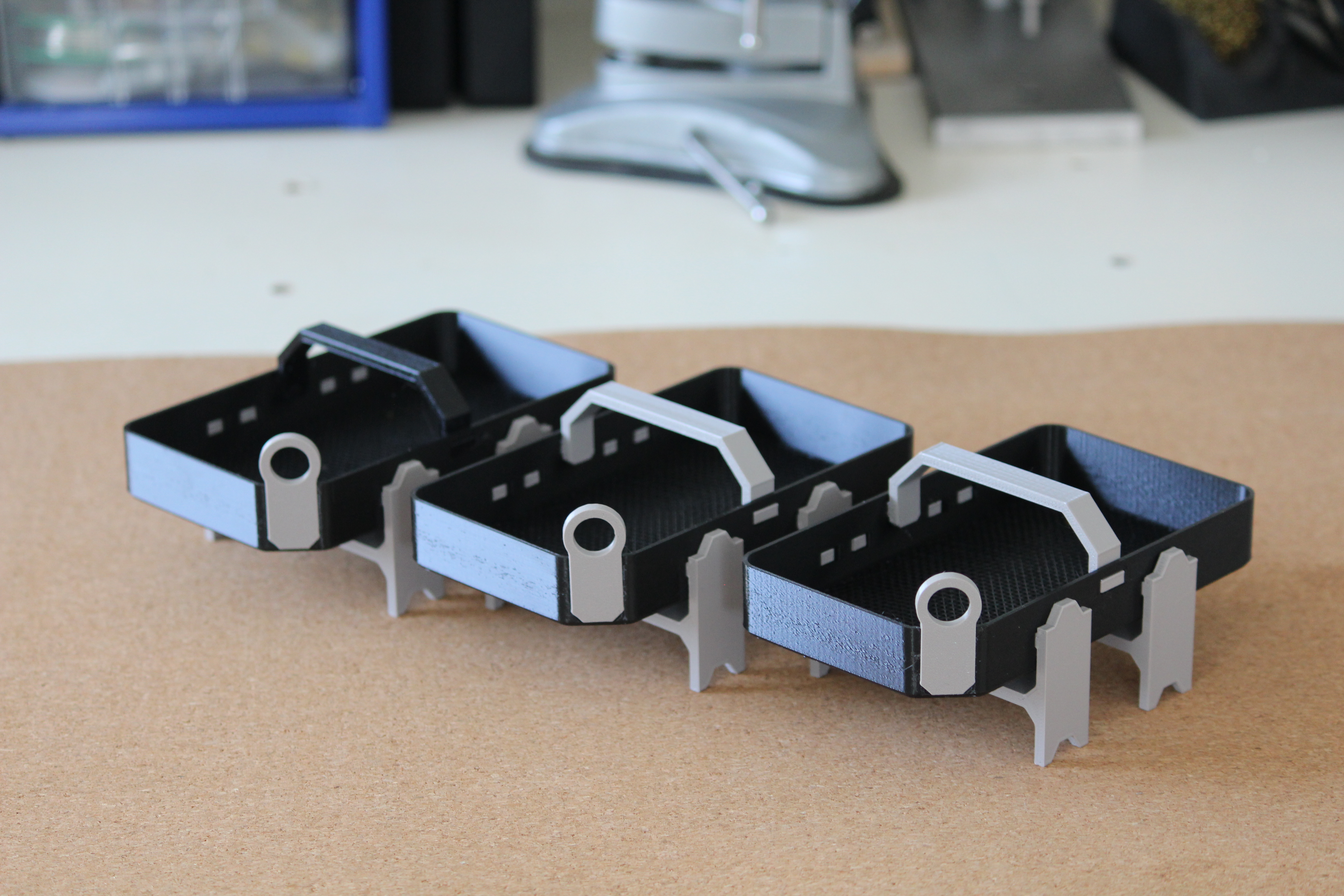

• Stackable up to 3 baskets high

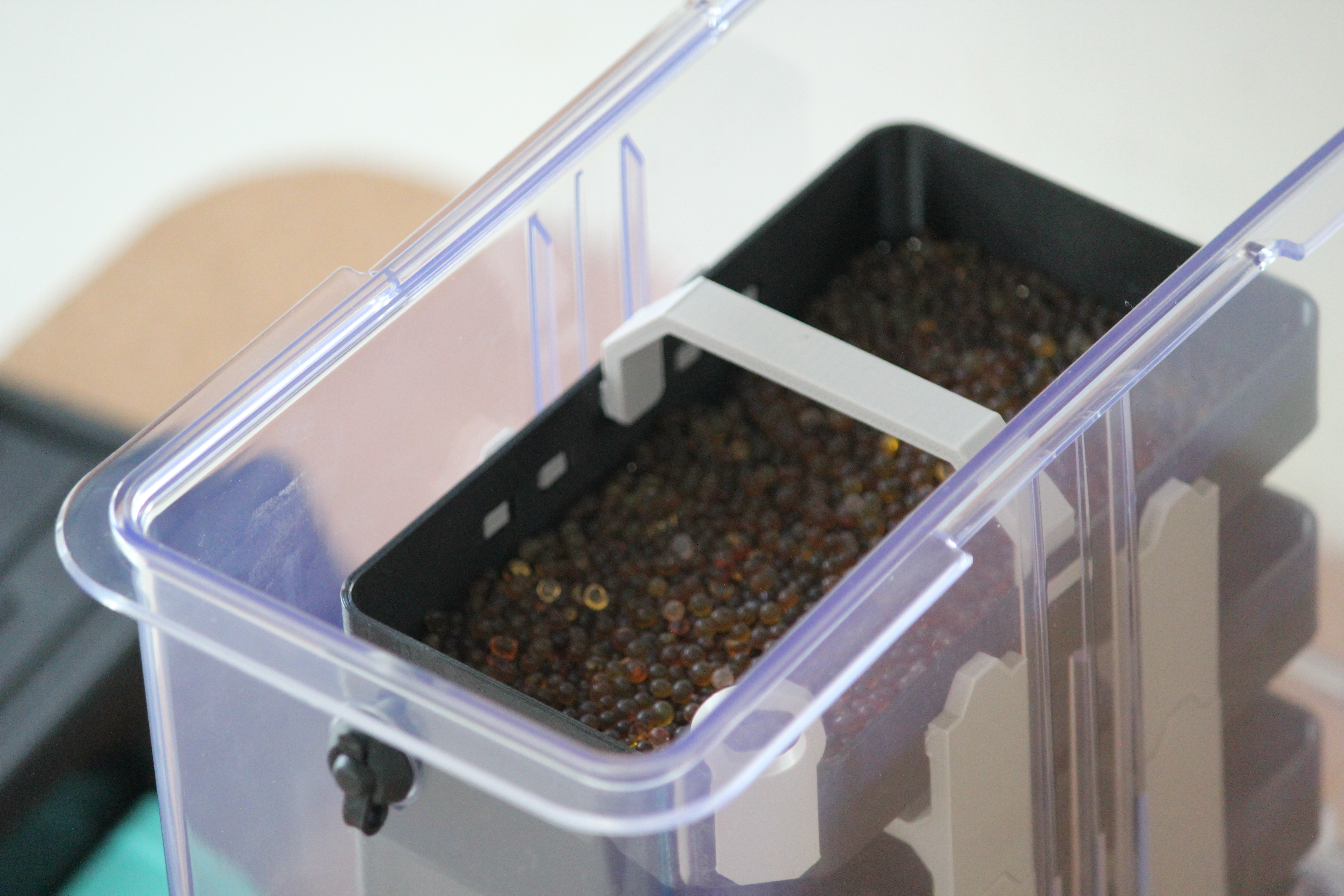

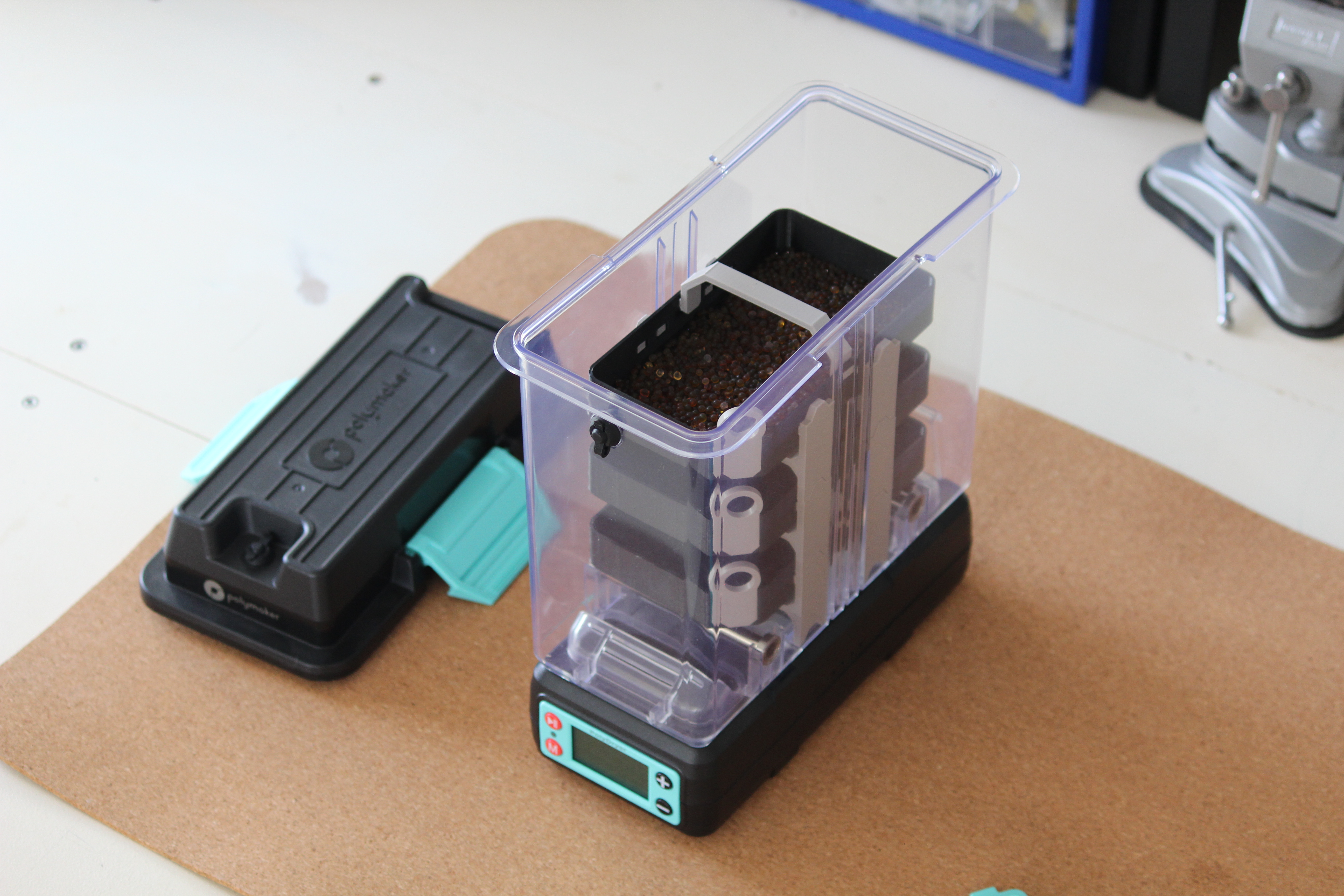

• Uses the internal geometry of the drybox to slide in and out

• Positioned to be in the airflow path

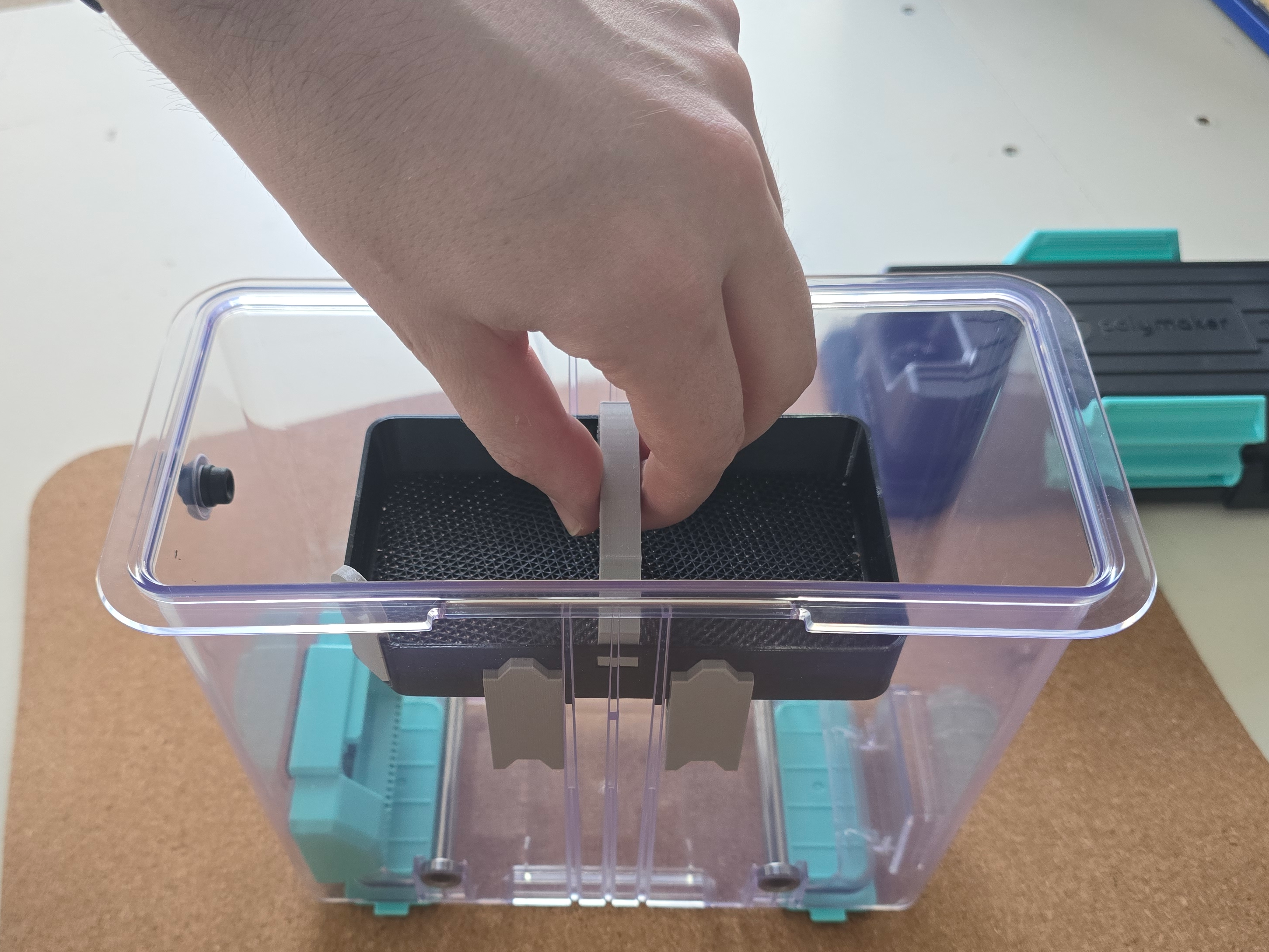

• Handle for easy placement and removal

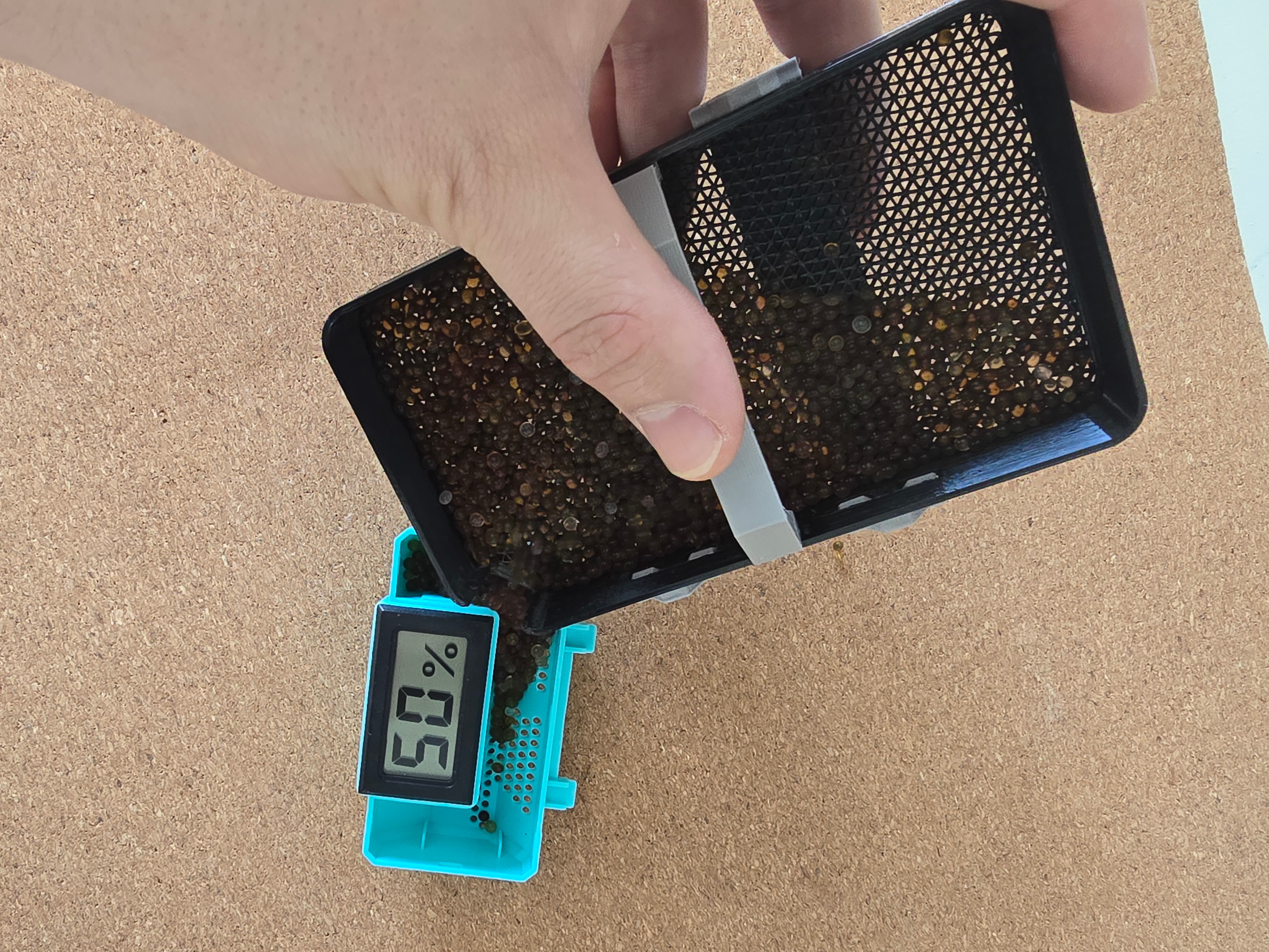

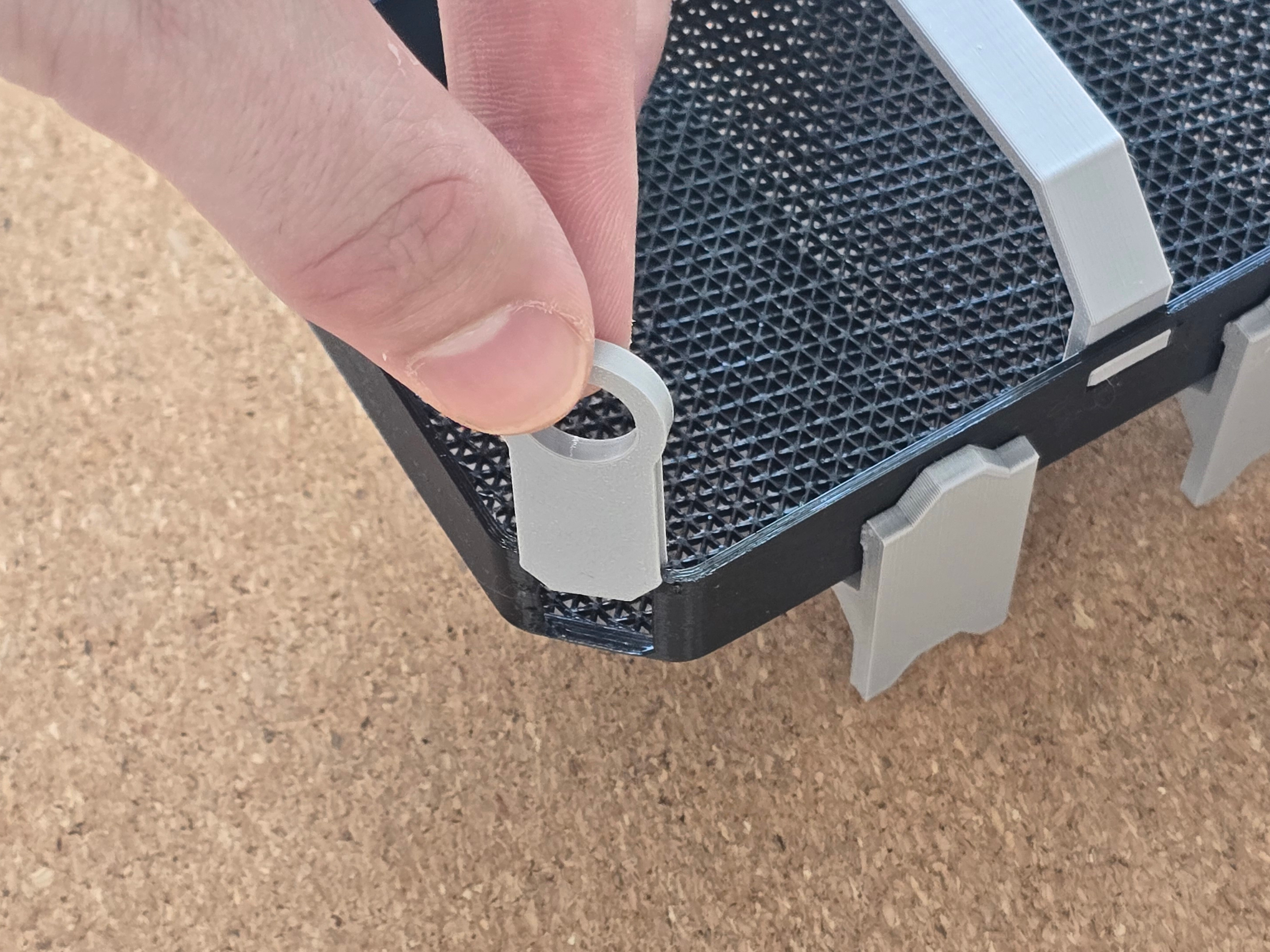

• Removable stopper for pouring the dessicant after drying

• Uses infill pattern as perforated bottom

Printing

• IMPORTANT notes for "Infill"part:

  • must be aligned with basket (do not move it seperately)

  • must be printed without perimeters, top and bottom layers (add setting for only infill part)

    • Right click part in list > layers and perimeters, right click again > infill

    • See screenshot below for settings

  • Set an infill of 60% (I used triangles)

• Make sure the 'i' of the tab is oriented up

• Use PETG, ABS, ASA or any other material that does not warp under some heat

  • PLA not recommended

• No specific layer height required

• No support material needed

• Tolerances tested with Prusa MK4S and Prusa Mini - but should work for most well-tuned printers

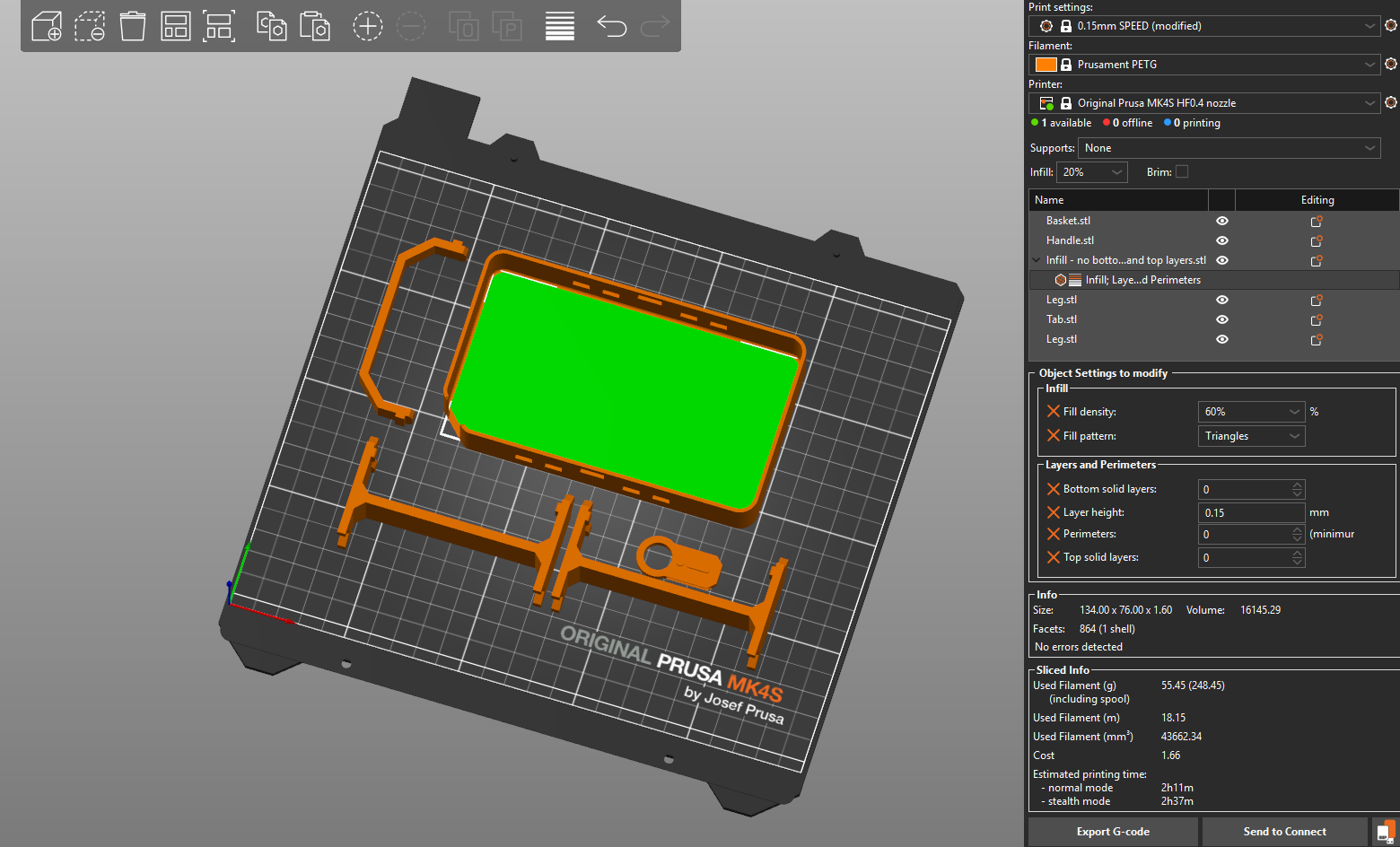

See slider screenshot below for settings and orientation (also uploaded as project file):
