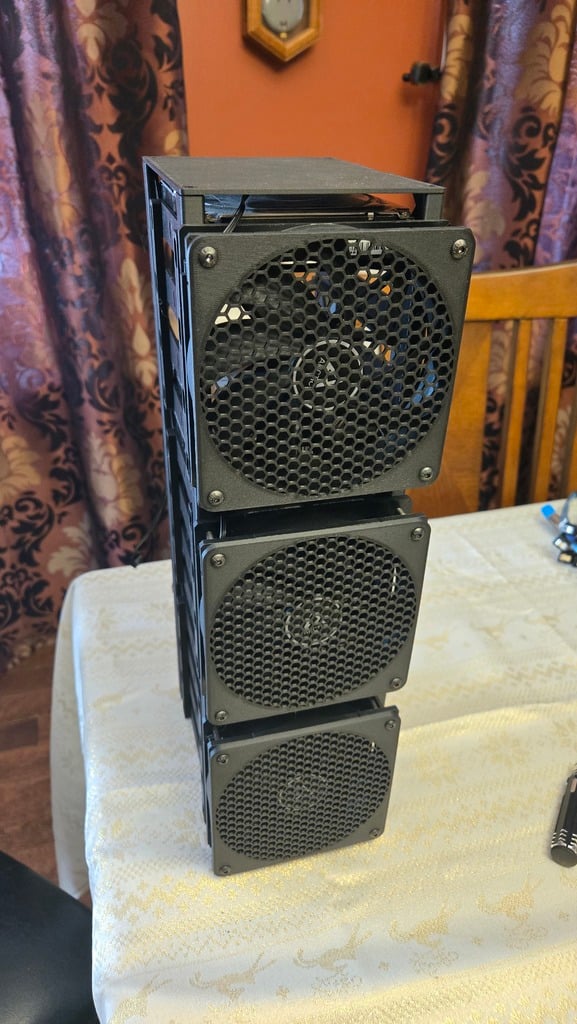

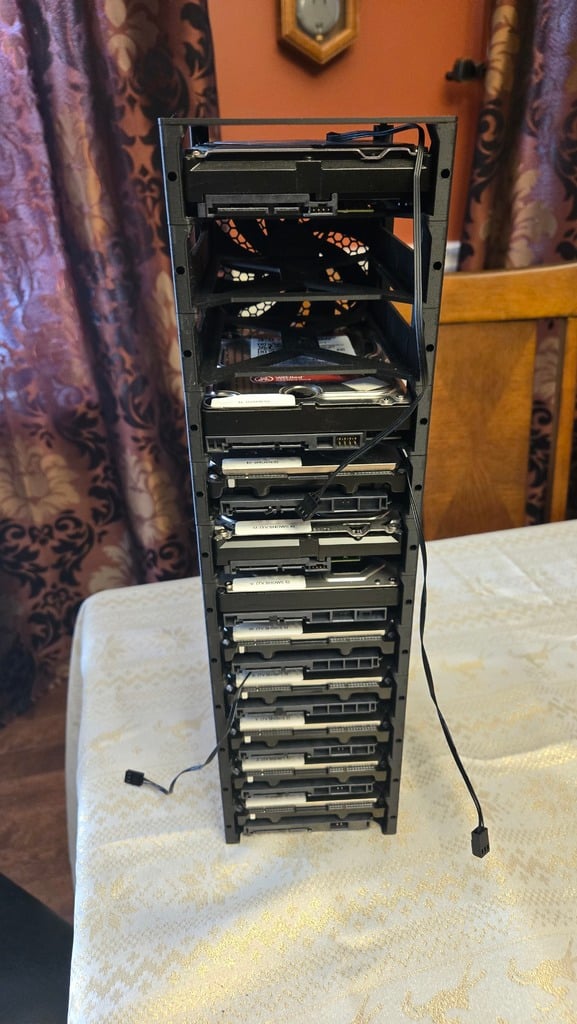

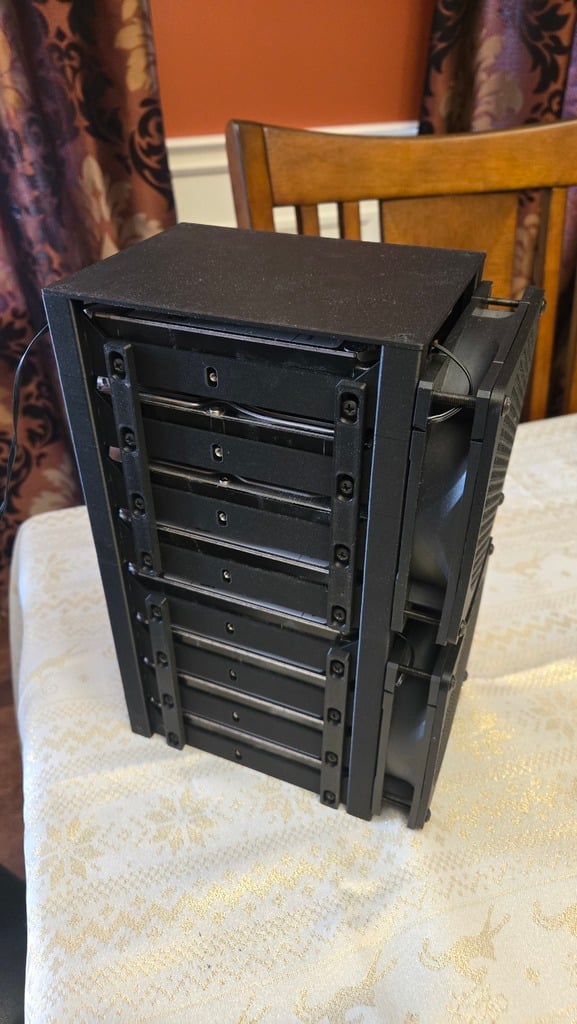

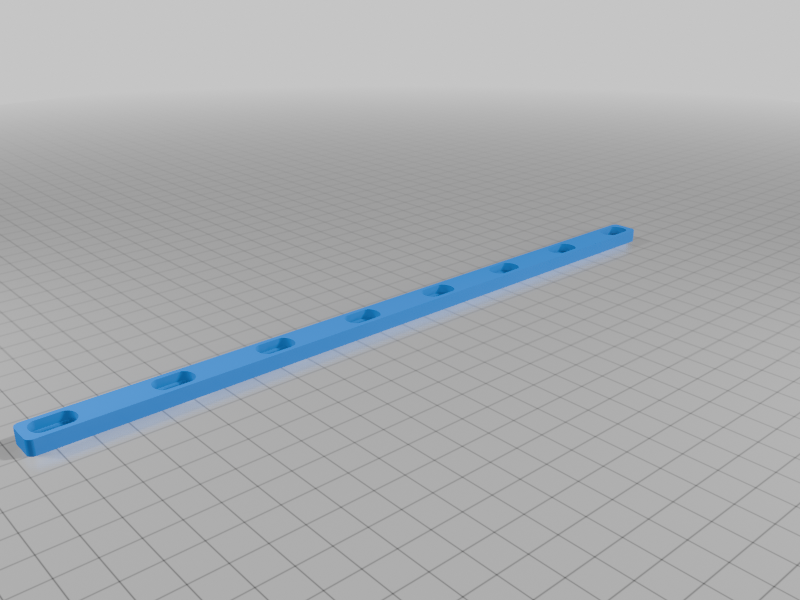

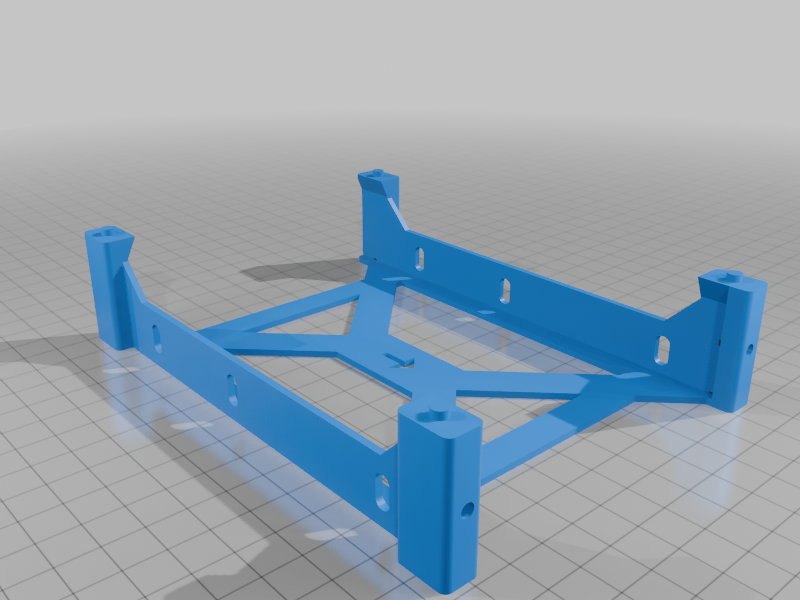

I got tired of the big case I was using to hold my hard drives for my media server so I designed these stackable trays. These can be stacked quite high and have 120mm fan mounting holes on the front via M4 35mm bolts. There are also mounting holes in the rear if you wanted to design a bracket or something for cable organization or whatever you want but I don't think that's really necessary. Arrow cutout in the tray shows the direction the HDD's slide into and points towards the front. You can also use the connector pieces if you have multiple stacks side by side so they stay together.

Note* The 120mm fan grill in the photos is not my design. This came from user mightynozzle and can be found at the following link. You could also print one of his other 120mm designs if you so choose but the one I printed is named 120mm_honeycomb_full_fan_cover.stl. [https://www.thingiverse.com/thing:2802474](https://www.thingiverse.com/thing:2802474)

Print Settings

Printer Brand:

Creality

Printer:

Ender-3 V2 Neo

Rafts:

No

Supports:

No

Resolution:

.2mm

Infill:

20%

Category: Other
