Geared phone holder

A new, completely redesigned 3rd version of the popular phone stand. This time the gearing is inside the arc, making the stand lower and more stable. It is a little wider than the previous one.

For phones from 75mm wide. The charging hole is in the middle of the holder in the front.

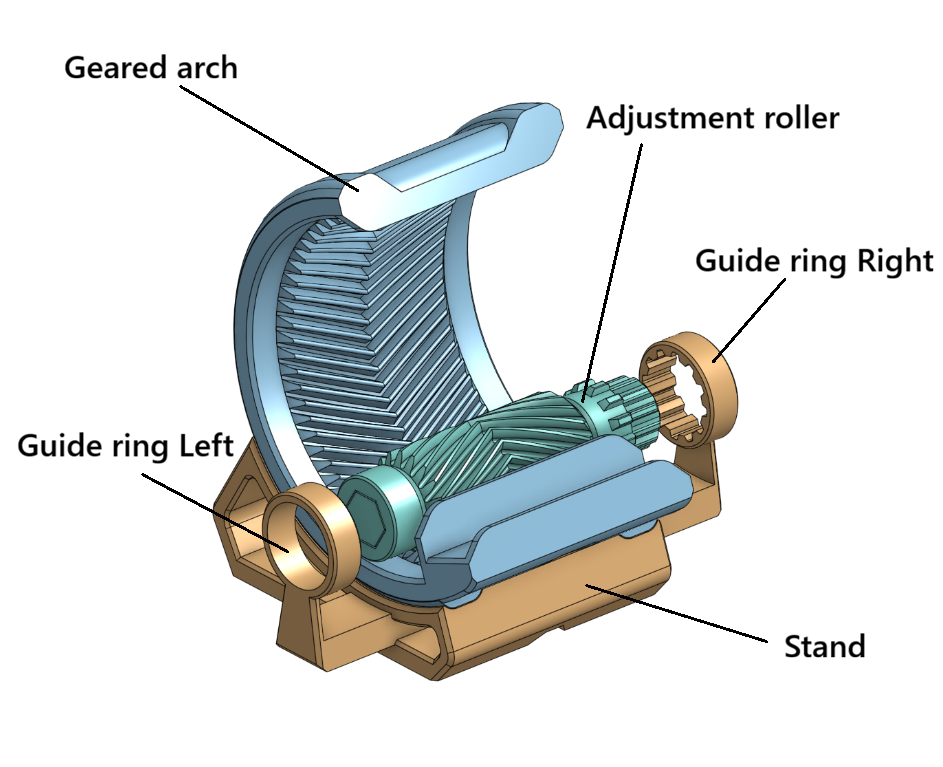

I wanted to make the stand Print-in place, but it would require a lot of restrictions. It has 5 parts, assembly is easy. The adjustment wheel is on the right side, if there is interest, I will turn the helix and make it for left-handed people.

For fine angle adjustment, the wheel has 12 grooves.

Because the parts have a small contact area, you can also use a brim, be careful not to get the hex inside the adjustment roller. I printed without a brim - then it helps to clean the printing plate with Isopropyl and gently roughen it with a scotch brite
