Parametric U Bracket
A fully parametric U-shaped mounting bracket designed in OnShape. Configure every dimension to match your exact use case — width, height, bracket depth, wall thickness, and hole size.
Parameters
Parameter | Range |
|---|---|
Width | 40 – 100 mm |
Height | 20 – 100 mm |
Thickness | 3 mm |
Bracket depth | 20 mm |
Wide | 20 mm |
Hole | 5 mm |
Want a custom size?
The source model is fully parametric on OnShape (no account needed):
How to configure in OnShape
Open the link above (sign in or create a free OnShape account)

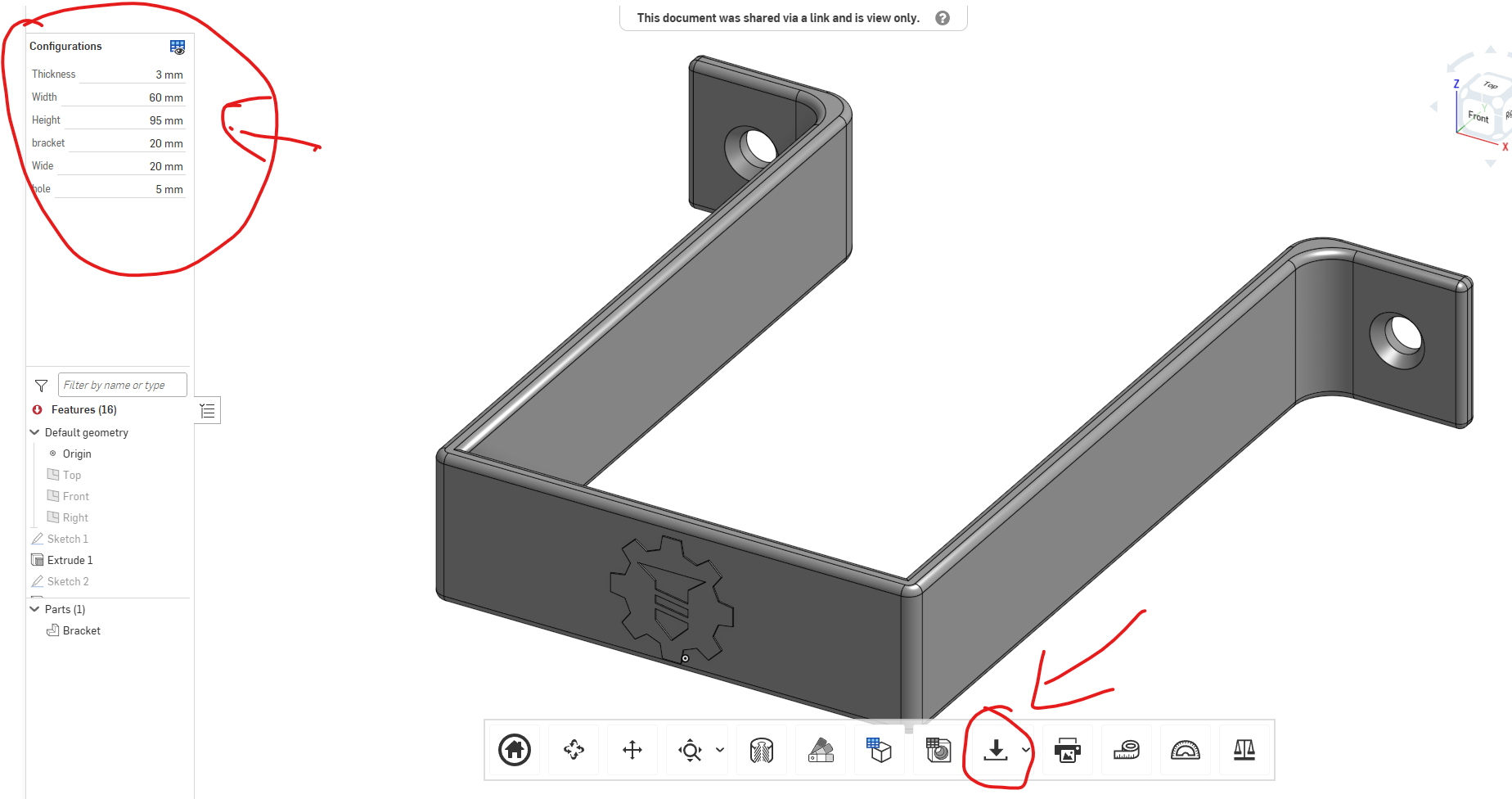

Click the configuration panel icon in the top-let of the viewport (sliders icon)
Adjust the parameters to your desired dimensions
Click File → Export and choose STL, STEP, or 3MF
Print!
Files included
Pre-exported variants covering common sizes are attached. All files are available in STL, STEP, and 3MF.
Files exported with onshape-permutation-config-exporter — an open-source tool for batch-exporting parametric OnShape models.
