Modelo 3D Mechanical Hand Fan por kahanpatel no Printables

Descrição

Here are the Assembly Instructions:

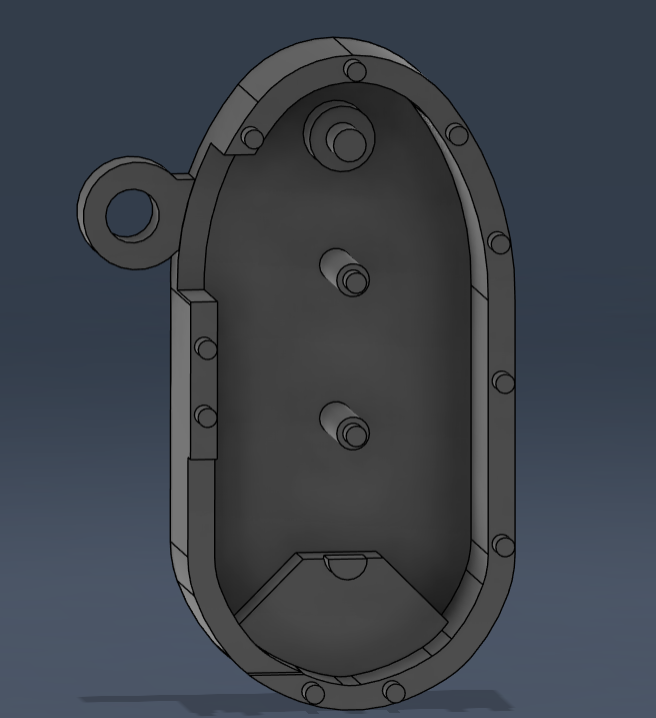

1) This is the base model.

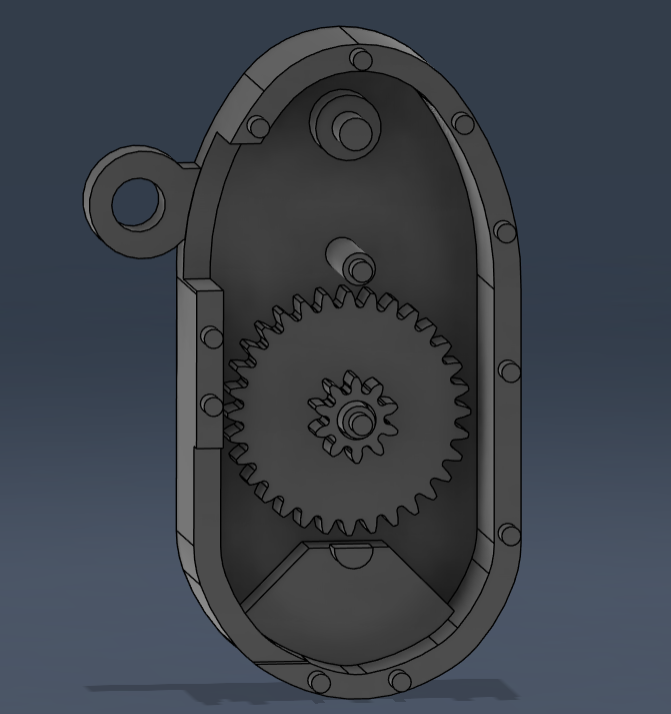

2) Firstly, place the biggest gear (30teeth) on the second axle of the main body.

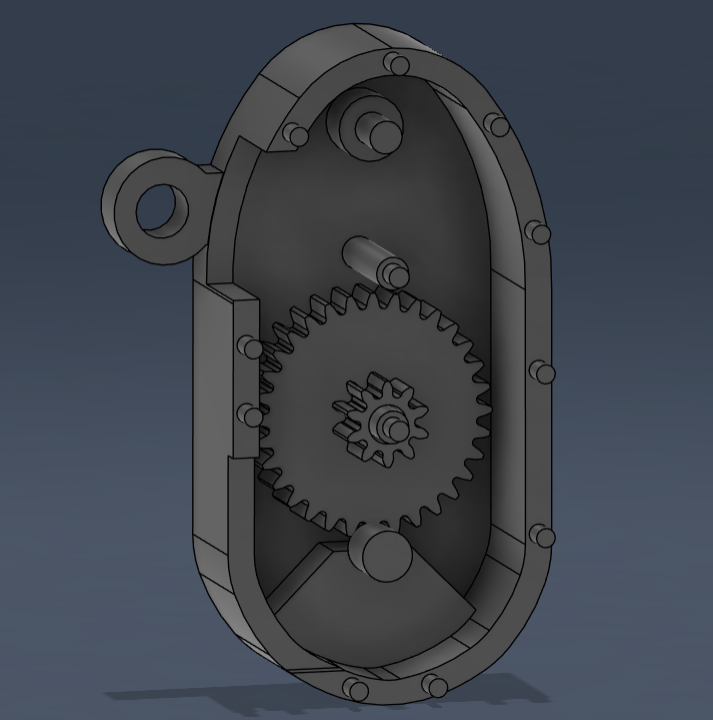

3) Now, attach the cylinder with a square hole to the first gear's axle (bottom most) connection.

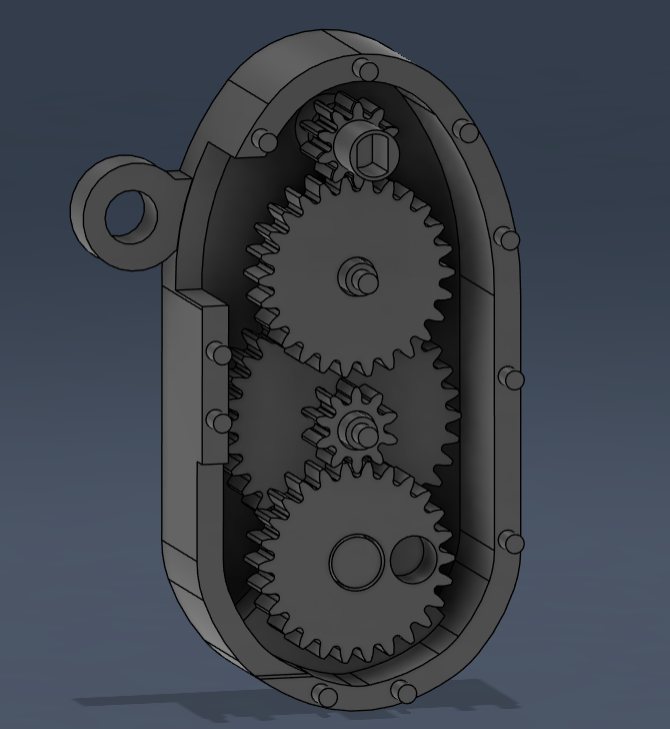

4) Then, attach the first and third gear as shown: first single gear (with the hole) at the bottom most axle/cylinder, and the third gear with 26teeth (the bigger gear). And attach the fourth gear (smallest gear) on the top most axle/cylinder).

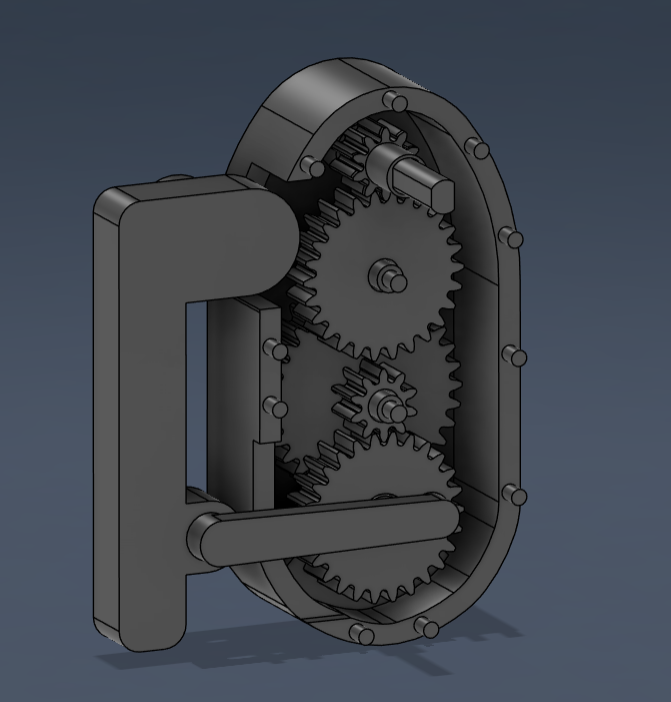

5) Next attach the handle to the side hole of the main body (highlighted as blue in the image)

6) Then attach the connecter's one side to the handle bottom hole, and the other side to the first single gear's hole (joints highlighted in blue below).

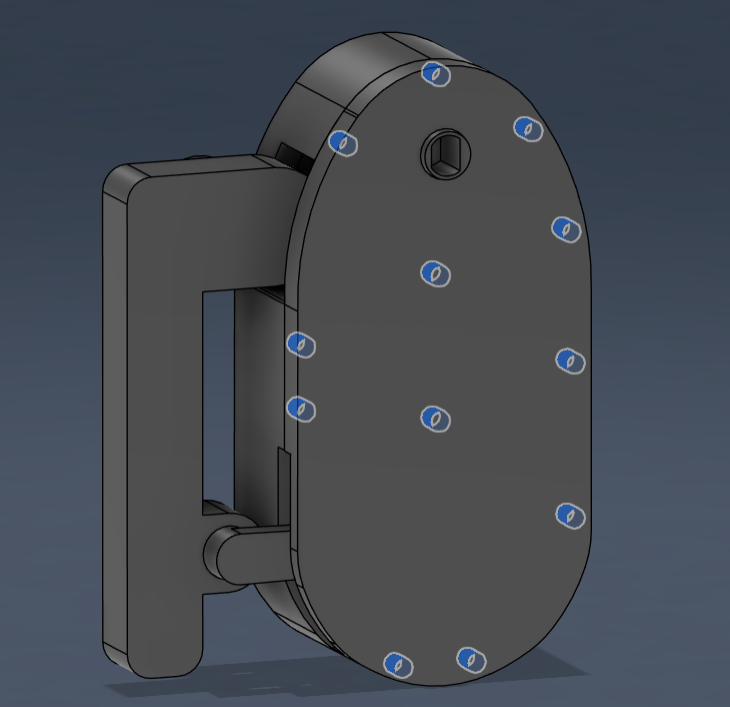

8) Attach the cover body through the joints (highlighted in blue).

9) Attach the 'axle' to the fourth gear's connection hole.

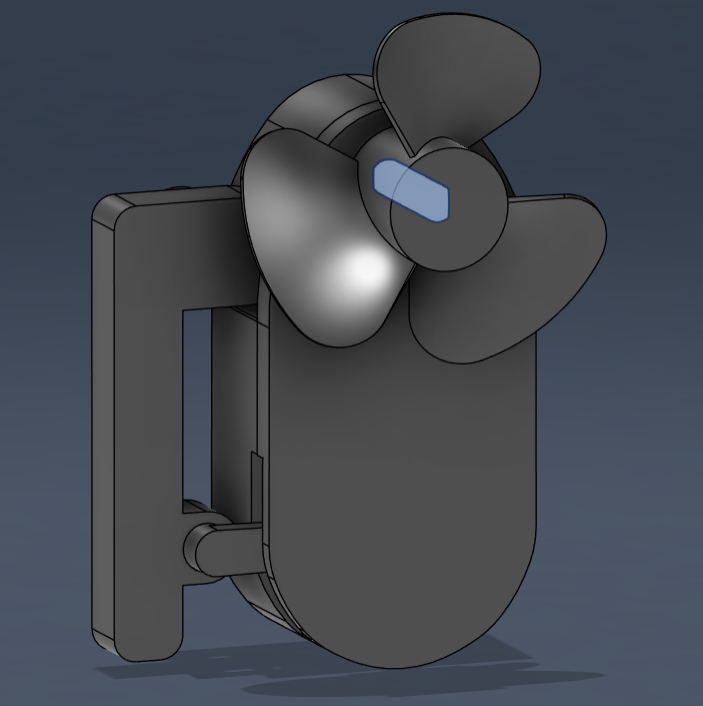

10) And finally, connect the propeller through the axle.

Printables

Mechanical Hand Fan

Publicado em 31 de mai de 2026

726
Curtidas
3,460
Downloads
5
Impressões
Categoria Tools
Tags
fan handfan mechanicalhandfan
Licença Creative Commons — Public Domain
Arquivos (7)
FOR PRINTERS (Updated Model).3mf 745.9 KB
Model (Updated Model).3mf 854.6 KB
Model (Updated Model).f3d 10.3 MB
Model (Old Model).3mf 624.6 KB
Model (Old Model).stl 2 MB
Model (Old Model).step 9.4 MB
Model (Old Model).f3d 6.2 MB
