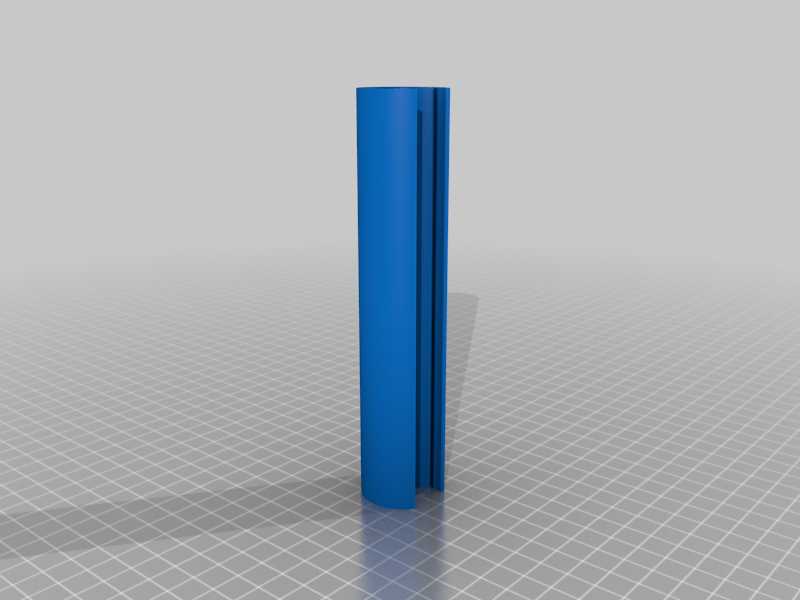

Body printed in vase mode, solid base pops out very easy.

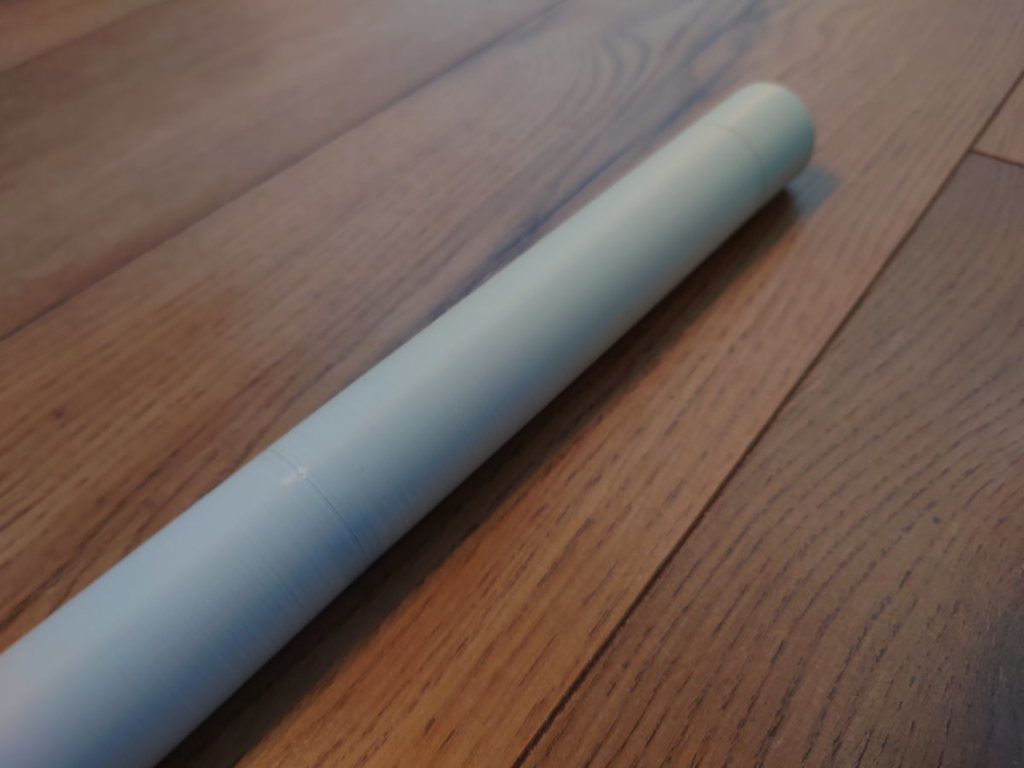

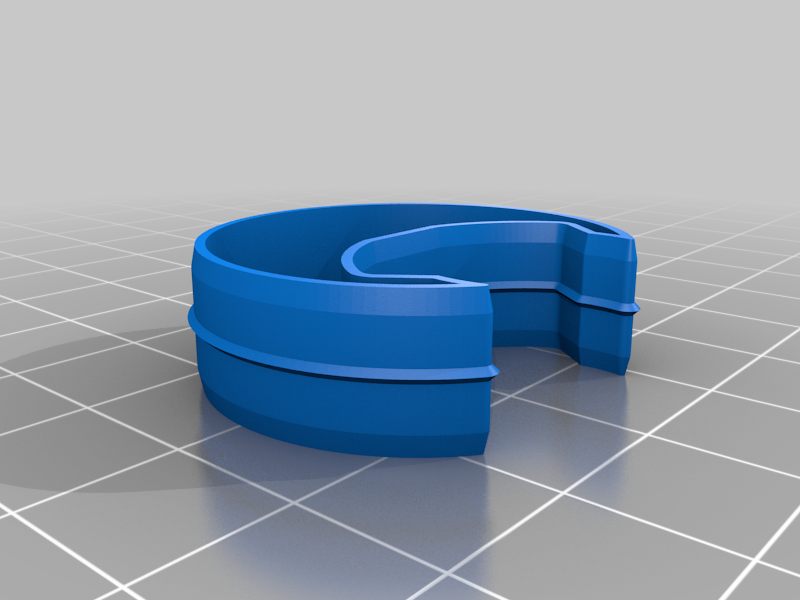

Body sections glued together with couplers.

Tapered End caps press fit into body.

Assembly:

• Glue lengths of body and couplers

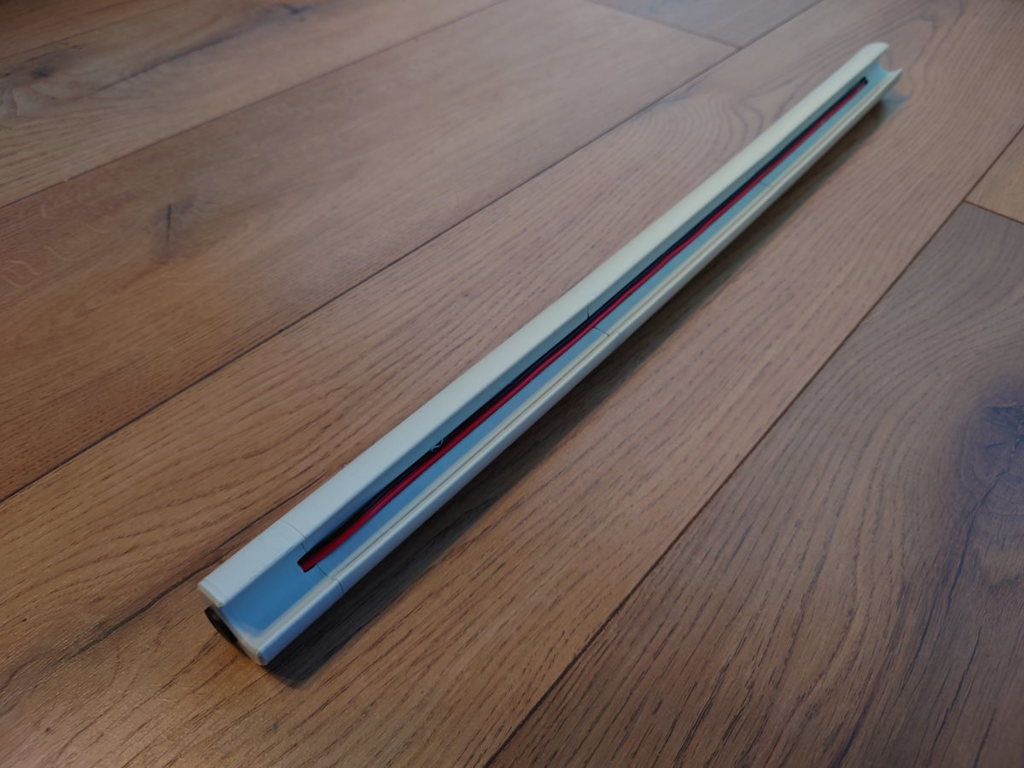

• Route led strips through slots (wires pre-soldered)
• Install sockets into endcaps, pre-soldered wires (1 long that runs through the groove in the back, one short)
• Press fit end cap with long wire into one end of the body, run cable through groove. Hold in place with some hotglue

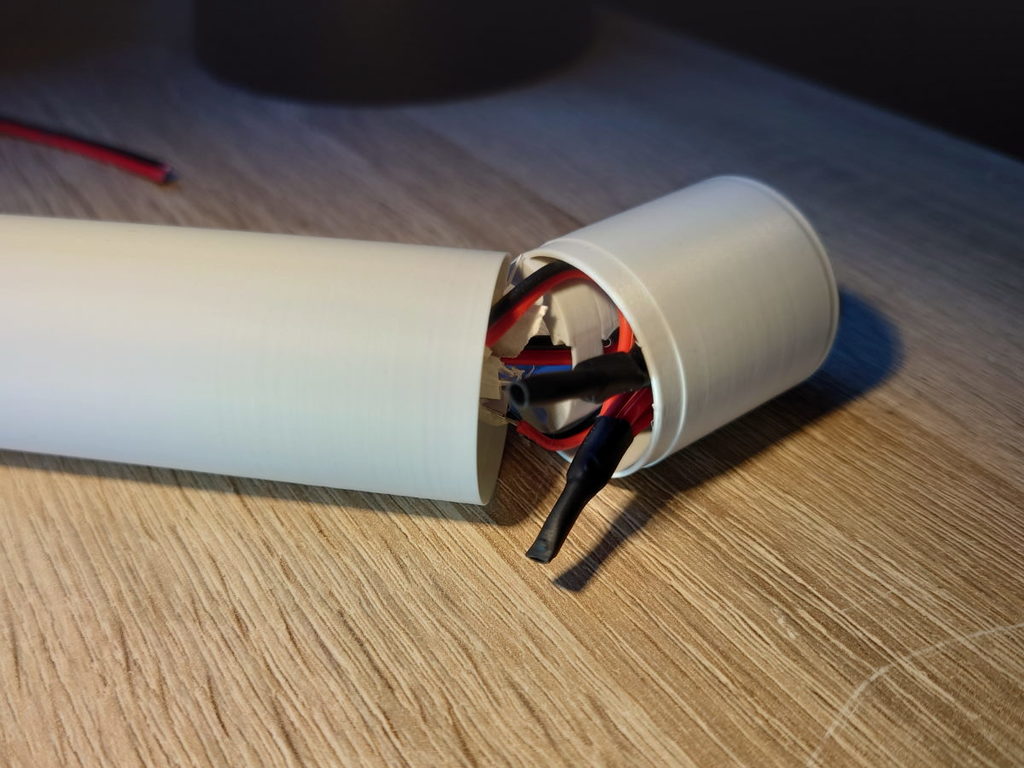

• Solder/crimp all wires together (4 pairs, 2 led strips and 2 endcaps)
• Test led strips
• Press Fit final end cap in place

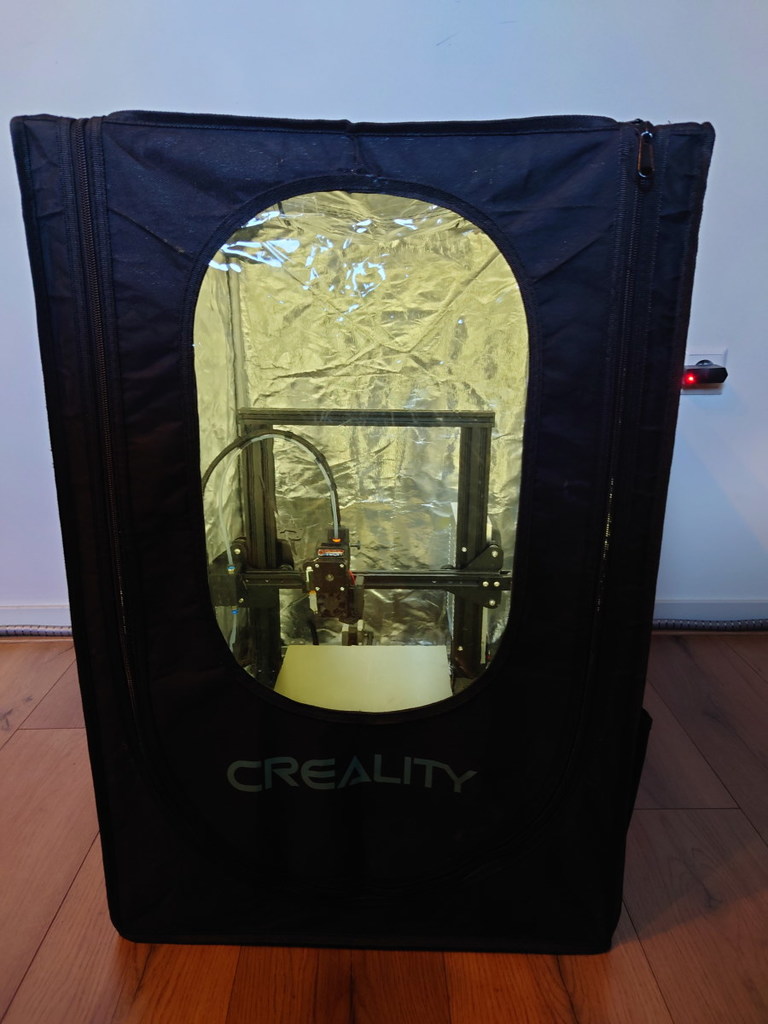

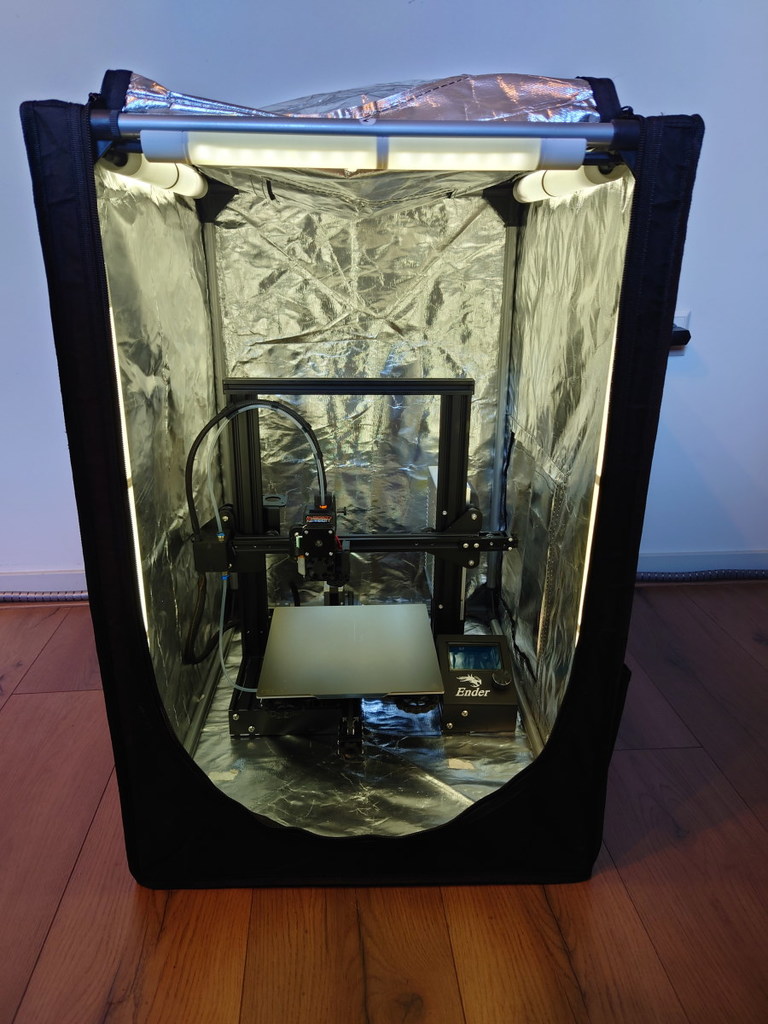

[https://www.creality3dofficial.com/products/3d-printer-enclosure-safe-quick-and-easy-installation](https://www.creality3dofficial.com/products/3d-printer-enclosure-safe-quick-and-easy-installation)

Holds two parallel lengths of LED strip: [https://nl.aliexpress.com/item/1005002230353875.html](https://nl.aliexpress.com/item/1005002230353875.html)

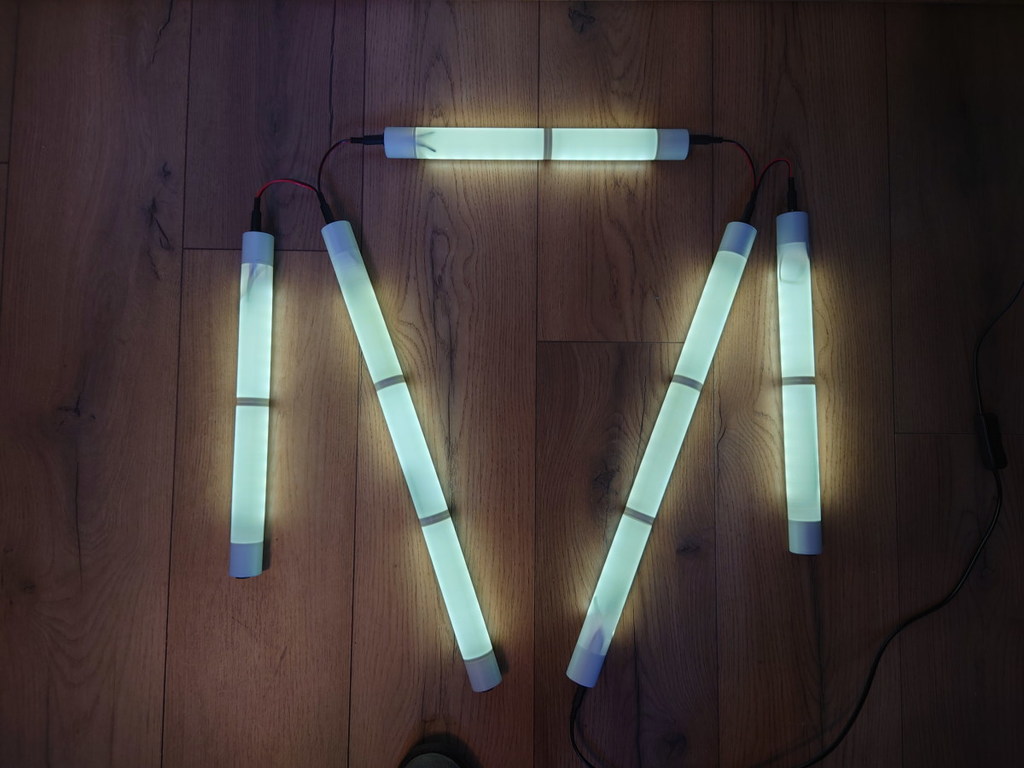

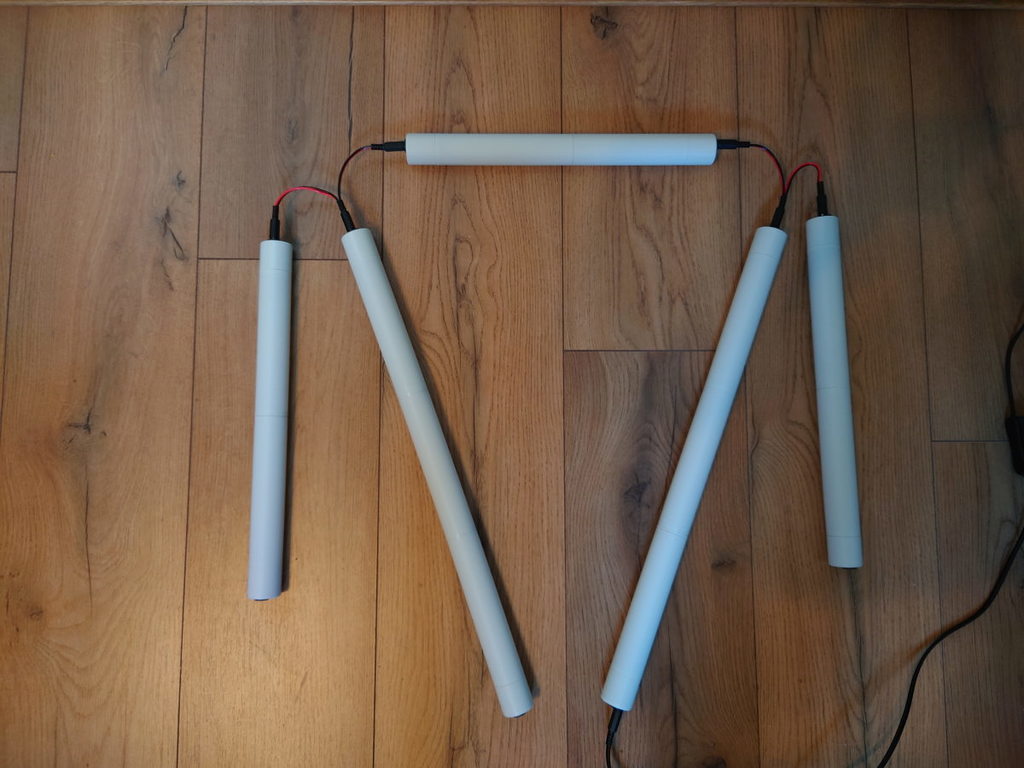

Total power consumption for 5 sections in photo ~0.6A@12V. 1A power supply is sufficient: [https://nl.aliexpress.com/item/33042352760.html](https://nl.aliexpress.com/item/33042352760.html)

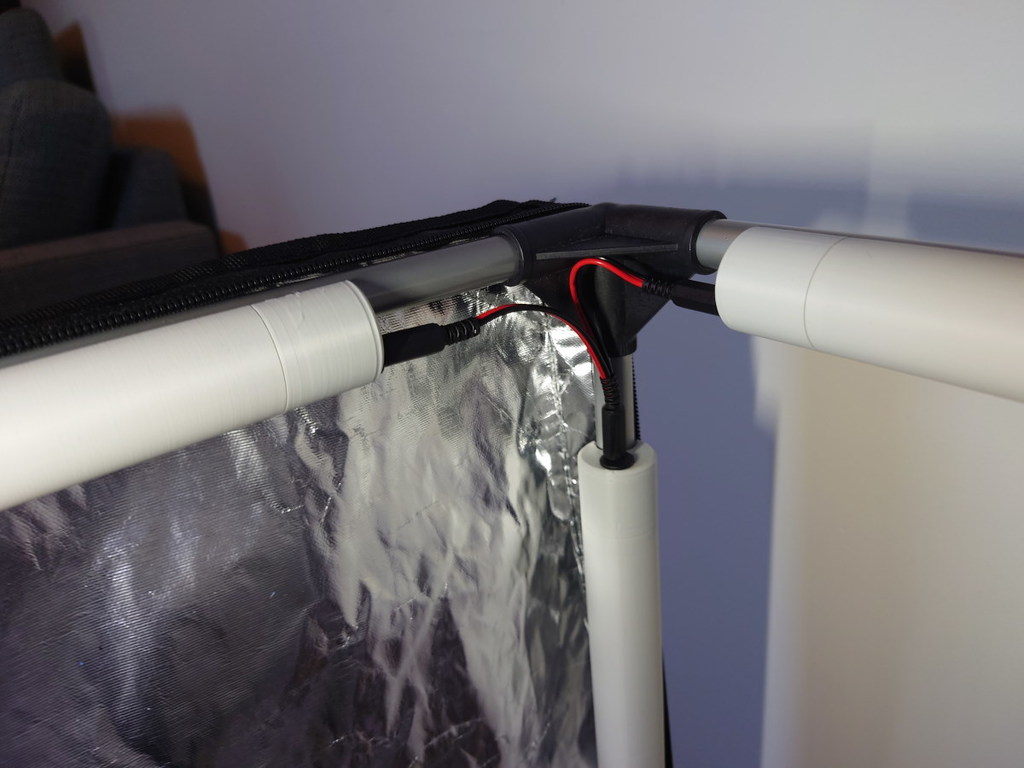

Daisy chained using 5.5x2.1 jacks: [https://www.amazon.nl/-/en/gp/product/B0957KBB6X/](https://www.amazon.nl/-/en/gp/product/B0957KBB6X/)

Onshape document: [https://cad.onshape.com/documents/10f9ffbd0c2ba9b508a94953/w/62a2540c015311c372241ba5/e/27e344c3e4b7210aae32efdb?renderMode=0&uiState=6219fc0383c4e135bdc3d133](https://cad.onshape.com/documents/10f9ffbd0c2ba9b508a94953/w/62a2540c015311c372241ba5/e/27e344c3e4b7210aae32efdb?renderMode=0&uiState=6219fc0383c4e135bdc3d133)
