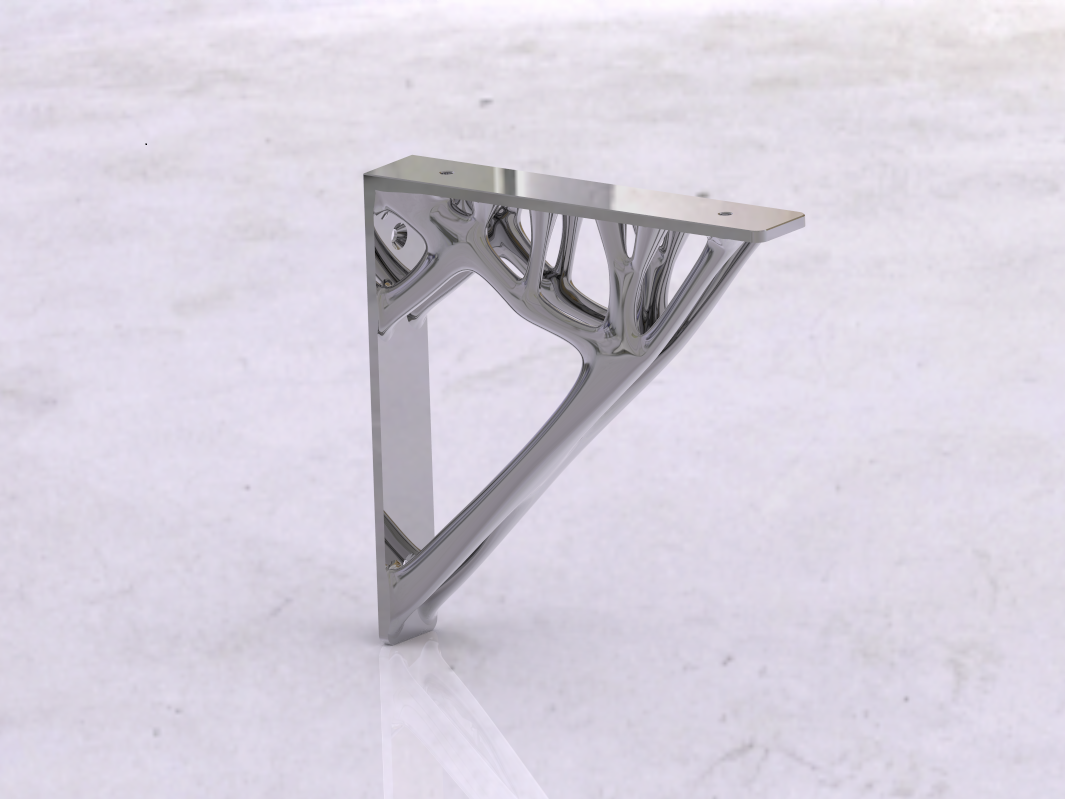

This model is a shelf bracket created using generative design, focusing on high strength with minimal material usage.
The organic structure provides a modern, technical look while remaining functional and lightweight.

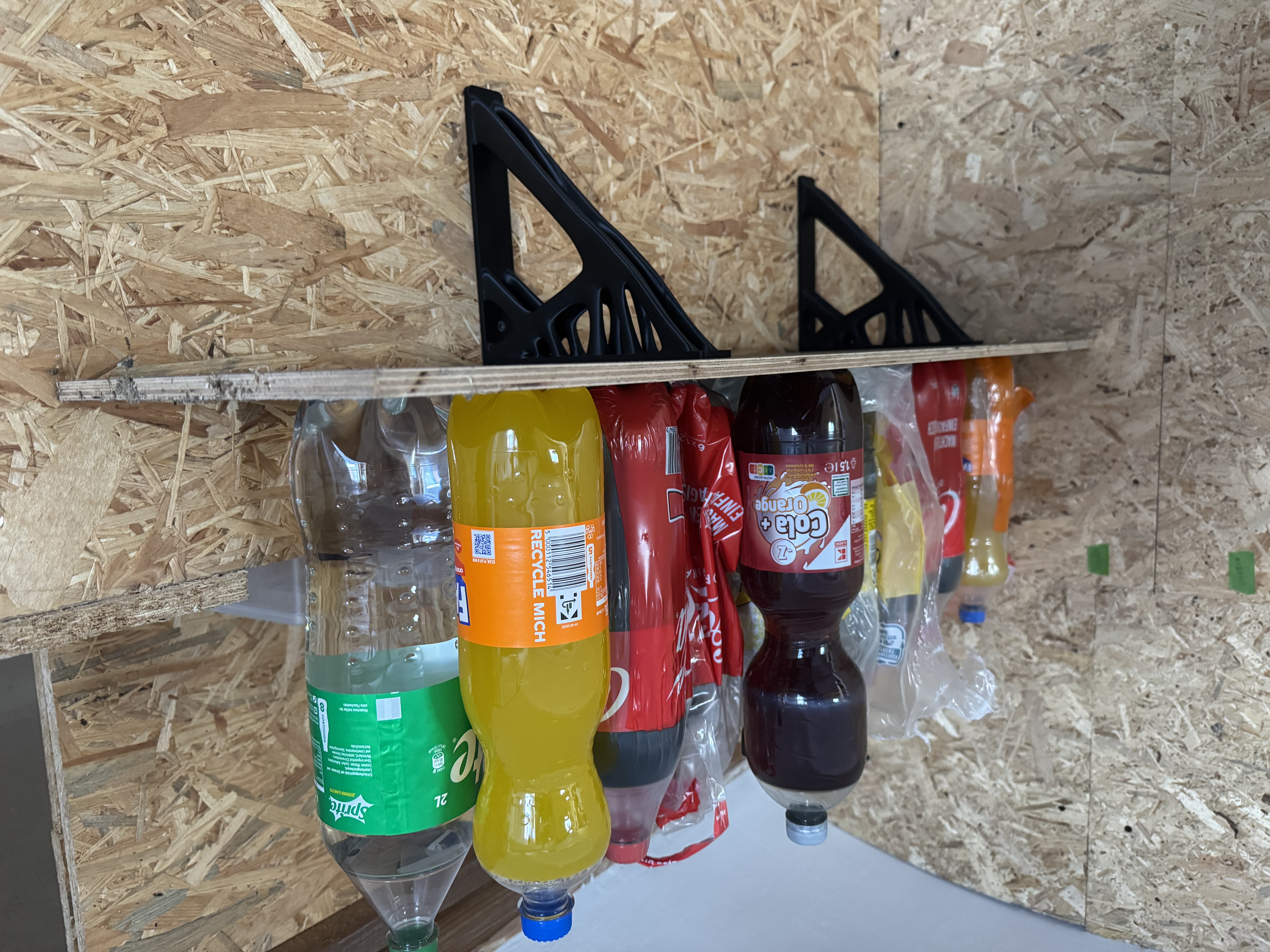

It is ideal for decorative shelves or light-duty storage applications.

Dimensions:

• Depth: 200 mm

• Width: 35 mm

• Mounting hole diameter: 5.3 mm

• Countersink diameter: 11.2 mm

Assembly / Installation

• The bracket is mounted to the wall using countersunk screws.

• Important: When fastening the bracket, do not overtighten the screws.
  Excessive torque may cause the countersunk head to split the material.

• Use suitable wall plugs depending on wall material (concrete, drywall, wood).

Print Settings & Recommendations

• Recommended material: PLA+, PETG, or ABS

• Layer height: 0.2 mm

• Infill: 20–30% gyroid or cubic

• Perimeters: 3–4 walls

• Supports: Not required
