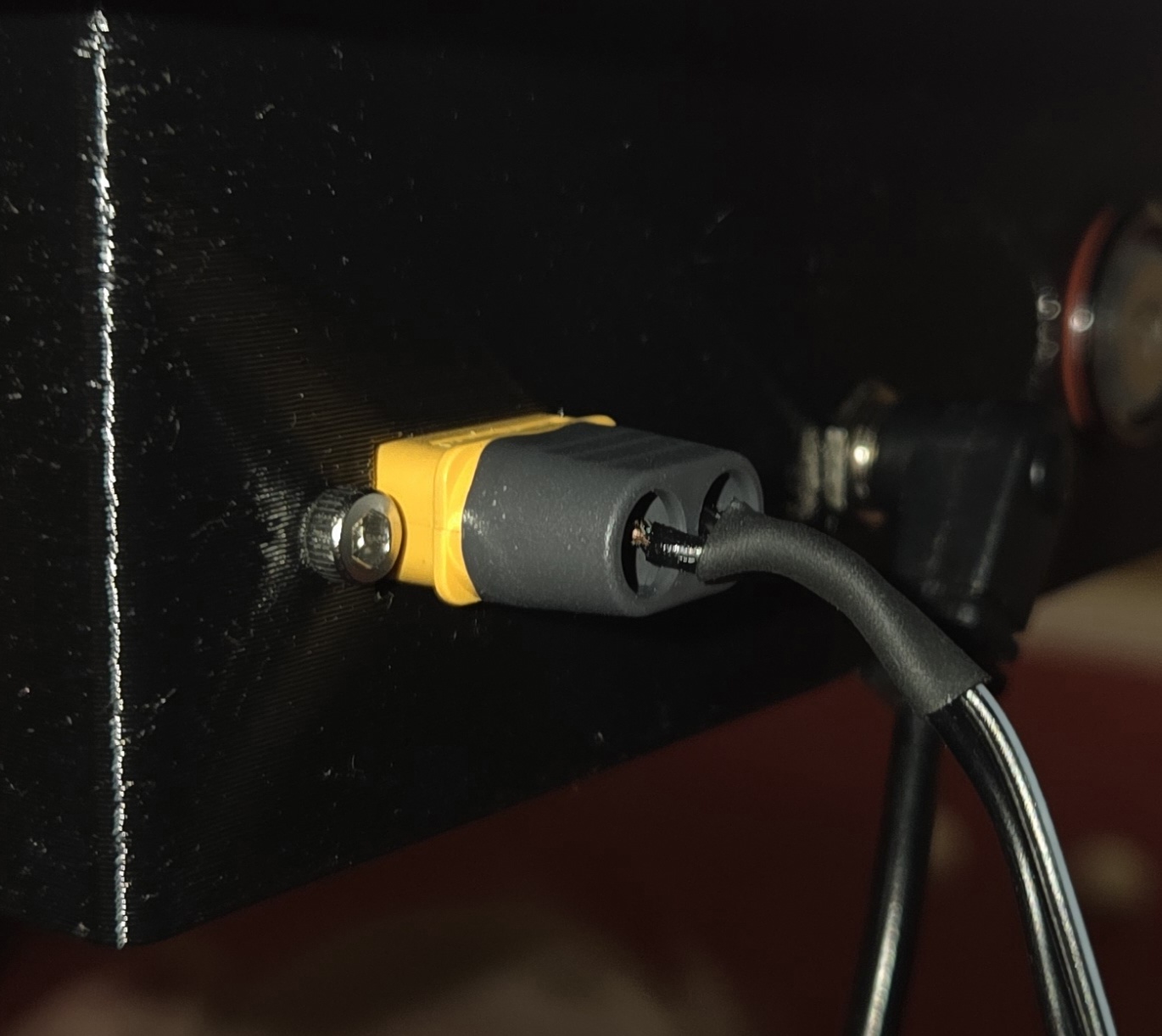

XT60H Panel Mount
Two options, flanged or not flanged
Clamps are specific for each type.

Mounting holes:
CC for flange 37 mm
CC for no flange 24.5 mm

Hardware used:

• Socket head cap screw M3x10 or longer for the clamp.

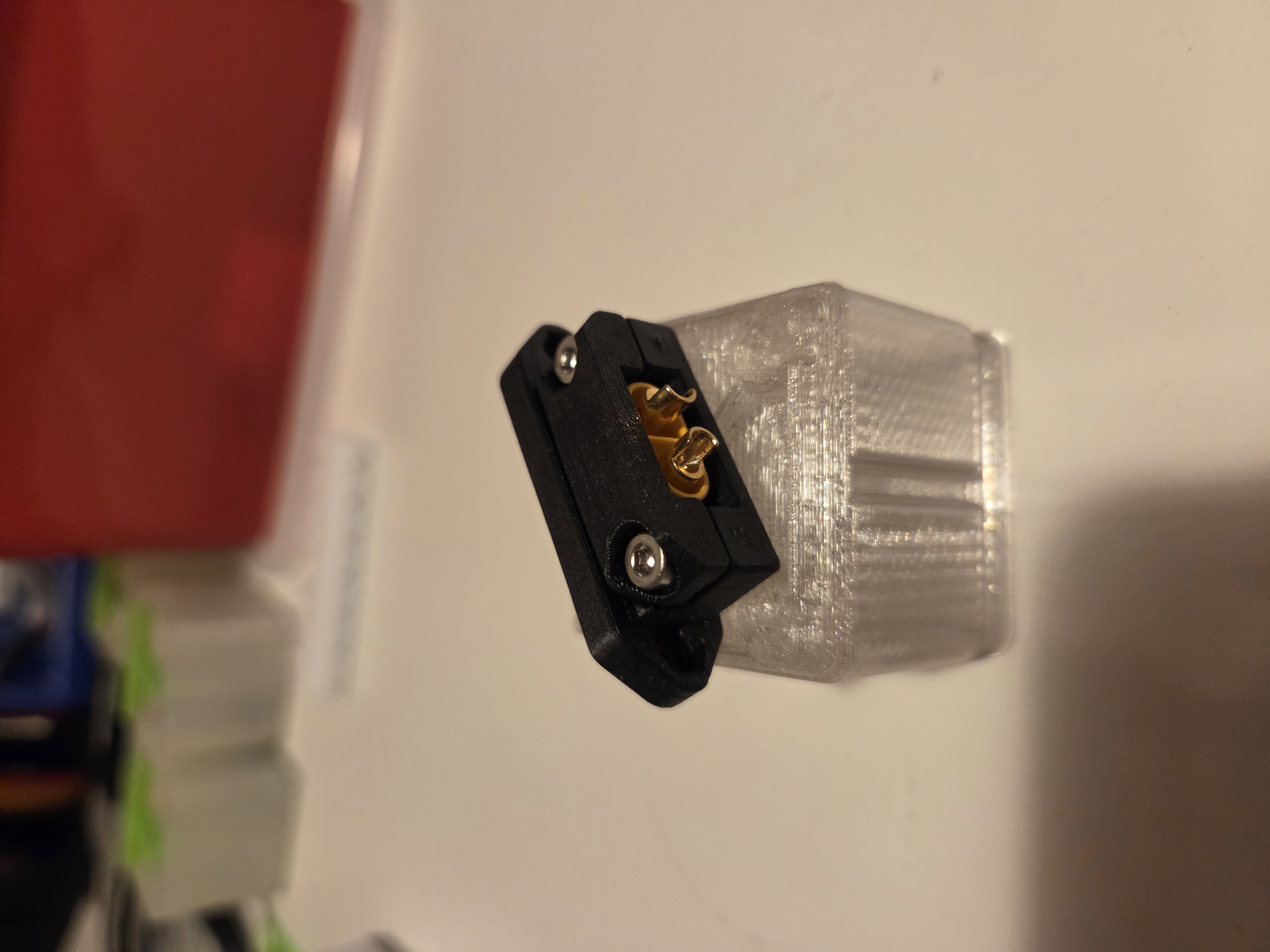

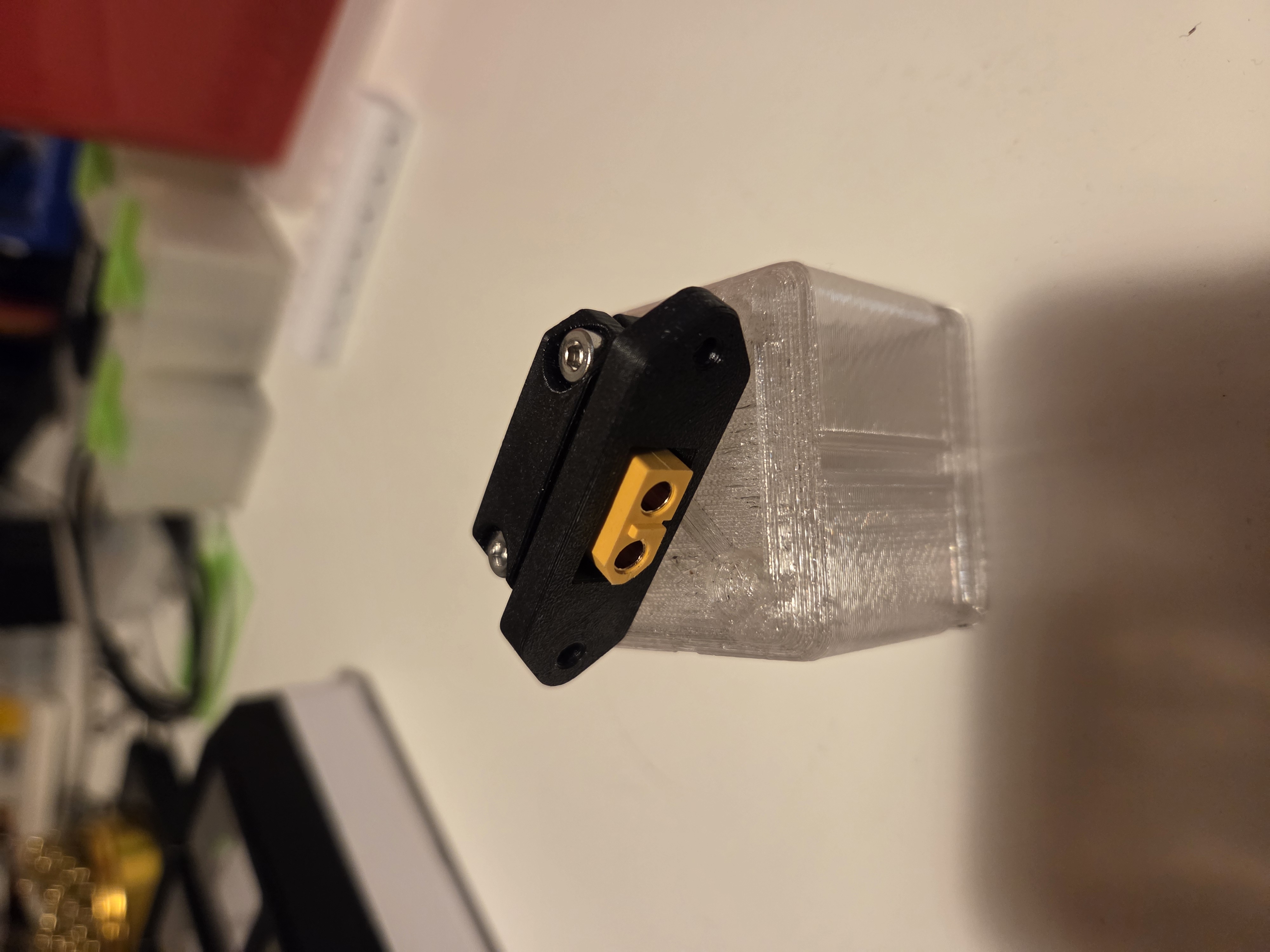

• Screw length for "Flange" mount is minimum 6mm for 1mm thick panel.
  Since it is a through hole any length longer than that can be used

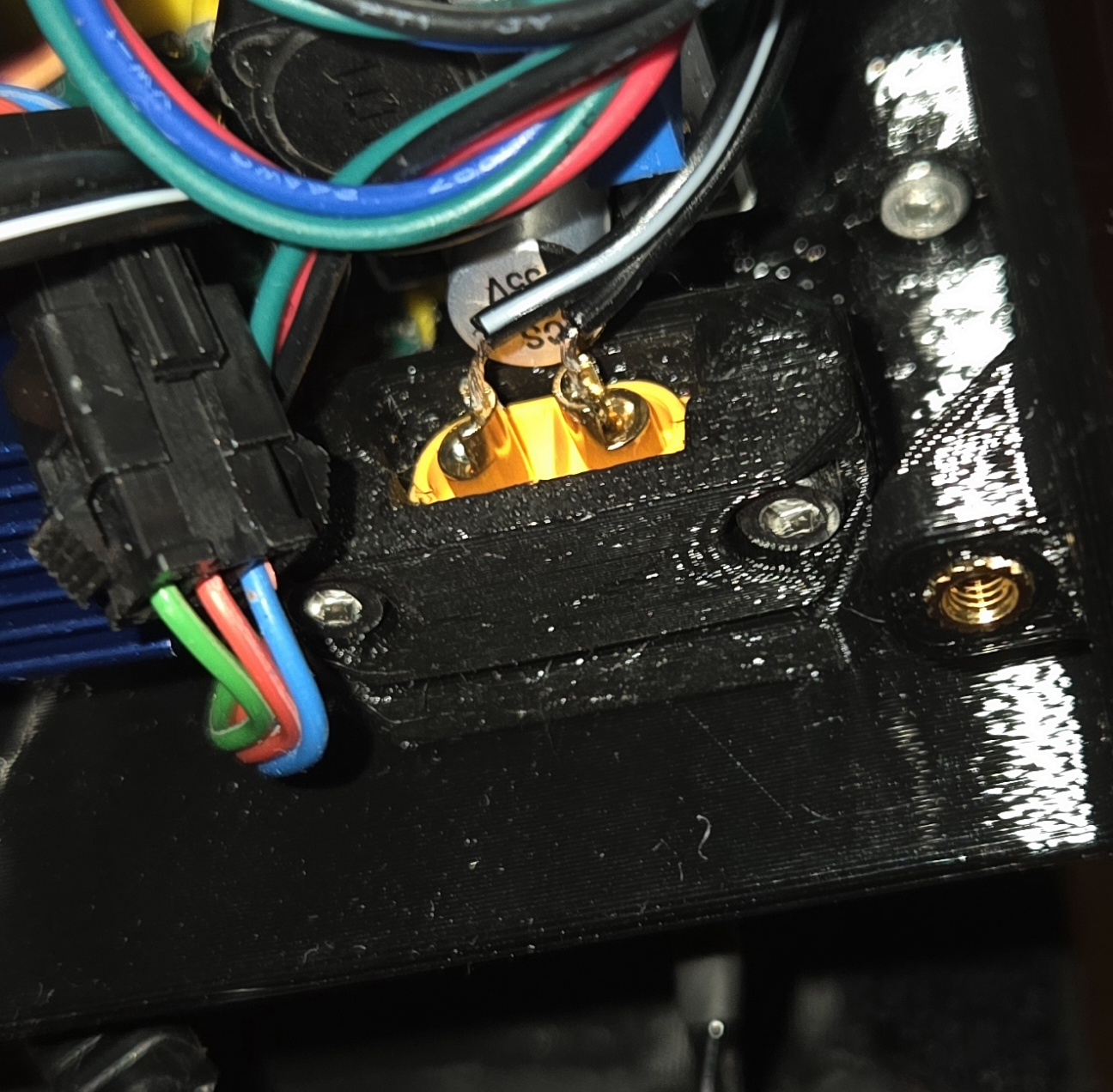

• Screw length for "No flange" mount is 6mm+panel thickness.


• M3 Nuts or Threaded insert size M3x5x4, Voron standard. 5mm outer dia, 4mm height.
