Descrição
To build your swinging glyph, in addition to the 4 printable templates, you will need:
2x M3x16 countersunk screws
4x M3 washers
2x M3 nuts (or 1x M3 self-locking nut)
You may need a drop of glue to secure the crank to the wheel.

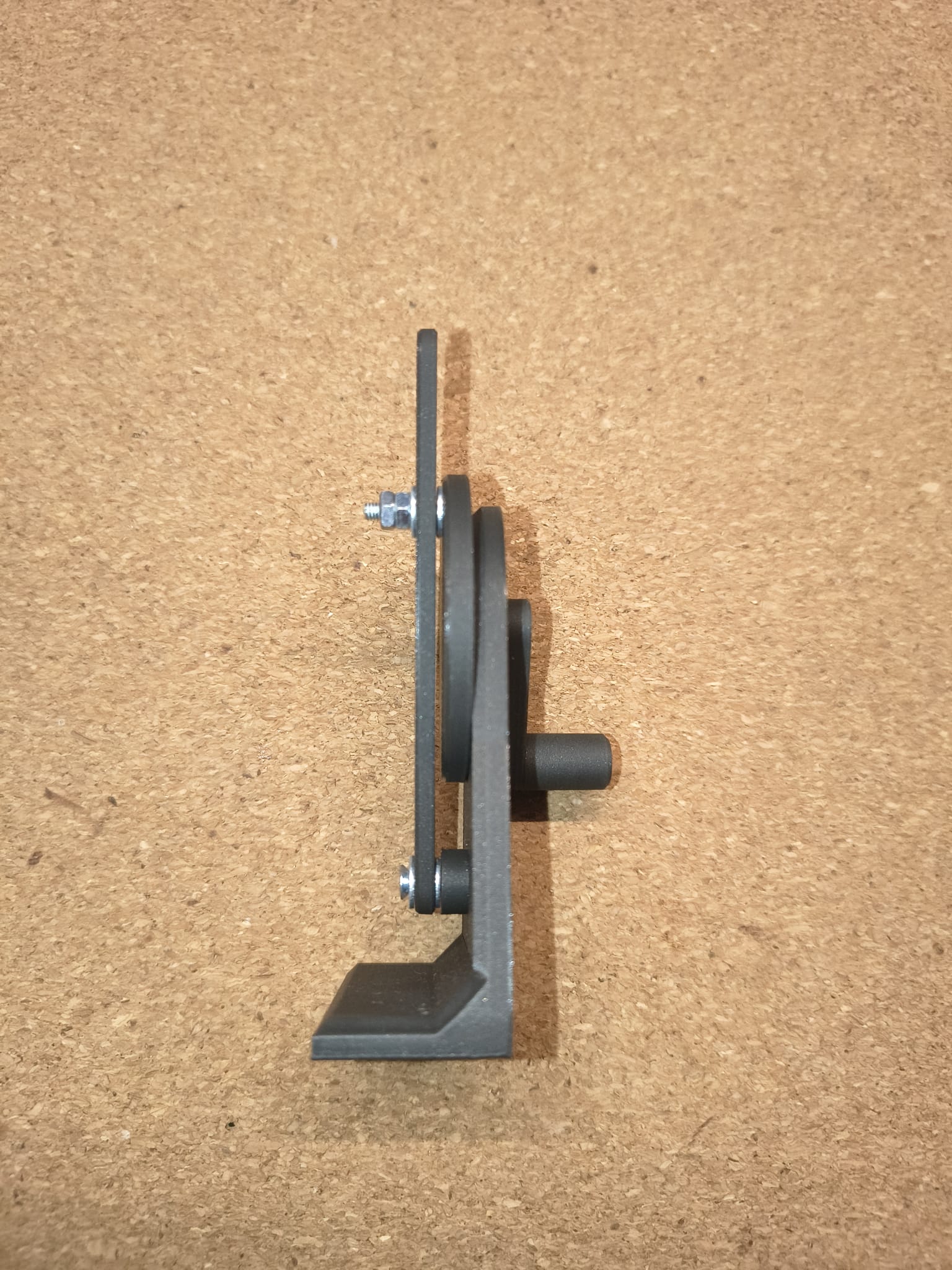

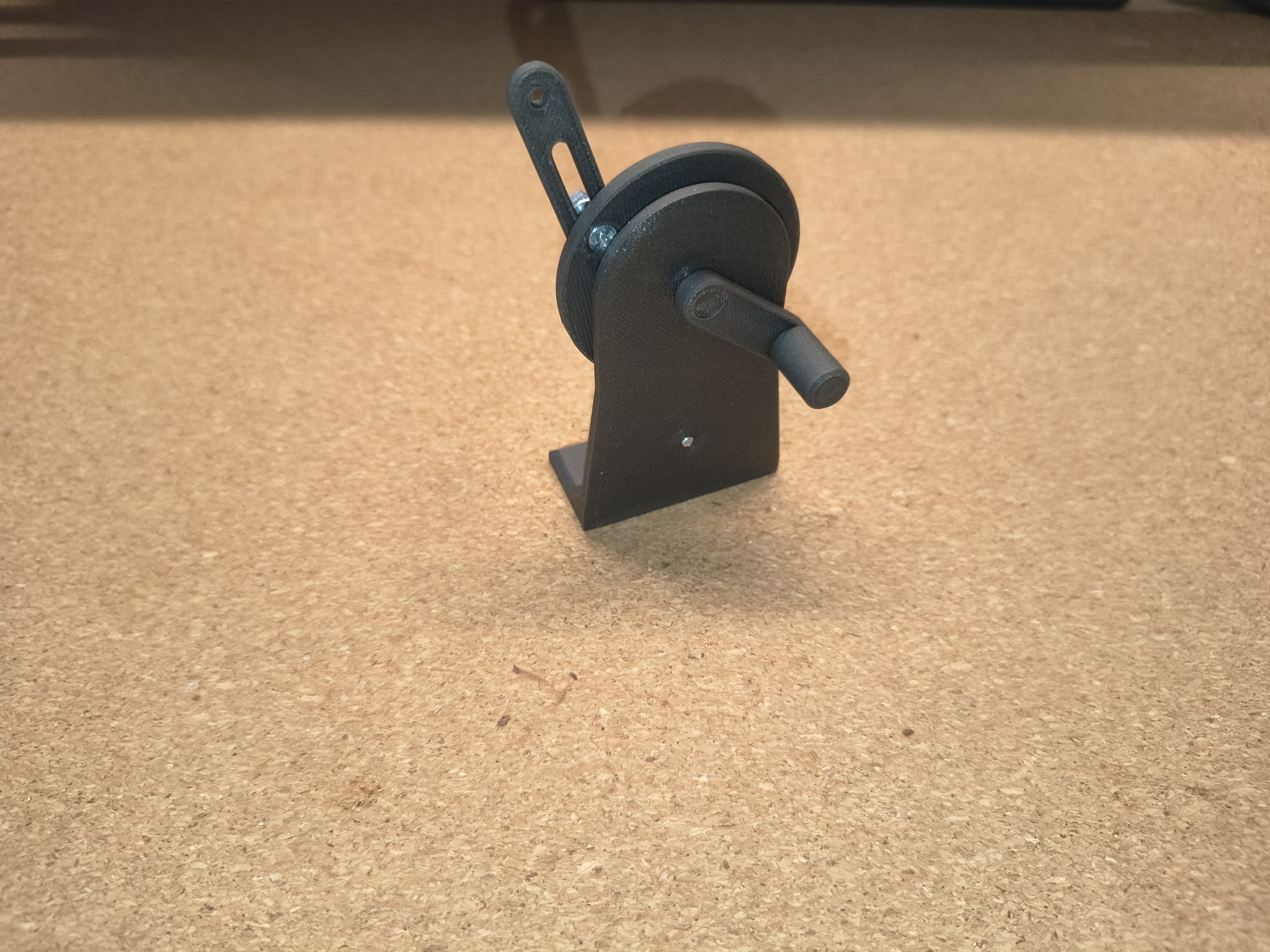

Assemble everything as shown in the photo without overtightening the screws.
0
Curtidas
4
Downloads
Categoria
Engineering
Tags
mechanical
crank
glyph
sistem
Licença
GNU General Public License v2.0
Arquivos (4)
Oscillating glyph crank handle.stl
97.3 KB
Oscillating glyph rod.stl
65.3 KB
Oscillating glyph frame.stl
60.8 KB
Oscillating glyph wheel.stl
106.7 KB
