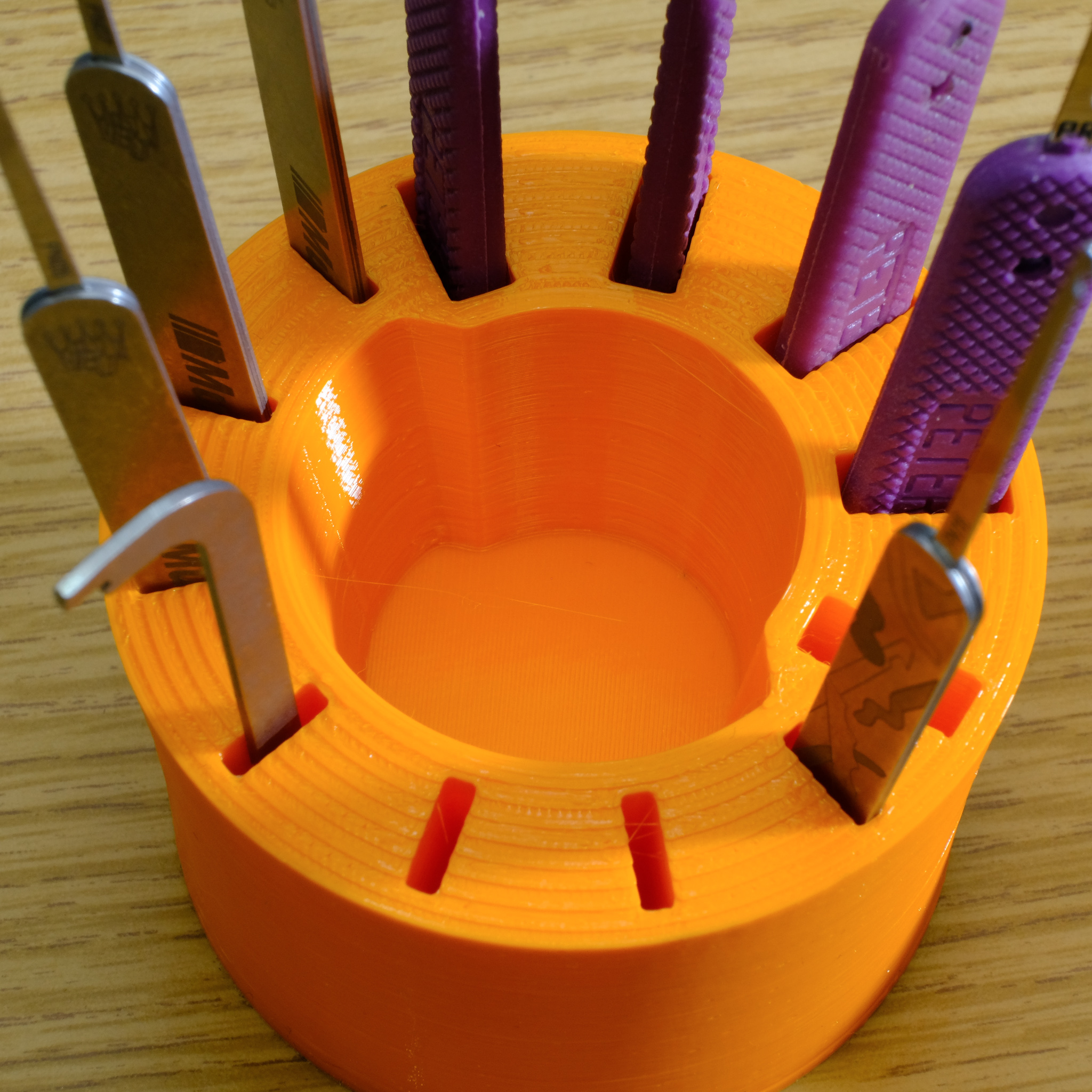

A variant of my Rotating Sharpie Caddy designed to hold lock picks. Has slots for five Peterson picks and seven Multipick picks. The thinner Multipick slots do a fine job of holding top of the keyway tension tools.

Design

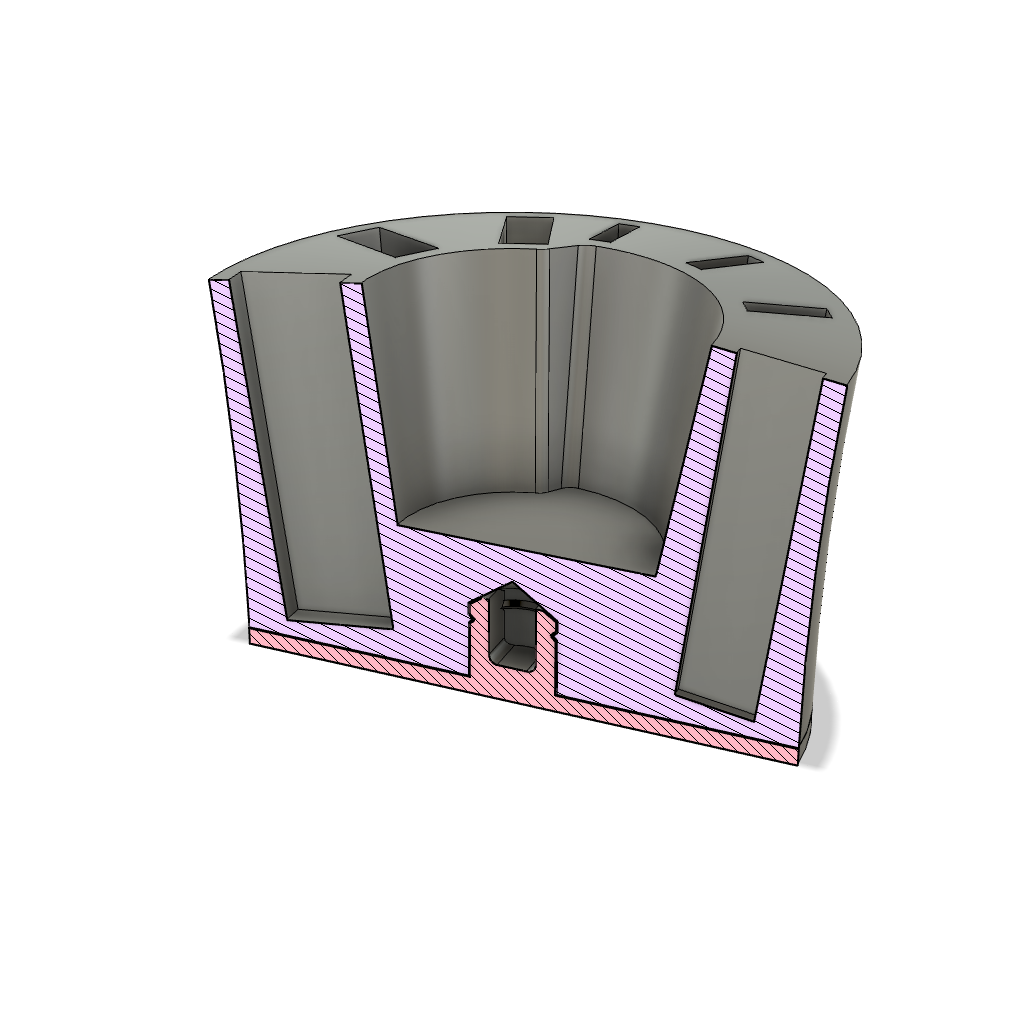

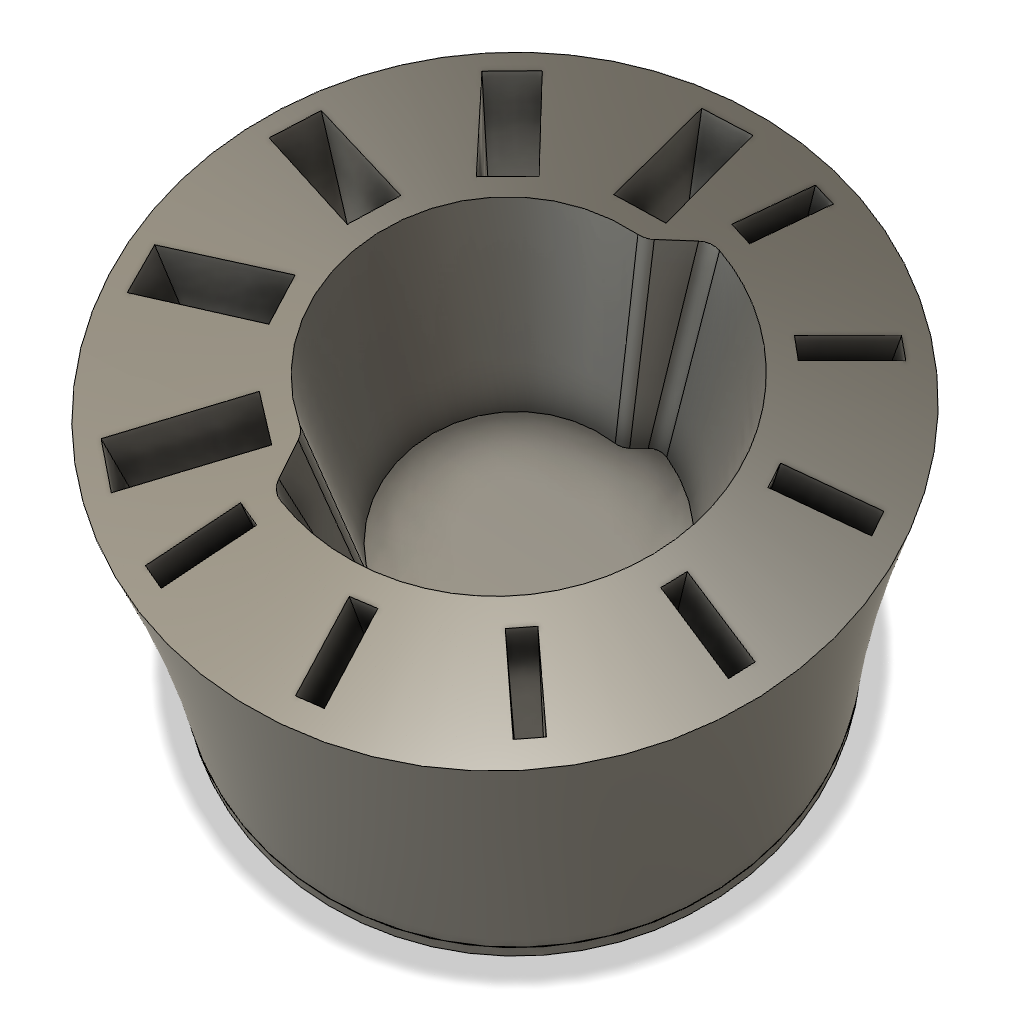

Parametric design done in Fusion 360. Height, pick angle, wall thickness or base-to-caddy clearance are easy changes. Changing the number or sizes of slots are doable but require a bit of work. If you modify it please share your make so I can see what you did with it!

Printing

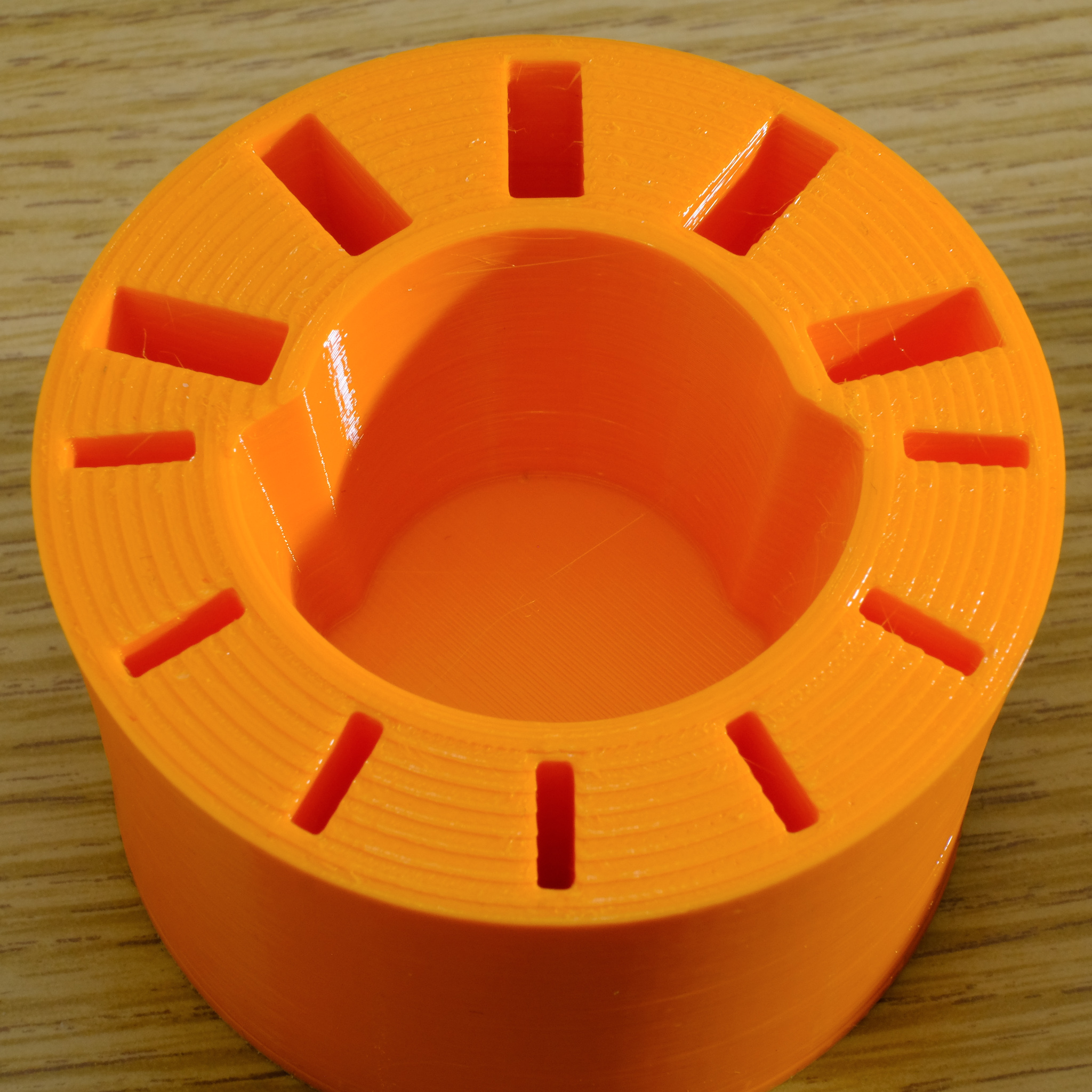

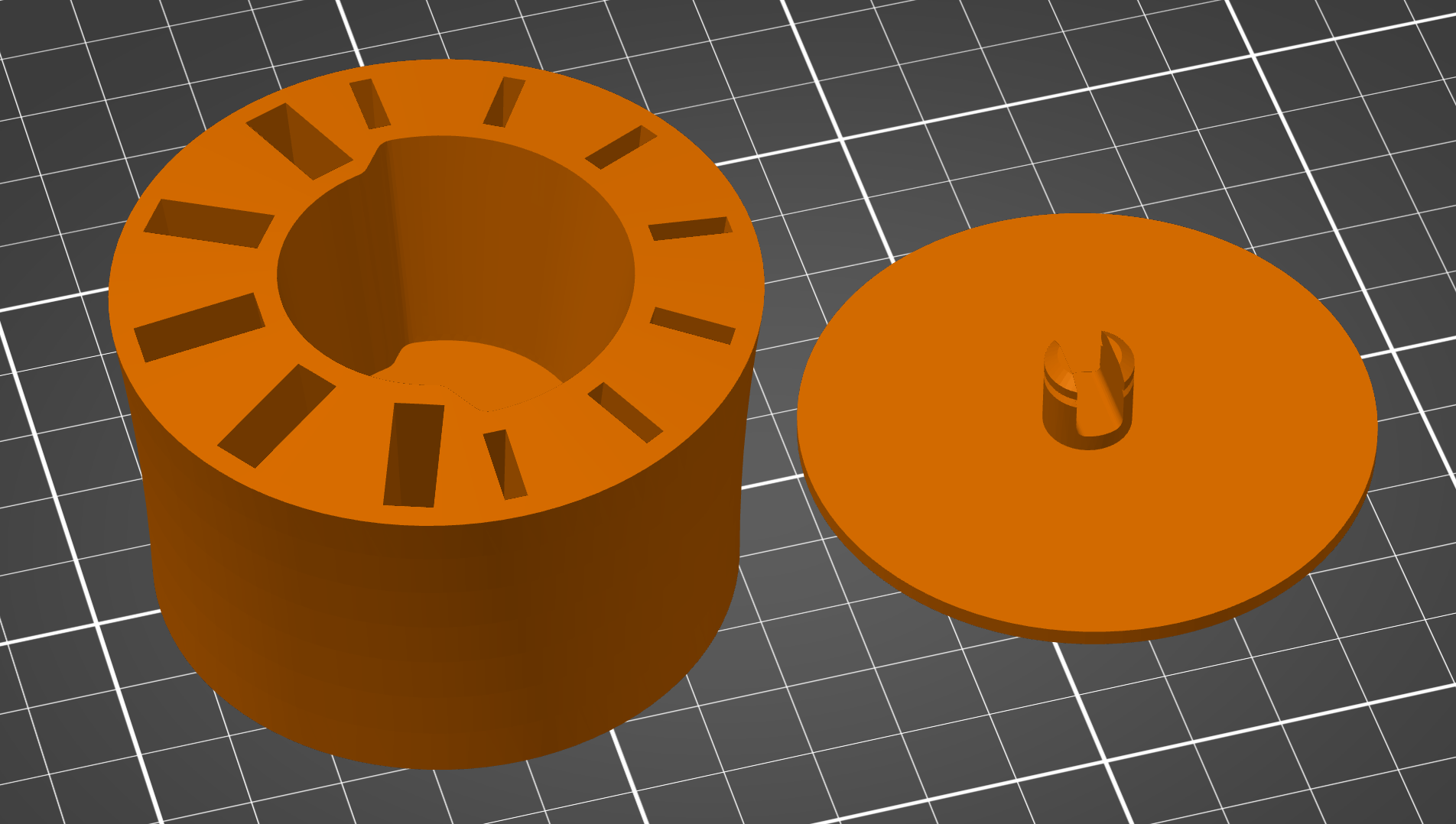

Prints in two pieces. No supports needed. The clearances on the pivot are fairly tight so I would stick to 0.4mm nozzles with a layer height of 0.2mm or less. The base should use either 100% infill or enough vertical perimeters to remove the need for infill in the pivot pin. I've printed these in both PLA and PETG
