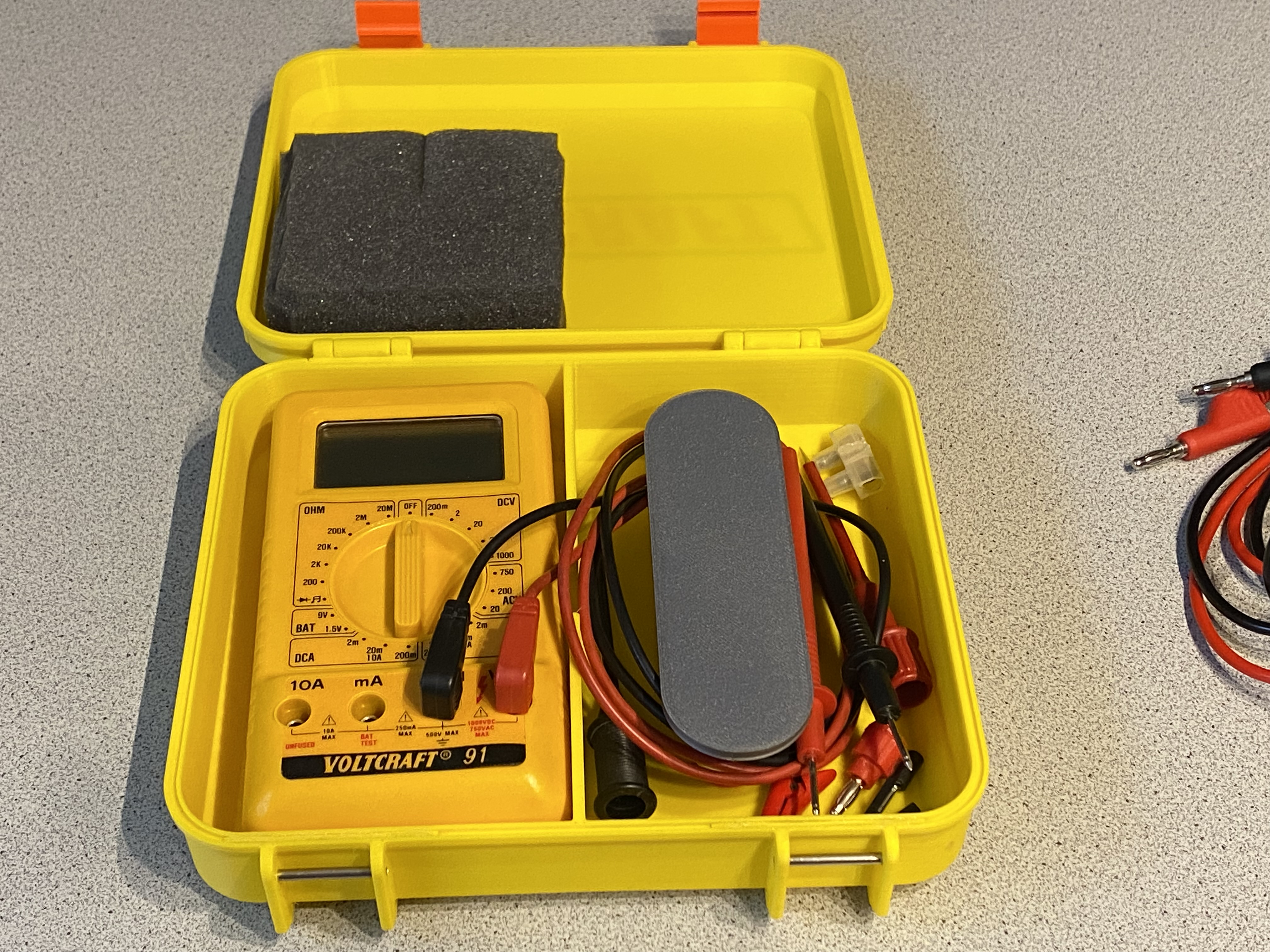

I already had built this box. Now I added cable management and an integrated 45° stand.

Cables flying through the box, jamming outside edges. WTF! Cable management lid is held by 3x3 ø6x2mm Neodyms.

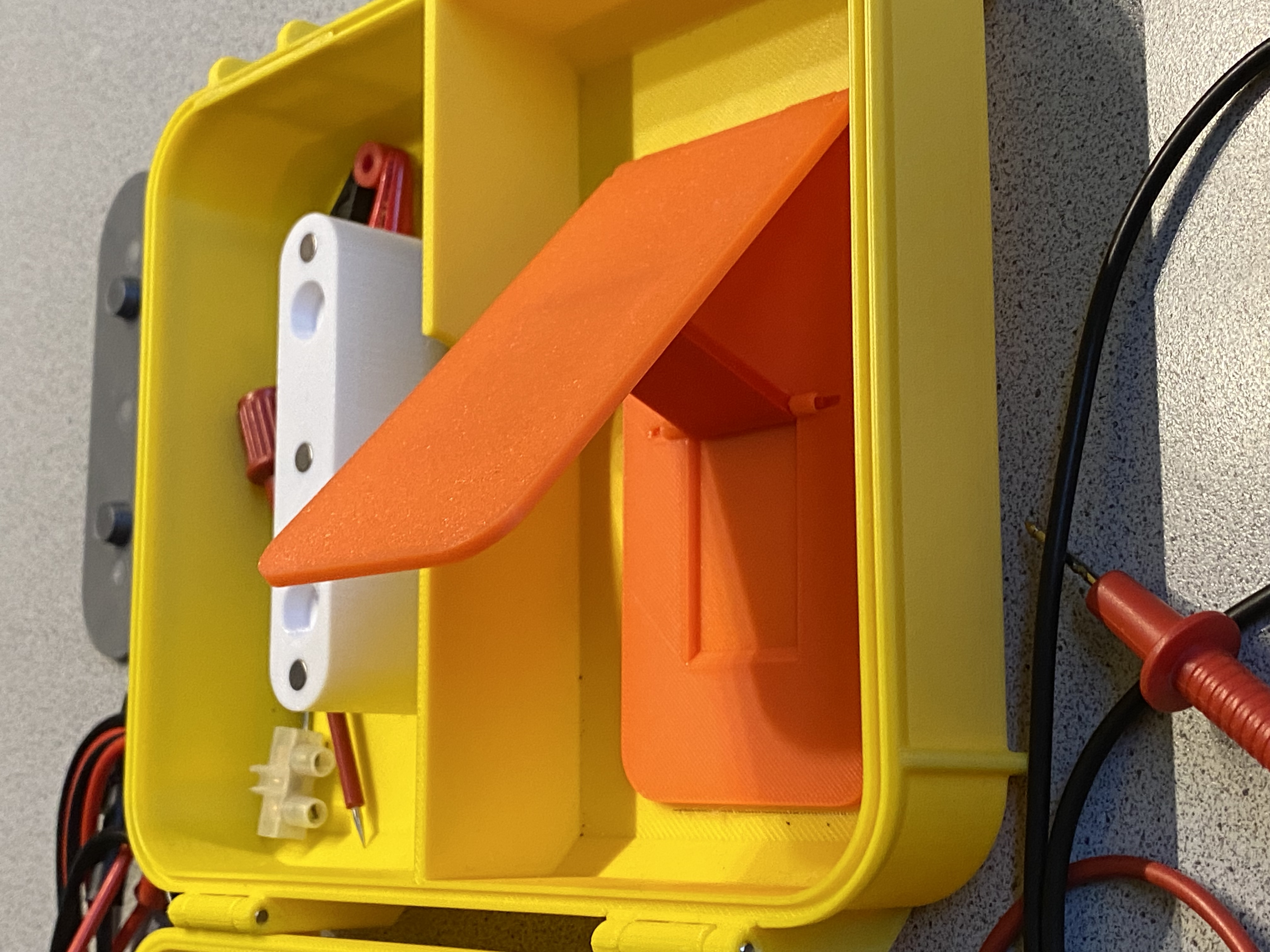

With the 45° stand I don't need to trake the multimeter out of the box that often, which makes working much more convenient!  Joints are 25-30mm M3 dowel pins. I printed in PETG, so you may thoroughly drill the hinges with 3mm drill bit. Be careful, take your time. The retainer (red) is held by a piece of filament ø1.74mm. Check the holes before installing, a ø2mm drill bit can do mirecles.

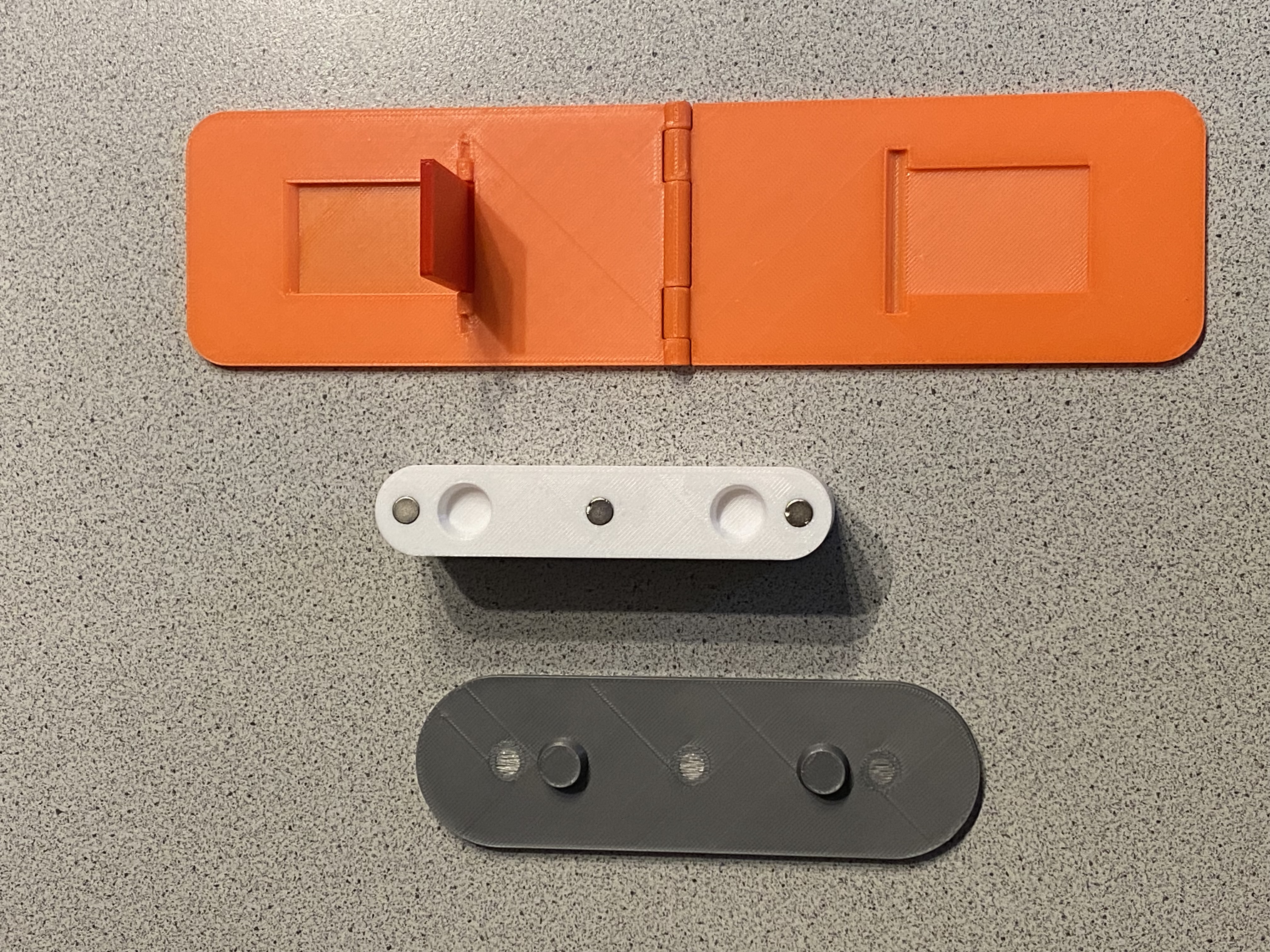

Both parts will be glued on the bottom of the box.

There is always room for some improvement!

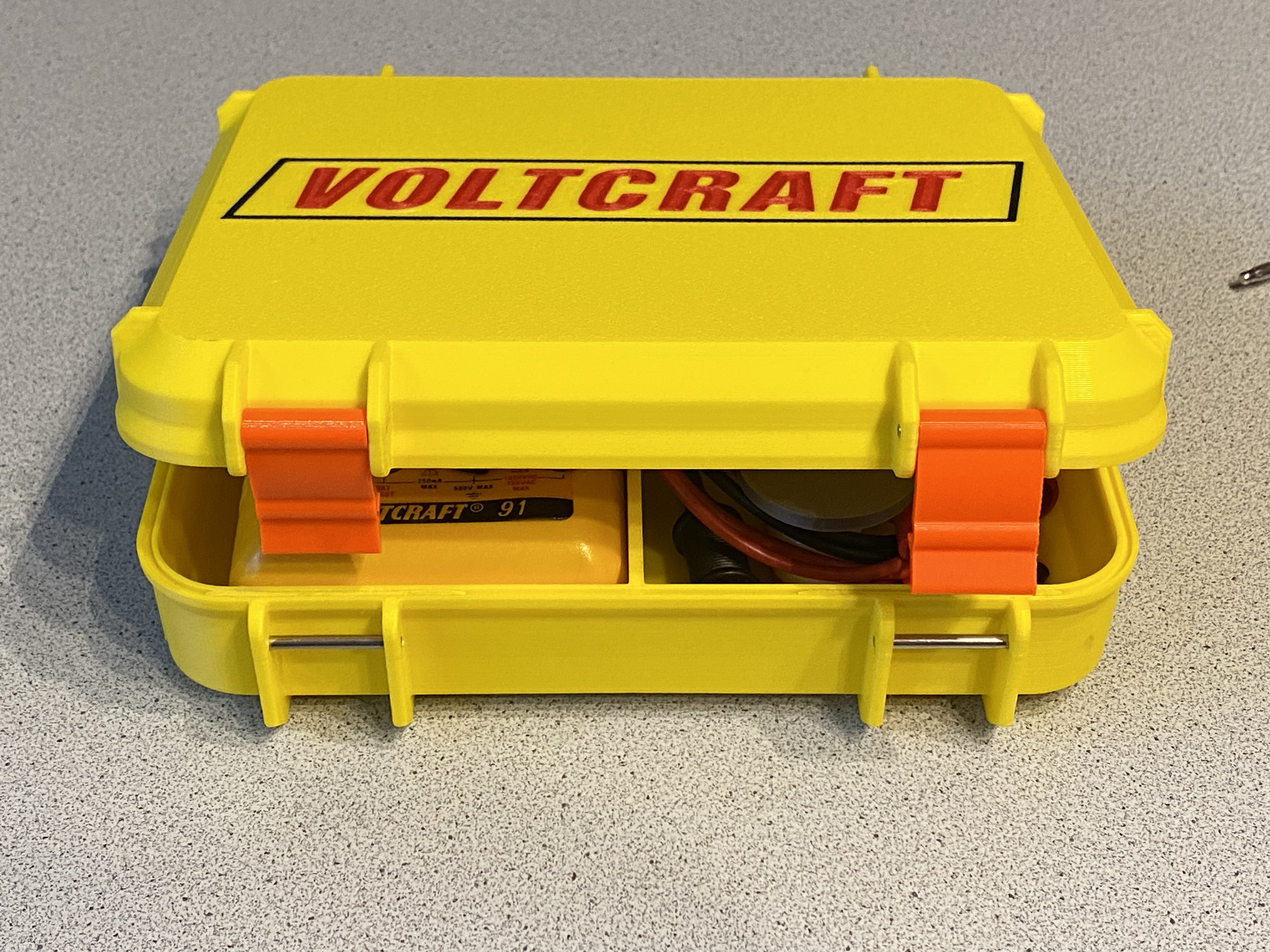

Here the original box:
