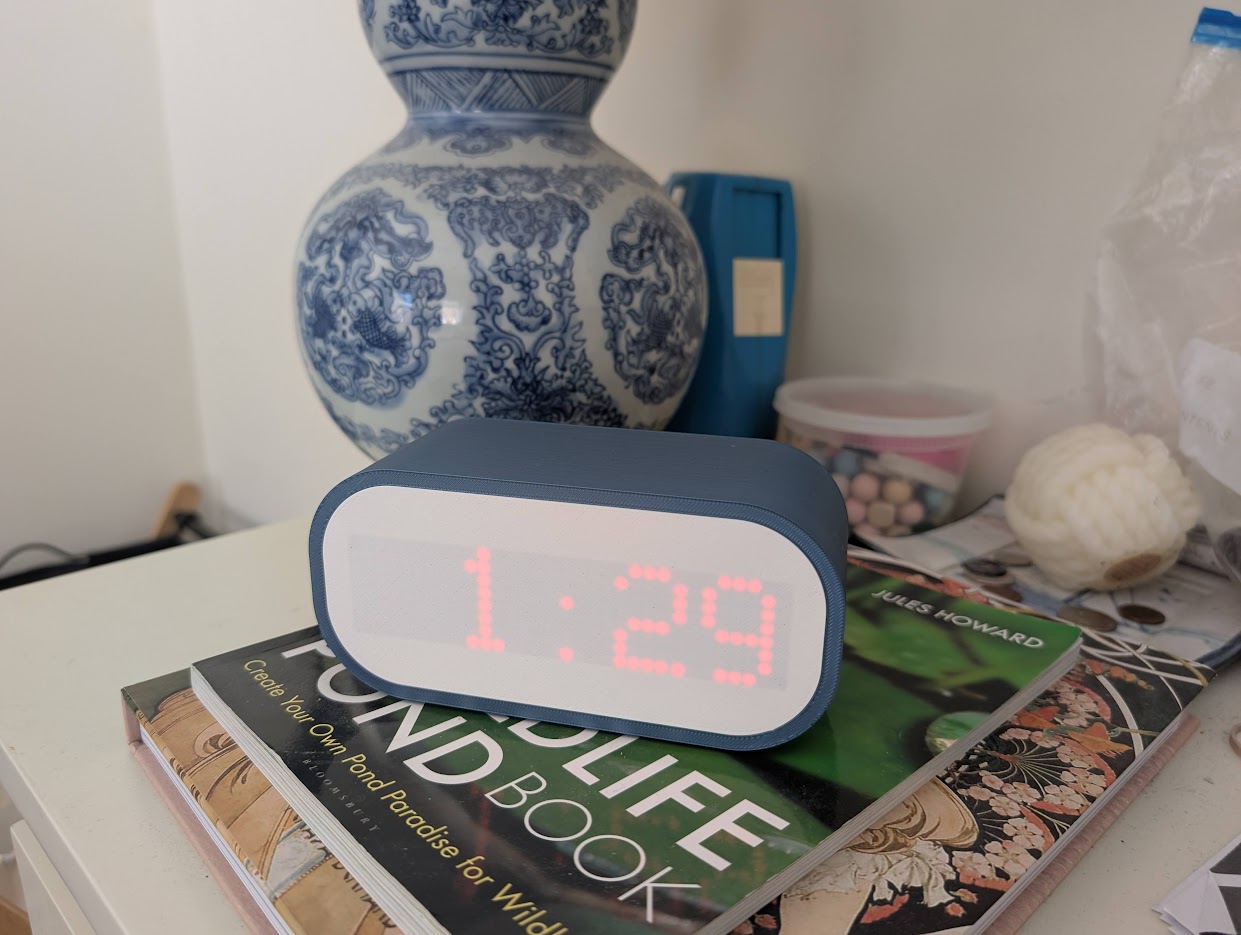

Clock with Matrix Display

This clock requires no soldering and only a few parts (AliExpress links provided):

ESP32-C3 Supermini
MAX7219 Dot Matrix Module
4 Female-Female Dupont wires

You can optionally use M3 OD 4.2mm heatset inserts and M3x8mm bolts to connect the back to body.

If you'd rather not use heatsets+bolts, you can instead assemble the back and body as one part in the slicer. It'll be hard to dissemble later, but if you're not going to take it apart, printing the back and body as one piece works great.

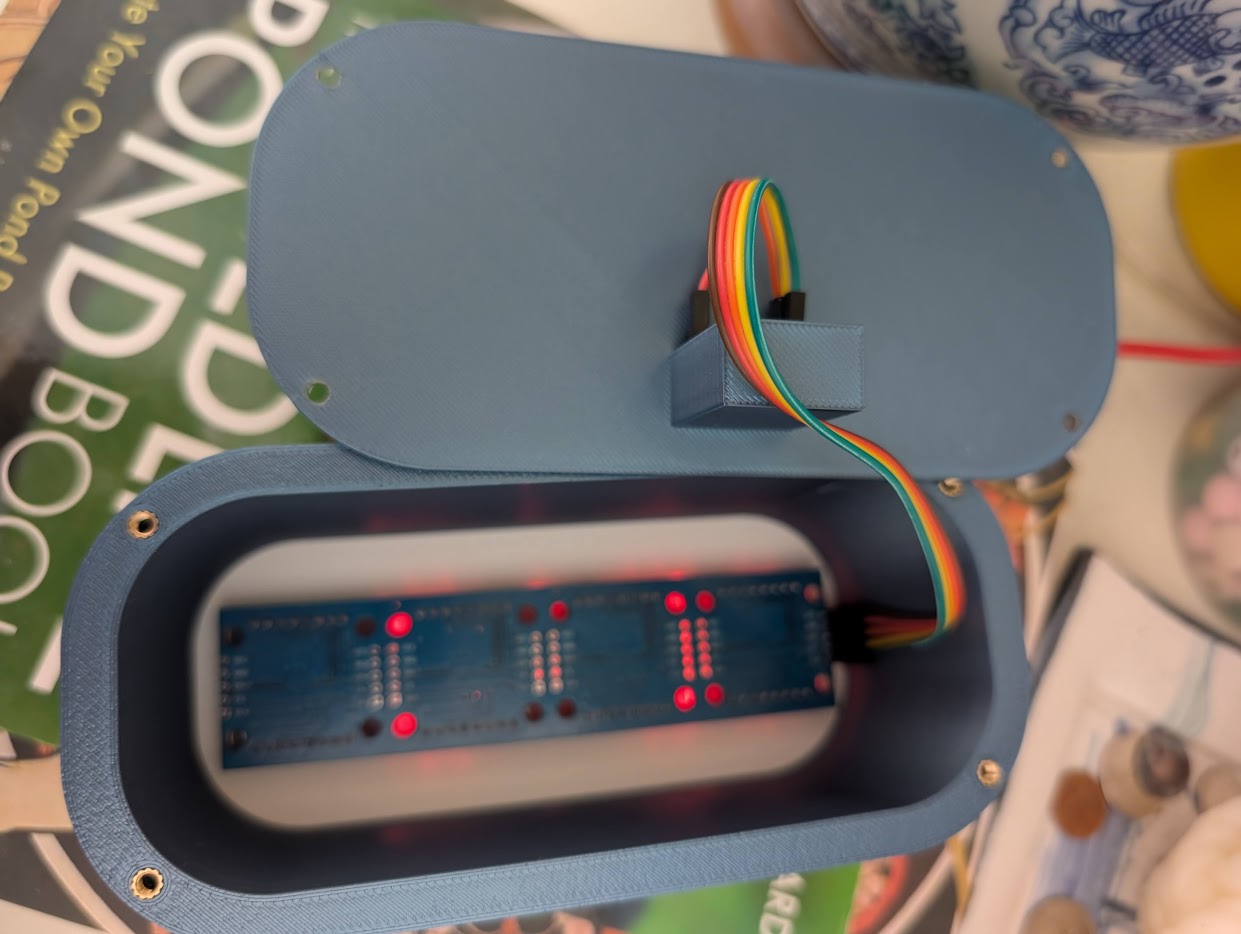

To assemble:

Install the ESP32-C3 Supermini into the back, pins up. It fits in the mount in the back tightly. It doesn't need any glue to stay in place.
Connect the Dupont wires to the ESP32-C3 Supermini.
Install the MAX7219 into the diffuser. It snaps into place and should stay without glue; however, if it's a bit lose, a few dots of superglue will ensure it stays in place.
Connect the dupont wires to the MAX7219.
Install the diffuser into the body. The pins will need to be bent so the diffuser fits into the body. The diffuser will fit tightly; if it's a little loose, a few dots of superglue can be used to hold it in place.

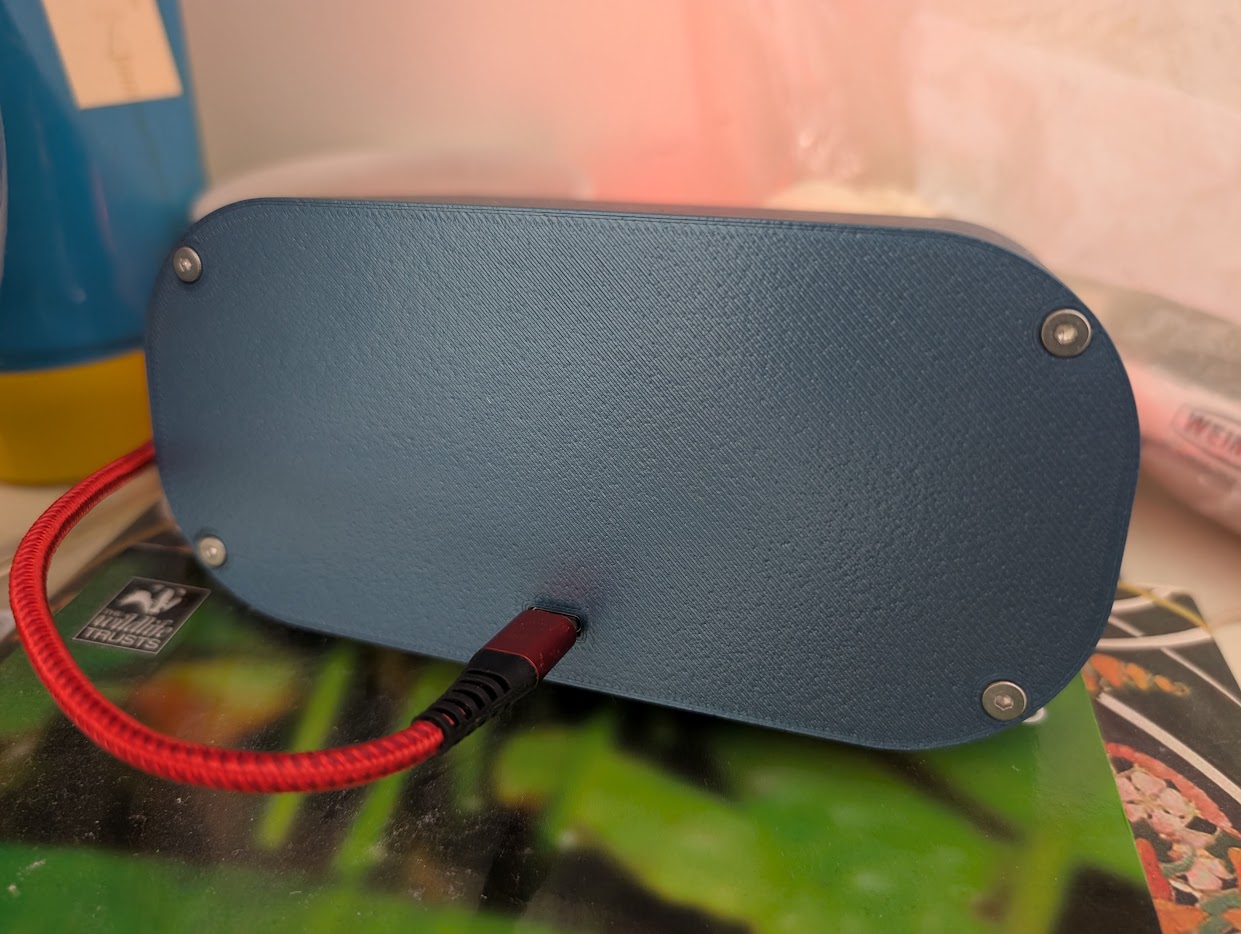

If the back and body were printed separately, install the heatset inserts and secure the back to the body.

The ESP32-C3 - MAX7219 pins are:

CLK to GPIO7
MOSI/DIN to GPIO5
CS to GPIO6
5V to power
GND to ground

The ESPHome configuration YAML:

esphome:
  name: "clock"
esp32:
board: esp32-c3-devkitm-1
framework:
type: esp-idf
logger:
api:
encryption:
key: "PUT KEY HERE"
ota:

platform: esphome
password: "PUT PASSWORD HERE"

wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
id: wifi_connection
output_power: 8.5dB
time:

platform: homeassistant
id: homeassistant_time

button:

platform: restart
id: reboot
icon: mdi:power-cycle
name: "ESP Reboot"

sensor:

platform: internal_temperature
name: ESP Temperature
unit_of_measurement: °C
device_class: TEMPERATURE
update_interval: 30s
entity_category: "diagnostic"
disabled_by_default: True
platform: uptime
name: Uptime
id: sys_uptime
update_interval: 10s
disabled_by_default: True
platform: wifi_signal
name: WiFi RSSI
id: wifi_signal_db
update_interval: 30s
entity_category: "diagnostic"
disabled_by_default: True

spi:
clk_pin: GPIO7
mosi_pin: GPIO5
font:

file: "https://raw.githubusercontent.com/fcambus/spleen/refs/heads/master/spleen-6x12.bdf"
id: time_only_font
glyphs: '0123456789:'
file: "https://github.com/trip5/Matrix-Fonts/raw/refs/heads/main/8-series/MatrixChunky8X.bdf"
id: time_font
glyphs: '0123456789:'
file: "https://github.com/trip5/Matrix-Fonts/raw/refs/heads/main/6-series/MatrixChunky6X.bdf"
id: weekday_font
glyphs: '!"#$%&()*+,-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdefghijklmnopqrstuvwxyz{}|~°'
file: "https://github.com/trip5/Matrix-Fonts/raw/refs/heads/main/8-series/MatrixLight8.bdf"
id: text_font
glyphs: '!"#$%&()*+,-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdefghijklmnopqrstuvwxyz{}|~°'

switch:

platform: template
name: "24 hour time"
id: time_format_24h
optimistic: true
restore_mode: RESTORE_DEFAULT_OFF
platform: template
name: "Show weekday"
id: show_weekday
optimistic: true
restore_mode: RESTORE_DEFAULT_OFF
platform: template
name: "Invert"
id: invert
optimistic: true
restore_mode: RESTORE_DEFAULT_OFF
platform: template
name: "Screen"
id: screen
optimistic: true
internal: True
restore_mode: RESTORE_DEFAULT_ON

number:

platform: template
name: "Intensity"
id: intensity
optimistic: true
min_value: 0
max_value: 15
step: 1
mode: slider
restore_value: True
initial_value: 10
internal: True

output:

platform: template
type: float
id: intensity_output
min_power: 0.001
zero_means_zero: True
write_action:

if:
condition:
lambda: return (state == 0.0);
then:
- switch.turn_off: screen
else:
- switch.turn_on: screen
- number.set:
id: intensity
value: !lambda return (int) (state * 15.0);



light:

platform: monochromatic
name: "Display"
id: backlight
gamma_correct: 1.0
output: intensity_output
restore_mode: RESTORE_DEFAULT_ON

display:


platform: max7219digit
id: display_matrix
cs_pin: GPIO6
num_chips: 4
update_interval: 200ms
lambda: |-
it.invert_on_off(id(invert).state);
it.intensity(id(intensity).state);
it.turn_on_off(id(screen).state);
auto now = id(homeassistant_time).now();
if (!now.is_valid()) {
std::string display;
auto seconds = millis() / 1000;
if(id(wifi_connection).is_connected()) {
display = "Time";
} else {
display = "Wifi";
}
display+=std::string(seconds % 3 + 1, '.');
it.print(0, 0, id(text_font), TextAlign::LEFT, display.c_str());
return;
}
char buf[32];
int hour = now.hour;
const char *fmt = "%02d:%02d";
if (!id(time_format_24h).state) {
if (hour > 12) hour -= 12;
if (hour == 0) hour = 12;
fmt = "%d:%02d";
}
snprintf(buf, sizeof(buf), fmt, hour, now.minute);
if (id(show_weekday).state) {
// Clock with weekday
static const std::array&lt;std::string, 7&gt; days &#61; {&#34;Sun&#34;, &#34;Mon&#34;, &#34;Tue&#34;, &#34;Wed&#34;, &#34;Thu&#34;, &#34;Fri&#34;, &#34;Sat&#34;};
std::string weekday &#61; days.at(now.day_of_week - 1);

it.print(0, 0, id(weekday_font), weekday.c_str());
it.print(it.get_width(), 0, id(time_font), TextAlign::RIGHT, buf);

} else {
it.print(it.get_width(), -1, id(time_only_font), TextAlign::RIGHT, buf);
}

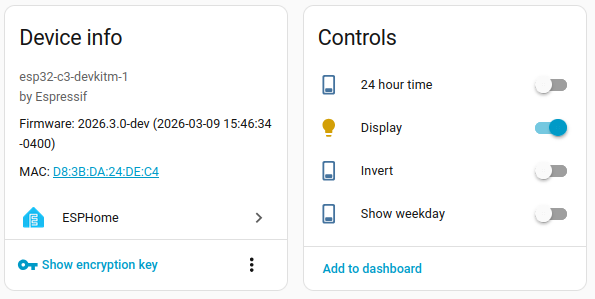

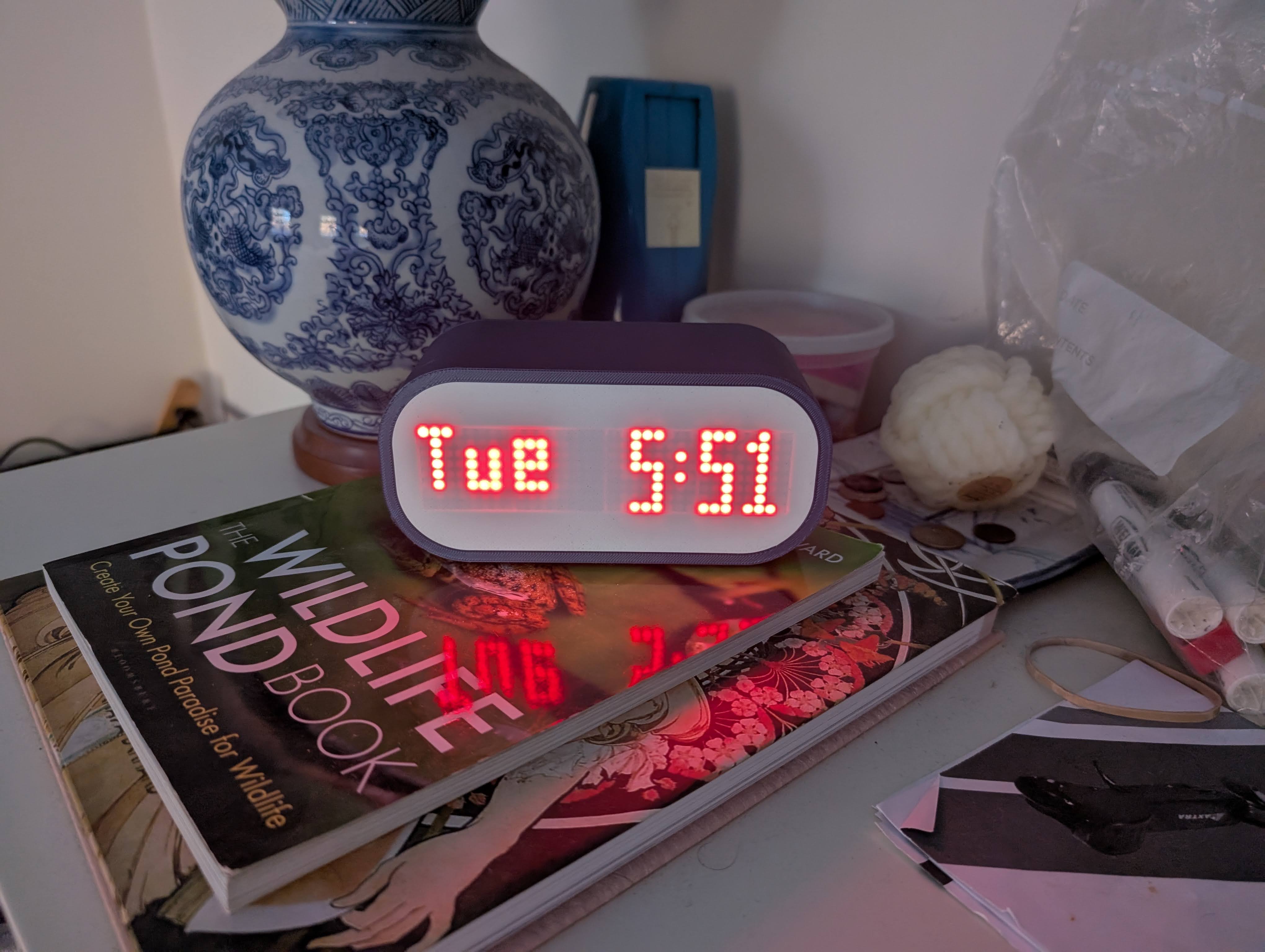

There are options available to use 24 hour time, display the weekday or not, invert the display, and adjust the brightness.
