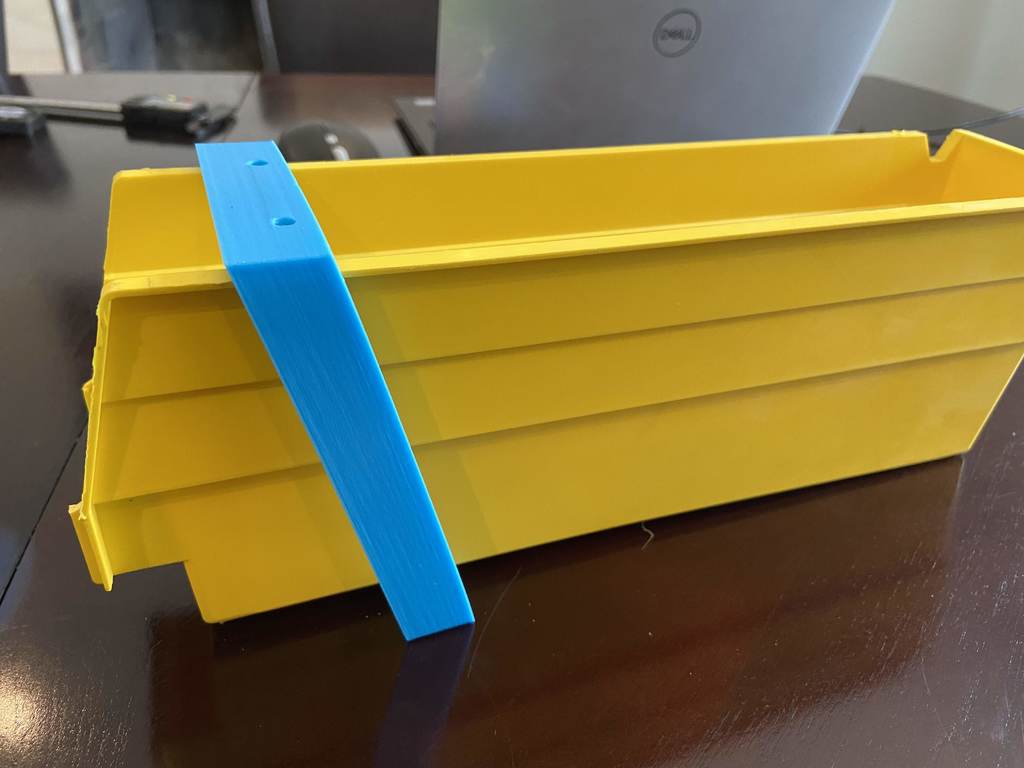

Brackets to hang part bins under a shelf. I used two per box, one near the front and one about halfway back. The parts sweep backwards to give room to screw up into the bottom of the shelf. The forward facing edge is tapered to help guide the bin back in if it's pulled out too far.

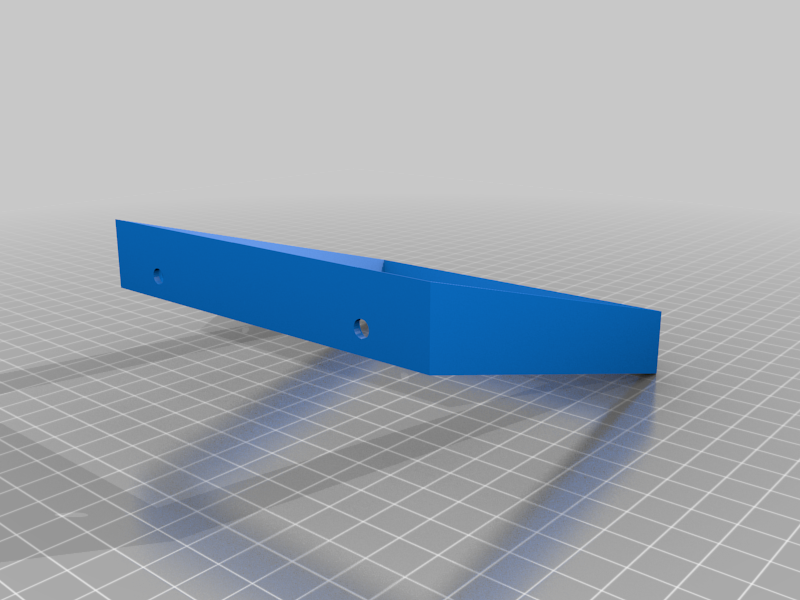

Inside dimensions of the large bracket is 140 mm x 140 mm.

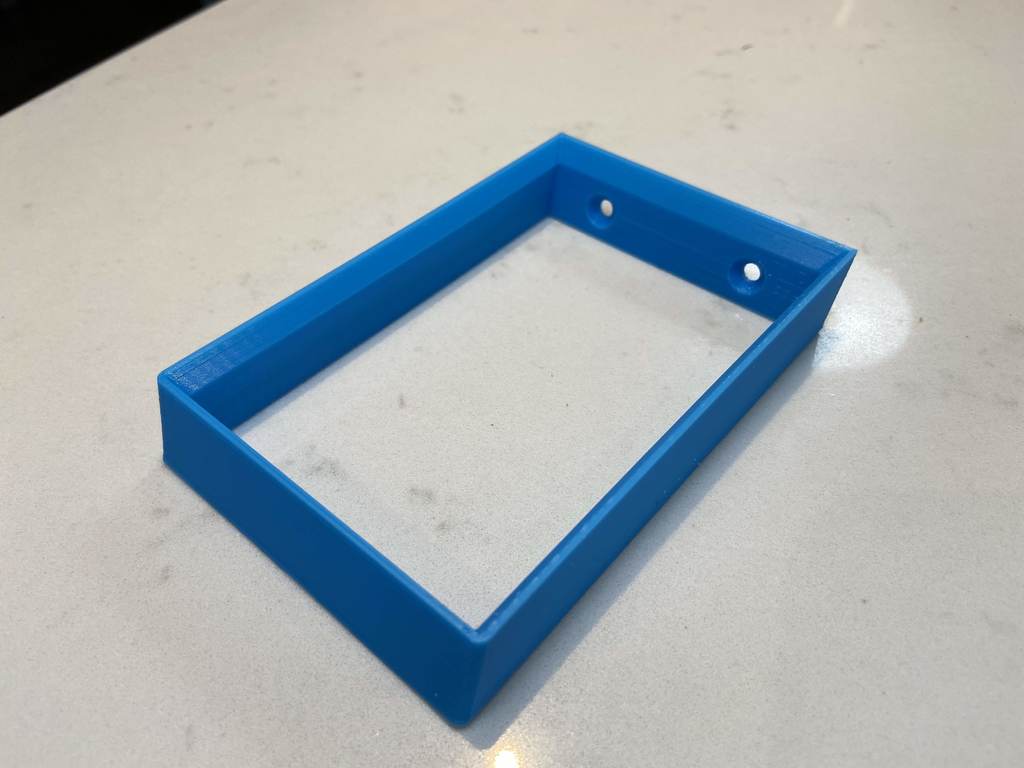

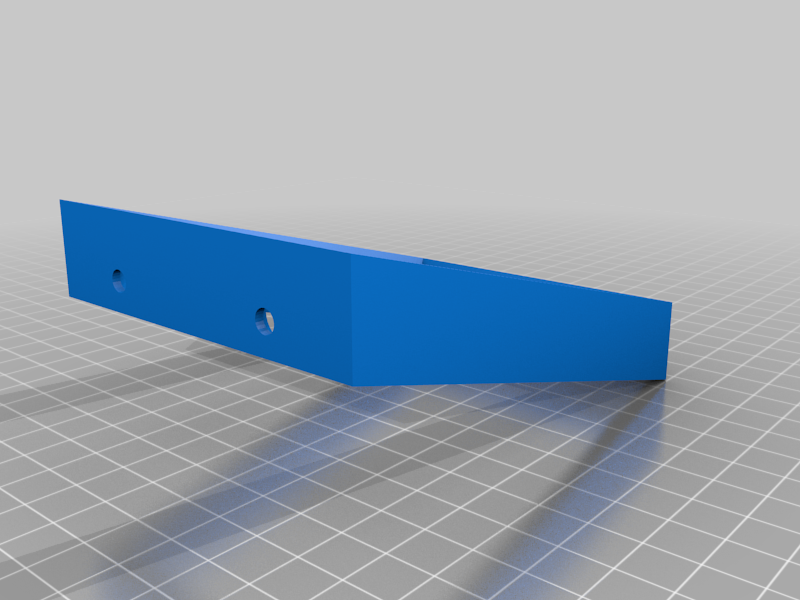

Inside dimensions of the narrow box is 70 mm x 140 mm.

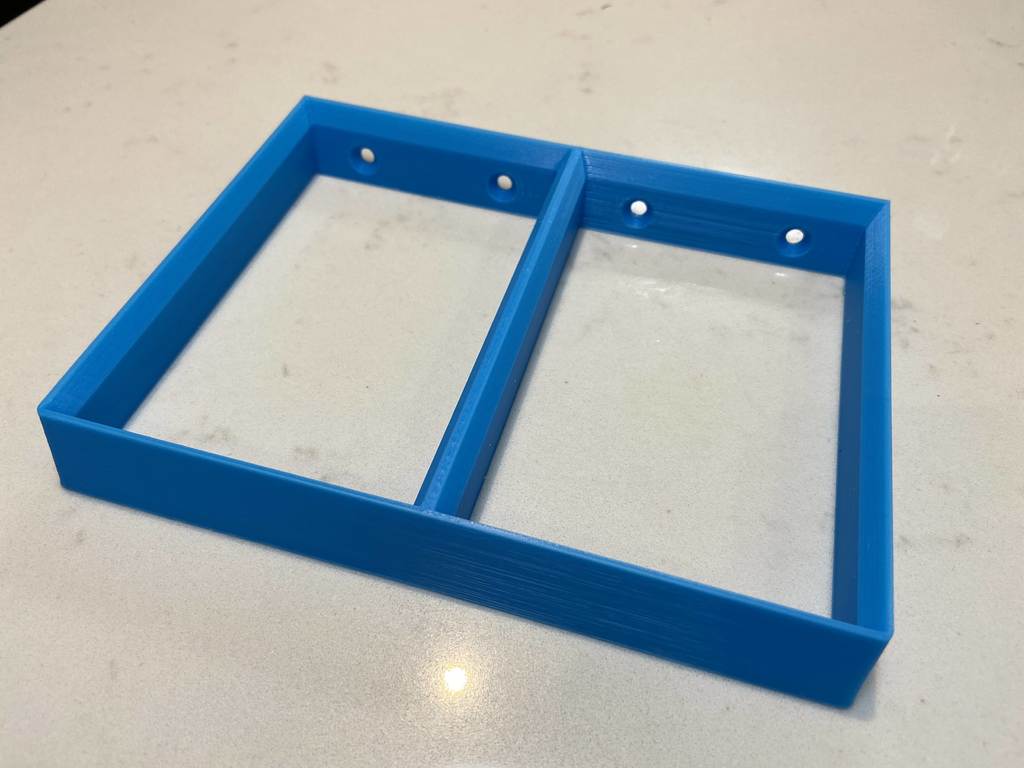

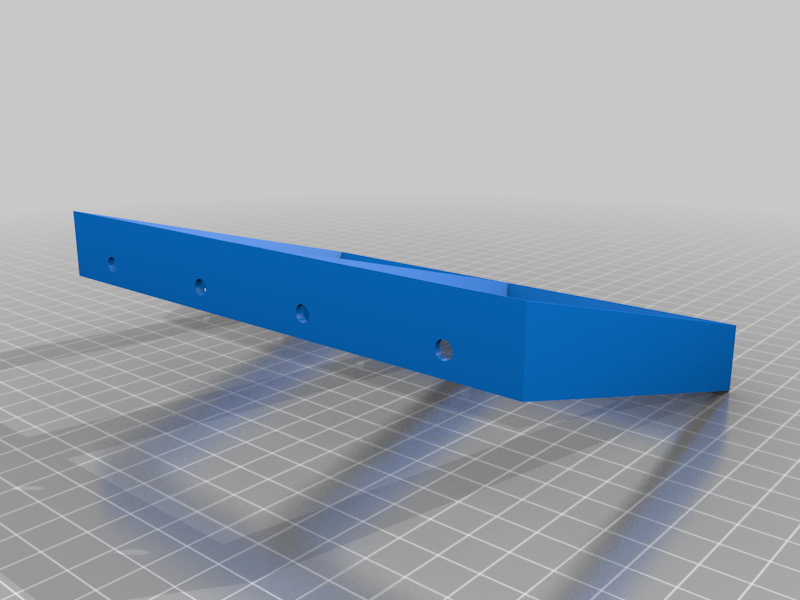

There's also double wide version of the narrow bracket.

Print Settings

Printer Brand:

Monoprice

Printer:

Rafts:

No

Supports:

Resolution:

0.2

Infill:

Filament: iPrint3D PLA

Category: Organization
