Descrição

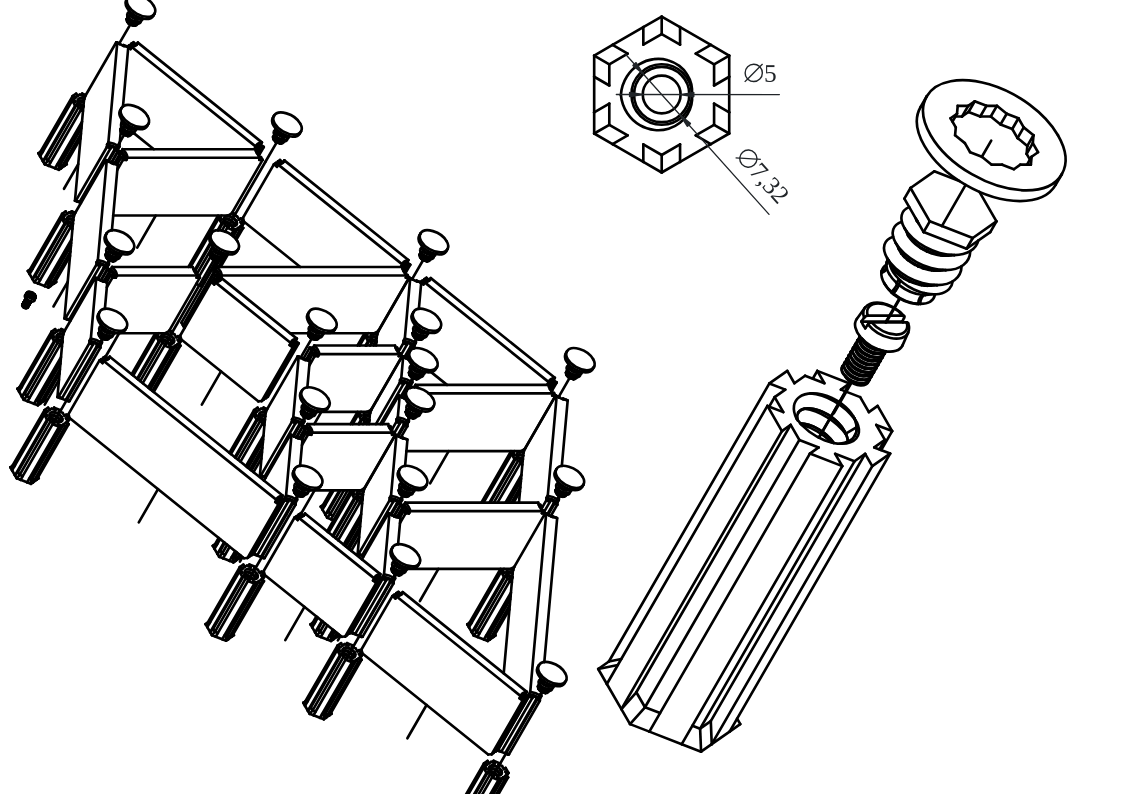

Printing and Assembly

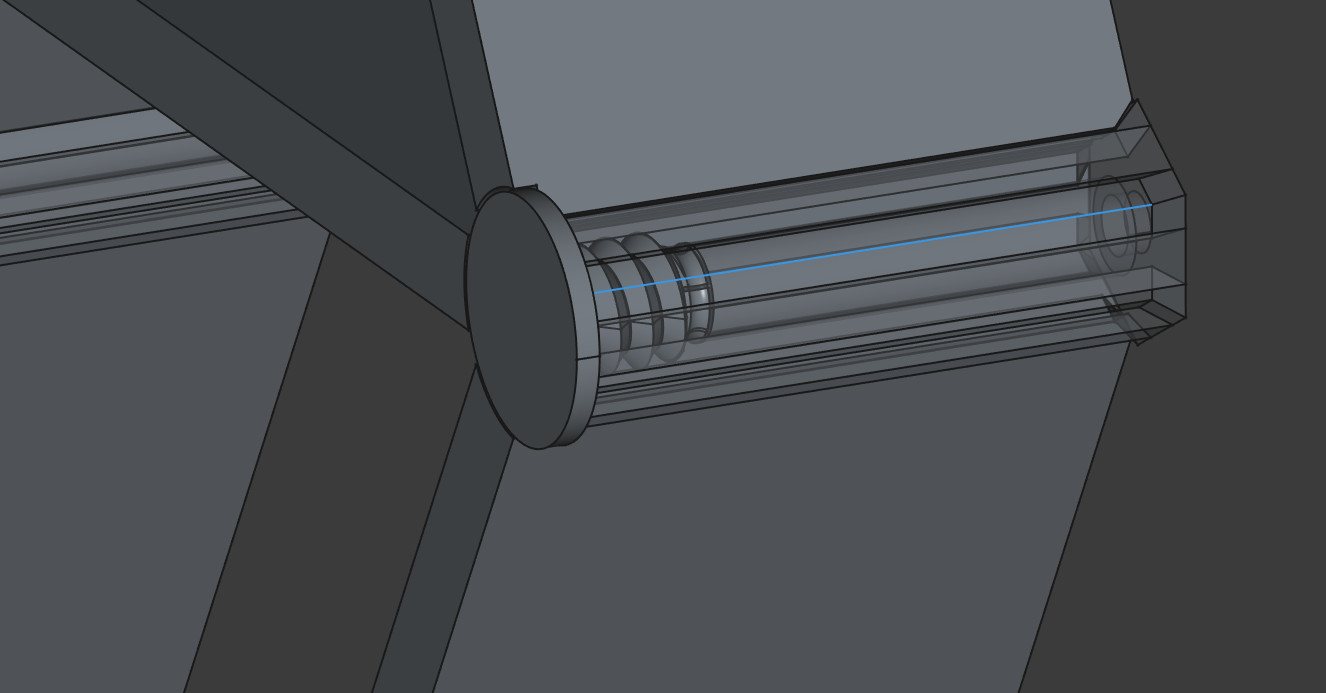

All the parts can be printed without support standing up on the print plate. I would recommend to assemble the shelf first and then hand it on the wall. The dovetail connections are pretty tight so while assembly some of them needed to be pressed in place with some force. The connector covers are easily customizable by desinging something yourself based on the "DecalBase".

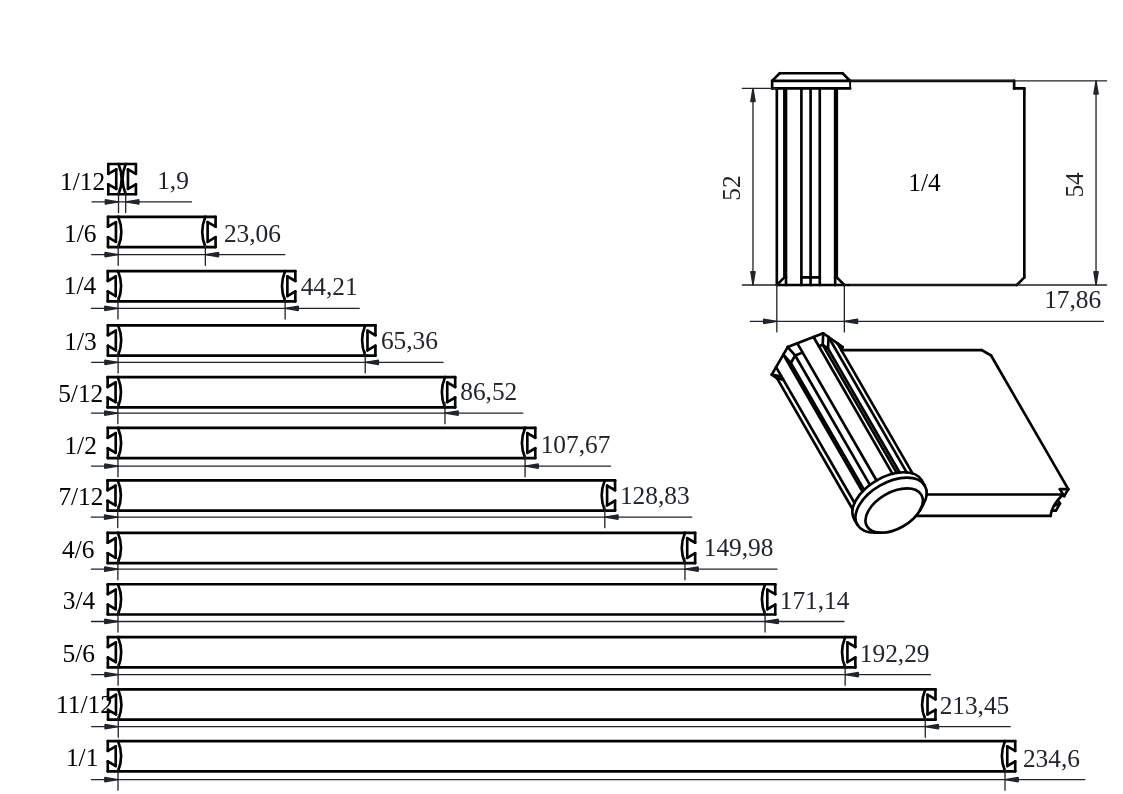

Sizing
The fractions of the bord connected by connectos add up to the sum of the fractions. I.e. three "BordThird" with two connectors are as long two "BordHalf" with a connector, which are as long as a "BordFull" and so on.
Texturing
To make the shelf look like wood there are some textured versions of the bords following this guide. I didnt come around to test it and i think the texturing needs some finetuning still. Since the upload of the raw .blend file failed i will send it directly if wanted.
Todo
Test the textured bords/finetuning
Credit
Created using wood76 from ambientCG.com,
licensed under the Creative Commons CC0 1.0 Universal License.
Modular geometric display shelf system
Publicado em 9 de mar de 2026
