Description
What is it?

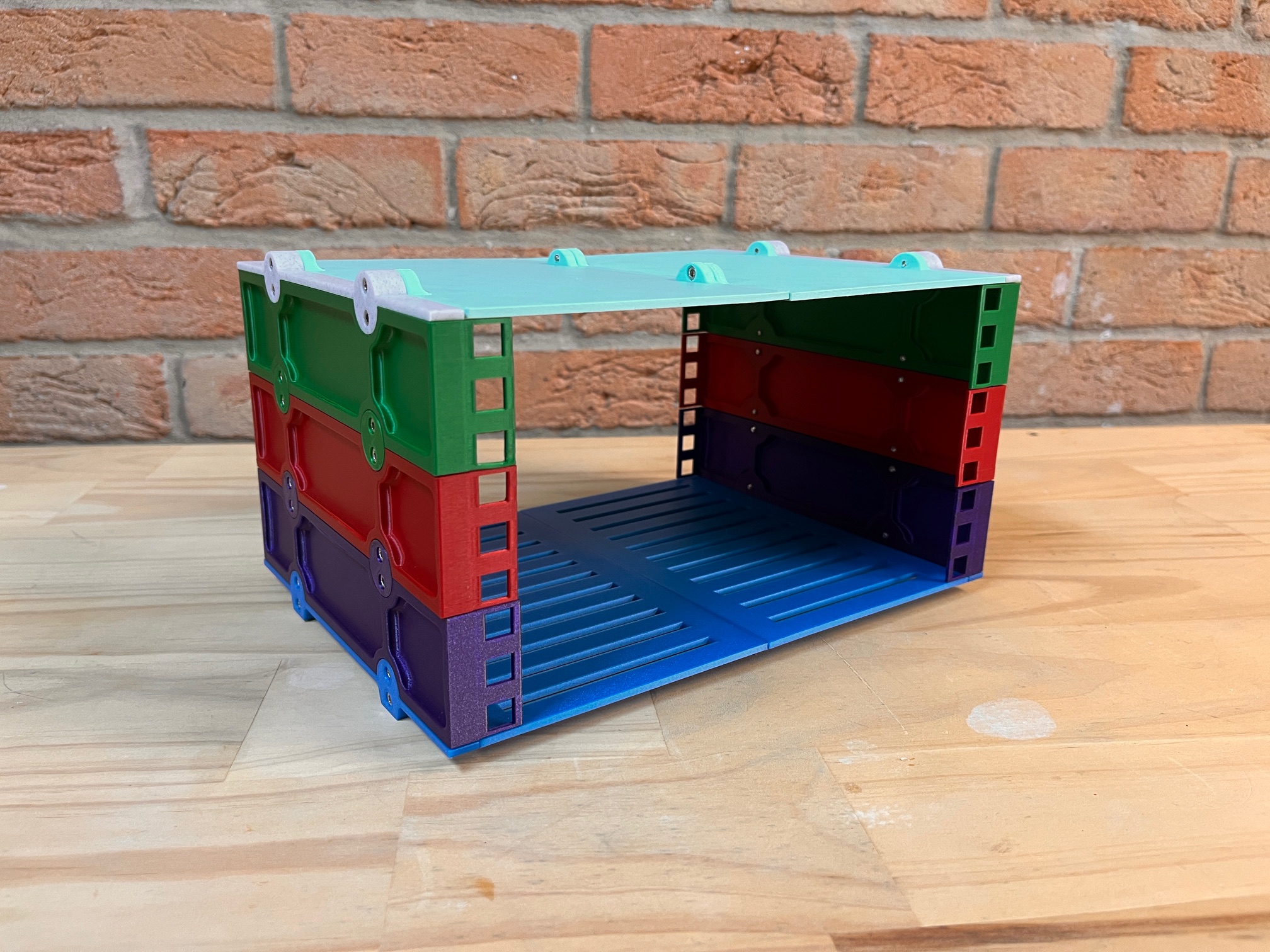

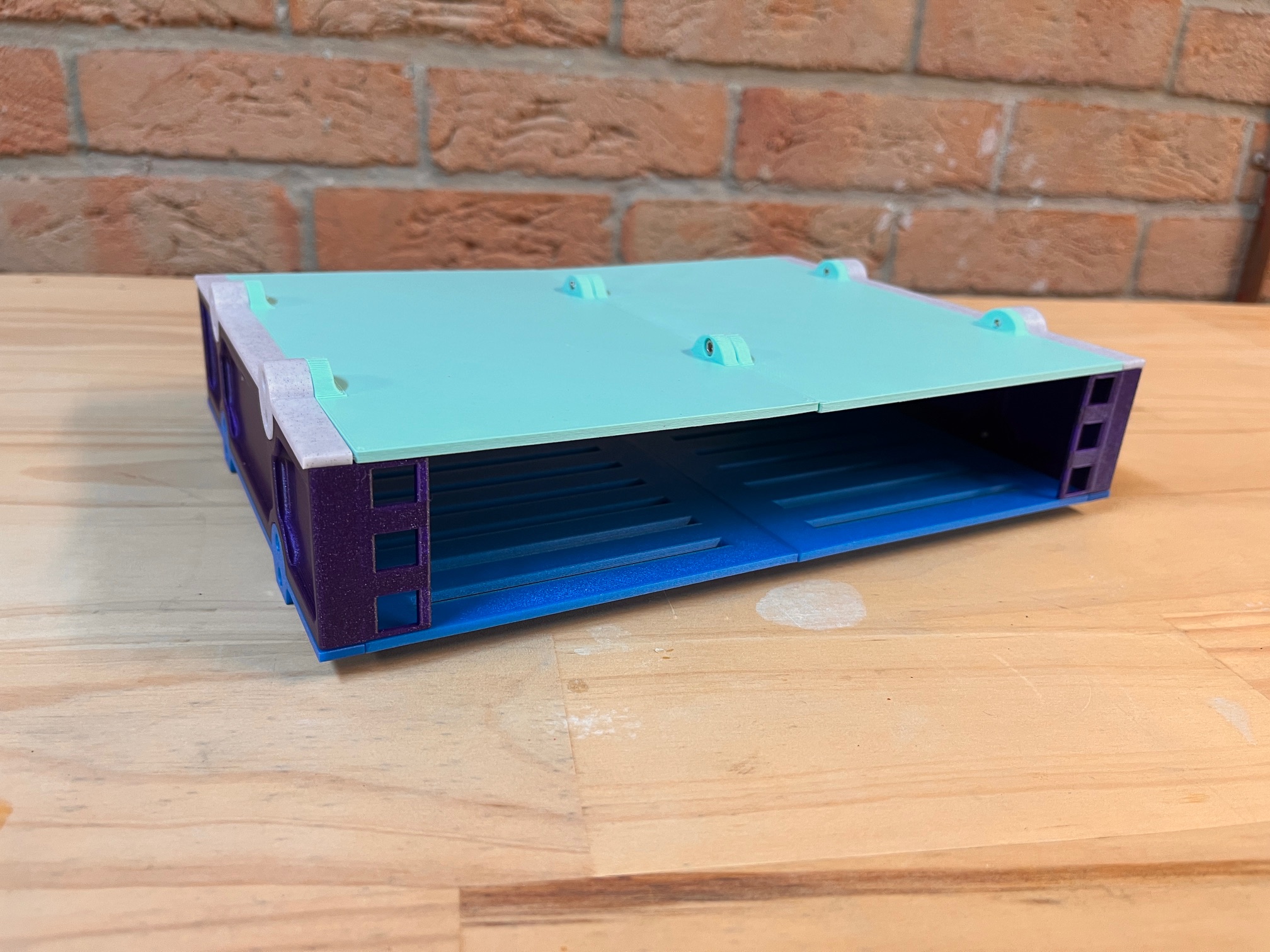

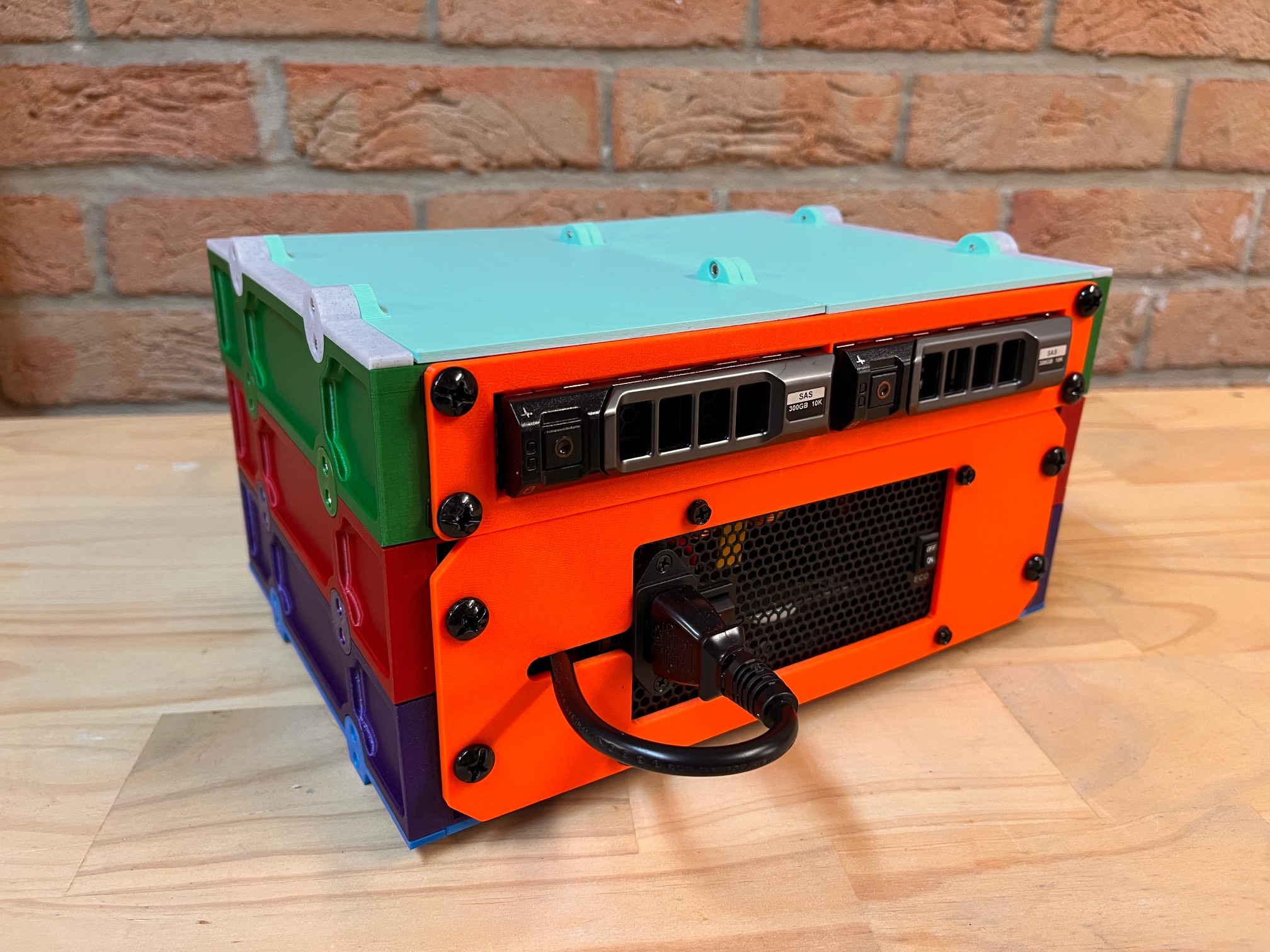

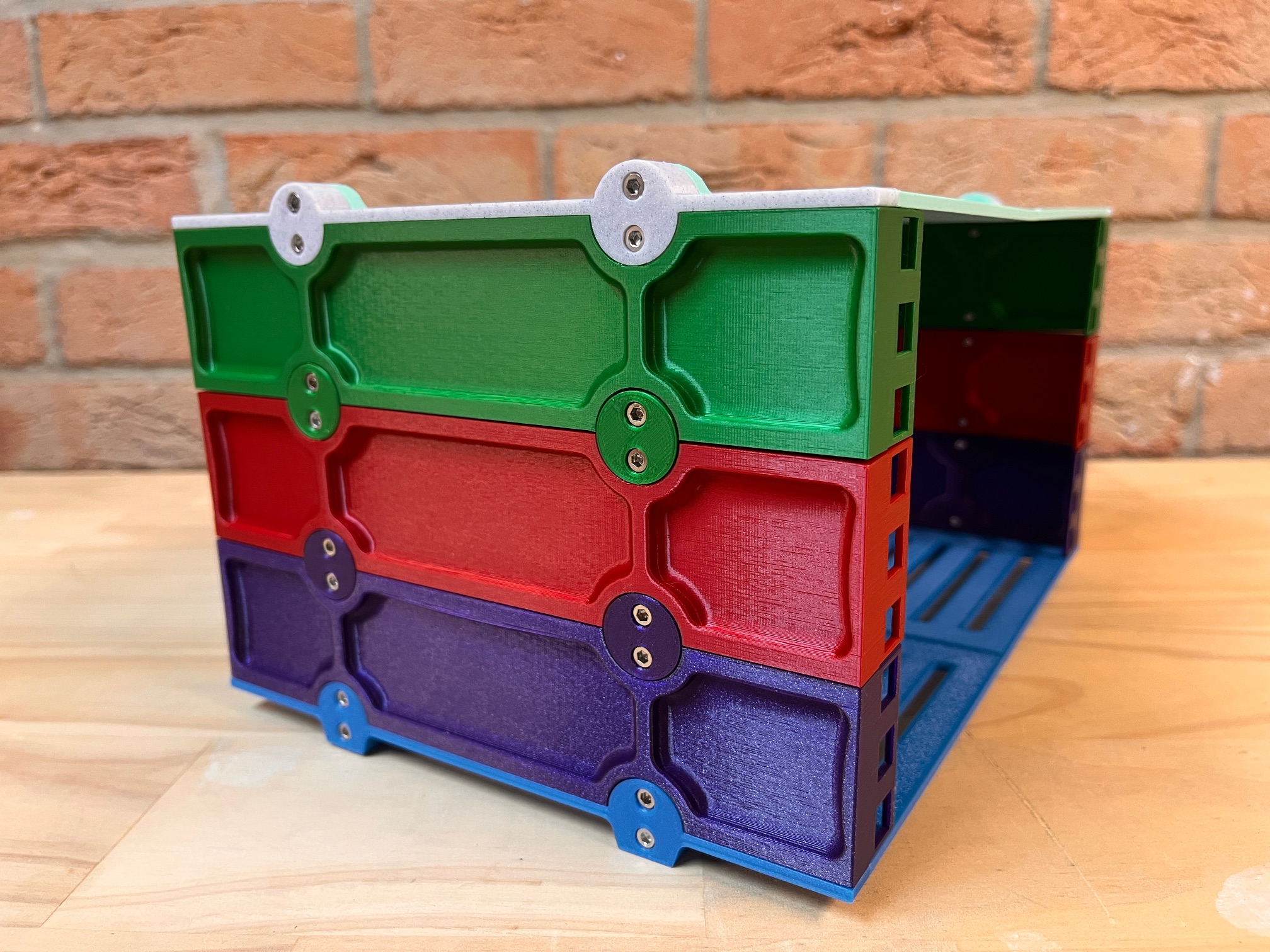

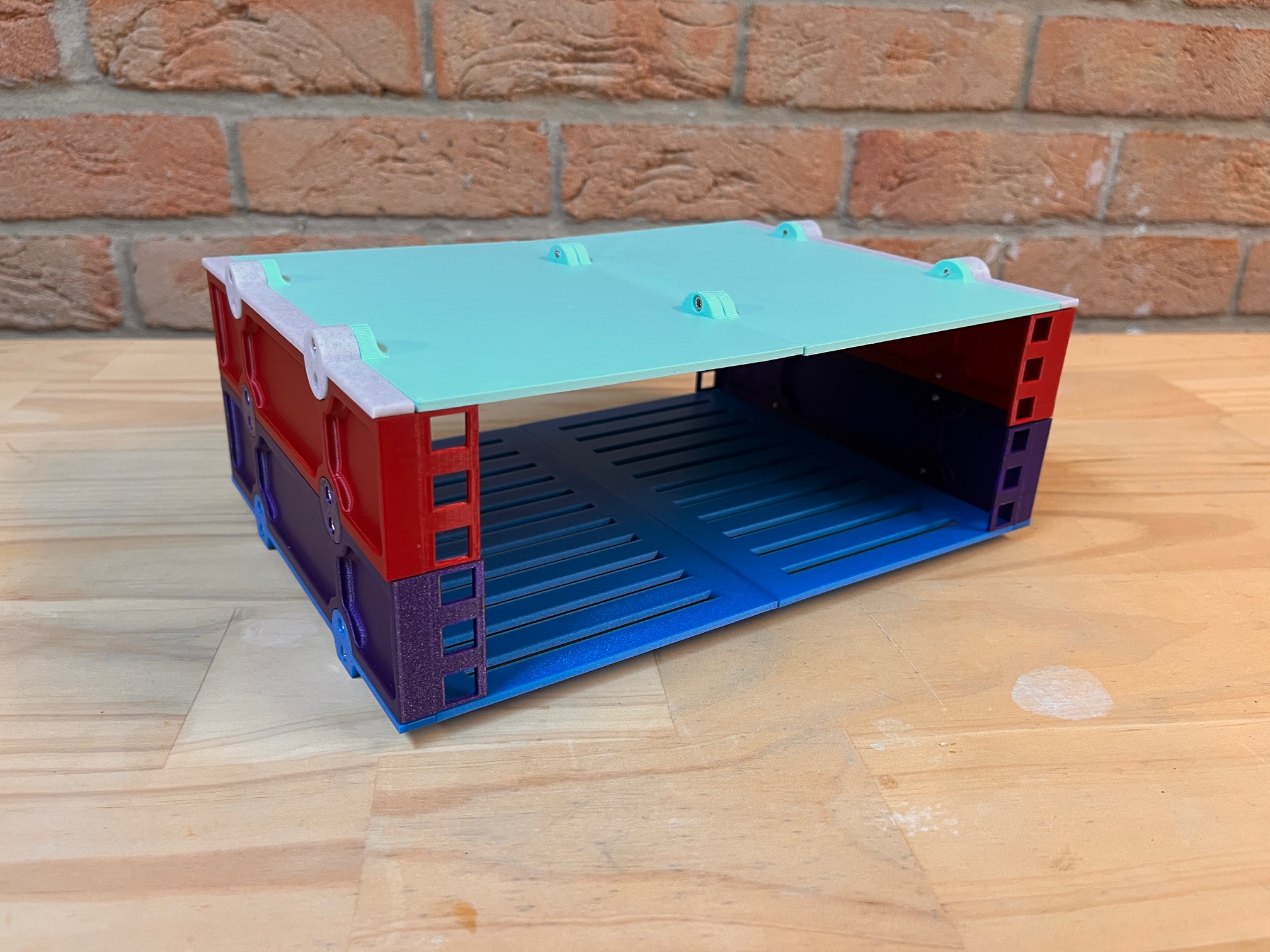

Its a fully modular, easy-to-print and FREE 10" mini server rack perfect for homelab projects. All parts fit together with M3 bolts and are standard rack unit (RU) / 10" server sizing to build an infinitely stackable mini rack. Design works well with all regular 10" server components. Works with standard server hardware and fasteners ie. M6 cage nuts and screws.
How to print?
No supports, 0.3mm layer height (or whatever).

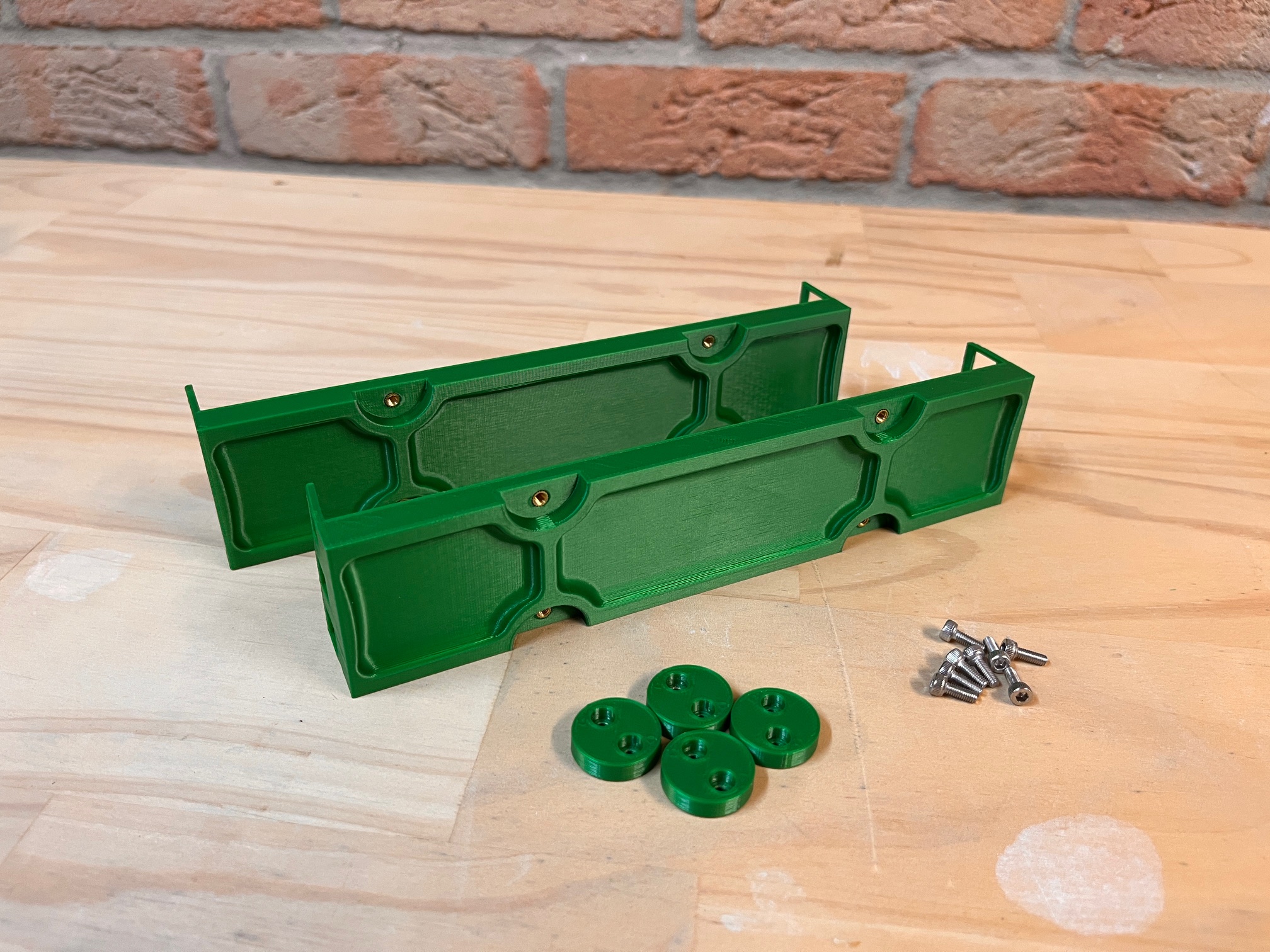

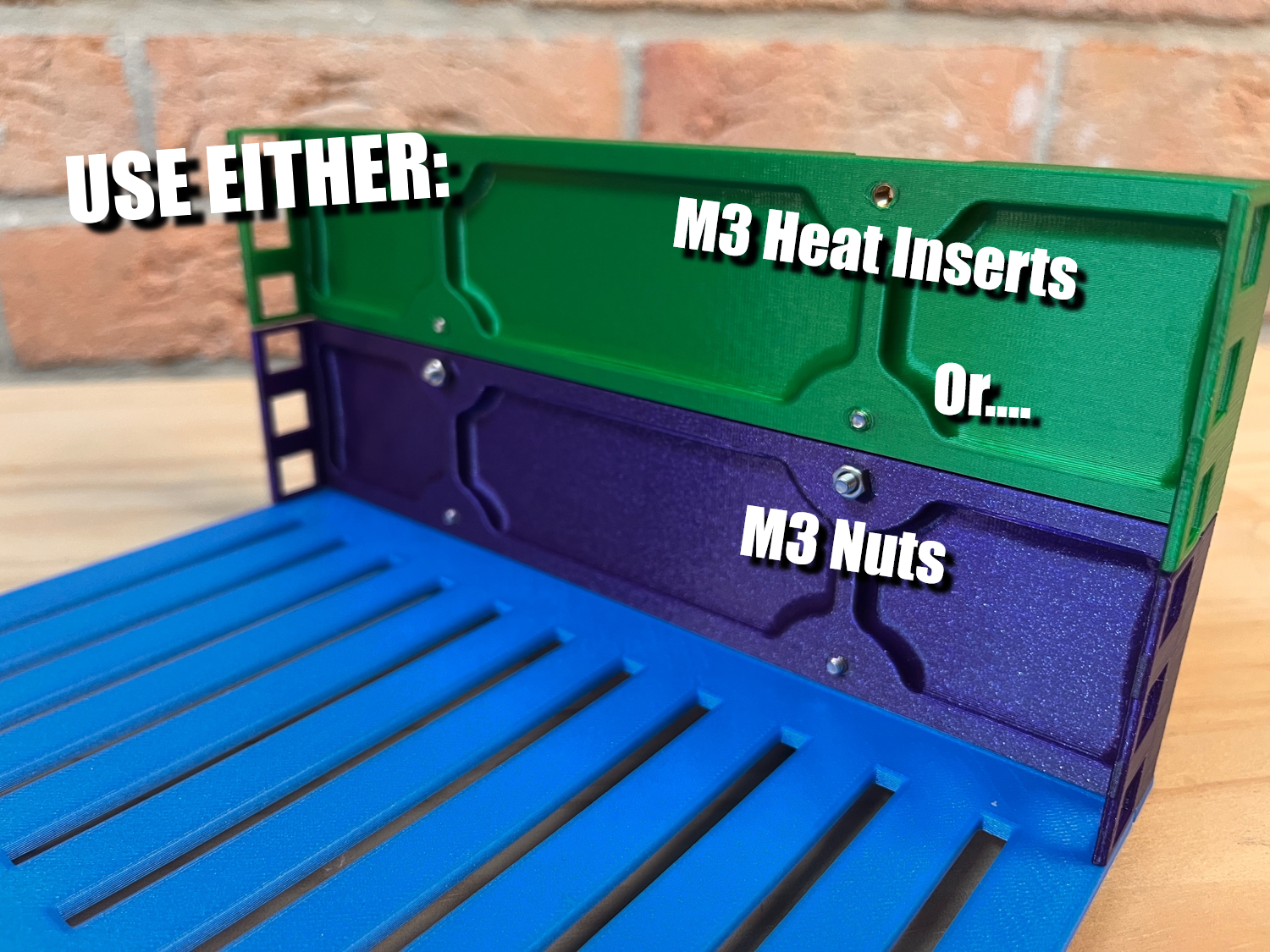

Fastener hardware:
M3 x 8 socket head bolts + M3 brass heat inserts (like these)
OR
M3 x 12 socket head bolts + M3 nuts
Interfaces with
Versions
Version 1.0.0: Initial publish/release.

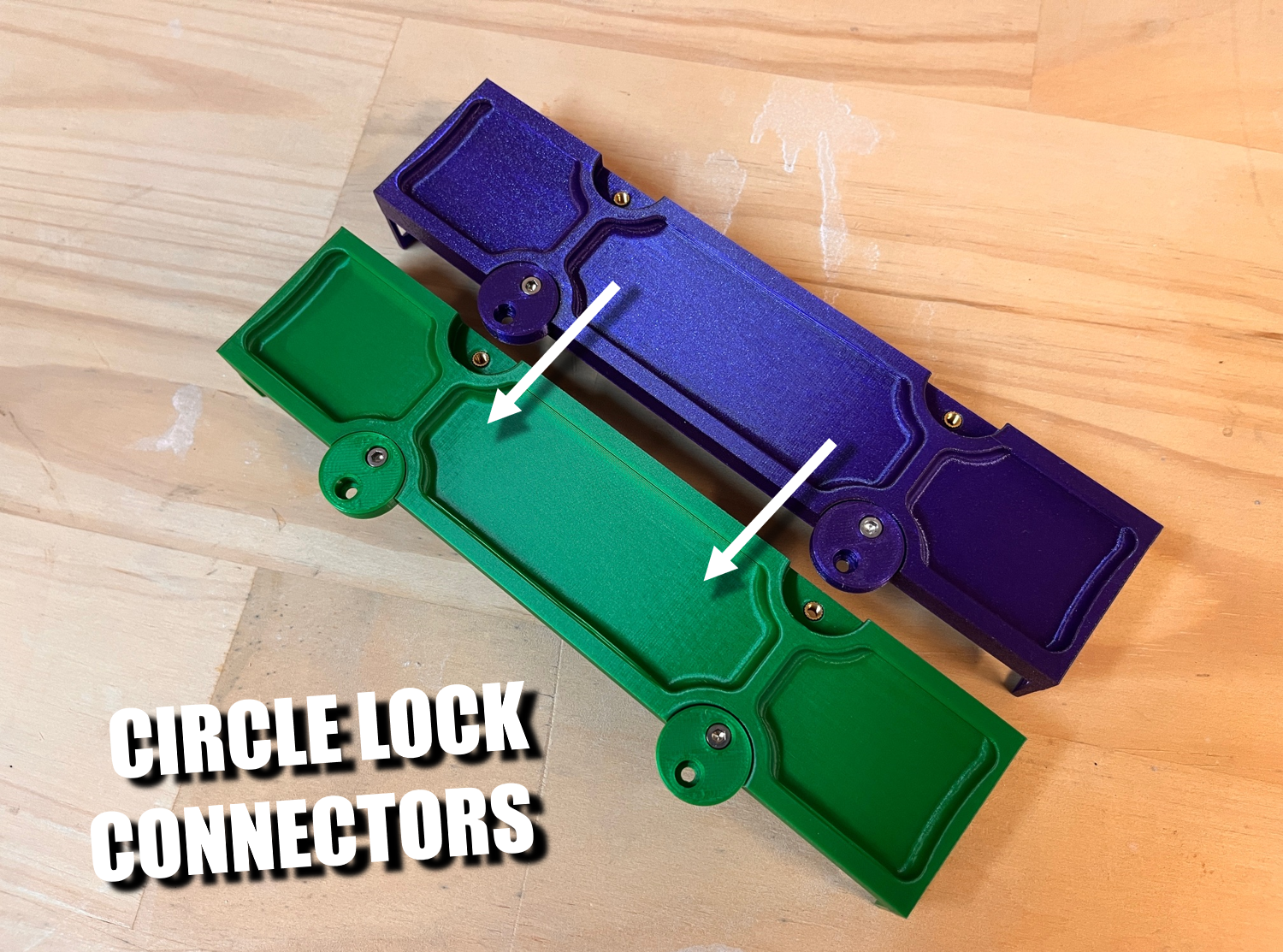

Version 1.0.1: Circle_lock_plate.stl diameter -0.5mm for better interface with rack sides.
51
Likes
159
Downloads
1
Makes
Category
Computers
Tags
modular
stackable
rack
server
rackmount
serverrack
10inch
nas
homelab
10inchrack
miniserver
License
Creative Commons — Public Domain

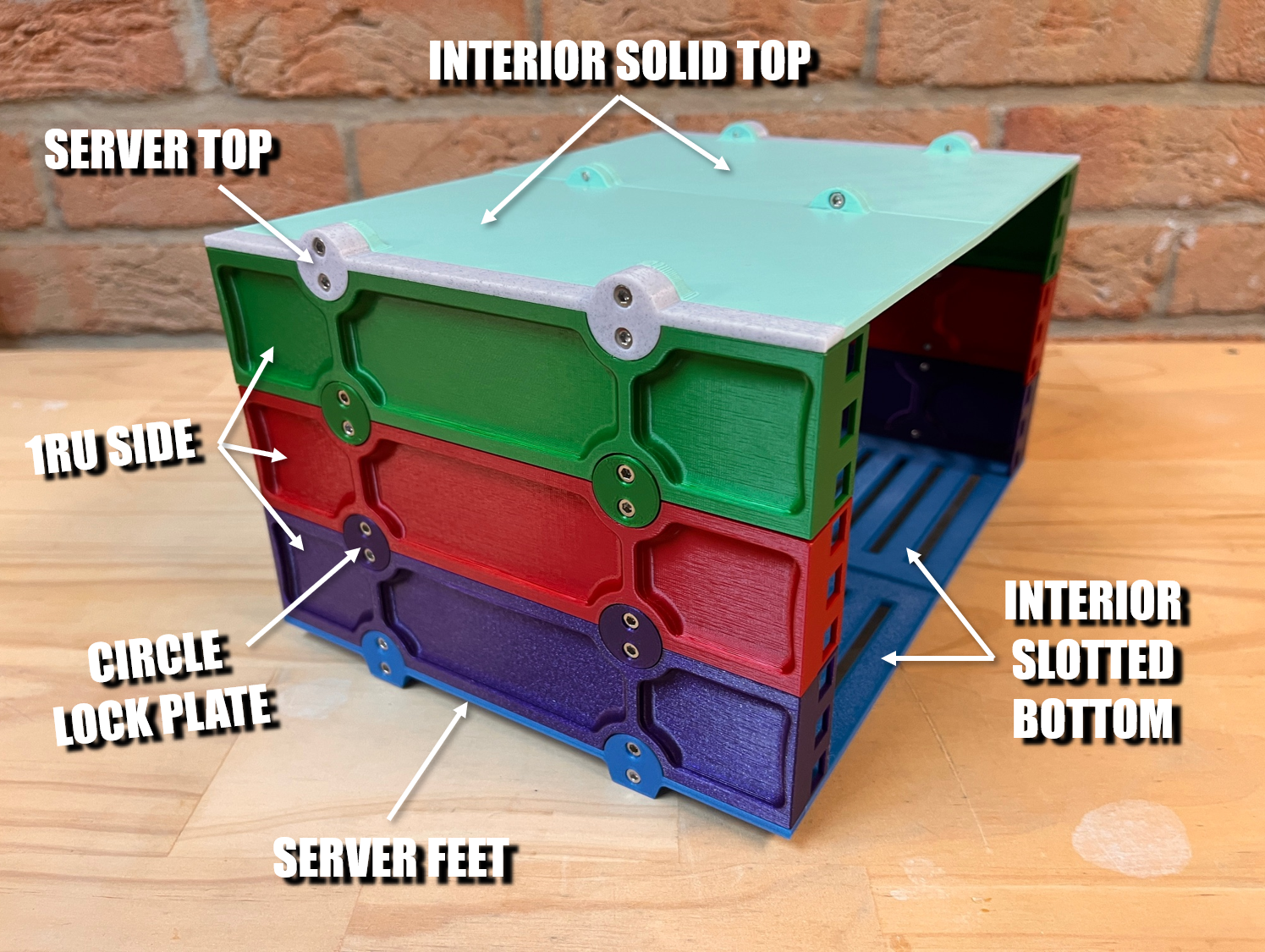

Files (8)
1ru_side.stl
3.1 MB
circle_lock_plate.stl
135.4 KB
interior_solid_top.stl
141.7 KB
interior_slotted_bottom.stl
123.7 KB
server_feet.stl
151.8 KB
server_top.stl
266.9 KB
server_handle.stl
575.9 KB
modular_10inch_server_rack.stp
774.4 KB
