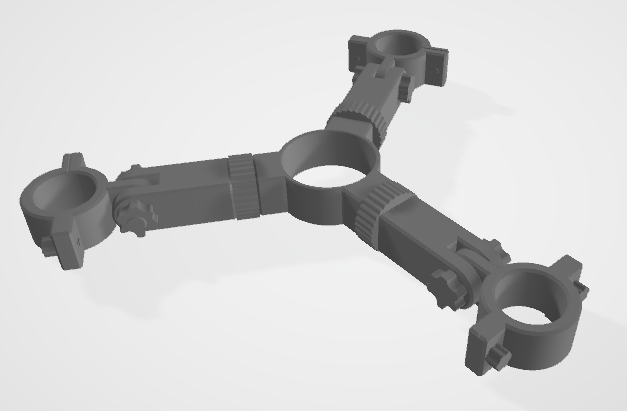

I designed this customizable spreader to provide rock-solid stability for any tripod, regardless of brand.

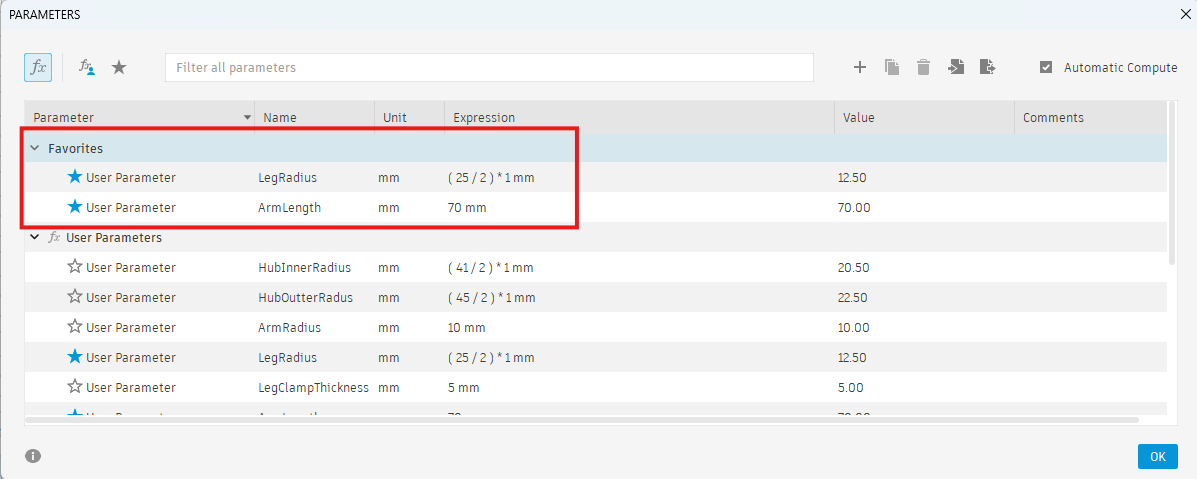

How to Customize: This model is fully parametric in Fusion 360. To adapt it to your gear, open the "Change Parameters" menu and adjust:

• LegRadius: The exact radius of your tripod legs for a snug fit.

• ArmLength: The distance from the leg to the central hub.

Note: The arm length is forgiving; the design allows for roughly 1.5cm of manual adjustment during assembly.

The Arm length does not need to be 100% precise as you can adjust up to about 1.5cm longer.

If your tripod matches my dimensions, feel free to use the pre-exported STL files provided.

🔧 Assembly Tip: > * Screw Orientation: Ensure the right-hand adjustment screw is facing the center hub.

• Check Alignment: Double-check this before tightening to ensure the 1.5cm adjustment range remains functional.
