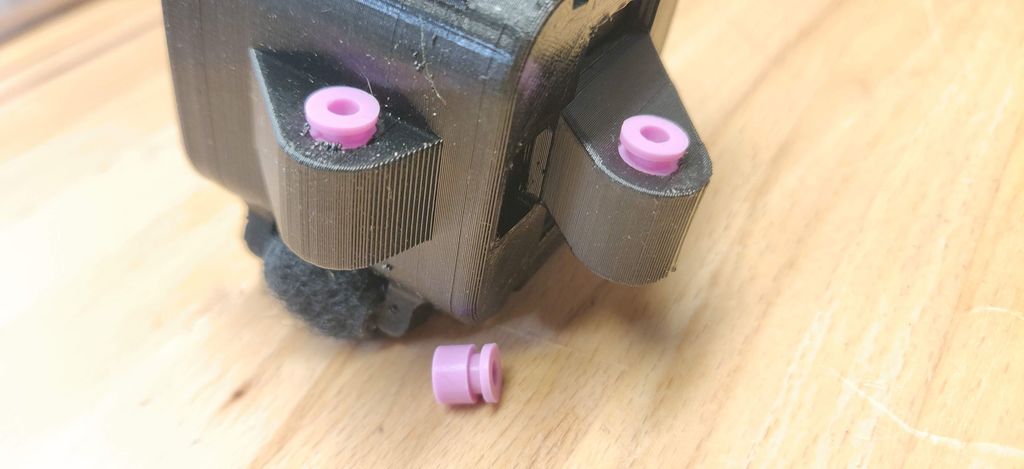

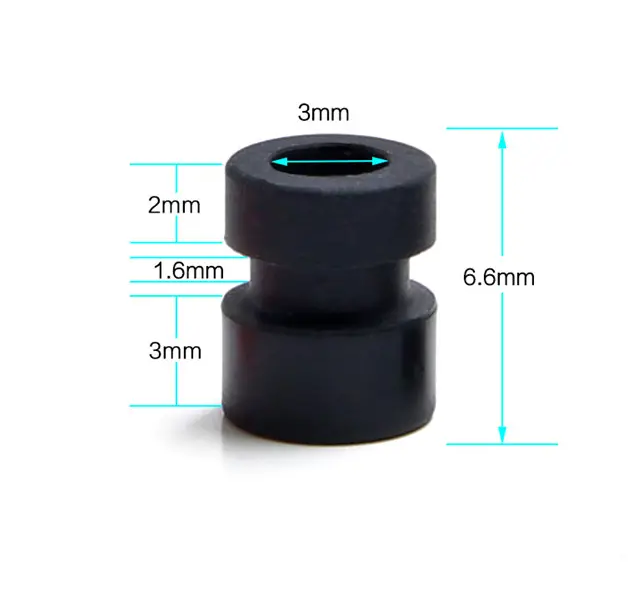

A redesigned version of the original Mr. Croc (set) to fit other quad frames. I have also redesigned the GoPro Holders to be able to soft mount the cameras with standard anti vibration "washers" (like these or these or any M3 FC anti vibration "washers".)

Update 2022-07-29: FlyWoo Naked GP holder with the TBS ND FIlter holder where visibel (in some cases) when recording. Hopefully it's fixed now. :)

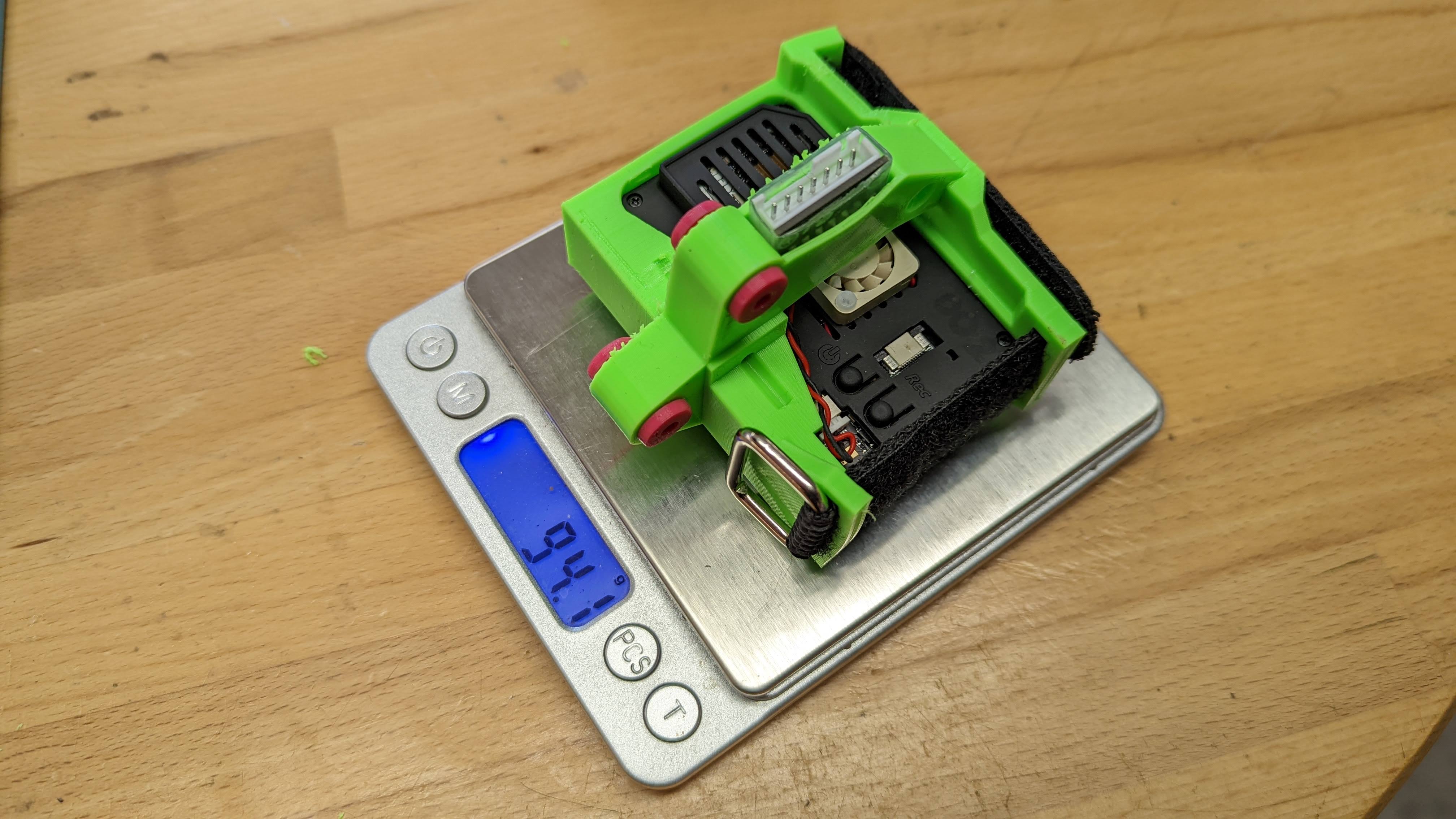

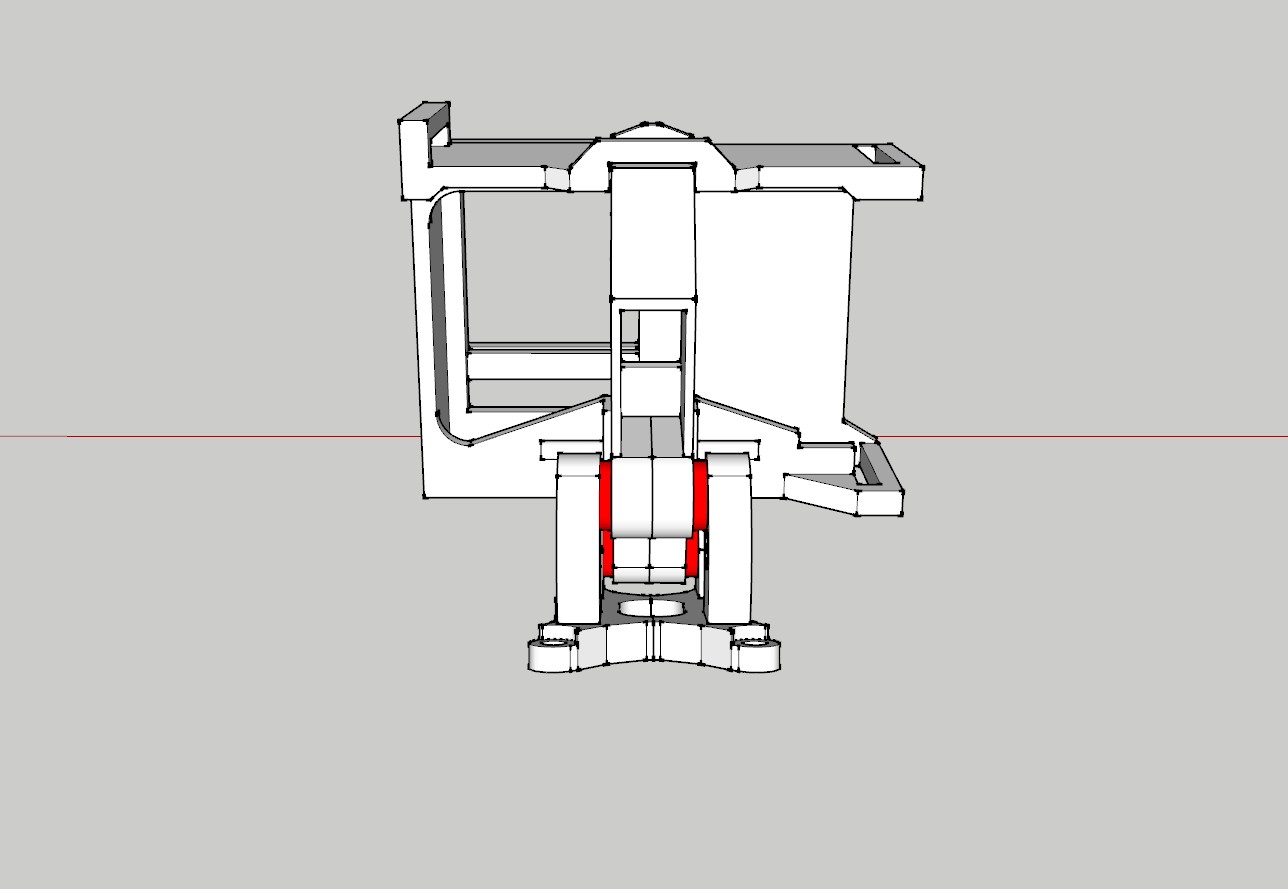

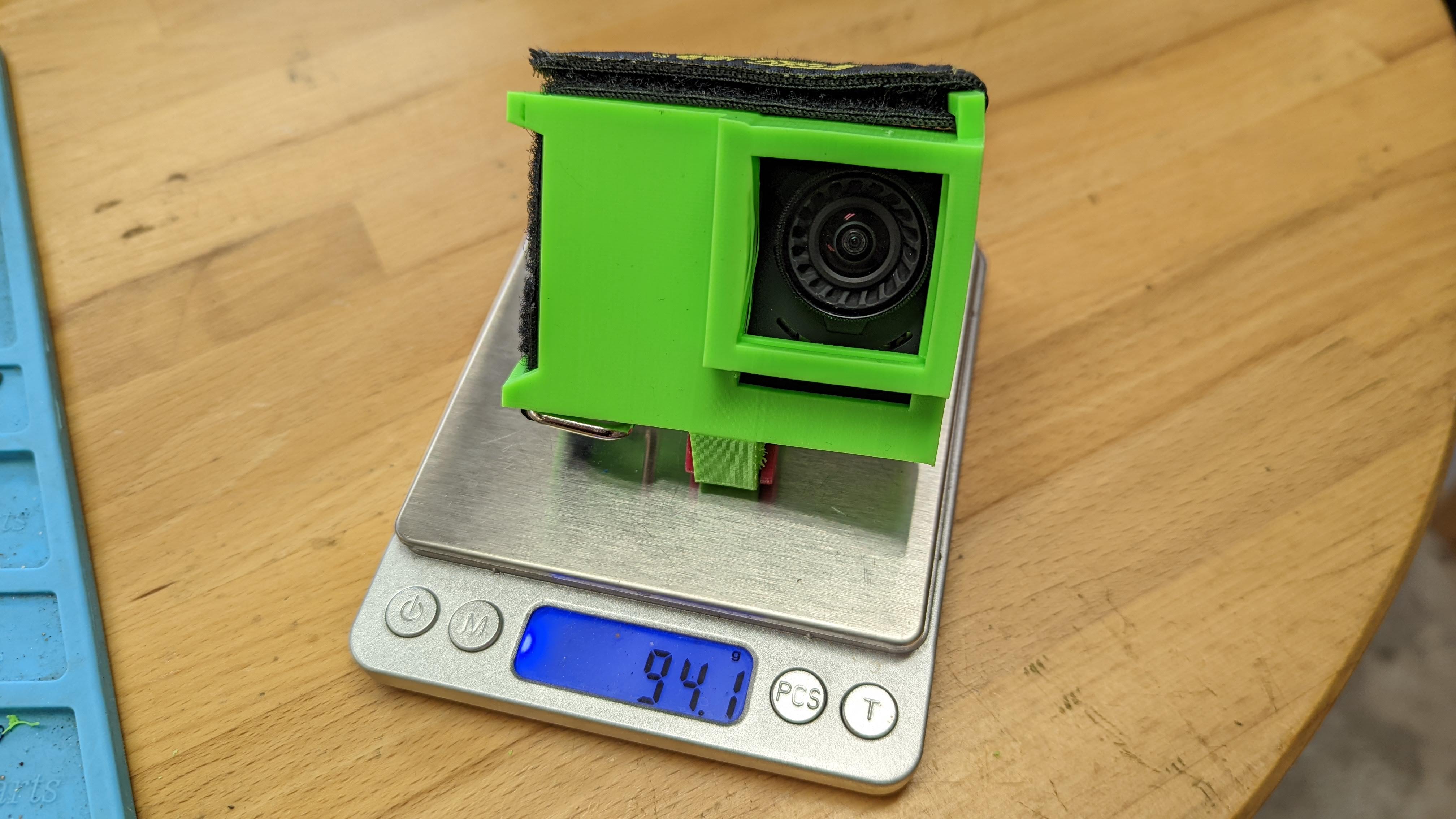

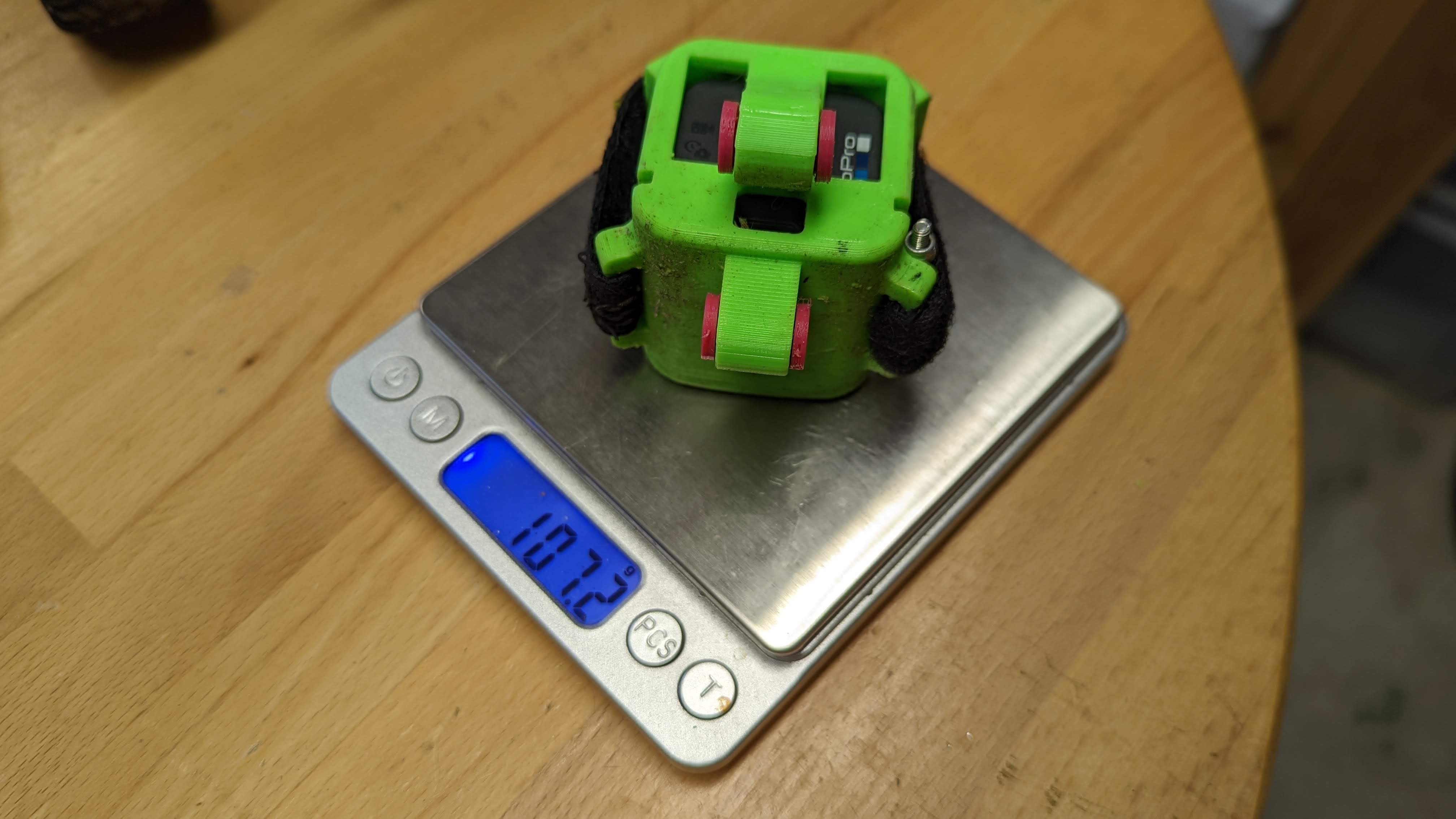

Update 2022-07-26: Added 4 models of FlyWoo Naked GoPro Hero 10 Black holders. With and without front screen protection and with and without a “balance module” holder.

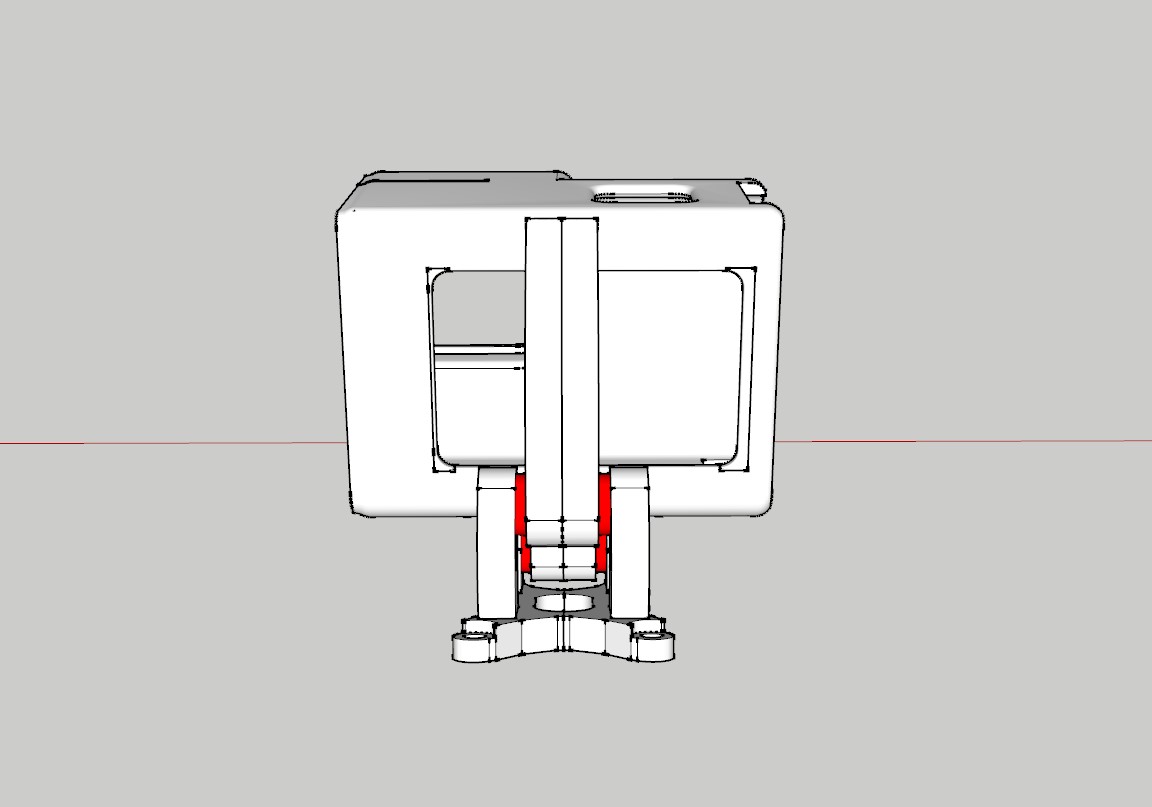

Update 2022-07-09: Added GoPro Hero 10 Black holder, this version can hold a TBS ND Filter in front of the lens, I also don't have any hole for the “front” screen. I'm not using it and it's better to have it more protected. :)

Update 2021-12-30: Added the "Soft-Spacer", I'm printing this with Ninja-flex (a VERY soft material, almost like rubber). It works great.

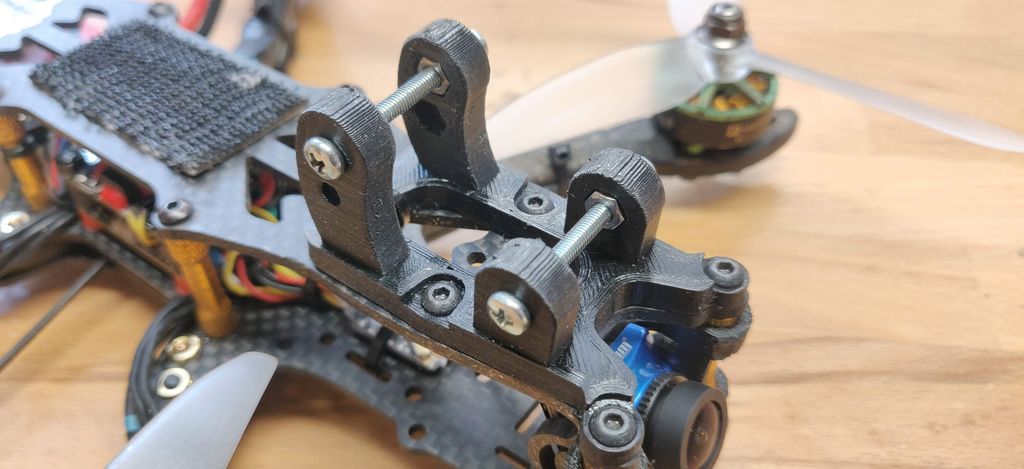

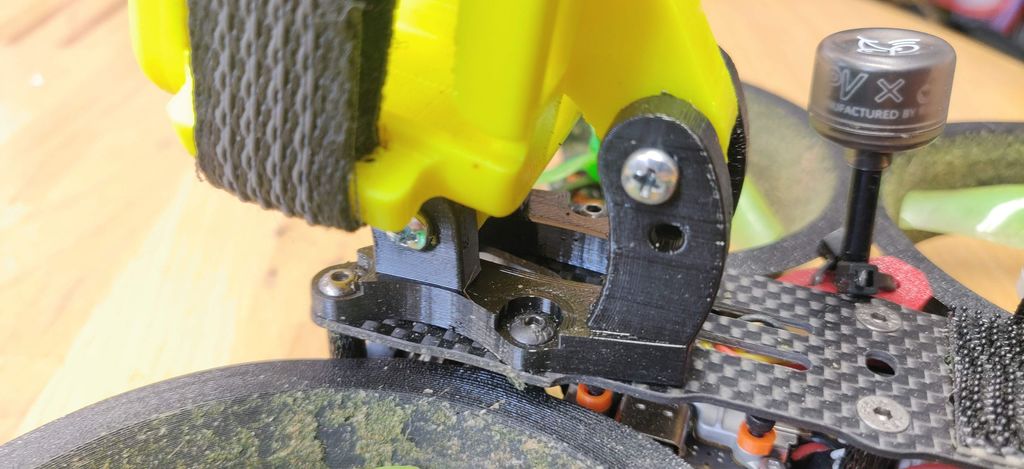

You can tighten down the holders with M3 nuts in the base and use locking nuts on the "outside".

Frames that fit:

IFlight BumbleBee - Degrees 10 & 25°

FPV Cycle CineSplore - Degrees 10 & 25°

IFlight QL5 V2 - Degrees 10 & 25, 15 & 30, 20 & 25°

Mr. Croc - Degrees 10 & 25, 15 & 30, 20 & 25°

TF5 T-Motor Freestyle - Degrees 10 & 25, 15 & 30, 20 & 25°

FrankenQuad (my own build from spare frame parts) - Degrees 10 & 25, 15 & 30, 20 & 25°

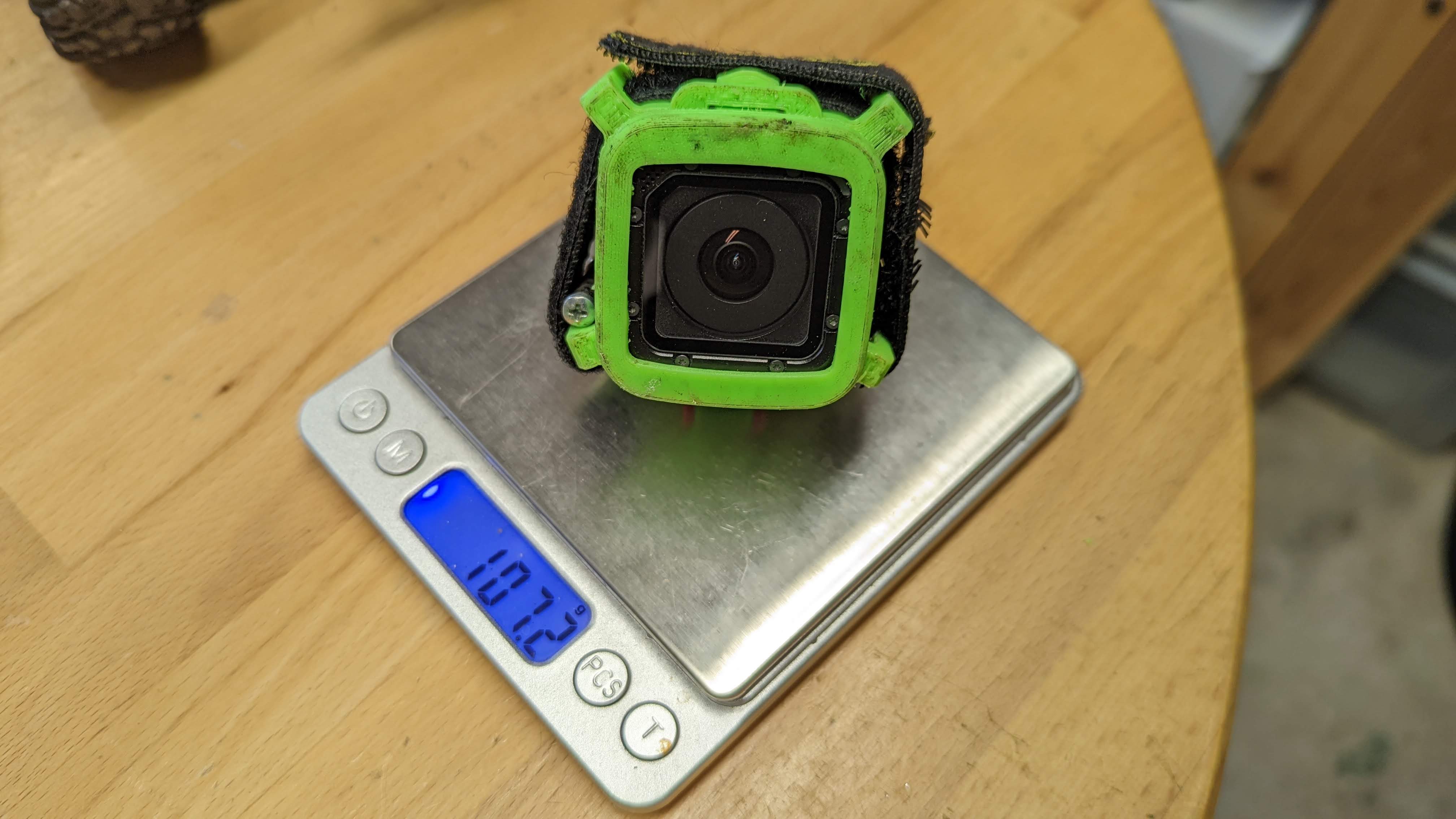

The GoPro Hero 5 session holder can fit TBS ND filters in front of the camera (if you want). But if you do not use an ND filter, the "holder" will be visible in the corners (I "zoom" in post about 106% to get rid of the "corners").

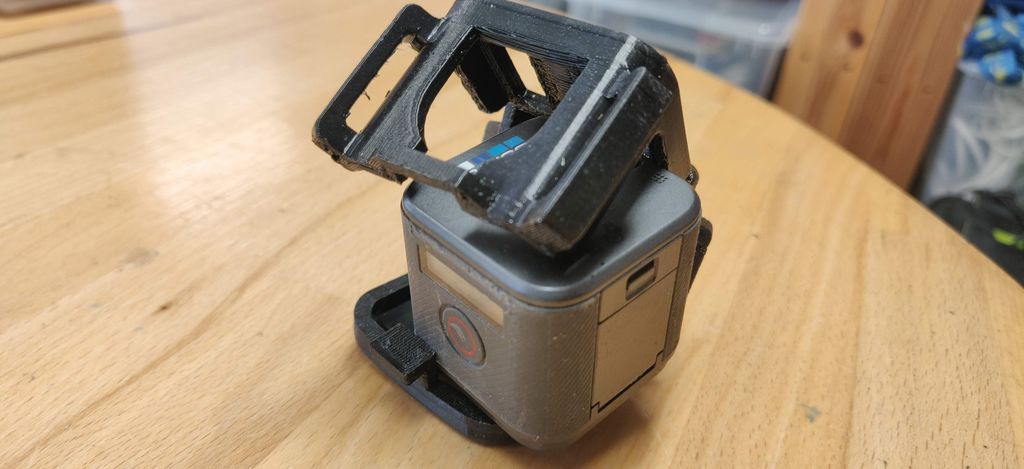

The holder is also designed so you can "open" the holder to remove the camera.

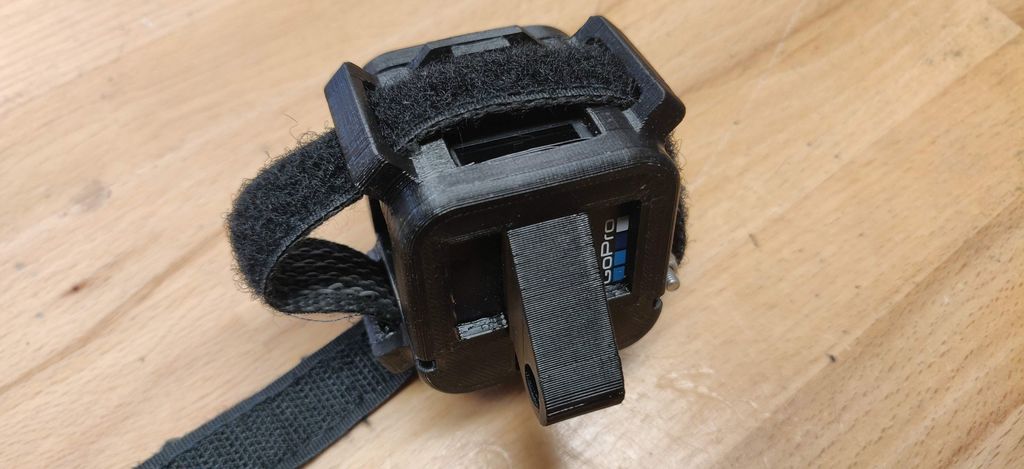

You need a "battery" strap to lock the holder. It is possible to charge and access the SD-card while the camera is still in the holder. You push "on" the strap to start the recording.

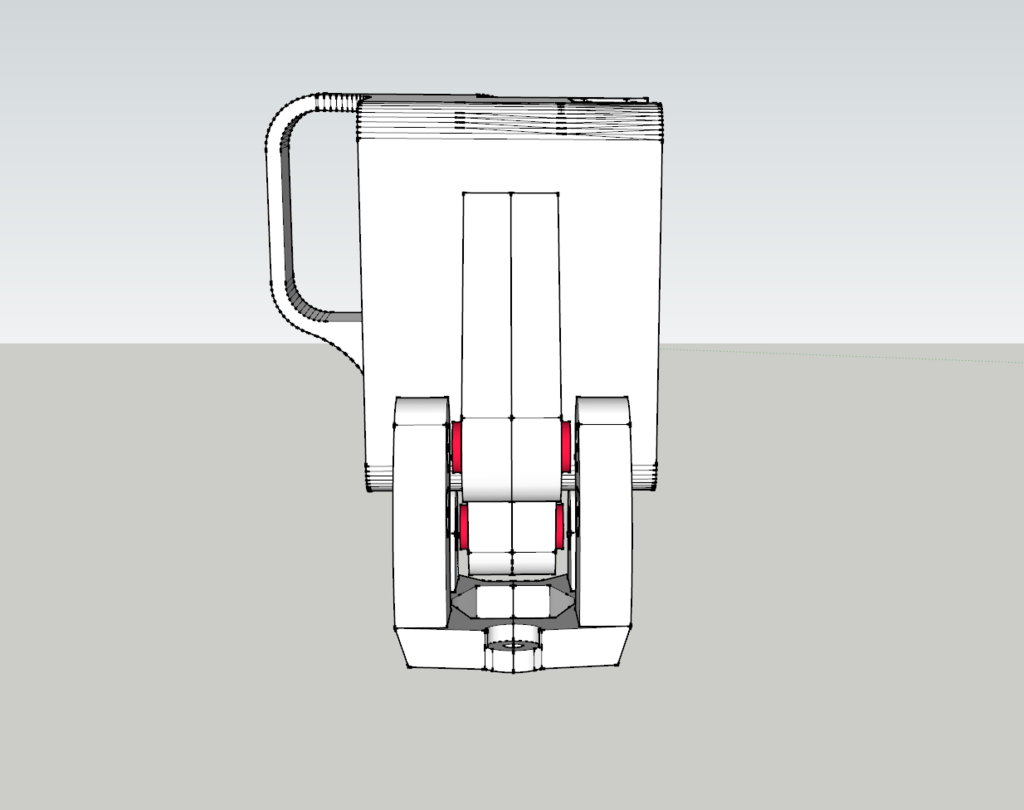

Unfortunately I don't own a GoPro Hero 7 (yet), so I don't know if the holder is any good. :)

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

No

Supports:

Yes

Resolution:

0.2

Infill:

20%

Filament: Any TPU (98A)


Notes:

Print the GoPro holders with support... It's quite tricky to get them to be good...
