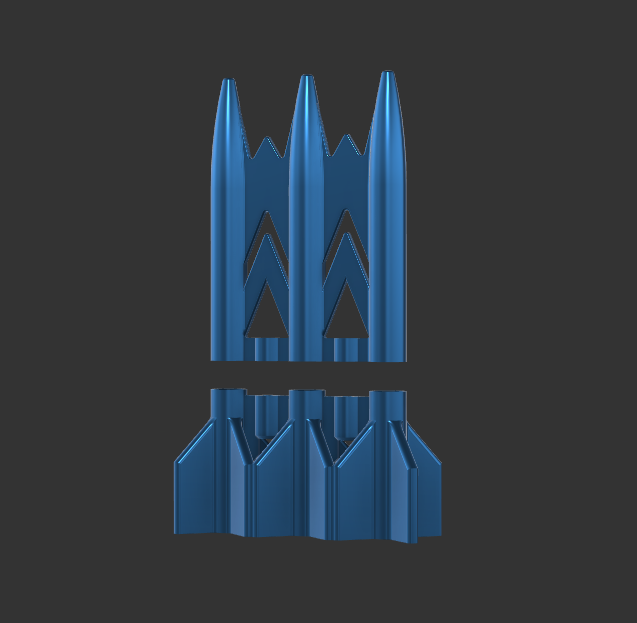

Dart Case — Length Adjustable (V2)

A fully adjustable dart case that fits any dart setup — no matter the barrel length, shaft style, or flight type. Instead of being locked into fixed dimensions, this case slides to the exact length you need and stays there.

This is Version 2, refined after real-world testing with multiple dart setups.

The Problem Every Other Dart Case Has

Most dart cases have a fixed length. That sounds fine — until your darts don't perfectly fill the space.

When a dart is too short for the case, the tip doesn't touch the bottom. The dart floats inside, held only by the flight. That means:

• ✈ The flight takes the full weight of the dart on every bump and drop

• 🪶 Flights detach inside the case — constantly

• 😤 Darts get wedged in and are hard to remove, because the flight is jammed against the top

This is a fundamental design flaw in fixed-length cases, and it affects the majority of cases on the market.

How This Case Solves It

By adjusting the case to the exact length of your dart, the tip rests firmly against the bottom. The dart is supported by its point — not by the flight.

• No pressure on the flight at all

• Flights stay attached, always

• Darts slide in and out cleanly

It's a simple fix that no off-the-shelf case bothers to make.

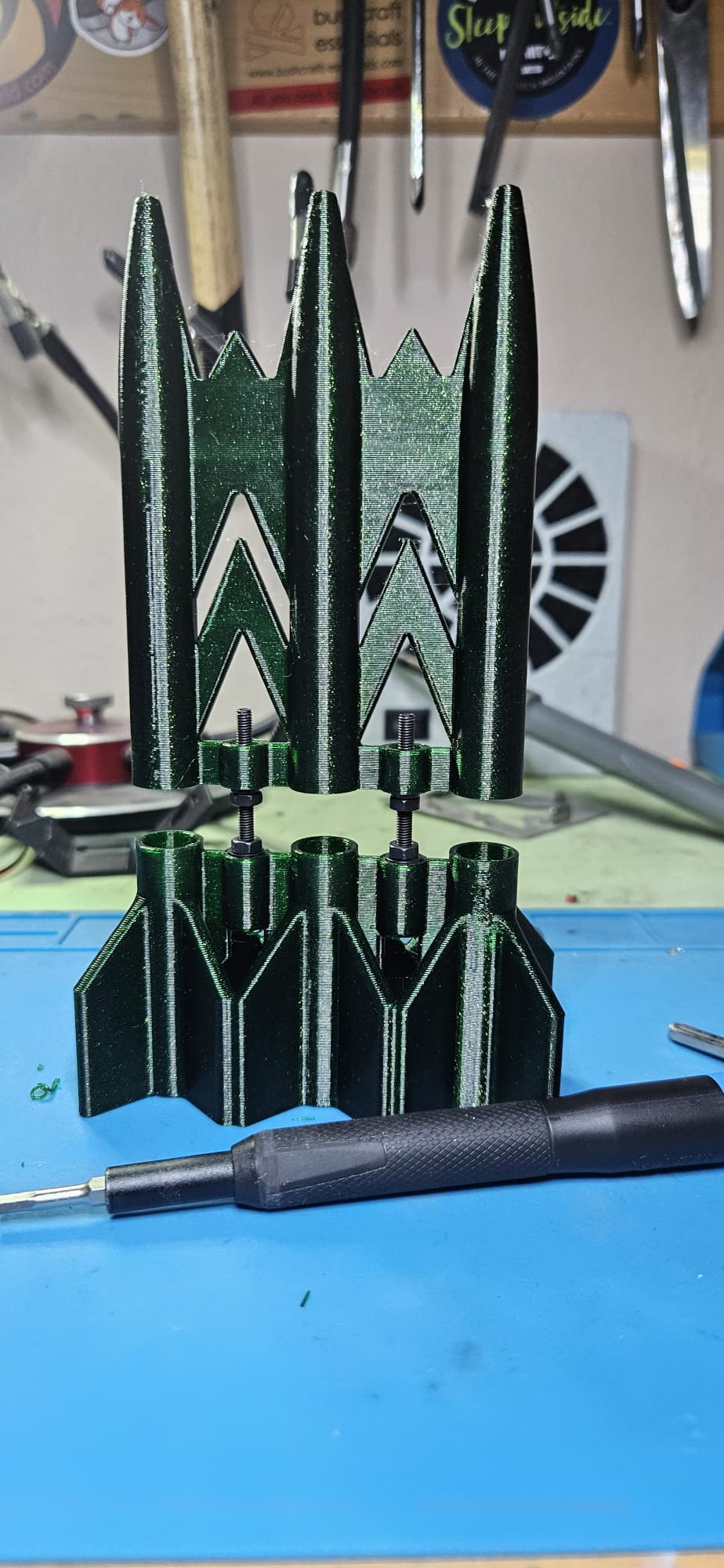

Built around standard brass standoffs and M3 bolts, the design is simple, sturdy, and easy to assemble. No foam inserts to cut, no awkward fit — just a clean, protective case tailored to your darts.

Hardware Required

• M3 bolts — length depends on your dart

• M3 nuts

The total bolt length determines the inner case length. Measure your assembled darts (including tip, barrel, shaft, and flight) to pick the right hardware.

Compatibility

Flights & Shafts

Other

Print Settings

Standard PLA works fine. No supports needed. Print at your usual quality settings.

Feedback and remixes welcome — let me know how it fits your setup!
