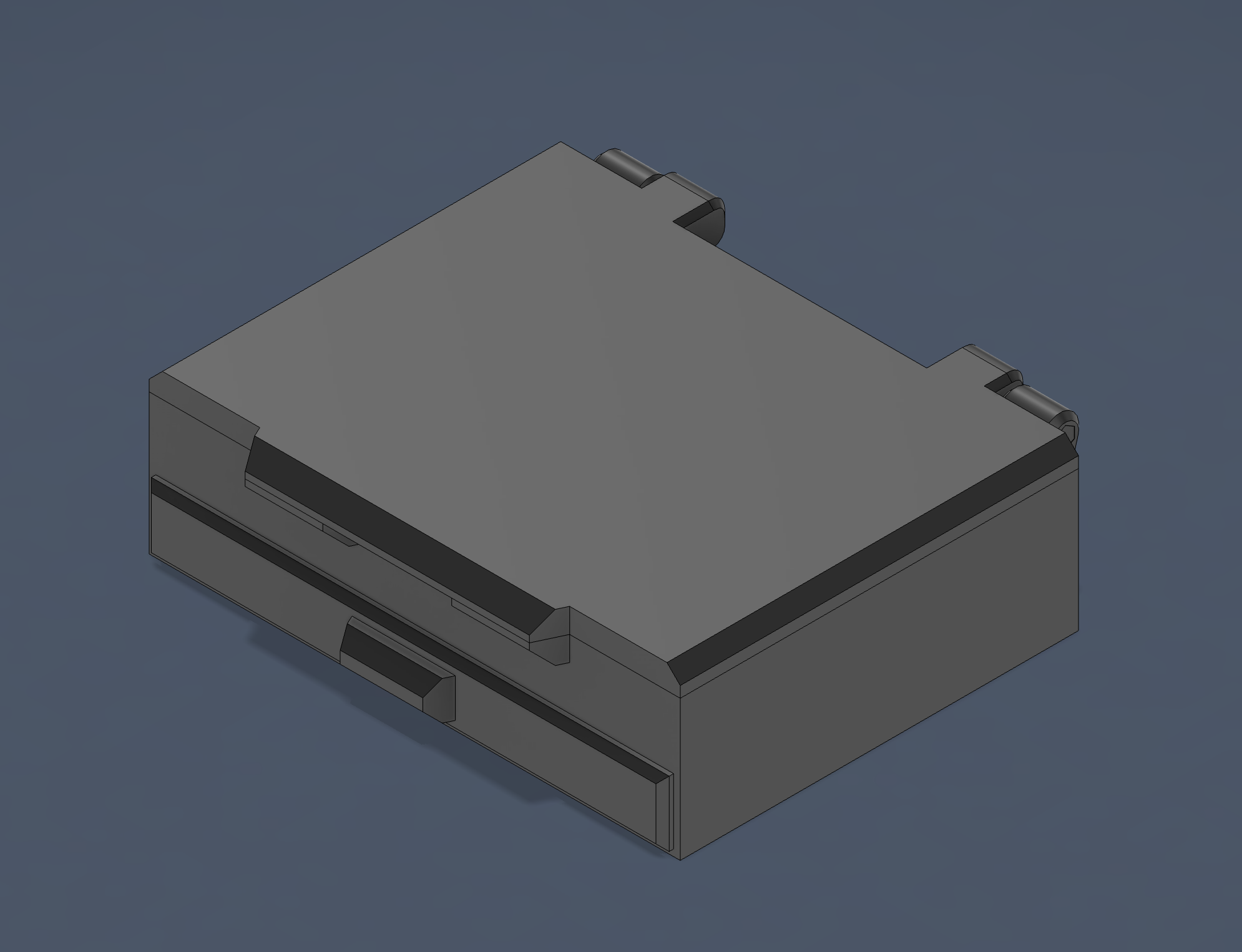

Modelo 3D Electronic component box por printing_stuff no Printables

Descrição

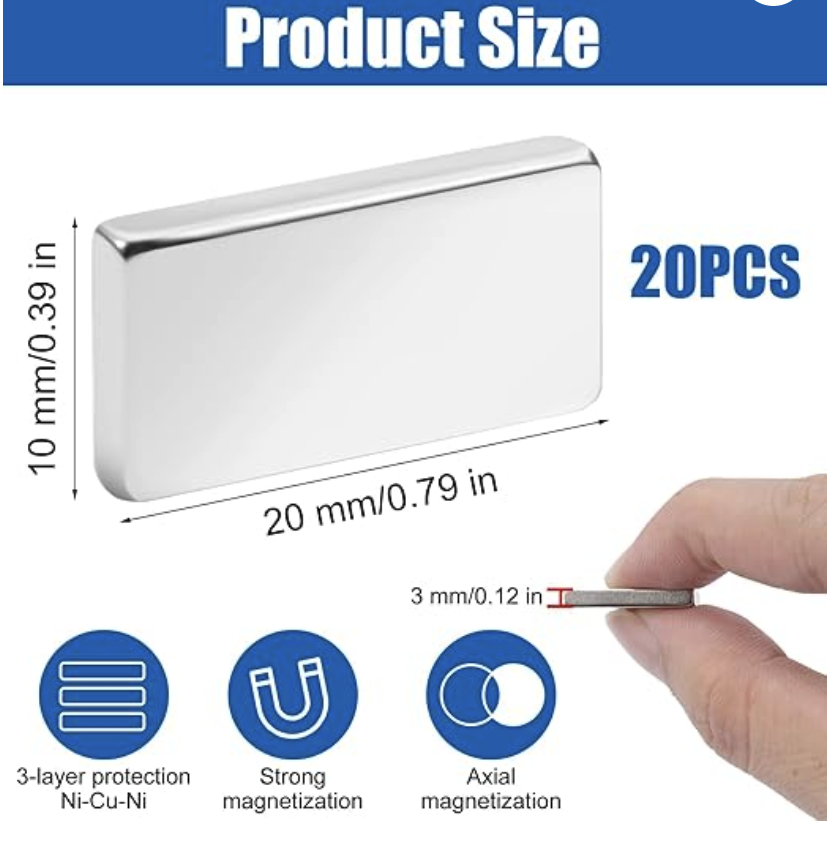

This is not a simple design; to build it, follow this procedure and you'll need six magnets to lock the box as shown:

  1. Print the Box.3mf, but stop at the right layer (easy to do in PrusaSlicer) to insert the magnets.

  2. Print the left and right pins (they’re identical).

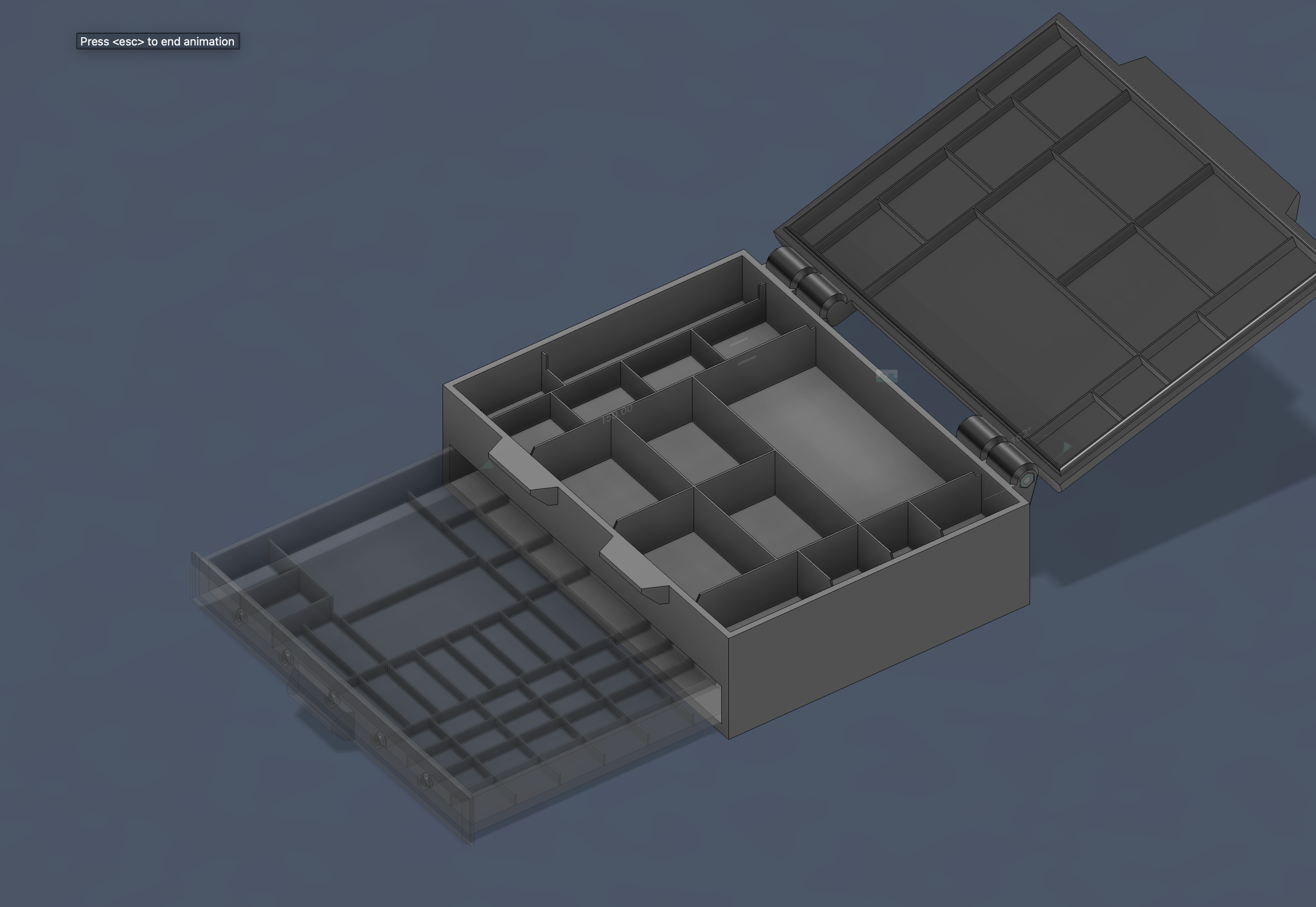

  3. Print the Lid.3mf, stop at the right layer to insert magnets. Ensure opposite polarities for the magnets when the lid is closed. Attach the lid to the box and lock it with the pins; superglue can be used to secure it.

  4. Print the Drawer Internal.3mf.

  5. Print the Drawer Front.3mf and glue it to the drawer internal with superglue (clean with IPA for best adhesion).

  6. Print the Drawer Limit, insert the drawer internal into the box slot, then glue the limit to prevent the drawer from escaping.

  7. Lastly, print the Spacer.3mf and place it inside the box.

For best results, use decent precision settings with a 0.2mm layer height. I used Polymaker PLA for amazing results.

Printables

Electronic component box

Publicado em 22 de fev de 2026

4
Curtidas
17
Downloads
Categoria Electronics
Tags
box container
Licença GNU General Public License v3.0
Arquivos (8)
Box.3mf 9.8 KB
Pin Left.3mf 7 KB
Pin Right.3mf 7 KB
Lid.3mf 30.5 KB
Drawer Internal.3mf 33.9 KB
Drawer Front.3mf 7.5 KB
Drawer Limit.3mf 1.9 KB
Spacer.3mf 5.6 KB
