Modelo 3D Gridfinity Minimal Case / Box Light - 60+ Sizes por Andy Wings no Printables

Descrição

Compatible with the original Gridfinity system by Zack Freedman.

Overview

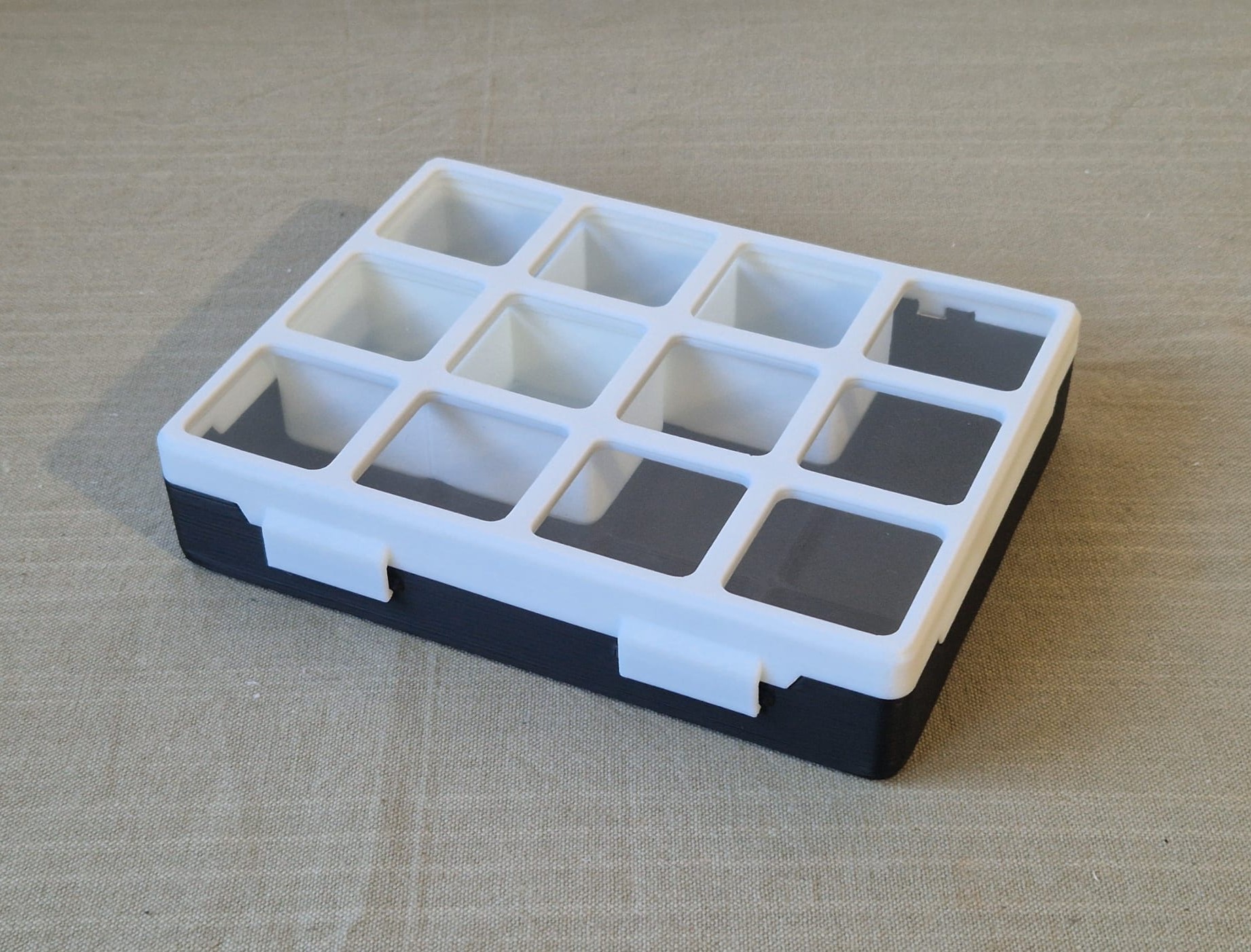

This is a lightweight and minimal case designed to hold Gridfinity bins.
I created it with the following goals in mind:

  • Ultra-lightweight design

  • Fast printing

  • Simple and clean linear aesthetics

  • Fully parametric

  • Optional transparent window

  • Easy assembly without screws or hardware

  • Ability to build very compact sizes (starting from 1x1x3U)

Although I really appreciated and drew inspiration from  Matthew’s (Modern Gridfinity Case) and Suit’s (Gridfinity Rugged Case "Light" R3) projects, neither of them included all the features I wanted.
So I decided to design my own version from scratch.

Features

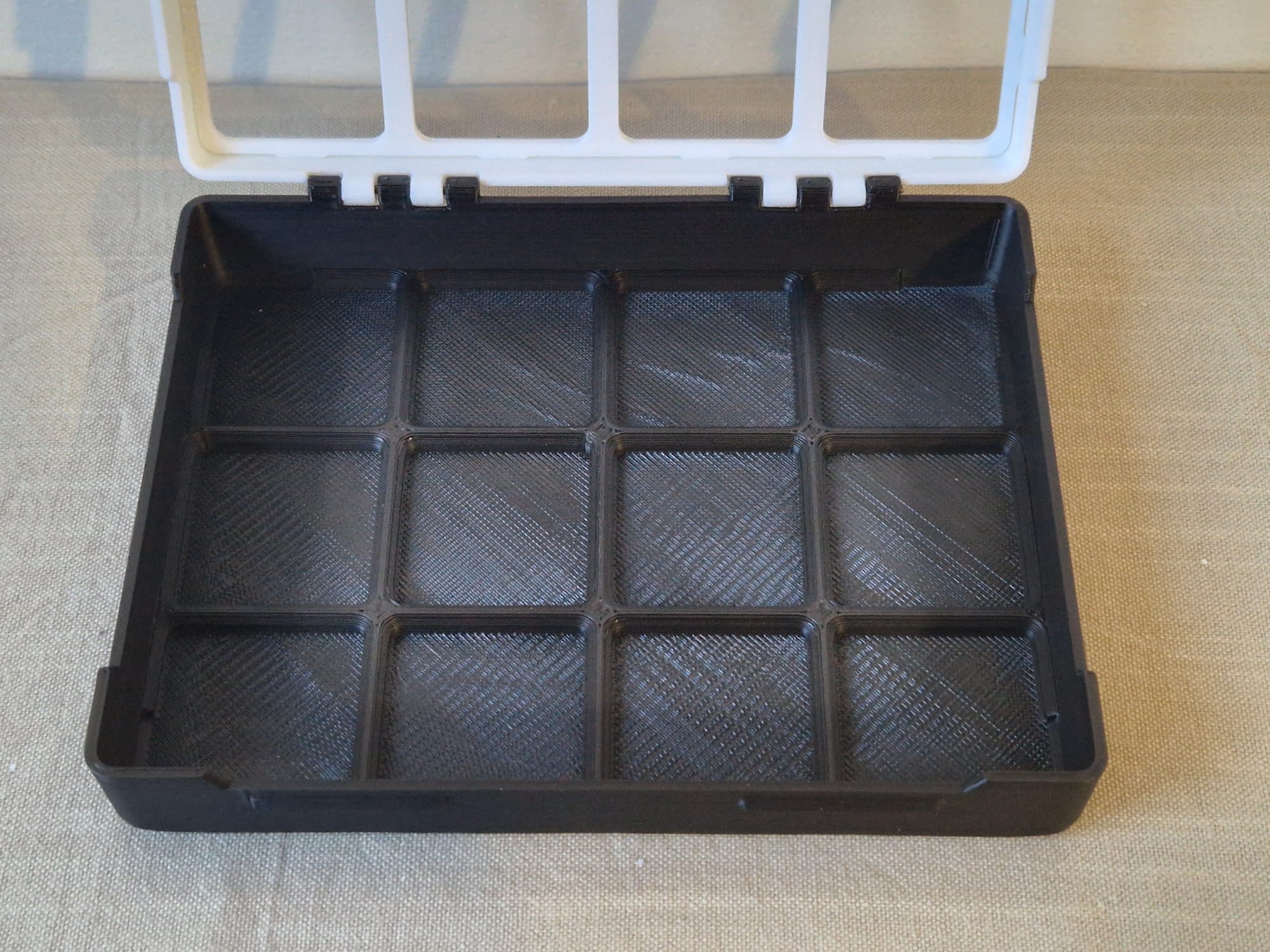

  • Two-part design (no window version): only Top and Bottom

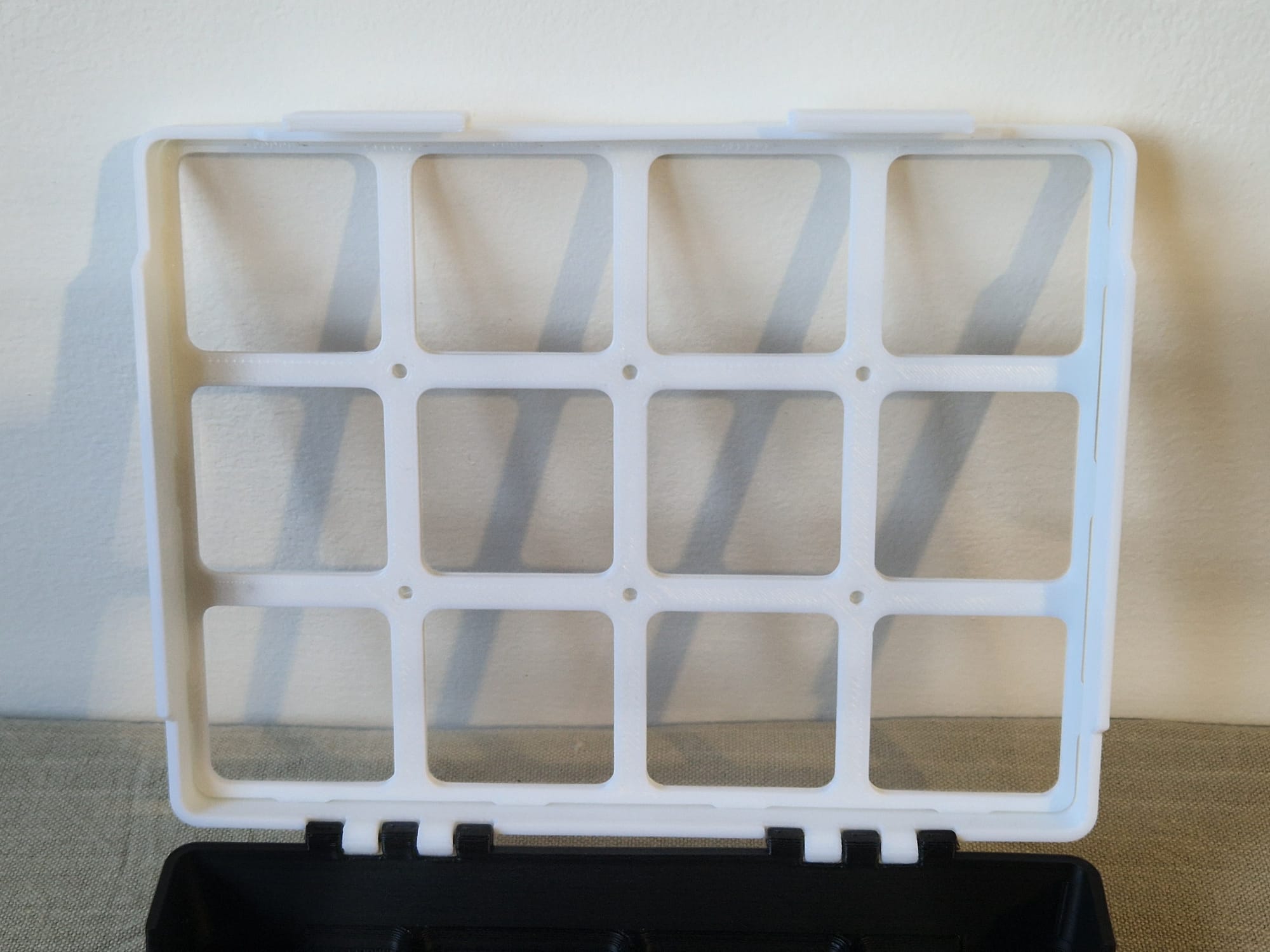

  • Window version: includes an additional printed grid frame to hold the transparent sheet

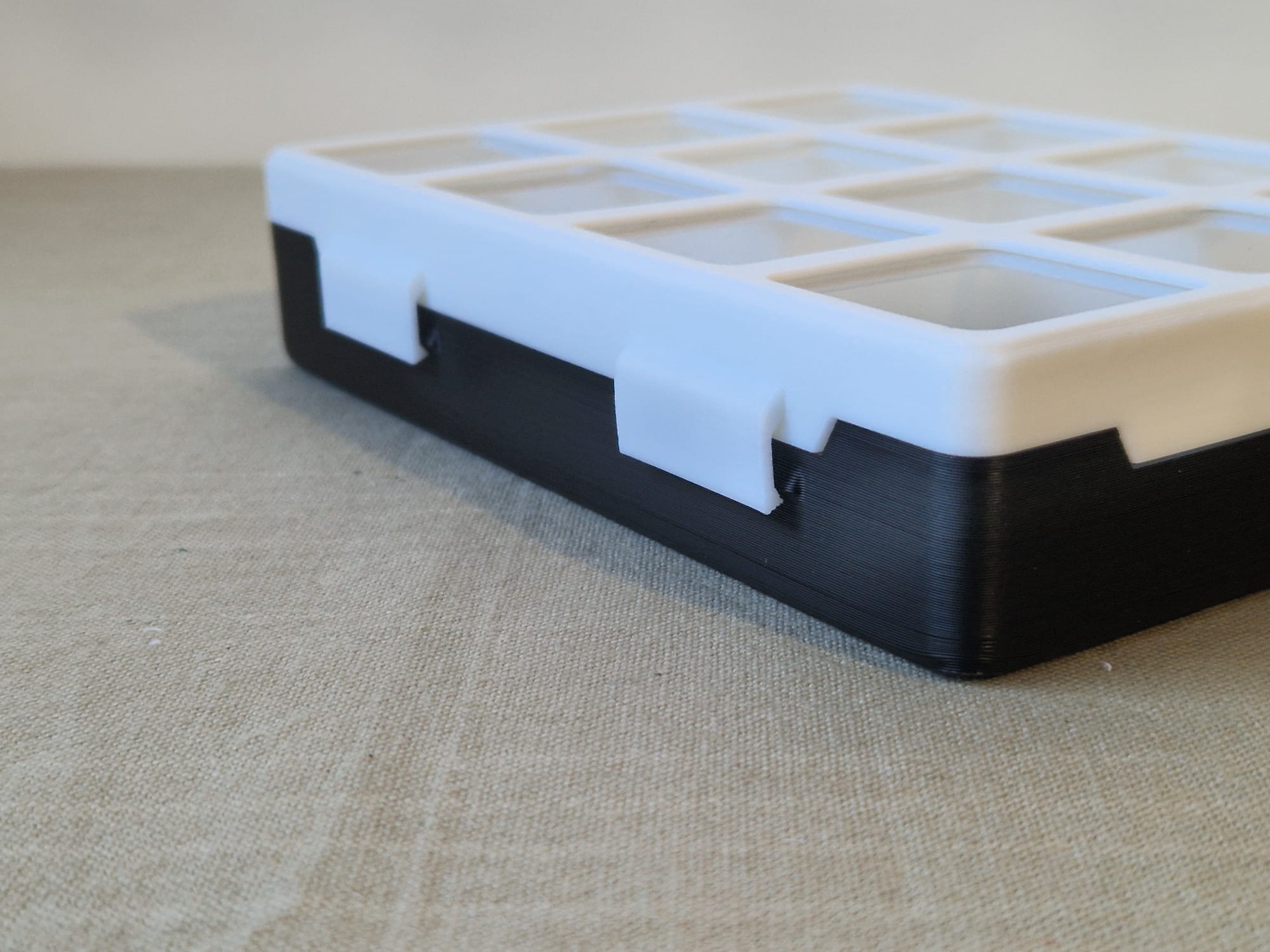

  • Integrated latches: built directly into the Top (no separate parts required)

  • Secure closing mechanism
    ⚠ While the latch holds well, avoid shaking or flipping the case, especially when storing heavy items.

Why This Version?

  • Reduced material usage compared to most cases

  • Faster print time

  • Clean aesthetic without external hardware

  • Fully parametric for easy customization

Available Sizes

  • 1 x 1 x (3U, 4U, 6U)

  • 2 x 1 x (3U, 4U, 6U)

  • 2 x 2 x (3U, 4U, 6U)

  • 3 x 2 x (3U, 4U, 6U)

  • 3 x 3 x (3U, 4U, 6U, 9U)

  • 4 x 3 x (3U, 4U, 6U, 9U)

  • 4 x 4 x (3U, 4U, 6U, 9U)

  • 5 x 4 x (3U, 4U, 6U, 9U)

  • 6 x 5 x (3U, 4U, 6U, 9U)

  • 6 x 6 x (3U, 4U, 6U, 9U)

  • Others on request

Materials

  • No screws or hardware required.

  • For the window version, use clear binding cover sheets (commonly used for spiral-bound documents). Recommended thickness: 0.3 mm

Print Settings

  • Layer height: 0.20 – 0.32 mm
    (All my prints were made at 0.32 mm without issues.)

  • Infill: 10% (15% for increased strength)

  • No supports required

Assembly

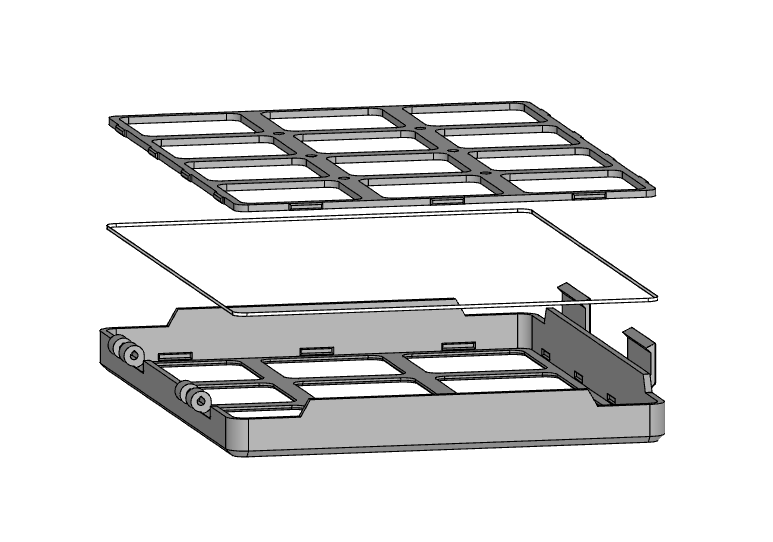

Transparent Cover Version

To install the transparent cover:

  1. Place the lid upside down on a flat surface.

  2. Lay the transparent binding film evenly inside the lid frame.

  3. Press the retaining grid into place until it snaps securely into the lid.

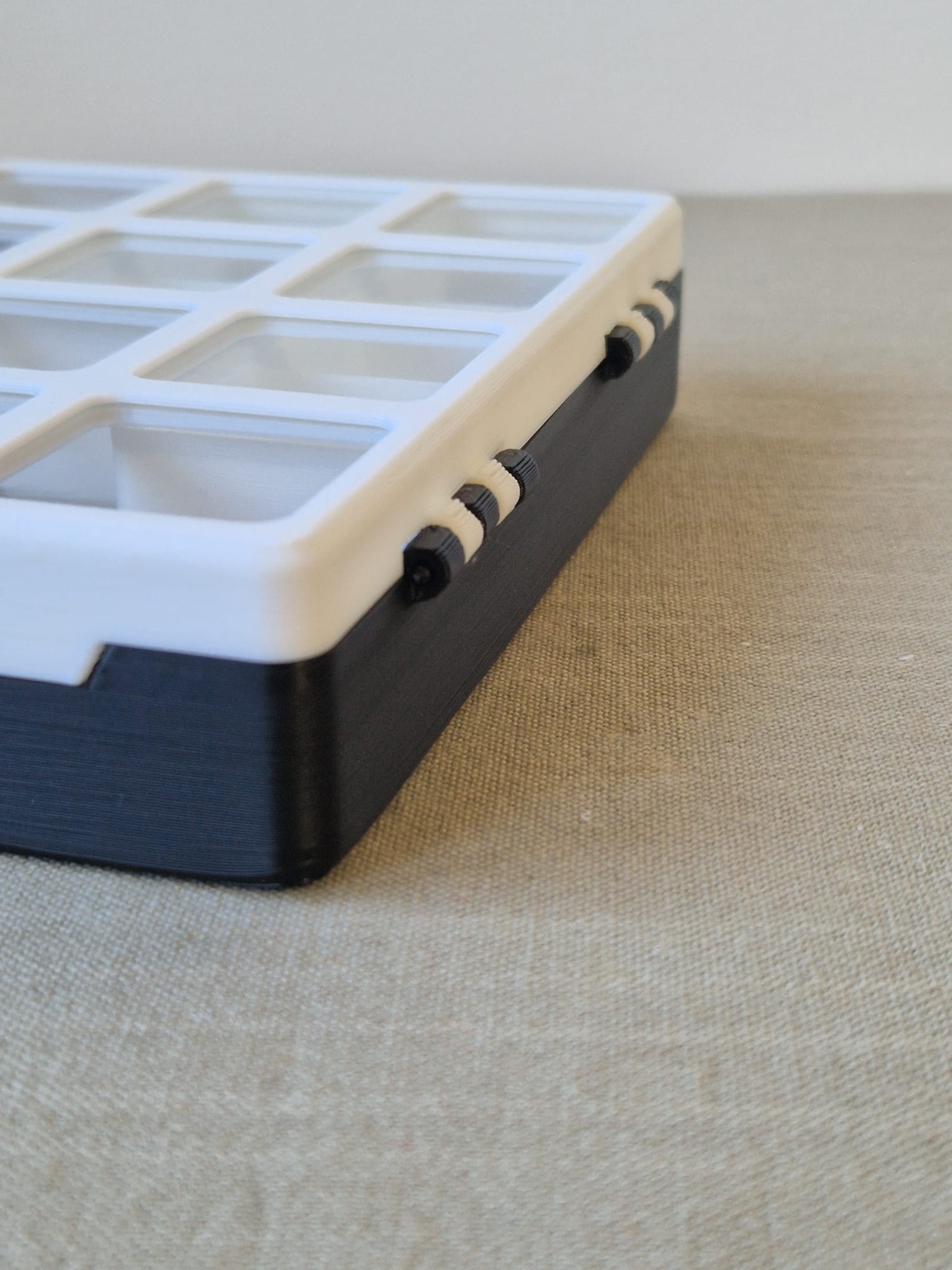

To connect the Lid and Bottom

  1. Insert a piece of filament through the hinge.

  2. Optionally melt the filament ends slightly to prevent it from sliding out.

Adjustment Tip

If the latch feels too loose after printing:

  • Warm it slightly using a hair dryer.

  • Gently press it inward to increase resistance and improve the locking strength.

Filament Usage Comparison

Model

Size

Filament (g)

Notes

Gridfinity Ultra Light Case (This Model)

3x4x6U

155 g

Minimal design

Matthew's Version - Modern Gridfinity Case

3x4x6U

241 g

Reference model

Suit's Version - Gridfinity Rugged Case "Light" R3

3x4x6U

230 g

Reference model

Printables

Gridfinity Minimal Case / Box Light - 60+ Sizes

Andy Wings Andy Wings (abre em nova aba)

Publicado em 26 de jul de 2026

21
Curtidas
54
Downloads
2
Impressões
Categoria Organizers
Tags
parametric organizer light minimal modular storage lightweight gridfinity
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (66)
Min_GF_Box_1x1_Lid.stl 173.3 KB
Min_GF_Box_1x1_Lid_W.stl 228.6 KB
Min_GF_Box_1x1_Grid.stl 56.3 KB
Min_GF_Box_1x1x3_Bottom.stl 319.4 KB
Min_GF_Box_1x1x4_Bottom.stl 319.4 KB
Min_GF_Box_1x1x6_Bottom.stl 319.4 KB
Min_GF_Box_2x1_Lid.stl 228.4 KB
Min_GF_Box_2x1_Grid.stl 109.5 KB
Min_GF_Box_2x1_Lid_W.stl 336.6 KB
Min_GF_Box_2x1x3_Bottom.stl 381.7 KB
Min_GF_Box_2x1x4_Bottom.stl 381.7 KB
Min_GF_Box_2x1x6_Bottom.stl 381.7 KB
Min_GF_Case_2x2_Lid.stl 231.7 KB
Min_GF_Case_2x2_Lid_W.stl 443.4 KB
Min_GF_Case_2x2_Grid.stl 163.8 KB
Min_GF_Case_2x2x3_Bottom.stl 560.6 KB
Min_GF_Case_2x2x4_Bottom.stl 560.6 KB
Min_GF_Case_2x2x6_Bottom.stl 560.6 KB
Min_GF_Case_3x2_Lid.stl 319.6 KB
Min_GF_Case_3x2_Lid_W.stl 634.8 KB
Min_GF_Case_3x2_Grid.stl 242.9 KB
Min_GF_Case_3x2x3_Bottom.stl 857.5 KB
Min_GF_Case_3x2x4_Bottom.stl 857.5 KB
Min_GF_Case_3x2x6_Bottom.stl 857.5 KB
Min_GF_Case_3x3_Lid_W.stl 788.9 KB
Min_GF_Case_3x3_Grid.stl 372.7 KB
Min_GF_Case_3x3_Lid.stl 319.6 KB
Min_GF_Case_3x3x3_Bottom.stl 1.1 MB
Min_GF_Case_3x3x4_Bottom.stl 1.1 MB
Min_GF_Case_3x3x6_Bottom.stl 1.1 MB
Min_GF_Case_3x3x9_Bottom.stl 1.1 MB
Min_GF_Case_4x3_Lid_W.stl 945.6 KB
Min_GF_Case_4x3_Lid.stl 322.2 KB
Min_GF_Case_4x3_Grid.stl 502.6 KB
Min_GF_Case_4x3x3_Bottom.stl 1.3 MB
Min_GF_Case_4x3x4_Bottom.stl 1.3 MB
Min_GF_Cas_4x3x6_Bottom.stl 1.3 MB
Min_GF_Case_4x3x9_Bottom.stl 1.3 MB
Min_GF_Case_4x4_Lid_W.stl 1.1 MB
Min_GF_Case_4x4_Grid.stl 683.3 KB
Min_GF_Case_4x4_Lid.stl 322.2 KB
Min_GF_Case_4x4x9_Bottom.stl 1.7 MB
Min_GF_Case_4x4x6_Bottom.stl 1.7 MB
Min_GF_Case_4x4x4_Bottom.stl 1.7 MB
Min_GF_Case_4x4x3_Bottom.stl 1.7 MB
Min_GF_Case_5x4_Lid.stl 322.2 KB
Min_GF_Case_5x4_Lid_W.stl 1.3 MB
Min_GF_Case_5x4_Grid.stl 863.9 KB
Min_GF_Case_5x4x3_Bottom.stl 2 MB
Min_GF_Case_5x4x4_Bottom.stl 2 MB
Min_GF_Case_5x4x6_Bottom.stl 2 MB
Min_GF_Case_5x4x9_Bottom.stl 2 MB
Min_GF_Case_6x5_Lid_W.stl 1.8 MB
Min_GF_Case_6x5_Grid.stl 1.3 MB
Min_GF_Case_6x5_Lid.stl 317.5 KB
Min_GF_Case_6x5x9_Bottom.stl 2.9 MB
Min_GF_Case_6x5x6_Bottom.stl 2.9 MB
Min_GF_Case_6x5x4_Bottom.stl 2.9 MB
Min_GF_Case_6x5x3_Bottom.stl 2.9 MB
Min_GF_Case_6x6_Lid.stl 319.4 KB
Min_GF_Case_6x6_Lid_W.stl 2.1 MB
Min_GF_Case_6x6_Grid.stl 1.6 MB
Min_GF_Case_6x6x3_Bottom.stl 3.4 MB
Min_GF_Case_6x6x4_Bottom.stl 3.4 MB
Min_GF_Case_6x6x6_Bottom.stl 3.4 MB
Min_GF_Case_6x6x9_Bottom.stl 3.4 MB
