Update print profile v.2 and raw stl. (22. 2.) - is fixed a mistake in the position/dimension of the bottle cutout on the lid/base.

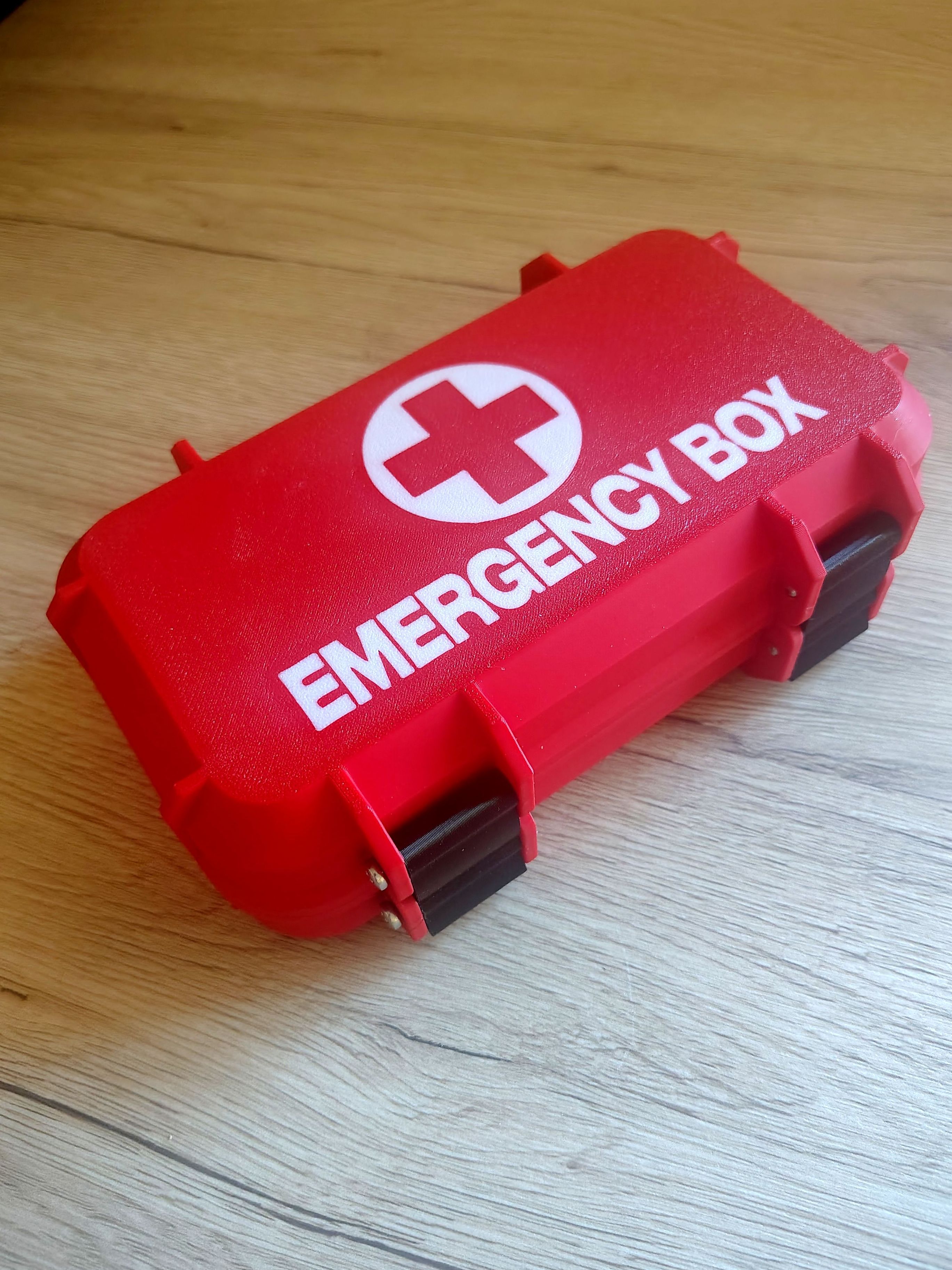

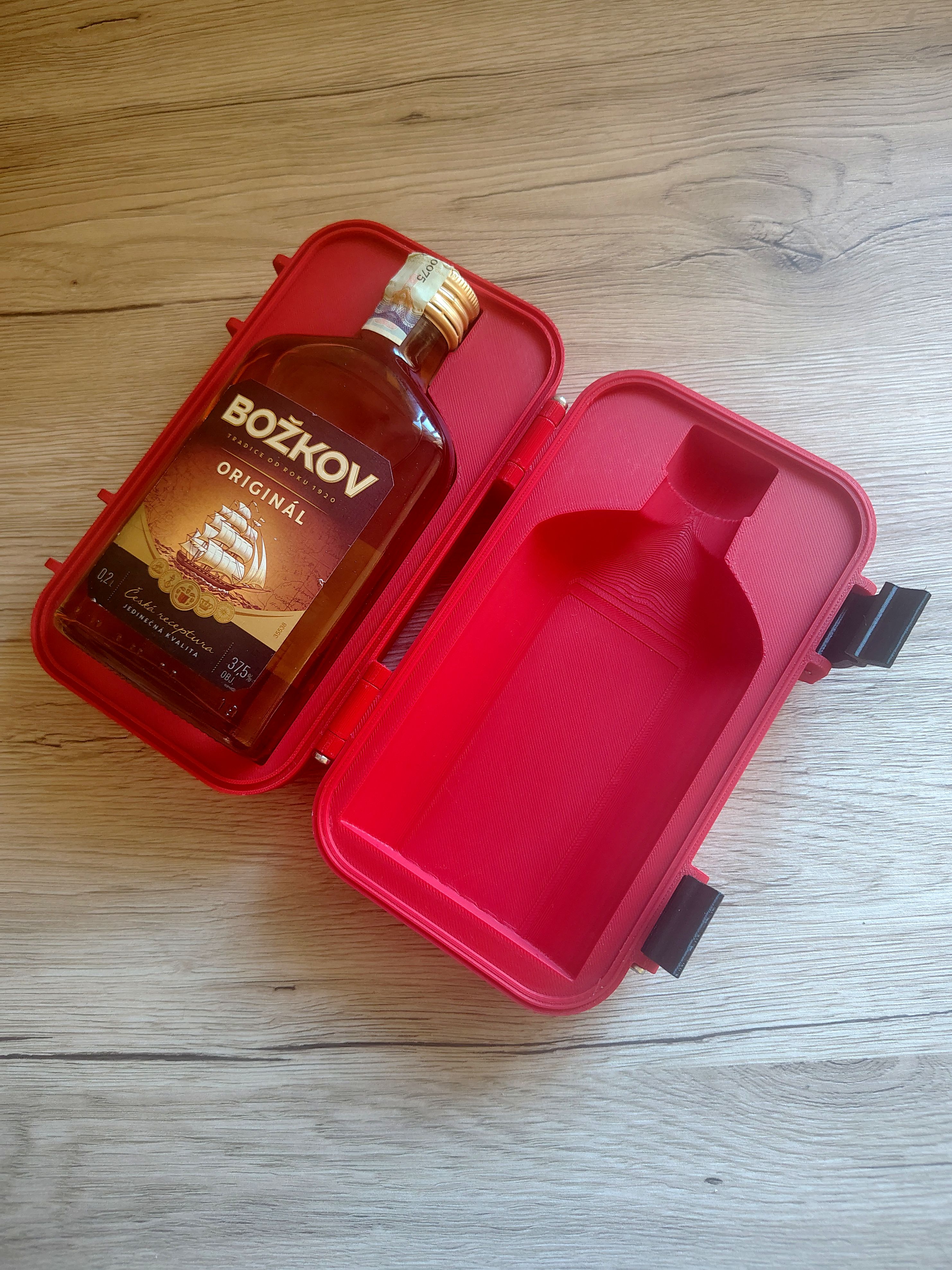

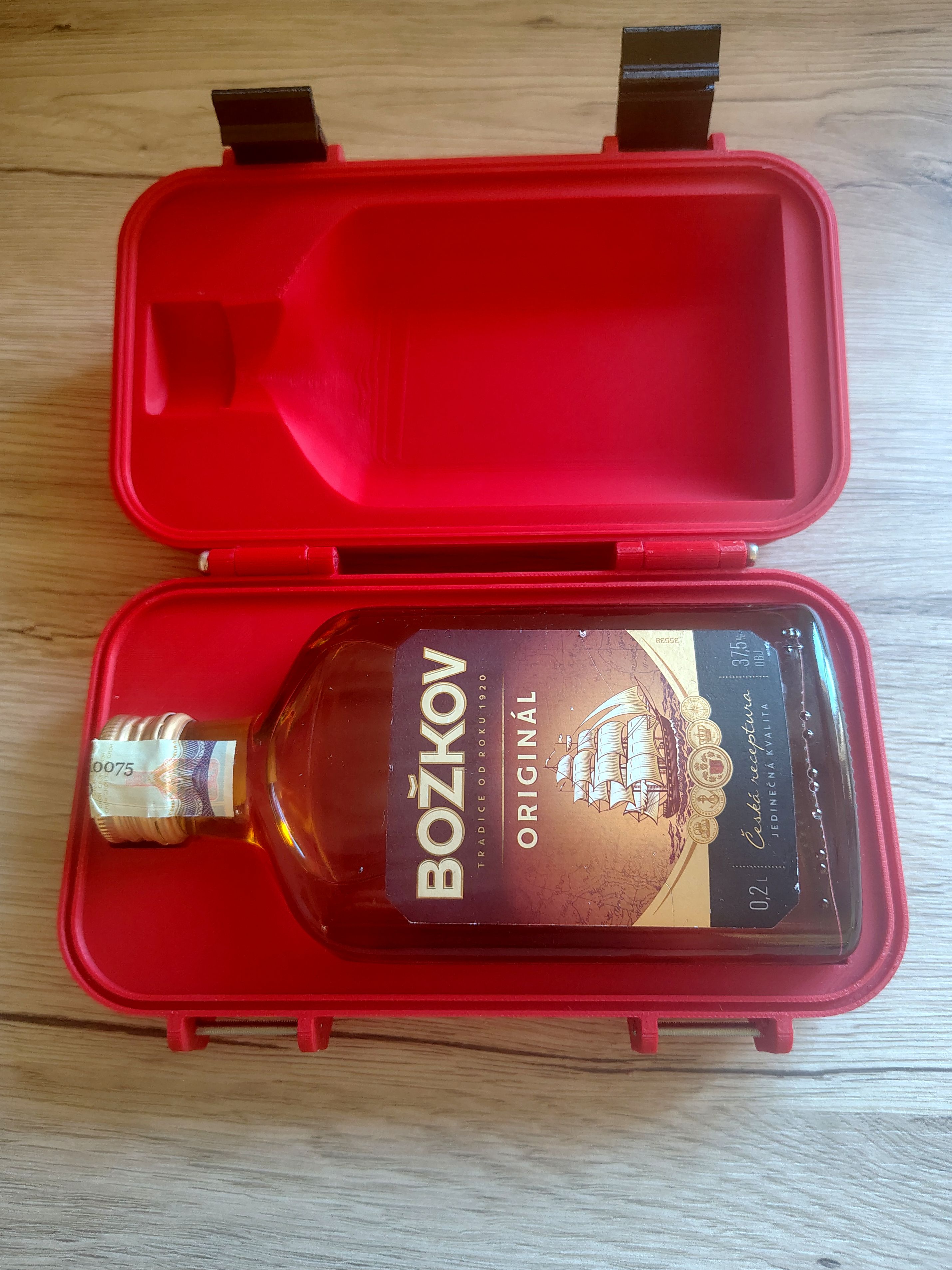

 Emergency box - Caution! The contents may only be used in certain situations :). Designed for 0.2 L bottles in which “drink” are available / produced in the Czech Republic and Slovakia.

In the print profile, the graphic on the lid is inserted as an SVG object. STL files do not contain markings/logo/text - only a clean box can be printed (or you can also add any text directly in the slicer).

Printing

• PLA (latch are better PETG)

• 0,2 layer / 10% infil

• Printing profile with description on the lid - requires automatic material system.

Assembly

• In the model are axes for the latch and the hinges designed for diameter 3mm. You need a total of 6 M3x30mm screws.

• Depending on the bridging capabilities of the printer, it may be necessary to drill the hinge of the lid with a 3mm drill bit, it must rotate freely around the axis.

• Screw carefully so that the material does not a break.
