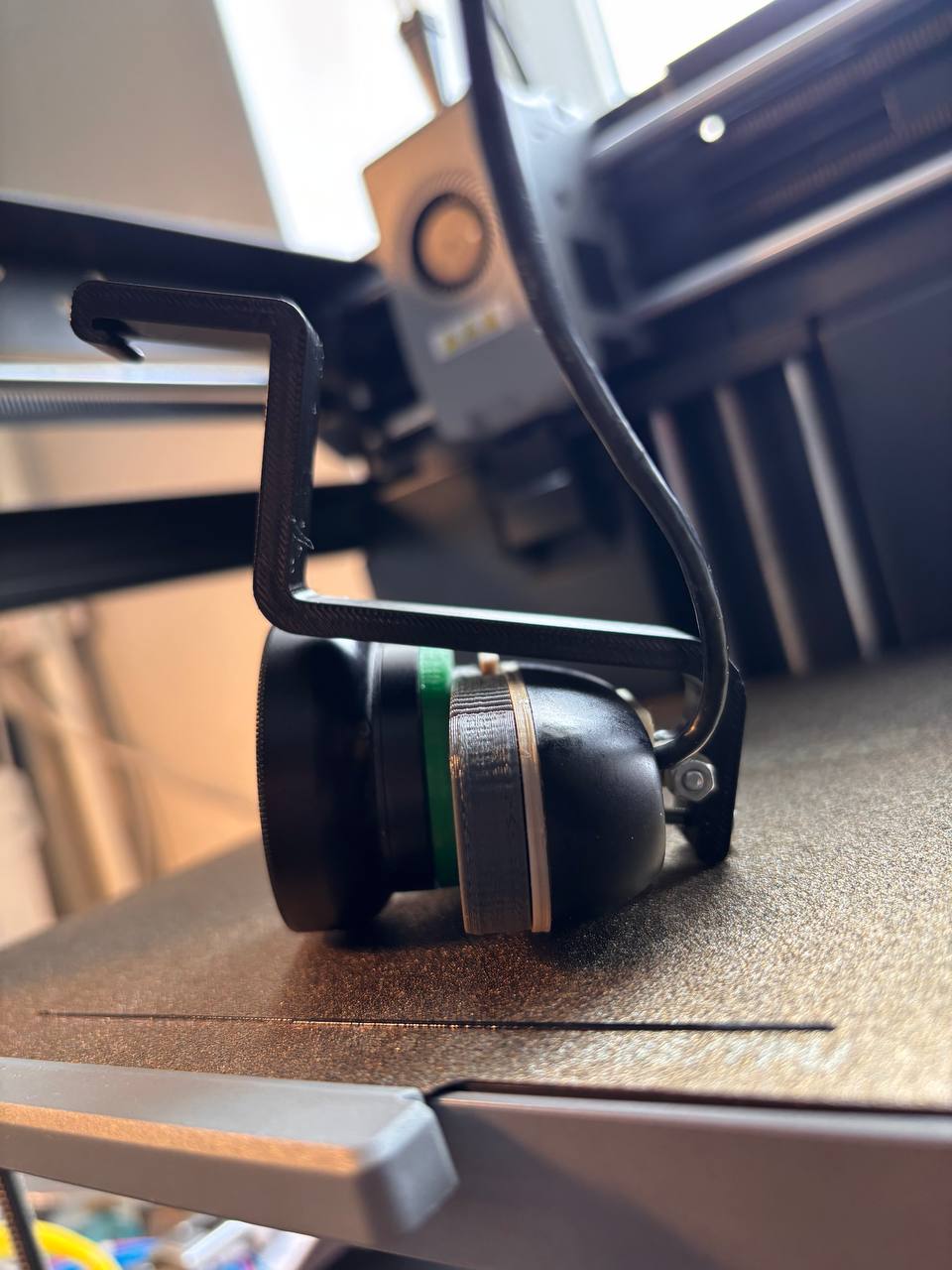

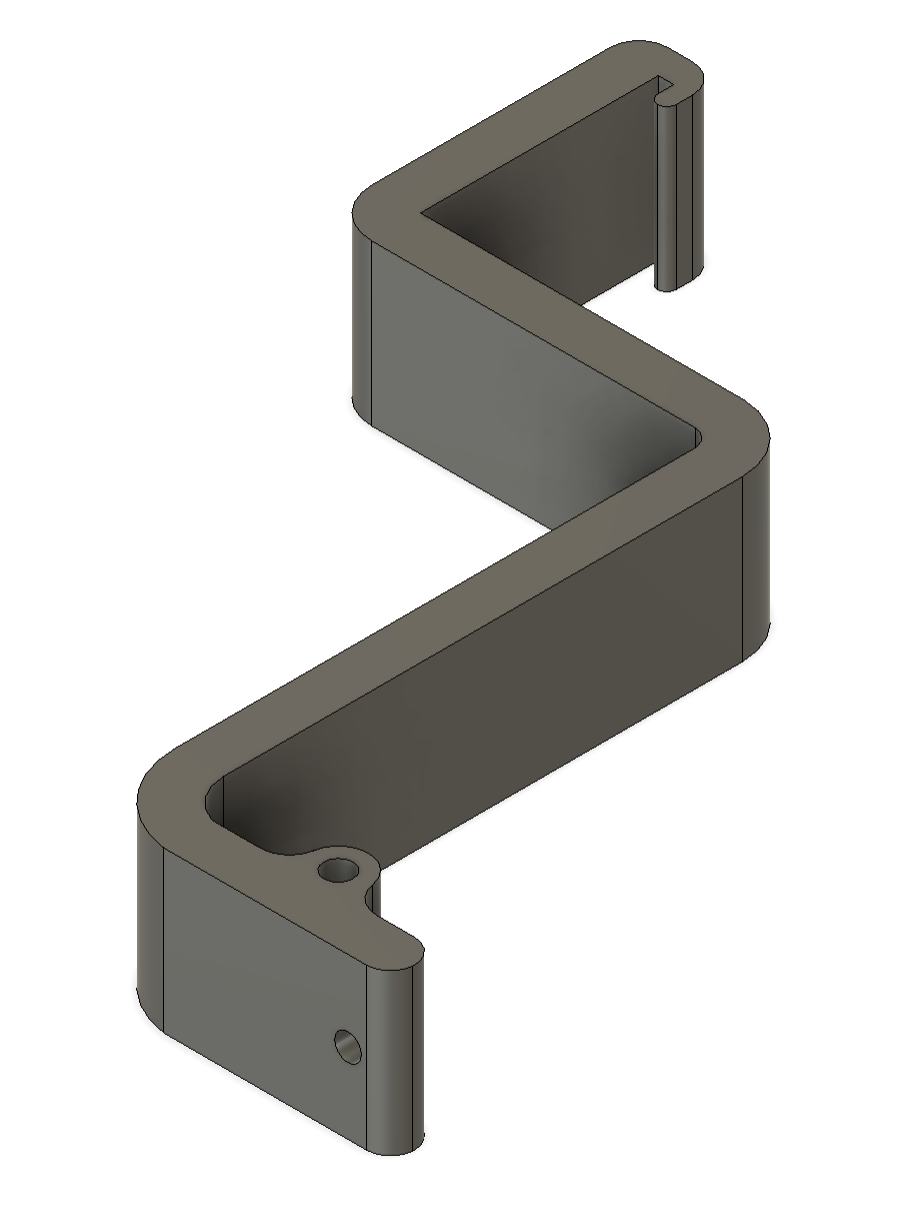

This is a webcam holder designed for the Flashforge AD5X 3D printer.
It is primarily made for the Logitech C270, but can also be adapted for other similar webcams.

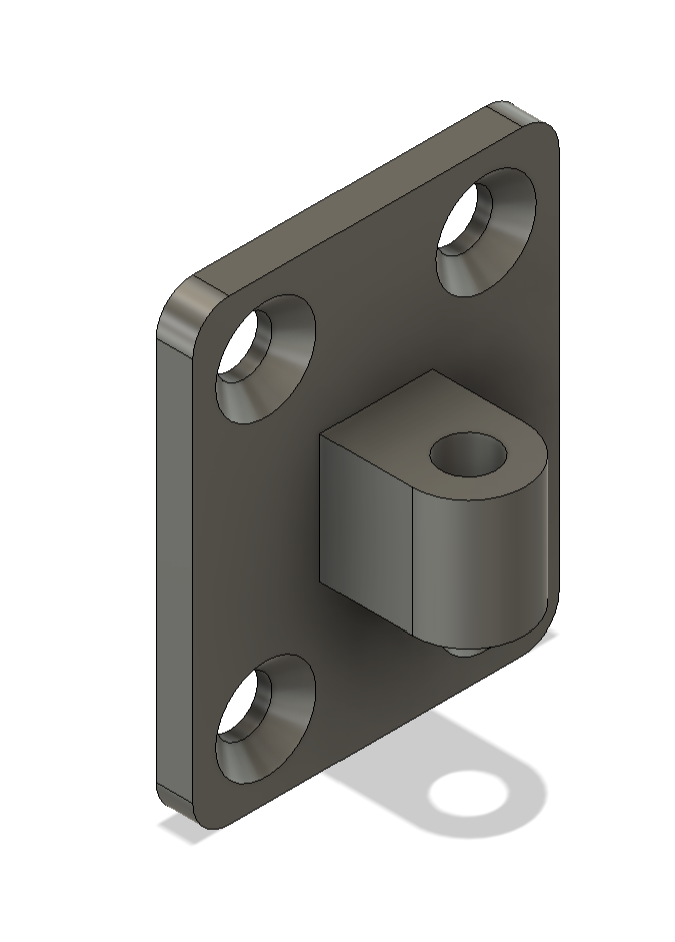

The mount can be used together with the original Logitech C270 mounting clip. If your original camera mount is damaged (as happened to mine after a fall), this design also includes a Camera_mount_repair part that replaces the broken hinge/clip section. The repair part can be used not only with the C270, but also with other compact webcams of similar size.

Features

• Designed specifically for Flashforge AD5X

• Compatible with original Logitech C270 mount

• Includes repair part for broken camera mounts

• Adjustable viewing angle

• Secure magnetic attachment

Hardware Required

• 1 × Neodymium magnet 3x10 mm (for strong fixation)

• 1 × Bolt M3x12 (for angle adjustment)

• 1 × Bolt M3x20 (for main pivot axis)

• M3 nuts as needed

The neodymium magnet ensures stable positioning on the printer frame, while the M3 bolts allow precise angle adjustment for optimal camera positioning.
