Personal / experimental project: from zero in Blender to a printable STL, following an AI-assisted workflow.
The goal was to learn the full pipeline (generation → cleanup → edits → print testing) and deliver an FDM-ready file.
If anything doesn’t work as expected, please let me know and I’ll do my best to help.

Workflow

• ChatGPT: tutoring and troubleshooting

• 3D base: MakerLab (Bambu Studio) Image-to-3D (Tencent Hunyuan)

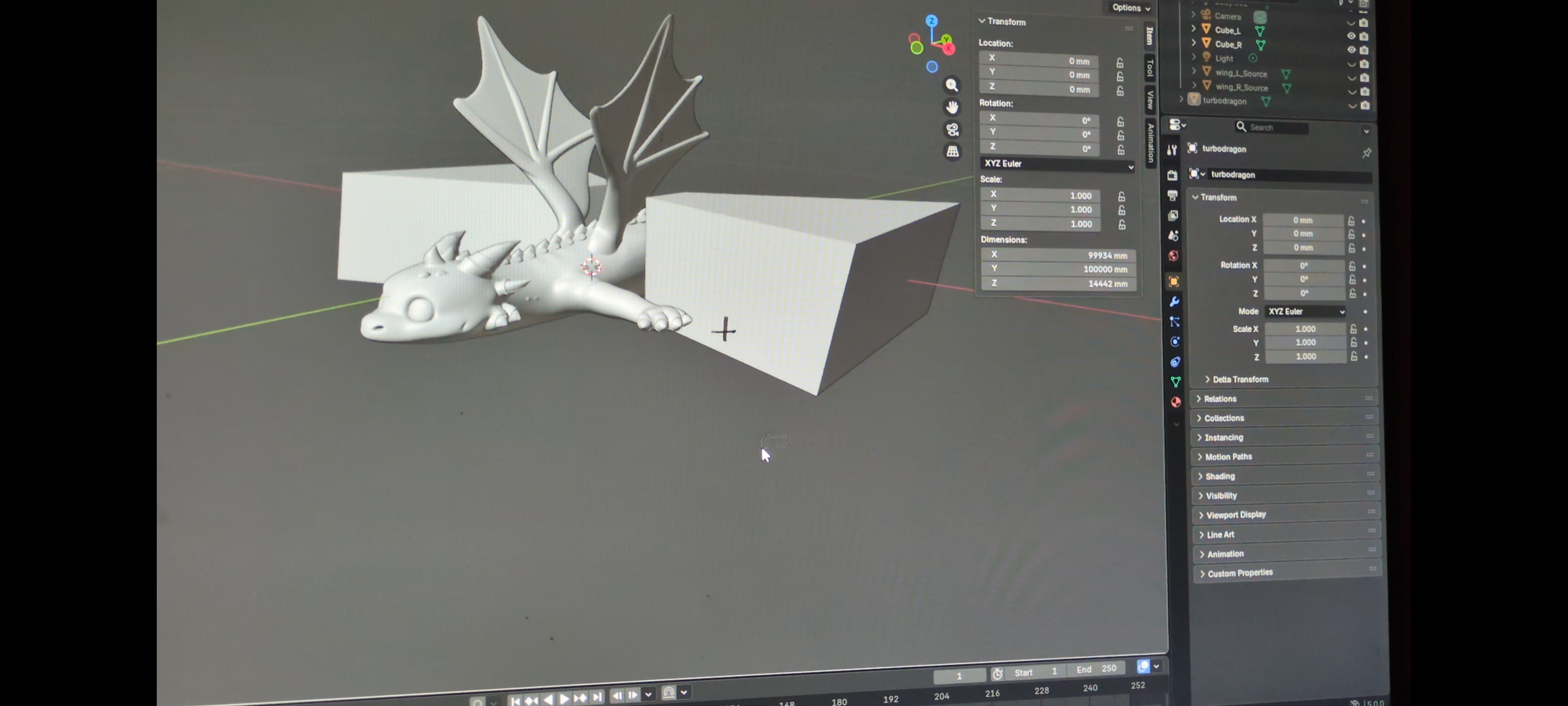

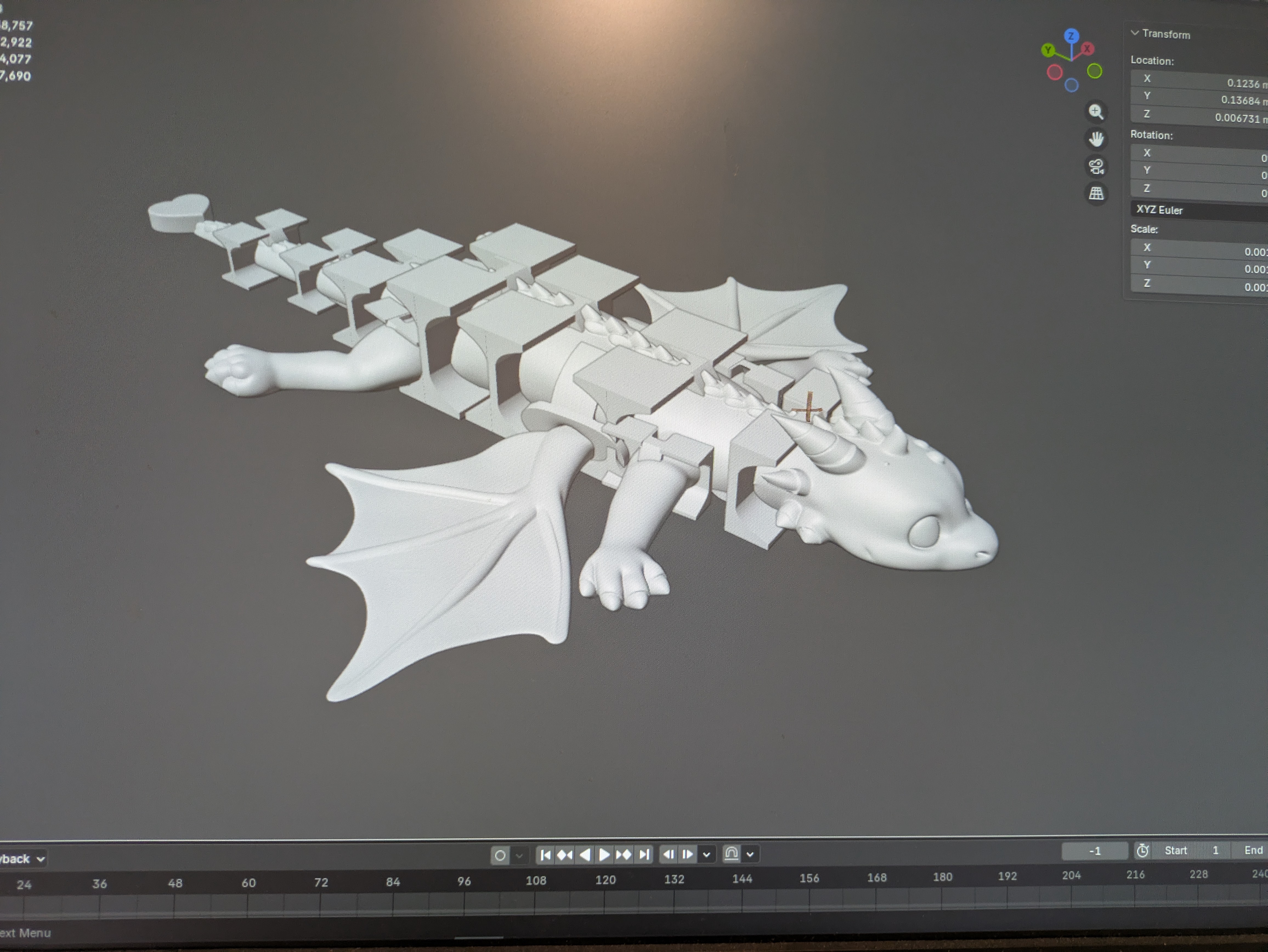

• Blender: cleanup and adjustments (learning from scratch)

• Fusion 360: Flexi Cutter edit +flexi cutter wing customization

Files

• Final STL (optimized, ~6.3 MB)

• 3MF with orientation and settings

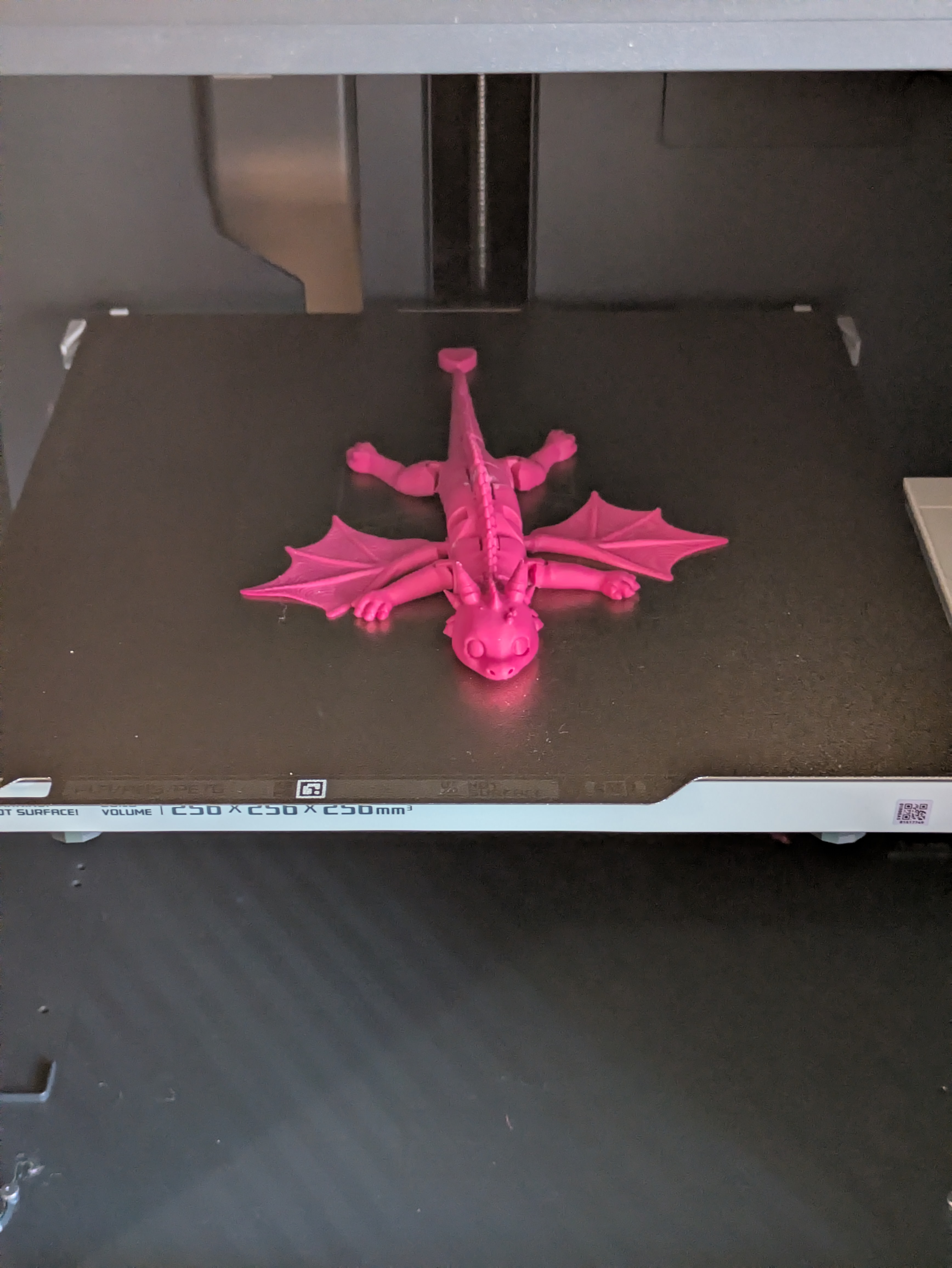

Print instructions

• Nozzle: 0.4 mm

• Layer height: 0.20 mm

• Perimeters: 2–3

• Infill: 10–15%

Supports: no required

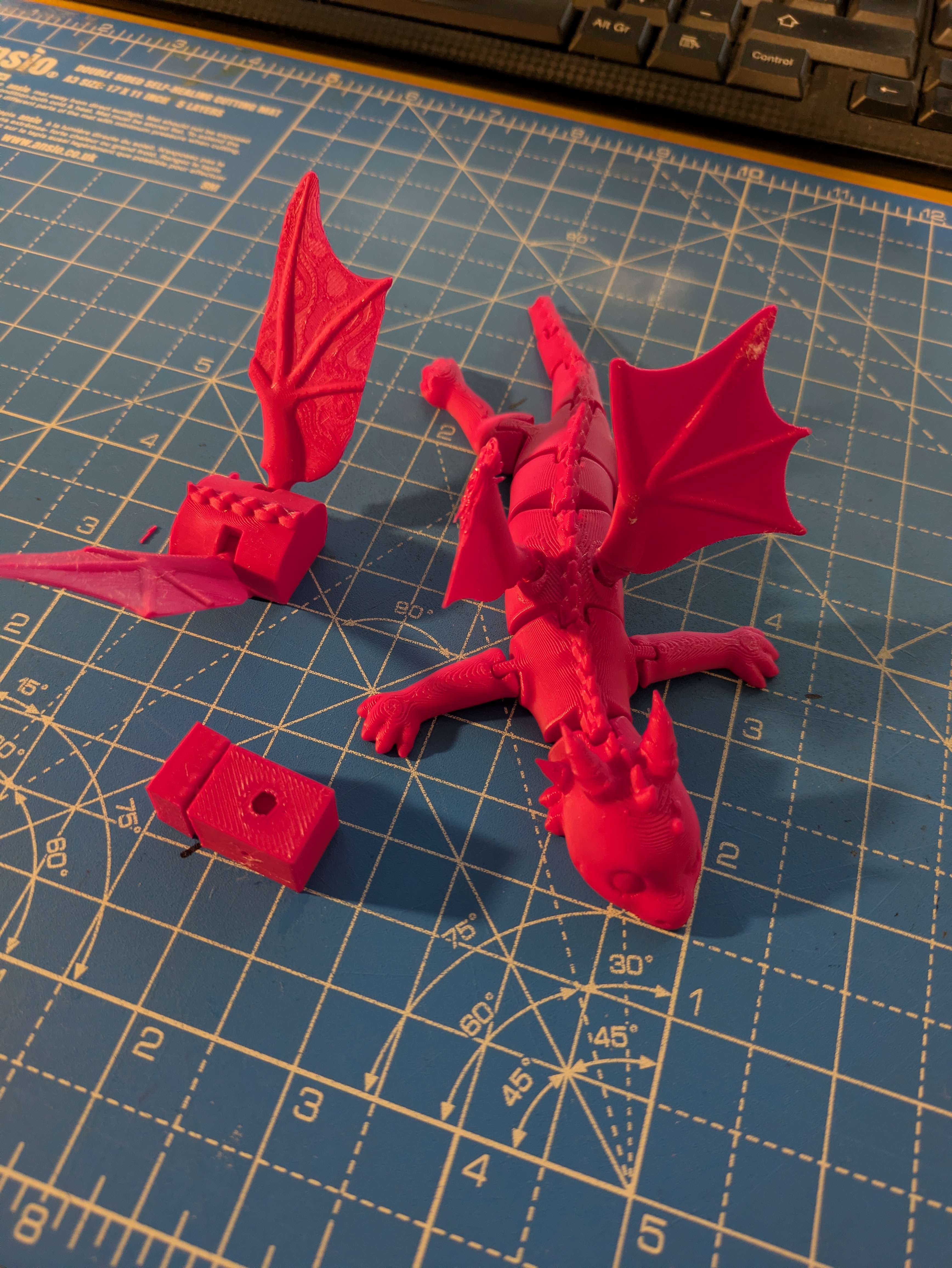

Internal wing supports note: there’s a small vertical support on the wing mounts. Just flex the wings gently and it will break off on first movement.

Credits / Attribution (CC BY 4.0)

• Dragon — by juanitomanzana — CC BY 4.0

• Based on: Flexi Cutter — by Jacob Mehnert — CC BY 4.0 —

• AI/workflow: MakerLab (Hunyuan) + ChatGPT

• Changes: Edited Flexi Cutter in Fusion 360 and customized wings
