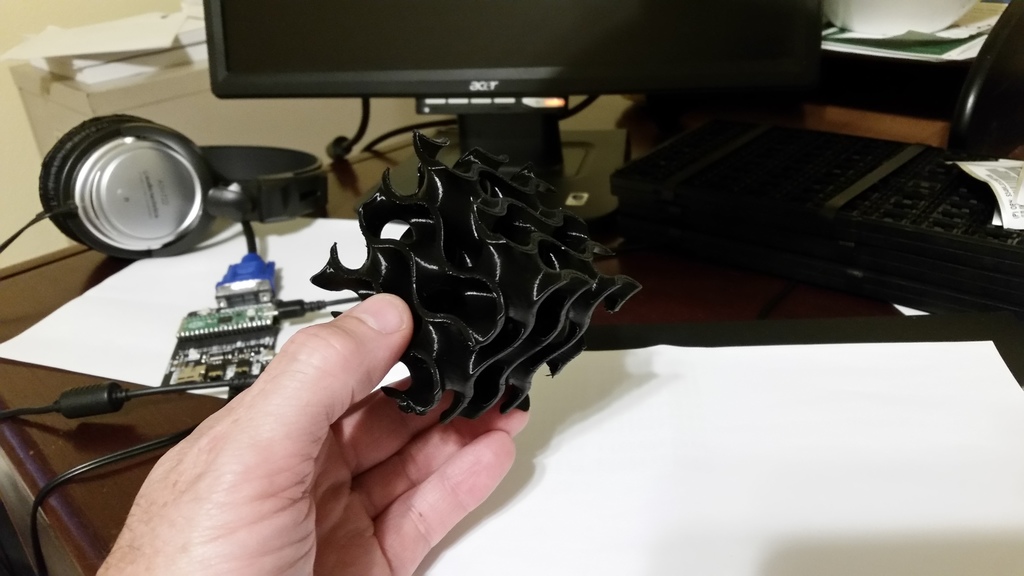

This is a model of a Gyroid Surface.

What's a Gyroid?

[https://en.wikipedia.org/wiki/Gyroid](https://en.wikipedia.org/wiki/Gyroid)

"A gyroid is an infinitely connected triply periodic minimal surface discovered by Alan Schoen in 1970."

Glad we cleared that up.

To put it another way, it's a surface defined by the signed distance field:

d = sin(x)cos(y) + sin(y) cos(z) + sin(z)* cos(x)

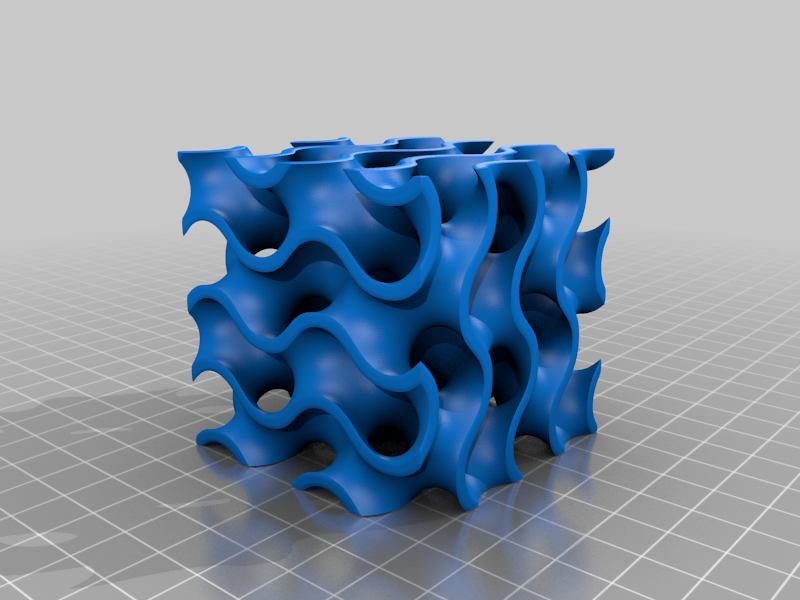

This model is formed by creating a thin shell about that surface. It's defined over all 3d space, but I've cut out a cube of that space to be printed.

The design is parameteric - and I've included the source if you wish to modify it.

Note: This is not OpenSCAD. It's a program written in Go. The main library and code examples can be found here:

[https://github.com/deadsy/sdfx](https://github.com/deadsy/sdfx)

About Go: [https://golang.org/](https://golang.org/)

Print Settings

Printer Brand:

SeeMeCNC

Printer:

Rafts:

No

Supports:

Filament: Your Choice Your Choice

Category: Math
