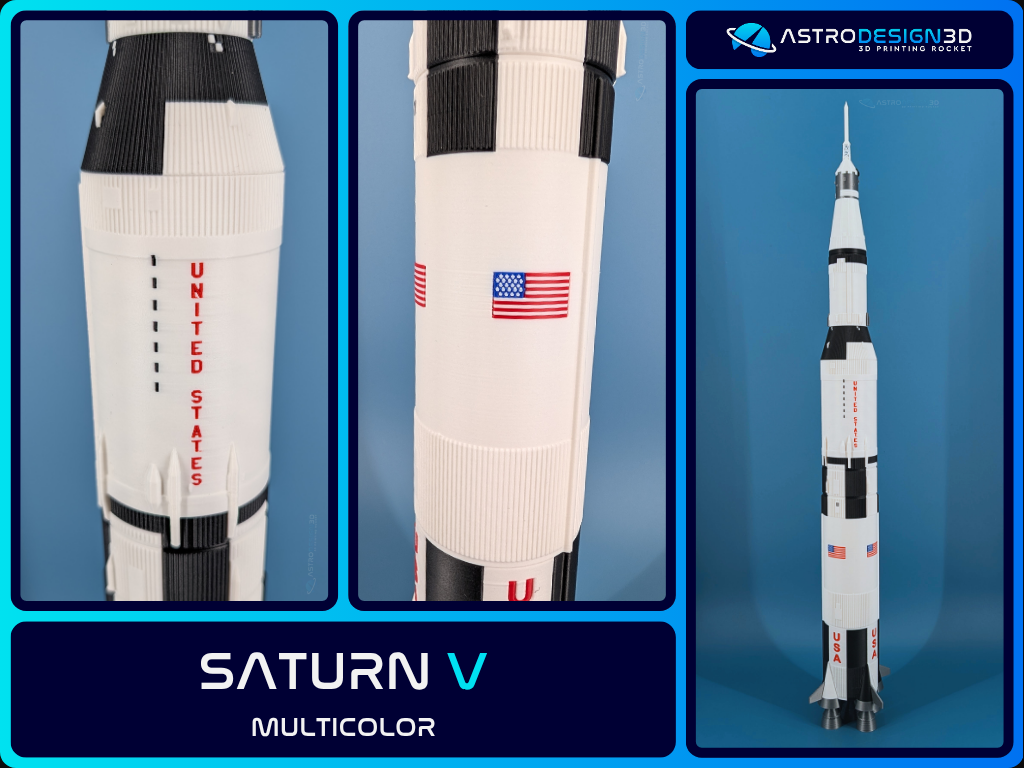

Support my work by subscribing to my Printable club to have access to the multicolored version of the Saturn V.

🚀 About the Model

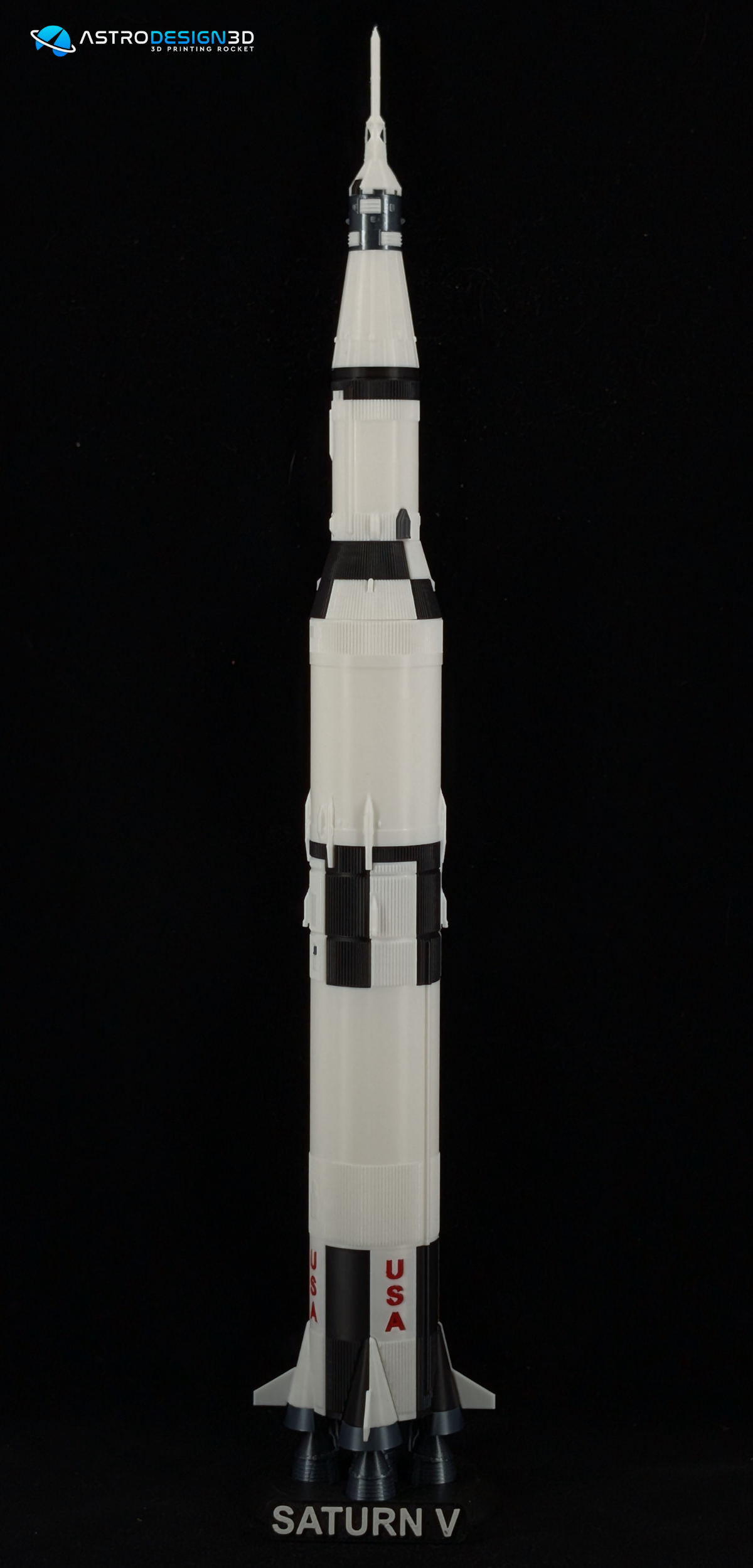

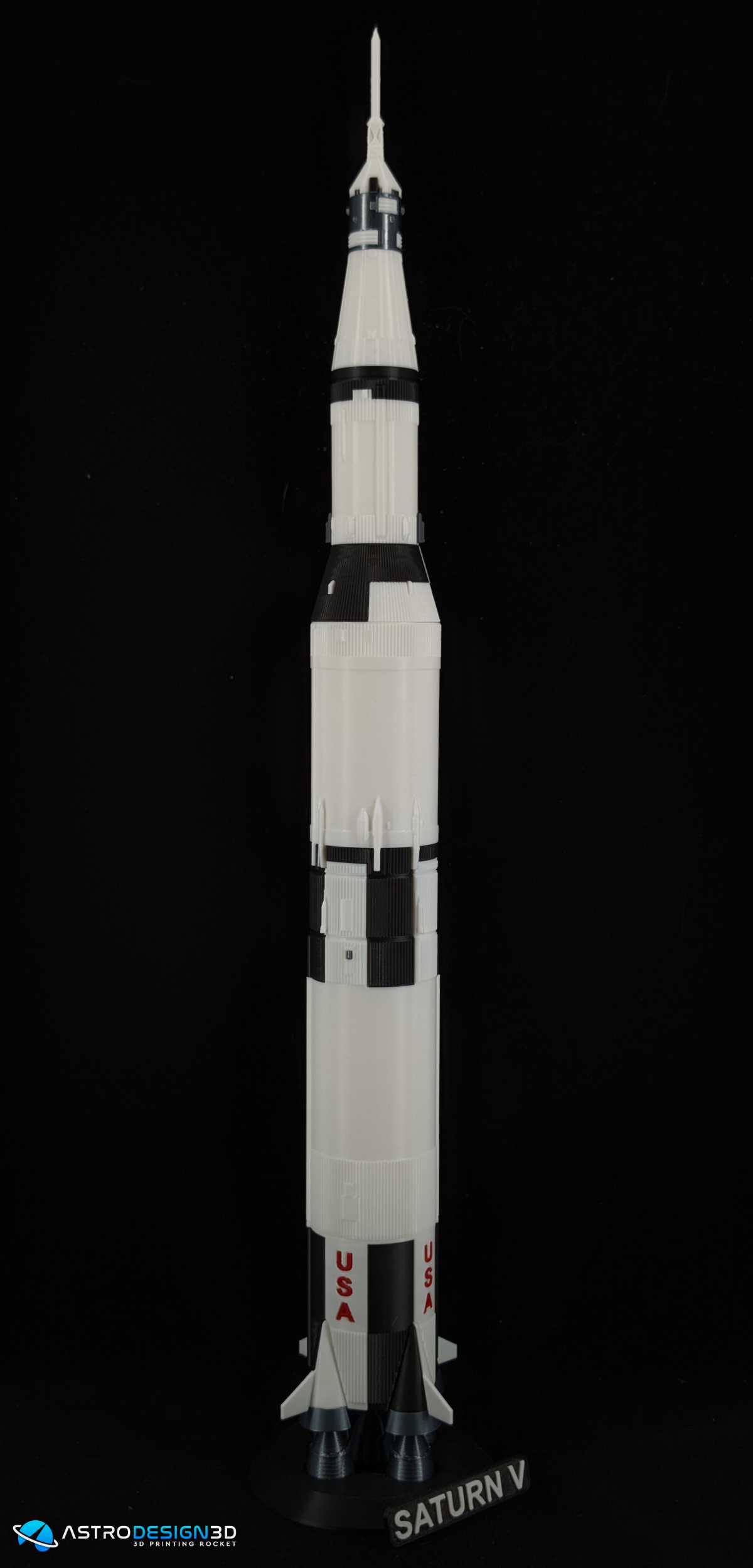

This is a faithful replica of the Saturn V, it's a static model: 100% of the parts are printed, you only need your filament and glue.

• Structure: Sections fit together using alignment connectors to ensure straight gluing.

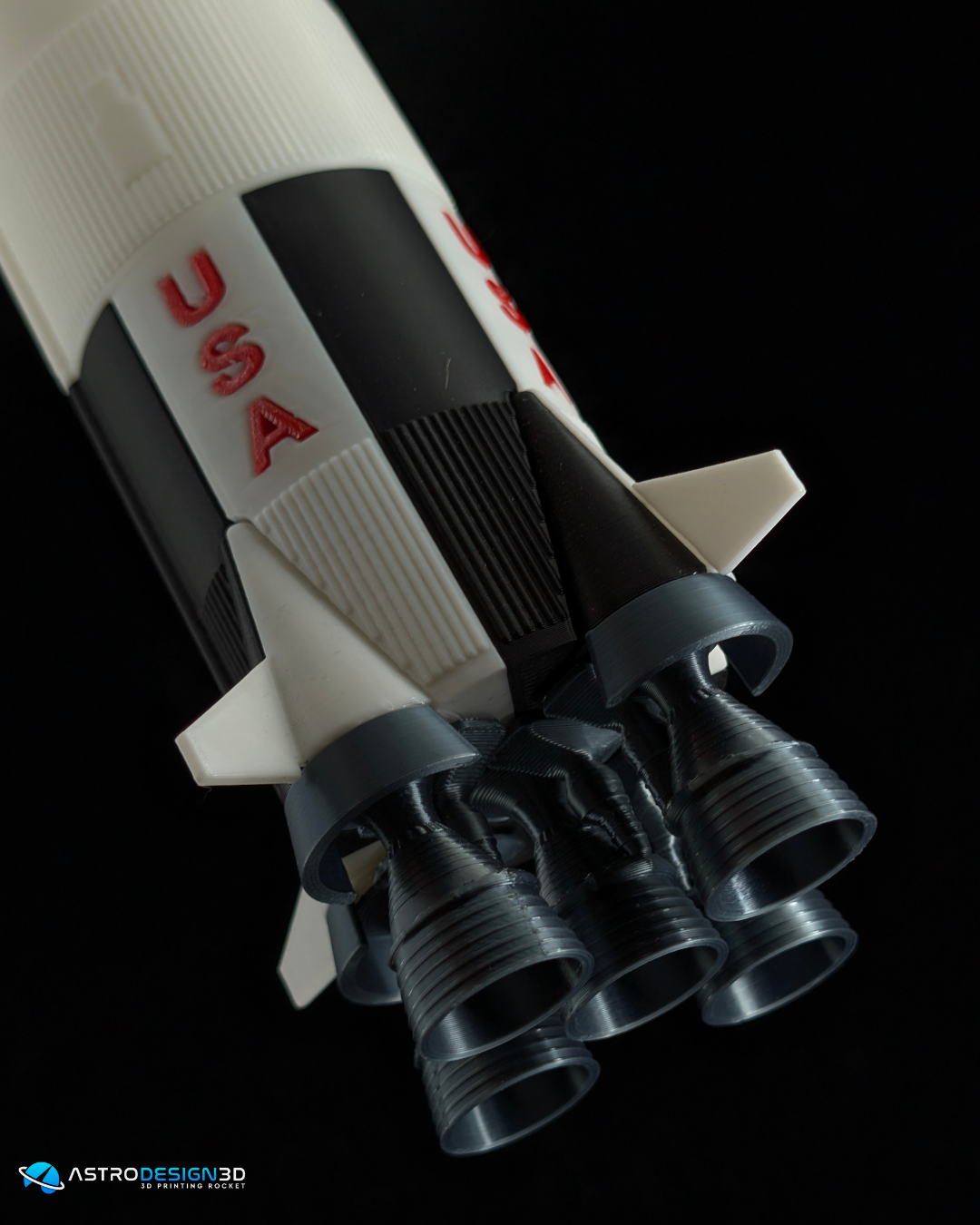

• Details: Spacecraft,Service module, USA Letters, and F1 engines.

📊 Tech Specs

• 📍Scale: 1:200

• 📏 Dimensions: 56 cm

• ⏱ Print Time: ~11 hours

• 🧱 Difficulty:

  • 🖨 Printing: 3/5 (Brim on small parts)

  • 🛠 Assembly: 2/5 (Gluing and alignment)

🎨 Filament

• ⚖ Total Weight: 190g

• ⚪ White: 185g

• ⚫ Black: 75g

• 🔘 Silver / Grey: 30g

• 🔴 Red: 5g

⚙ Print Settings

• Material: PLA recommended.

• Infill: 10% (Gyroid pattern advised).

• Walls: 2 walls minimum.

📂 Files Included

• Saturn V By Color : Parts are sorted by color for easier printing.

• STL Folder: Files are sorted by block.

⚠ Critical Preparation

Before starting the print, follow these 2 steps to ensure success:

• 🧼 Cleaning:Wash your printing tray, as a greasy tray will cause deformation and parts to come detach!

• 📏 Calibration: Calibrate your your printer

💡 Assembly Tips

• Connector Adjustment (VERY IMPORTANT): Every printer has different tolerances.

  • If connectors are too tight: Re-print them by reducing X/Y scale to 98% or 99% in your slicer.

  • If connectors are too loose: Increase X/Y scale to 101% or 102%.

• Gluing: Use liquid or gel Superglue

💖 Support the Project

This model represents dozens of hours of design and testing. Here is how you can support my work:

• ❤ Like / Favorite: A small heart always helps.

• 👤 Follow me: Don't miss the next releases.

• 👑 Club / Exclusives: Join my club for multicolored versions

Choosing your Spacecraft configuration

There are multiple configuration options available for this model, depending on your printing and assembly preferences.

We offer two assembly configurations:

 The choice is made in the "SM+CM" print profile.

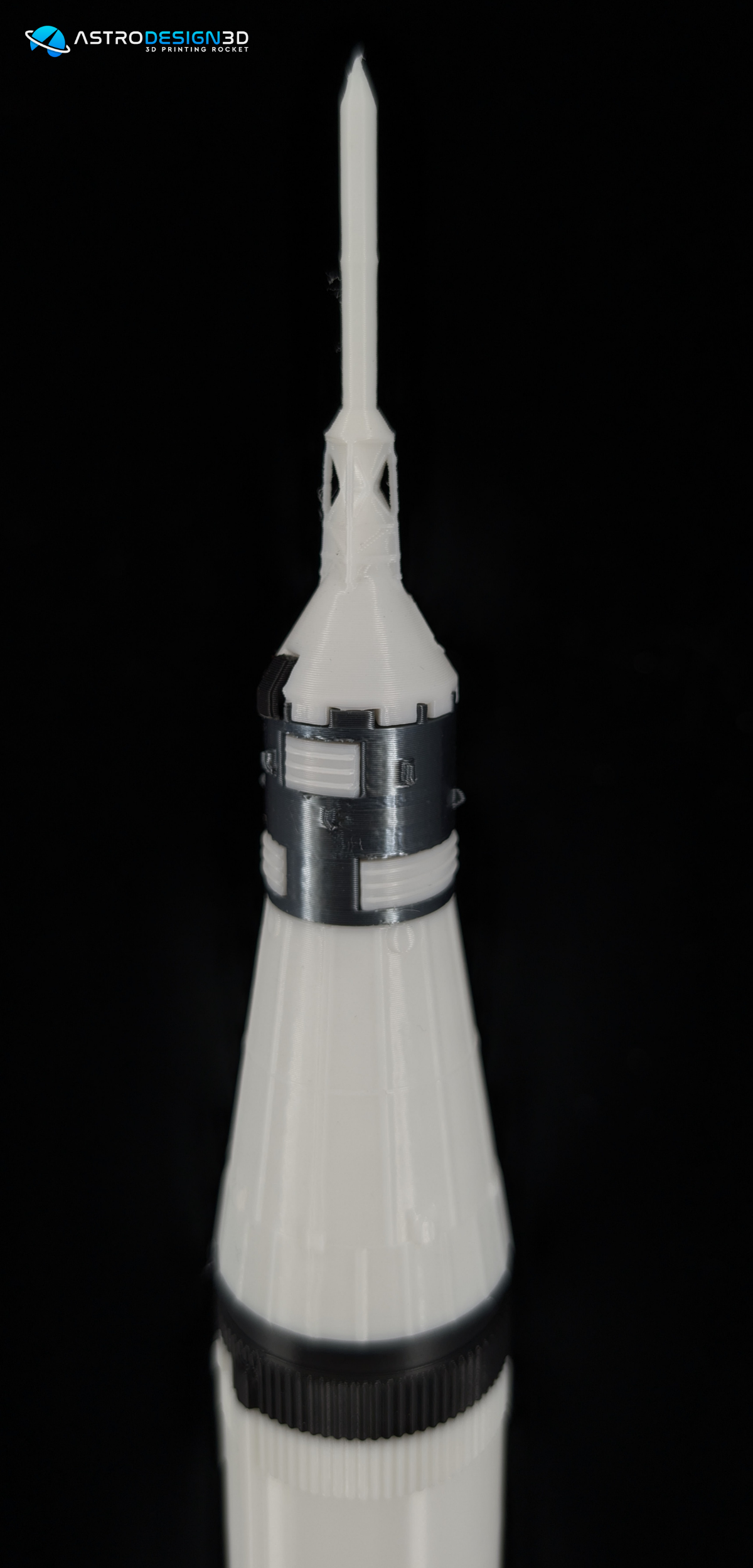

• Choise 1 - Spacecraft_Empty_White : Full tower on the top of the capsule (Simple settings)

• Choise 2 - Spacecraft_Empty_White : Empty tower on the top of the capsule (Complex settings)

The choice is made in the "S-1C" print profile.

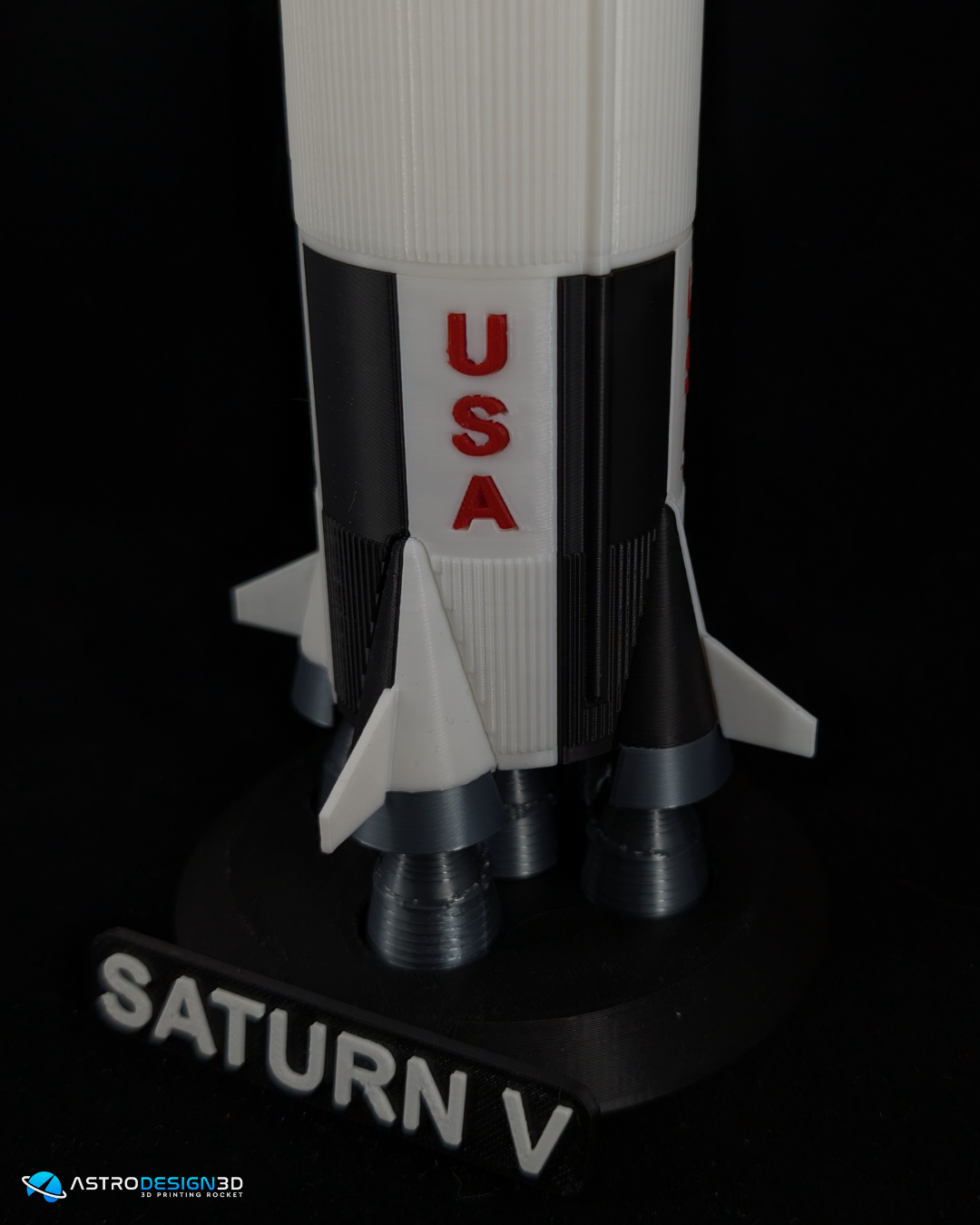

• S-1C_Thrust_Structure_White_x1: Parts with space for red USA letters.

• S-1C_Full_Thrust_Structure_White_x1 : Pieces without lettering USA red
