Customizable Ramekin Stacker

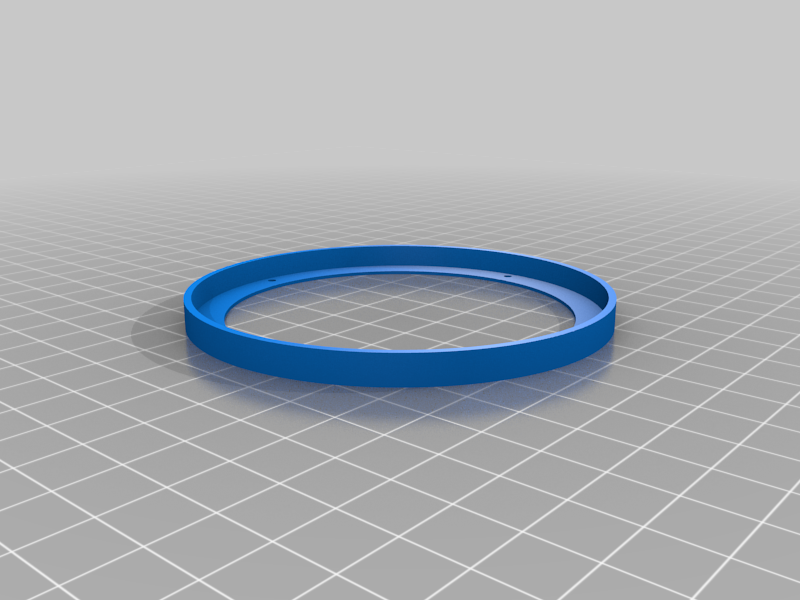

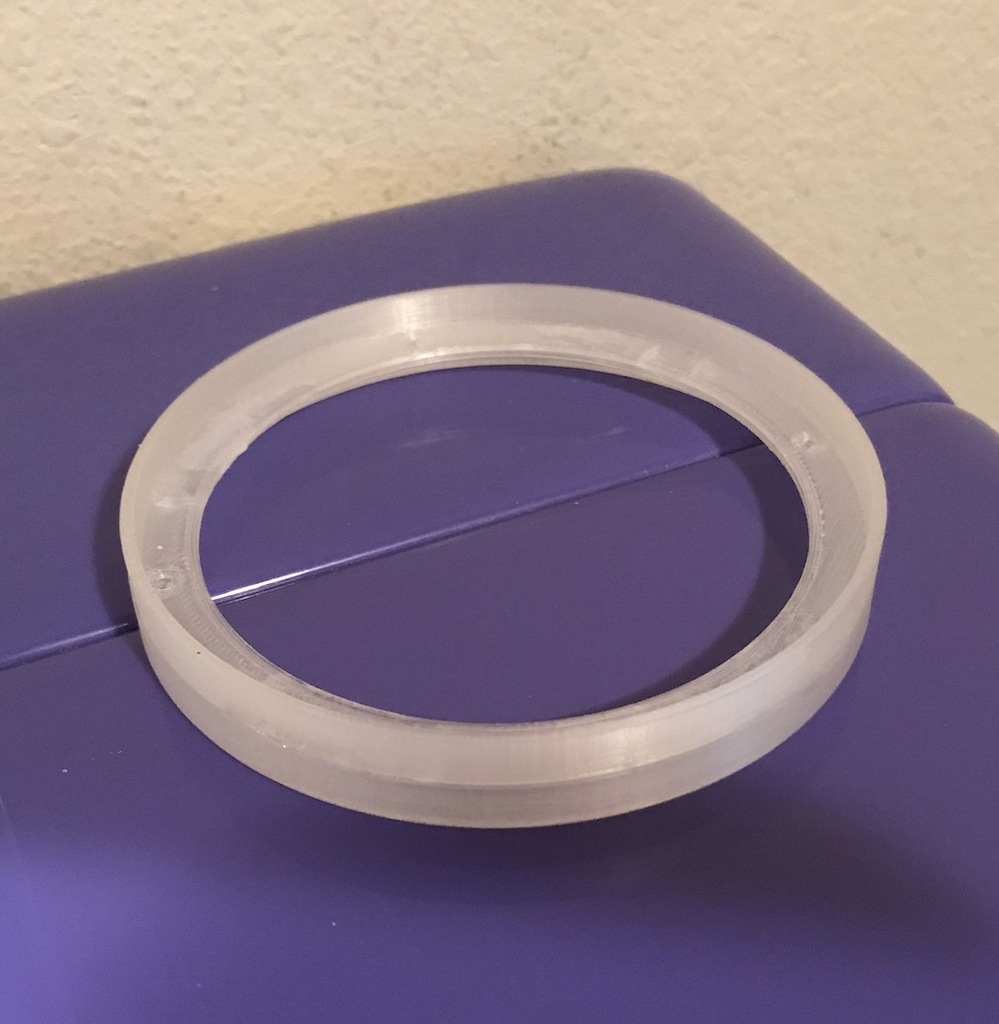

Ramekin stacking rings: My ramekins wouldn't stack properly - the stack would tip when they got too high. These plastic rings are sized to give a firm base for the next one, with a ring ledge to keep them aligned.

To cut down on material and avoid needing support, print two of them, and glue them together.

Print Settings

Printer Brand:

Prusa

Printer:

i3 MK3

Rafts:

Supports:

Resolution:

0.2mm

Infill:

Filament: Monoprice PLA Clear

Notes:

Print two. Glue together with cyanoacrylate glue. While gluing, use at least two pieces of scrap filament as alignment pins.

Post-Printing =============

After looking at [https://www.thingiverse.com/thing:4277881rnrnhis](https://www.thingiverse.com/thing:4277881rnrnhis) design grips the inner wall of the lower rameking but needs support to print. An OpenSCAD version of that would be:rnrn /outer diameter of ramekin /rn outerDia=85;rnrn /inner diameter of ramekin /rn innerDia=73;rnrn /wall thickness in the radial dimension /rn thickR=4;rnrn /wall thickness in the Z dimension /rn height=8;rnrn /ring connector thickness /rn floor=1.2;rnrn $fn=120;rnrn difference(){rn union(){rn translate([0, 0, height])cylinder(d=outerDia+thickR, h=height+floor);rn cylinder(d=innerDia, h=height+thickR);rn }rn translate([0, 0, height+floor])cylinder(d=outerDia, h=height+floor);rn translate([0, 0, -thickR])cylinder(d=innerDia-thickR, h=2*(height+thickR));rn }rnrn
