Deck box with bonus storage compartment modeled after a Mini Nuke from Fallout! I wanted a thematic deck box for the fallout MTG deck I just bought and thought it would be fun to make my own. I modeled this myself based on images so the details and scale may not be exact, I was prioritizing printability mainly. It combines elements from several different variations but is most closely modeled after the Mini-Nuke from Fallout 76.

The main body and shroud are printed upside down, everything else should load in the correct orientation. I strongly recommend adaptive cubic infill for the main body, it shaves about 25% off the print time compared to gyroid.

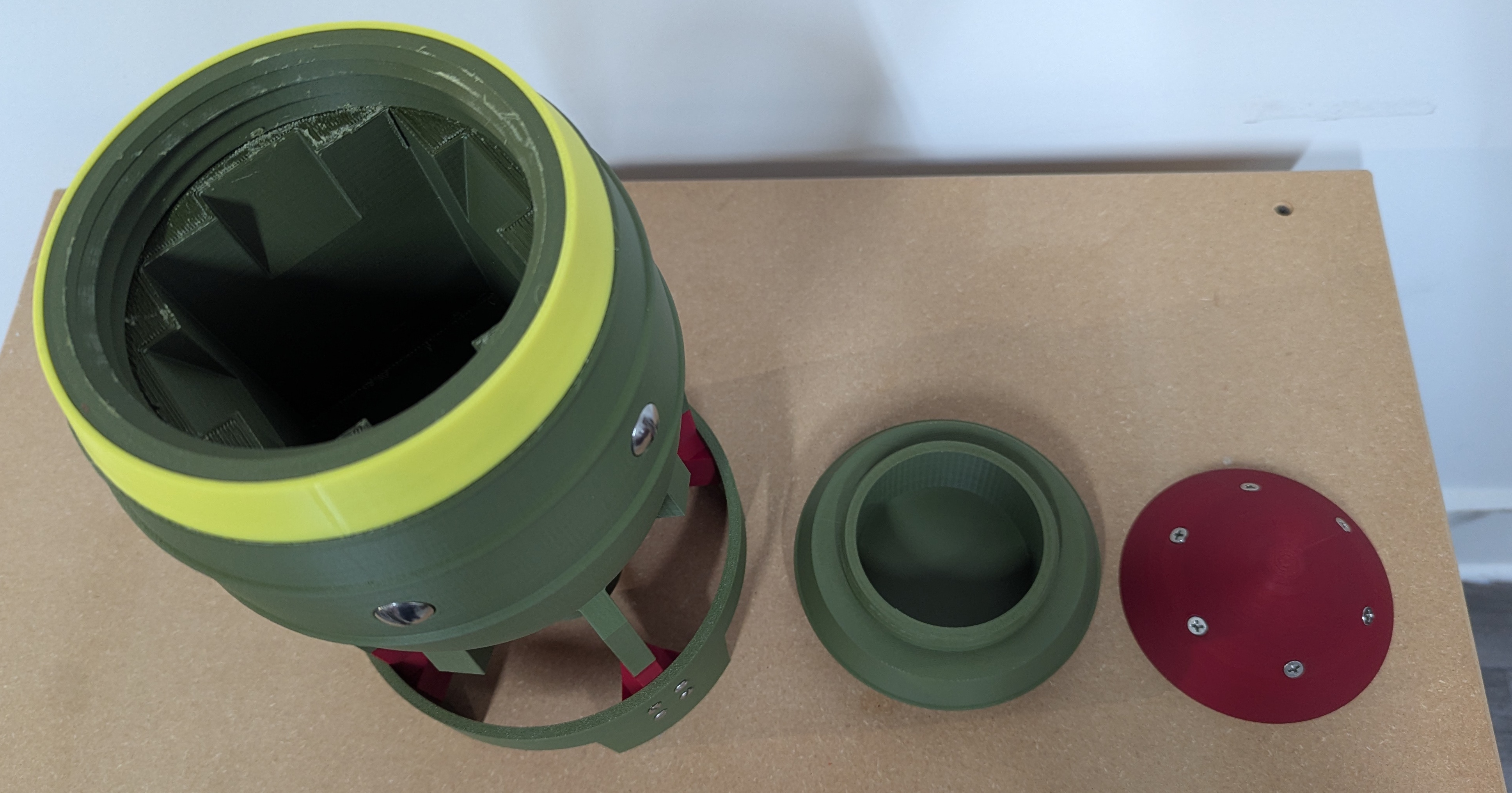

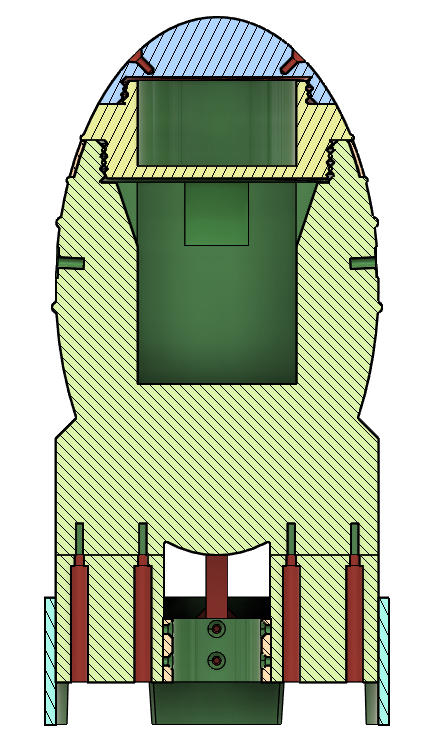

The Cap, Mid Body, and Main Body all screw into each other. The Yellow Detail is meant to be adhered to the Mid Body with glue.

The Collar and Shroud are fastened with 6-32x1/2" flat head screws, which were surprisingly hard to find slotted (lore accuracy) but these worked: [https://www.amazon.com/dp/B01M0XQ1O6?ref=ppx_yo2ov_dt_b_fed_asin_title](https://www.amazon.com/dp/B01M0XQ1O6?ref=ppx_yo2ov_dt_b_fed_asin_title)

The cap uses 8-32/3/8" screws: [https://www.amazon.com/dp/B09V6NW6MX?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_2&th=1](https://www.amazon.com/dp/B09V6NW6MX?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_2&th=1)

I also added QTY 6 of ¼-20x3/8 truss head screws to the Mid Body for visual effect, these worked nicely: [https://www.amazon.com/dp/B00FTDOQ08?psc=1&ref=ppx_yo2ov_dt_b_product_details](https://www.amazon.com/dp/B00FTDOQ08?psc=1&ref=ppx_yo2ov_dt_b_product_details)

The holes are all sized so the screws should self-tap with some effort, but tapping them beforehand will make it much easier.

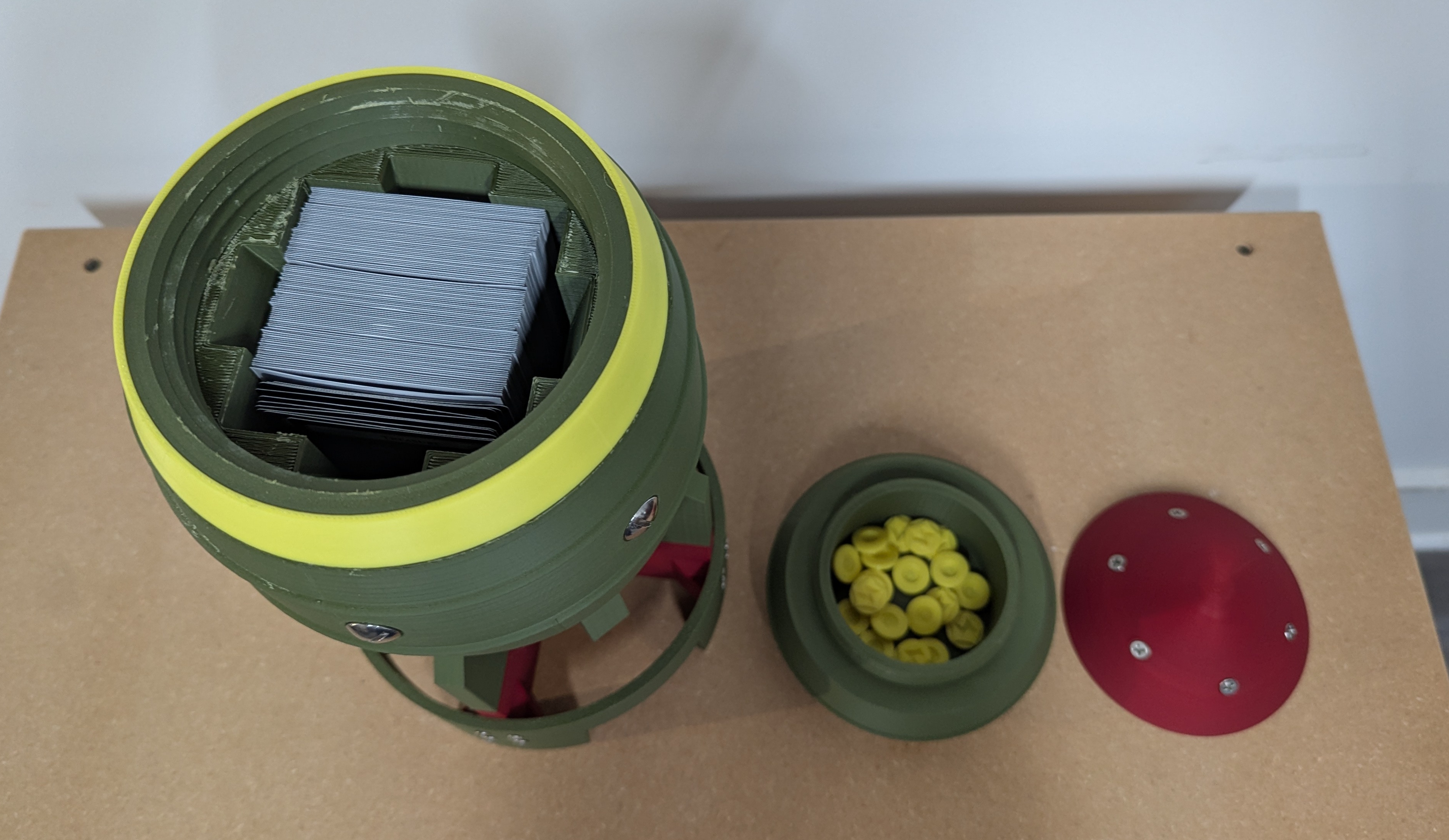

I included the bonus compartment because the deck I got uses energy counters, and I wanted to always have some at hand. I recommend this model for energy and other counters: [https://www.printables.com/model/54172-magic-the-gathering-counters-chips-updated-5-3-201](https://www.printables.com/model/54172-magic-the-gathering-counters-chips-updated-5-3-201)

Note: this is a much better version of an earlier design of mine: [https://www.printables.com/model/840860-fallout-mini-nuke-deck-box](https://www.printables.com/model/840860-fallout-mini-nuke-deck-box)
