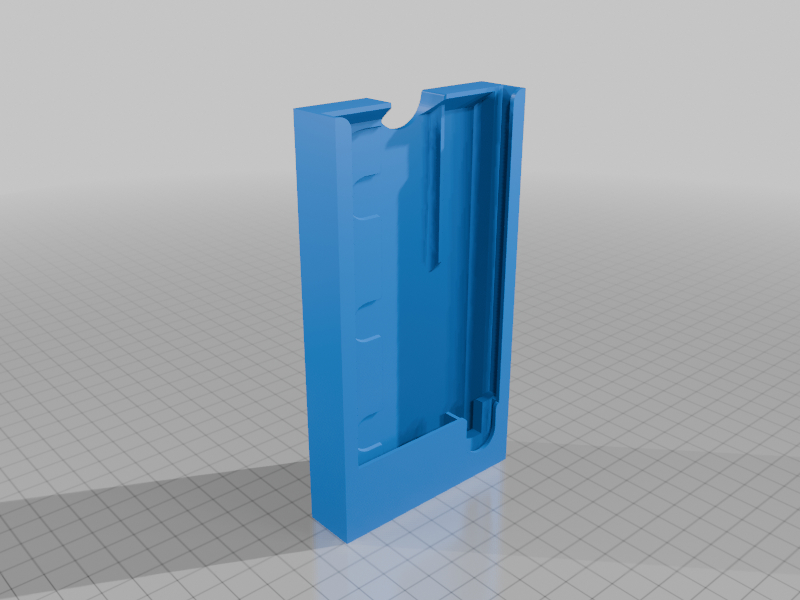

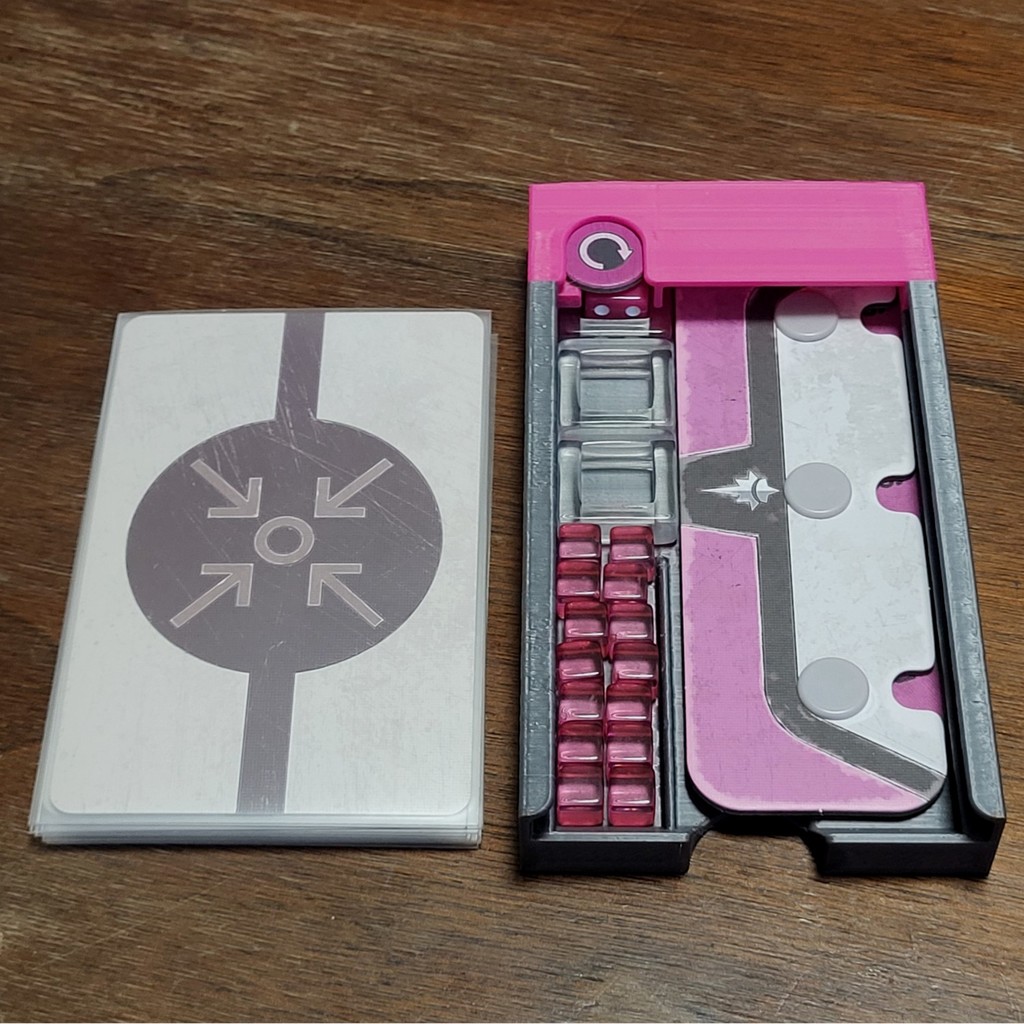

This is a tray to hold the basic player components for the board game Voidfall. The tray holds:

1. Nine Standard Focus cards (sleeved with Gamegenic Scythe / Lost Cities sleeves)

2. Fourteen Fleet Power Cubes

3. One Population die

4. One Turn Order Marker

5. One Influence board

6. Three Civilization track markers

There is also room for a starting Glory 2 token, if desired.

The design is a new creation that was inspired by a file shared by Yogourt on Printables. Key differences - the tray offered here is more compact, handles sleeved cards, and the sleeved cards serve as a lid that keep all of the other components in place. The tray can be stored horizontally or vertically, with no spillage.

Print Settings

Printer Brand:

Creality

Printer:

Ender 5

Rafts:

No

Supports:

No

Resolution:

0.8 mm Nozzle; 0.2 mm Layer Height

Infill:

20%

Filament: eSun; Hatchbox; Sunlu; Polymaker PLA Light Blue, Yellow; True Green; Magenta; Steel Grey

Notes:

Each tray was printed with one filament swap.

How I Designed This

The tray was designed in Fusion 360 and exported as an .STL file to Meshmixer. The Voidfall logo was taken from an image found on the web, edited to bring the letters closer together, and then converted to an .SVG file using Inkscape. The .SVG file was then uploaded into Fusion 360 for extrusion.

Category: Games
