This was aimed at hanging on the back wall of our Birdbox, the Raspberry Pi Zero W is loaded up with MotionEyeOS for simple survelance of the nesting box.

This fits one of the standard nigth vision camera modules but, to manage space and size, only one of the IR lamps is fitted.

I've used 6 M2.5 Socket Head Cap Screws, 2 @ 20mm long and 4 @ 10mm.

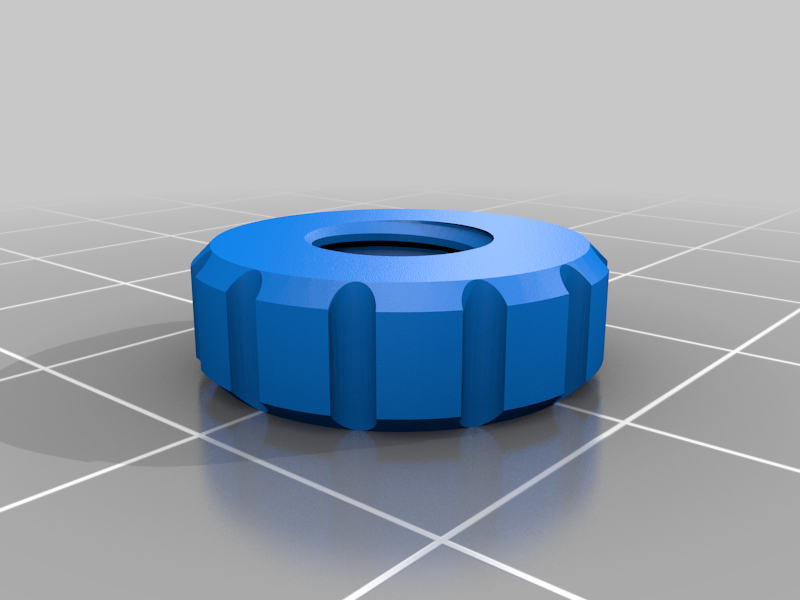

1 x 10mm to add strength to the 8mm thread that allows angle adjutment

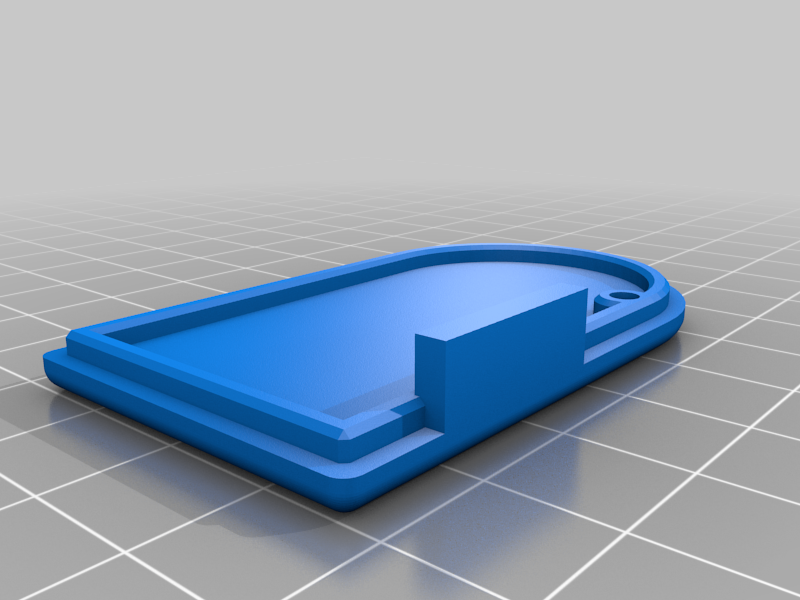

1 x 10mm camera case lid to body

2 x 10mm Pi Case Lid to Body and board mounting

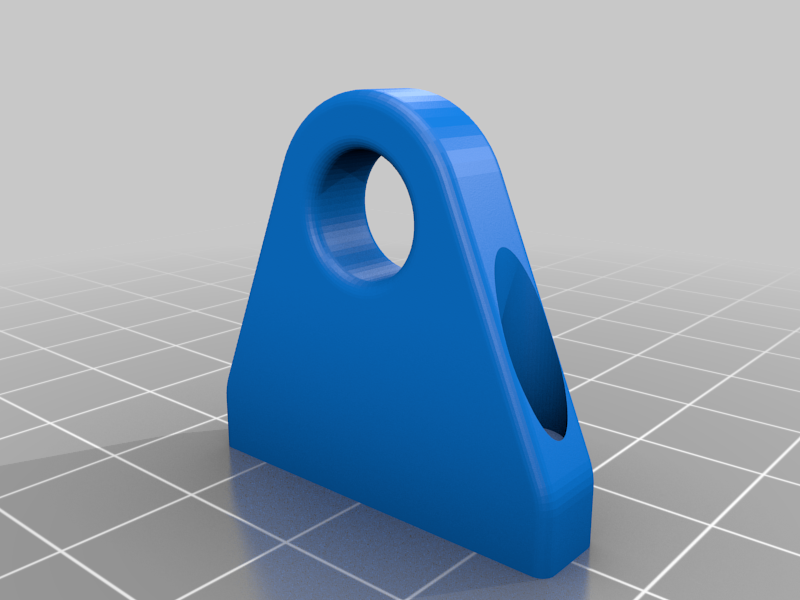

2 x 20mm Camera Mount, though lid, case and Pi

Ribbon from the Pi is folded under the board and through 90 degrees to pass out through the slot and into the camera case.

The camera is simply pushed into place and retained by the lid.

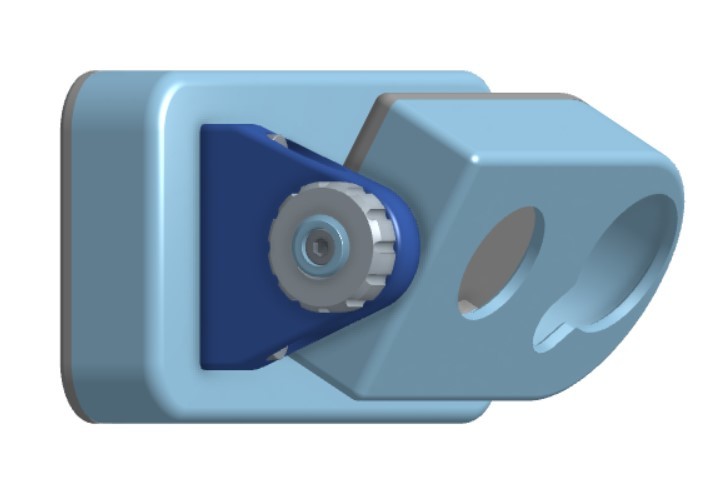

USB Power entry on the bottom left and an eye on the rear for screw mounting to the wall.
