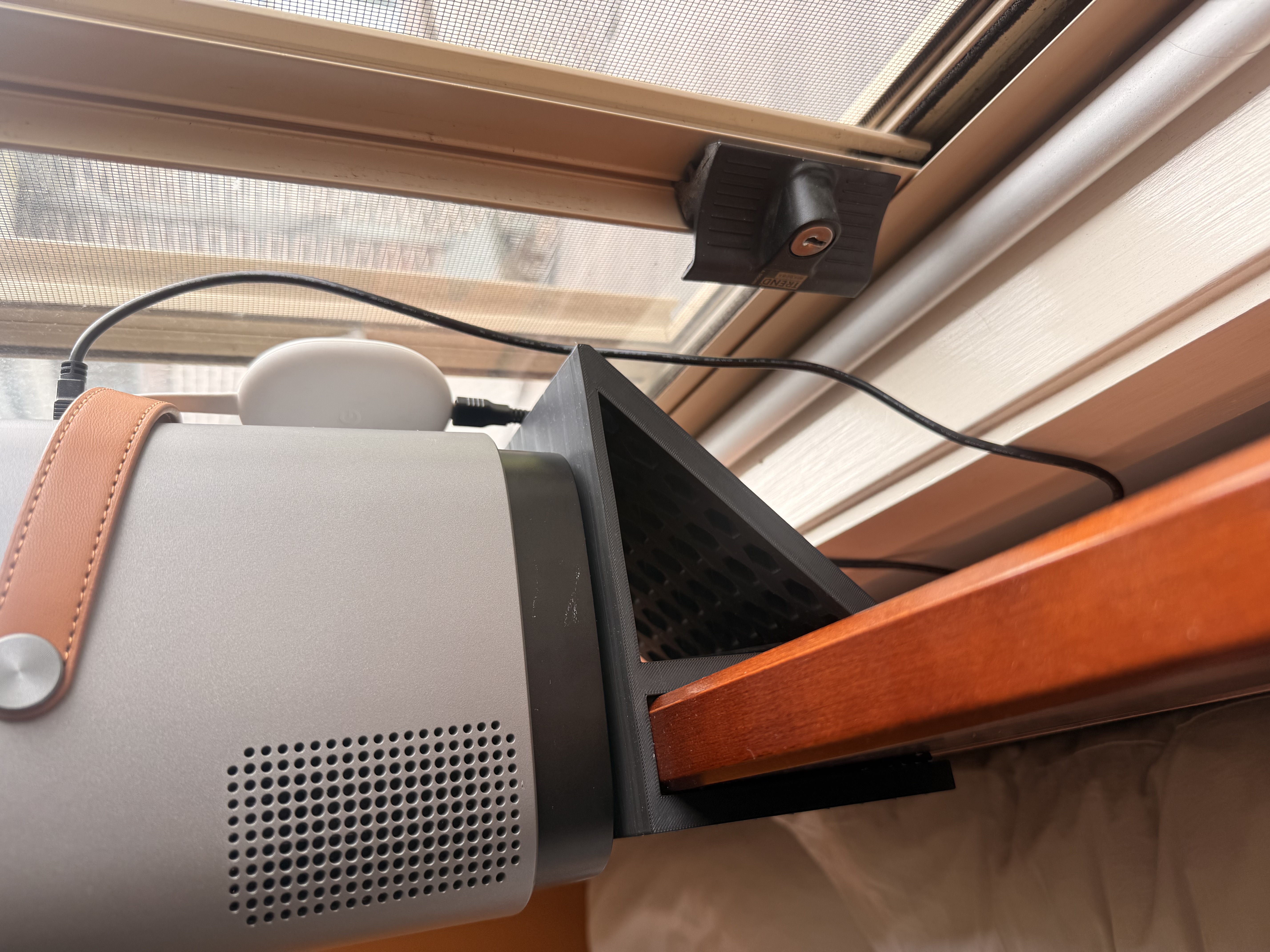

I made this projector mount to hold a small projector above my bed without drilling into walls or ceilings. It clamps directly onto a 28 mm thick headboard, making it perfect for bedrooms, rentals, or temporary setups.

The mount is designed as a simple two-piece clamp with a flat platform on top for the projector. A honeycomb pattern keeps it lightweight while still being strong, and there’s plenty of airflow so the projector doesn’t cook itself during long movie sessions.

Designed in Fusion 360 and optimised for easy 3D printing — no supports needed.

Features

• Fits 28 mm thick headboards

• Clamp-on design (no permanent mounting)

• Lightweight honeycomb structure

• Stable top platform for compact projectors

• Good airflow and rear cable clearance

• Easy to print and assemble

Files Included

• Fusion 360 (.f3d) – fully editable / parametric

• STL files – ready to print

Printing Notes

• Prints flat, no supports required

• PLA works fine, PETG recommended if your room gets warm

• 0.2 mm layer height

• 15–25% infill (gyroid or cubic works well)

If your headboard is a different thickness, you can easily adjust the clamp size in Fusion 360.
