A foldable 24 inch ruler intended for use with Battletech: Alpha Strike and similar games.

Designed from scratch to be more compact than [https://www.printables.com/model/1544863-foldable-wargaming-ruler](https://www.printables.com/model/1544863-foldable-wargaming-ruler) but with length obviously the same.

This new model is available in two variants:

Variant 1: Three 8 inch segments with a width and height of 15mm per segment.

Variant 2: Four 6 inch segments with a width and height of 10mm per segment.

(sorry for the mix of metric and imperial units ;) )

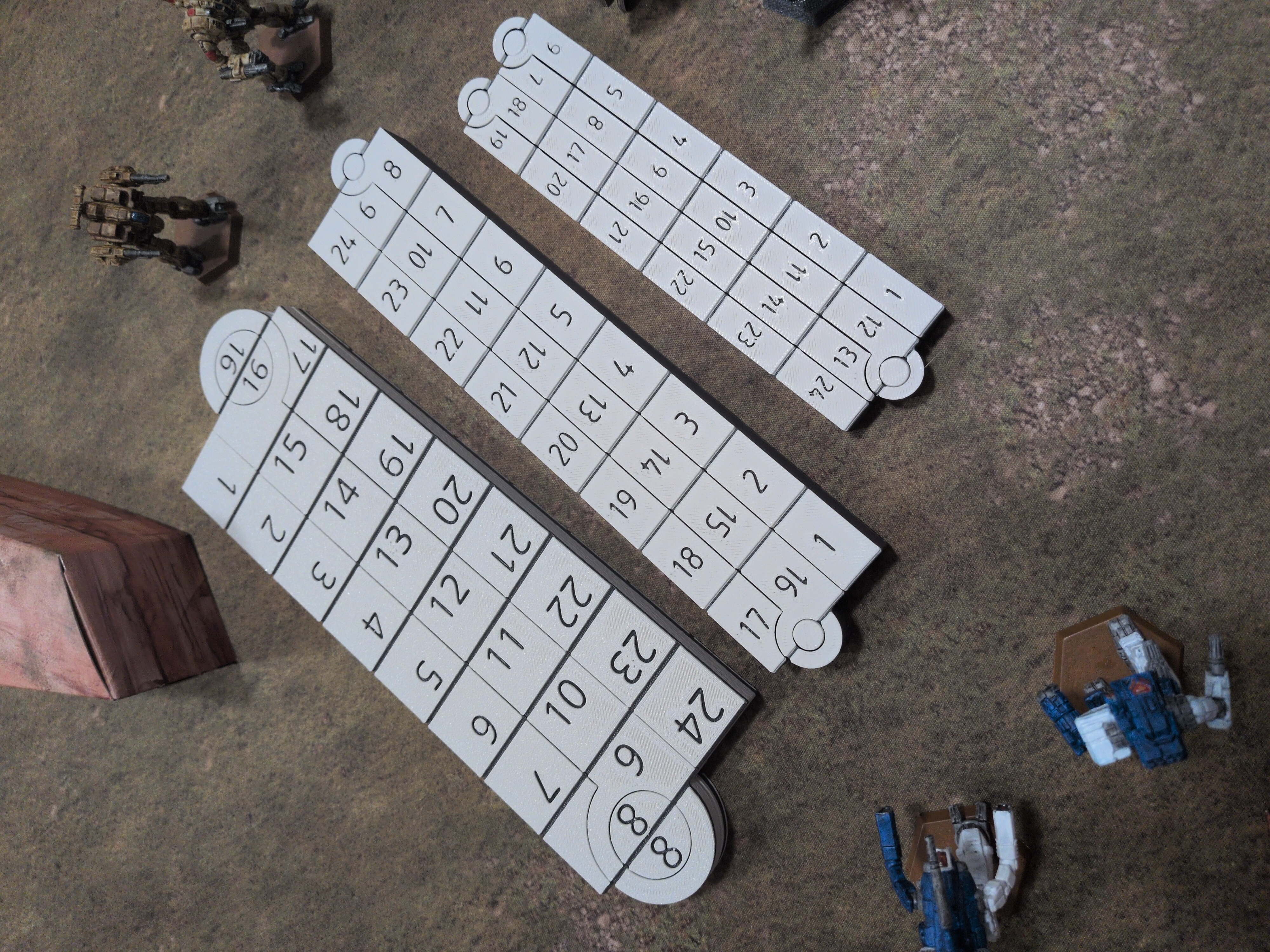

The image shows a comparison of the old model (link above) and the two variants of this new model:

Printing Details:

• Printer: Elegoo Centauri Carbon

• Nozzle: 0.4mm

• Layer Height: 0.2mm

• Filament: PLA

• Wall Loops: 4

• Infill: 25% Gyroid

• Surface: Fuzzy skin (0.04mm thickness, 0.4mm point distance)

• Supports: Enabled (Auto Tree - Tree slim)

• Color: Used two filament colors to enhance visibility of the markings.

Also available in the files sections are two test files to check out the hinges work with your selected printer settings and calibration without printing a complete ruler.
