Modelo 3D 3D Printed Claw Machine por RedKnight358 no Printables

Descrição

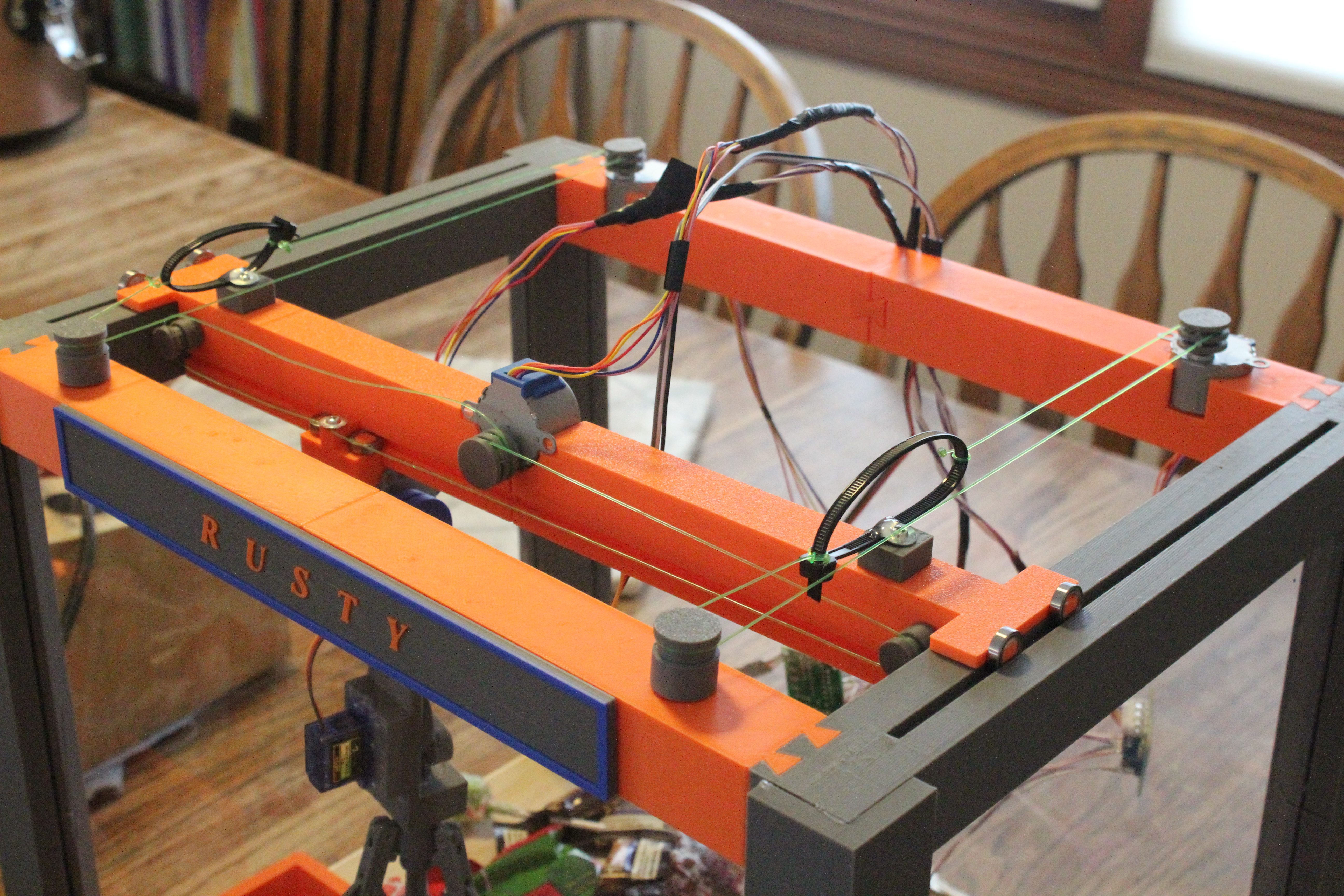

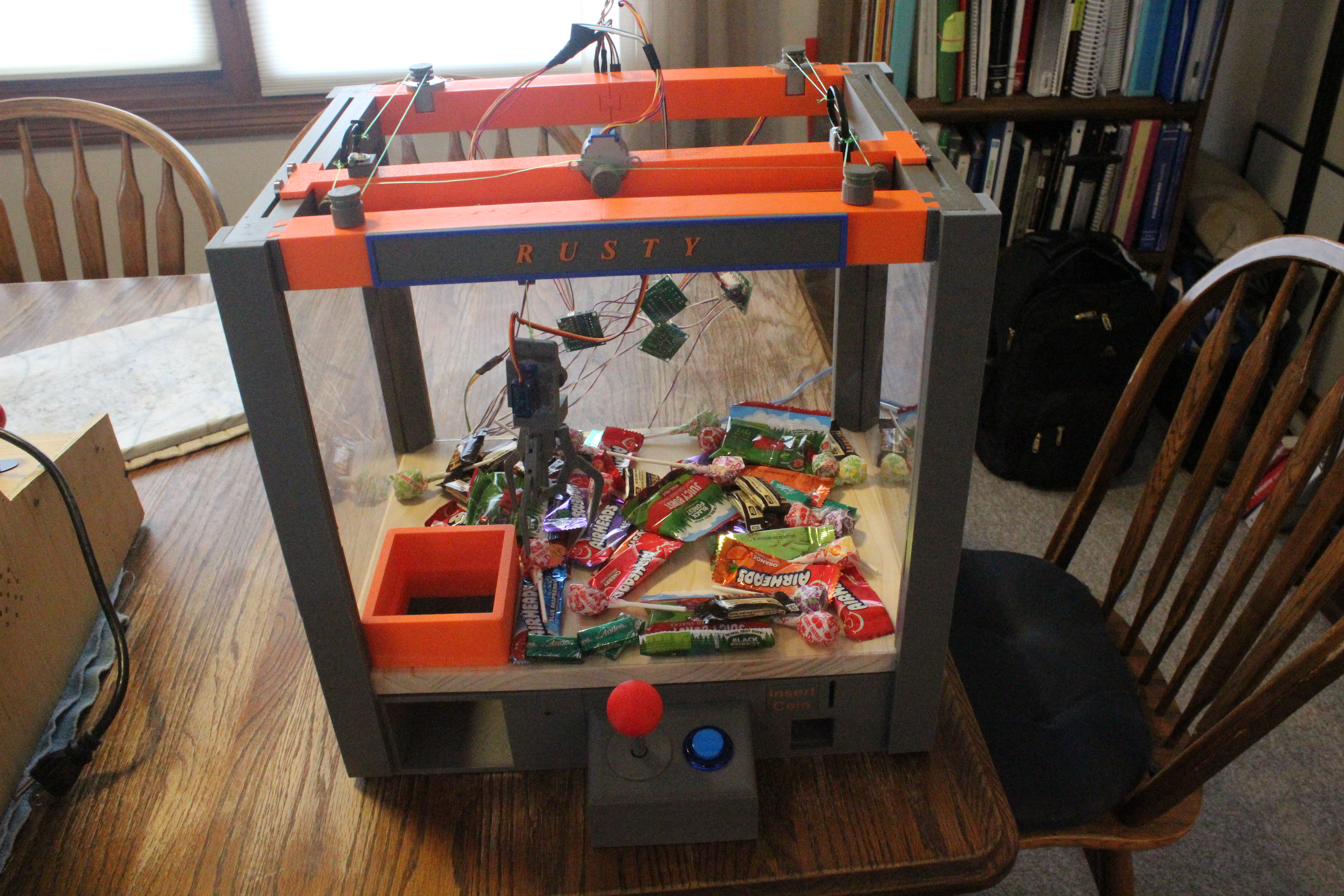

This is a 3D Printed Claw Machine that utilizes an Arduino Uno for control. I designed this to be cheap and easy for anyone to assemble. It cost me about $20 US. I hope you enjoy this machine!

This marks version 1 of my claw machine design. I plan on improving on this design and implementing several new features. One of those features includes a tip alarm that will sense if the machine is being lifted or shaken and will sound an alarm to stop theft. I have always wanted to design this kind of mechanism, so I am excited to share it when I finish. I am also planning on making the claw swappable with other attachments, such as a bucket or a scissor lift.

You can find detailed instructions of how to build this on Instructables.com: [https://www.instructables.com/3D-Printed-Claw-Machine-1/](https://www.instructables.com/3D-Printed-Claw-Machine-1/)

You can also watch videos of this Machine in action on YouTube: 3D Printed Claw Machine!

This can all be printed on a 255mm x 255mm bed printer. You do not need multicolor printing either.

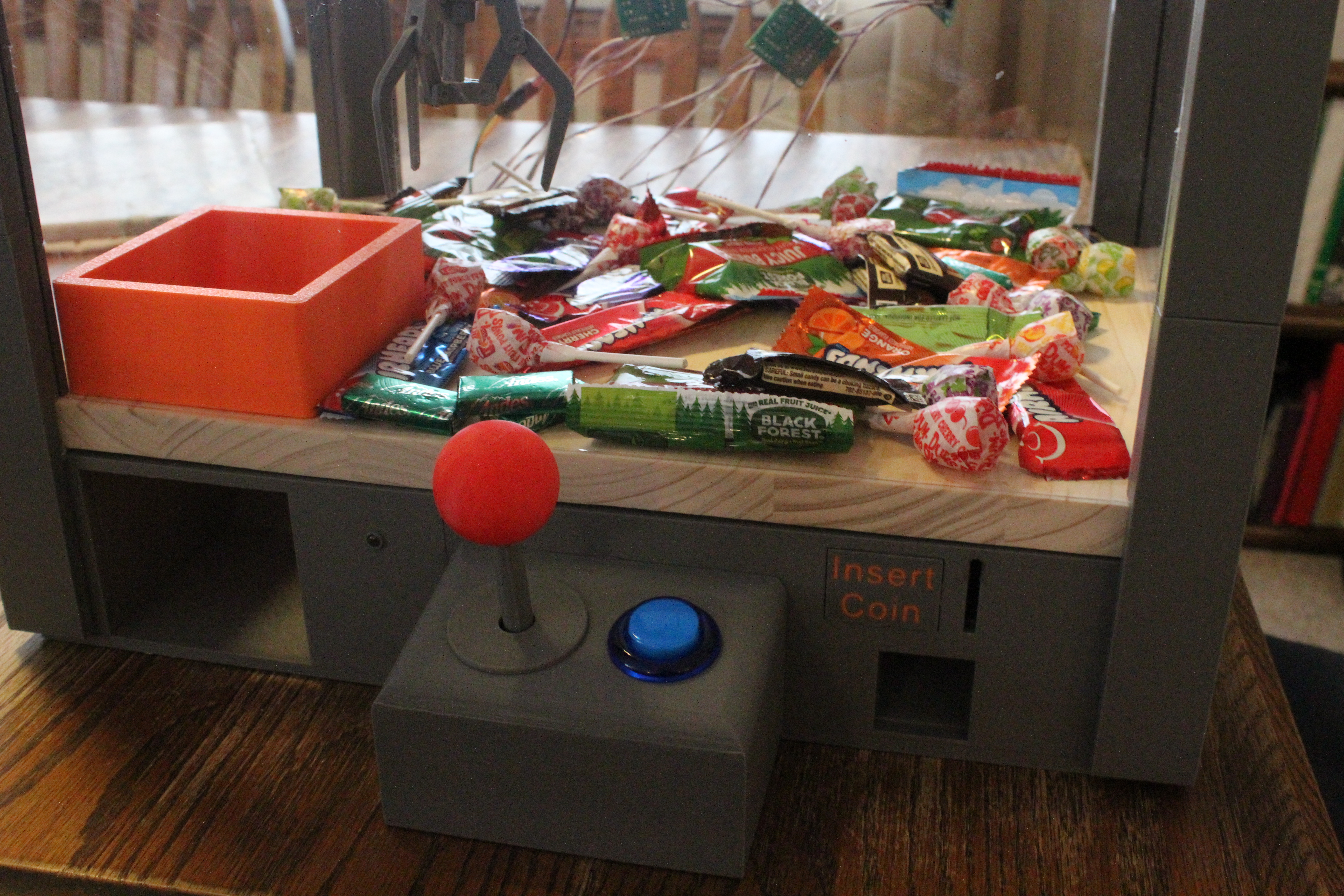

I designed this claw machine with a coin acceptor that not only senses when a quarter is inserted, but also rejects any other coins that are inserted and does not count them. The coins gather in the coin box, and you can open this with a special key.

If you have any questions or comments, please let me know. Enjoy!!!

Printables

3D Printed Claw Machine

RedKnight358 RedKnight358 (abre em nova aba)

Publicado em 19 de jan de 2026

263
Curtidas
159
Downloads
Categoria Other Gadgets
Tags
3d design diy mechanical arduino joystick arcade claw clawmachine
Licença Standard Digital File License
Arquivos (53)
Back Right.stl 22.2 KB
Axis 2 Pulley.stl 73.4 KB
Bottom Leg x2 Left Front - Right Back.stl 12.2 KB
Back Left.stl 22.2 KB
Base BL.stl 78.4 KB
Base BR.stl 50.1 KB
Base Support Pulley x2.stl 57.5 KB
Base FL.stl 65.3 KB
Bottom Leg x2 Right Front - Left Back.stl 12.2 KB
Cable Mount x2 L-R.stl 16.1 KB
Coin Slide.stl 15.4 KB
Chute.stl 14.9 KB
Coin Box.stl 12.4 KB
Cart.stl 62.3 KB
Controller Case.stl 47.2 KB
Coin Acceptor Base.stl 59.7 KB
Connector Pin x9.stl 25.9 KB
Handle.stl 34.1 KB
Frame.stl 28.6 KB
Leg Pin x2 Left Front - Right Back.stl 1.3 KB
Base FR.stl 66.1 KB
Leg Pin x2 Right Front - Left Back.stl 1.3 KB
Front Left.stl 16.3 KB
Left.stl 4.6 KB
Front Right.stl 16.3 KB
Motor Pulley x3.stl 97 KB
Cover.stl 92.5 KB
Label.stl 93.6 KB
Fuse Cap.stl 112.5 KB
Insert Coin Label.stl 127.8 KB
Connector.stl 299.5 KB
Prize Chute.stl 2.2 KB
Cylinder.stl 1 MB
Ball.stl 572.3 KB
Plunger.stl 55.2 KB
Pulley Base x2.stl 44.2 KB
Rail Left.stl 25.7 KB
Rail Pin.stl 2.2 KB
Right.stl 4.6 KB
Rail Right.stl 25.7 KB
Sensor Mount.stl 17.3 KB
Support.stl 684 B
Top Leg x2 Right Front - Left Back.stl 12.4 KB
Support Pulley x2.stl 65.2 KB
Top Pin x2.stl 1.1 KB
Top Leg x2 Left Front - Right Back.stl 12.4 KB
Voltage Label.stl 27 KB
5x20mm Fuse Holder.stl 313.9 KB
Z Axis Pulley.stl 63.4 KB
Actuator Wheel Pin.stl 28.4 KB
Actuator Wheel.stl 48.9 KB
Arm x3.stl 87 KB
Arm Brace x3.stl 164.7 KB
