Descrição

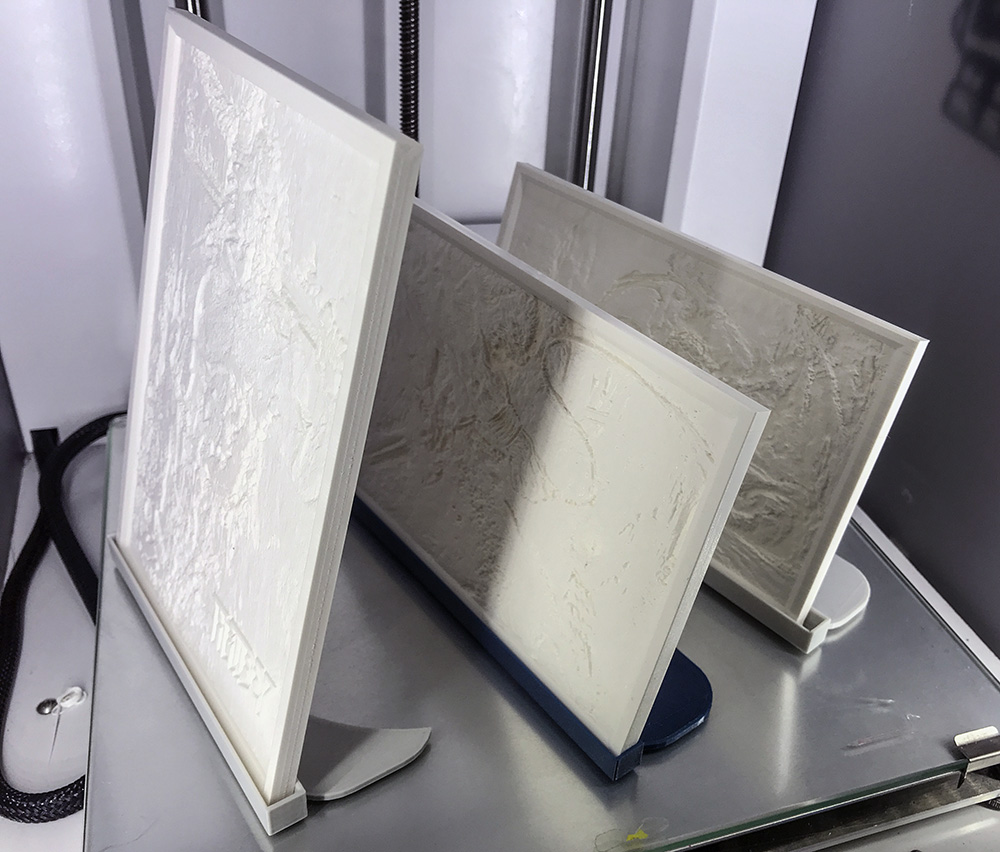

These are mainly for use with the lithophanes available on Gadunky.com(but work on anything that will fit in them). They hold the lithophane at an 80° angle for best viewing(the flat section with the curve should be facing the back).
Print with 100% infill in whatever material and colour you like(tested with PLA, PETG and ABS). A layer height of 0.2mm is a good balance between quality and print time on these.
The height of the lithophane must also be considered when using a stand. These have been designed to comfortably hold a lithophane with a height 1.75x the length of the stand. So the 180mm version should hold a lithophane with a height of 315mm(180mm+75%) without falling over. In practice it will hold a much taller lithophane than this, but we only recommend up to 1.75x the length.
If you need a particular size just comment and I'll add them. I need to know the length of the lithophane, thickness and how tall it will be.

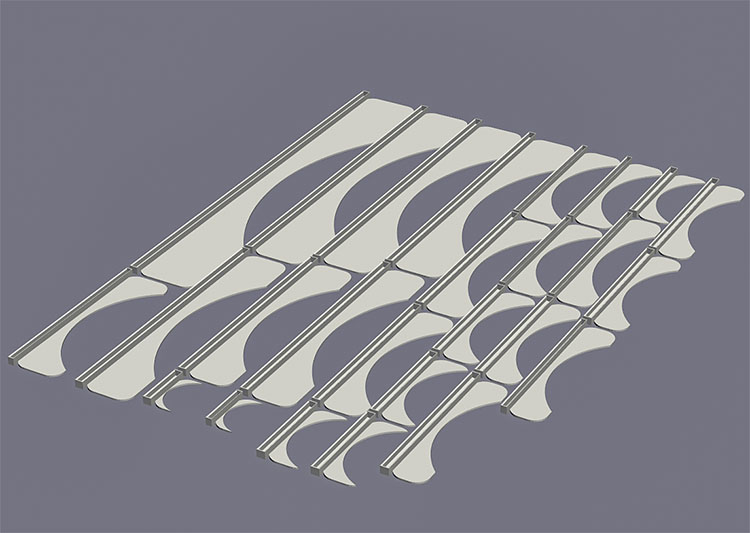

File name breakdown:-
LithoStand-Gadunky.com-v3b-3.2mm-200mm.stl
v3b: Version 3b of the stand design.
3.2mm: For use with 3.2mm thick lithophanes.
200mm: For use with 200mm in length (or smaller) lithophanes.
All files follow this naming format.
.
Print instructions
0.2mm layer height is perfectly fine for these.
100% infill,
