Dungeon and Dragons and/or tabletop modular riser set. Very simple straight forward use by screwing them together. Can be used to get different heights and bases. Spacing is 25mm height. Multiple lengths are provided with steps of 25, but you can also just stack on several 25mm pieces. For the bases and tops you can mix and match as well, so if your building a (very) high riser, but you want a more stable base, you can still screw on a 100mm base.

Printable parts

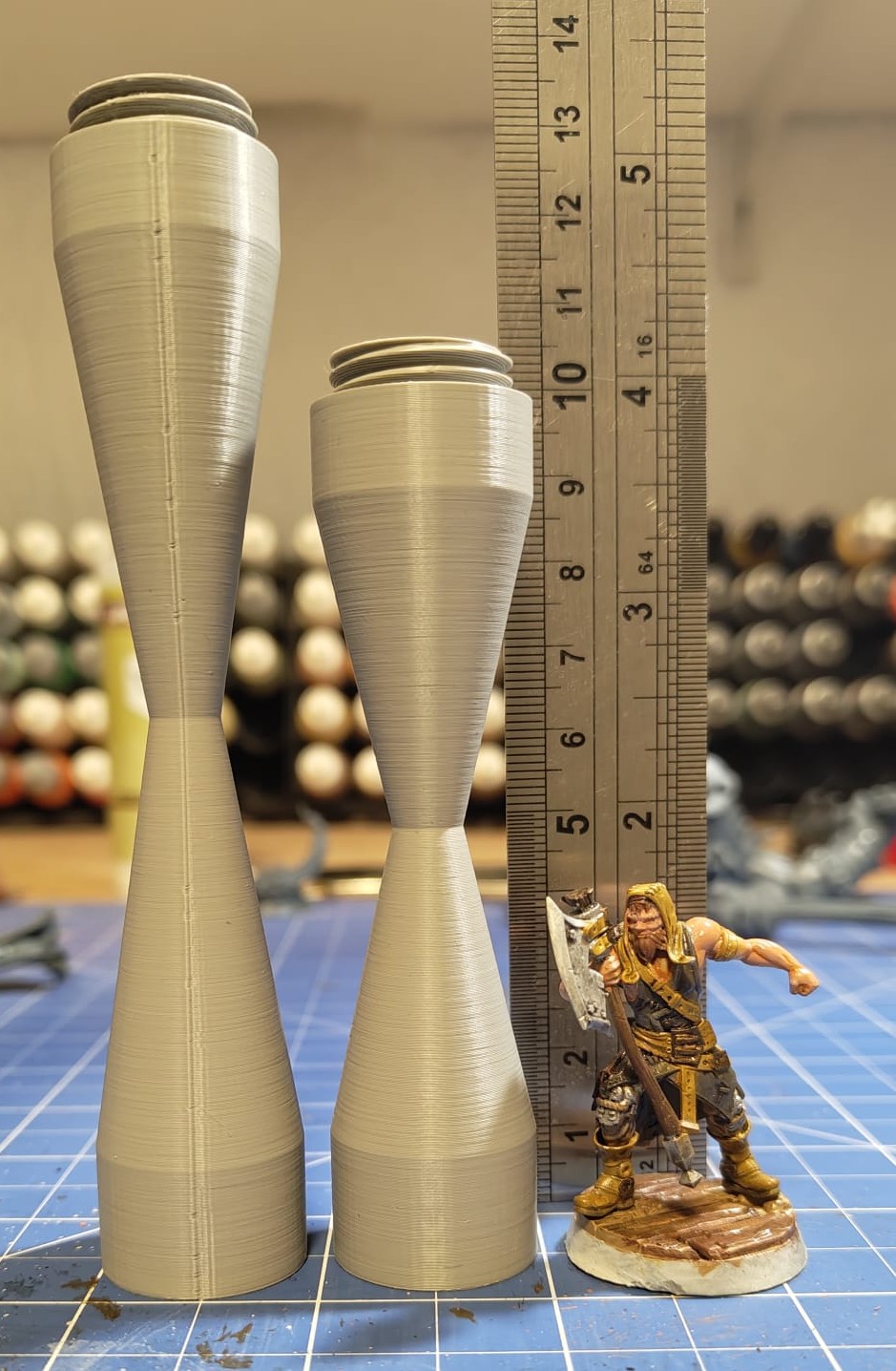

The following pillar lengths have been provided (in mm):

• 25

• 50

• 75

• 100

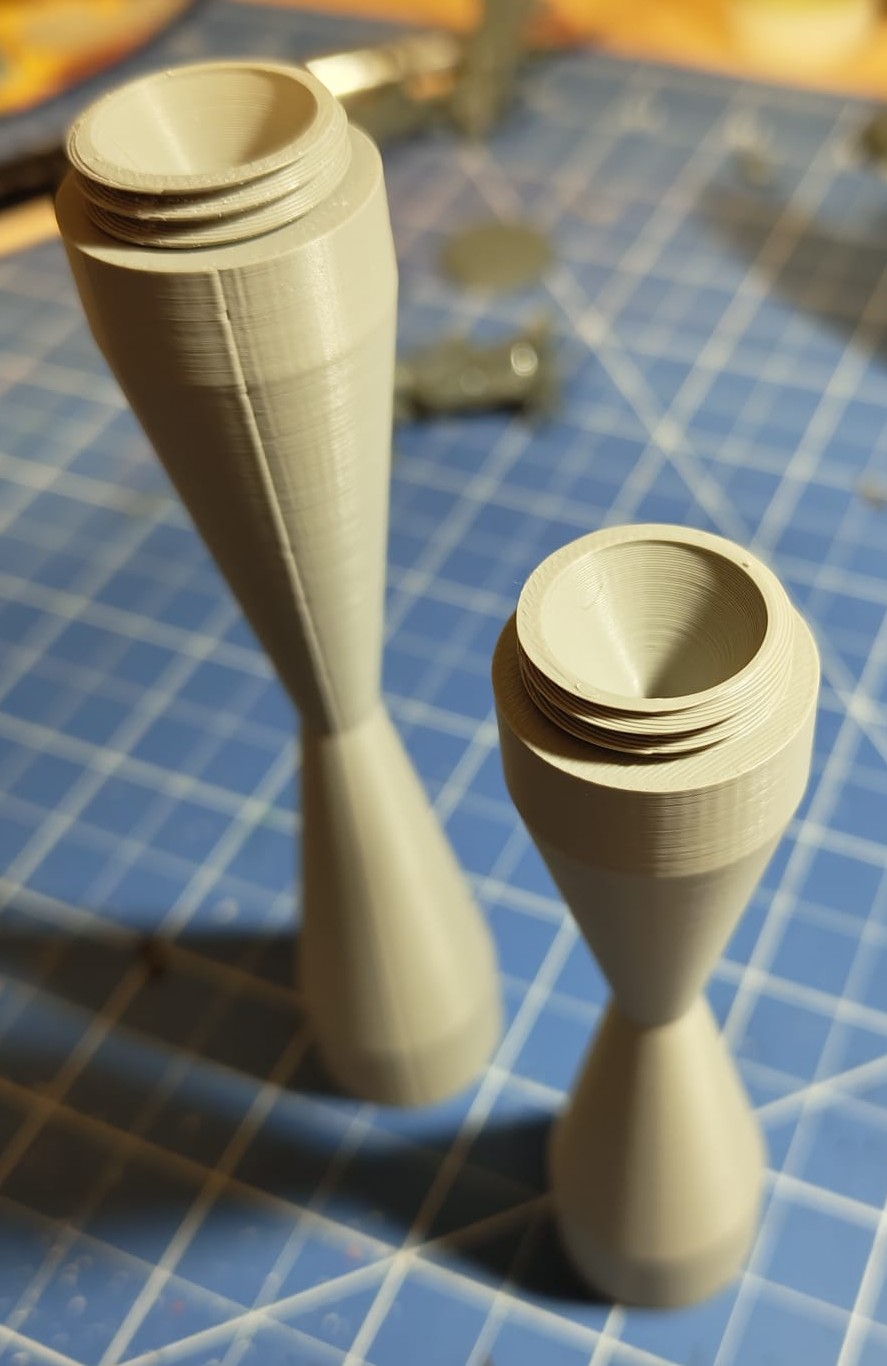

• 100 (thin)

• 125 (thin)

The thin versions are to provide better oversight in a large game.
The following (circular)bases have been provided (in mm):

• 25

• 32

• 50

• 75

• 100

Note: These bases have a +2mm added to them all so the mini's have plenty of space to stand. i.e. 25 type base is a 27mm wide base, as some mini bases are concave at the bottom. So they don't catch on the edges.

All parts use a m20x2_5mm_RH screw fitting and supplied 2 end pieces/base to be used if someone wants to glue on other things at the end in the additional folder.

Print recommendations

As the bases and pillar parts require slightly different orientation the following recommendations are made.

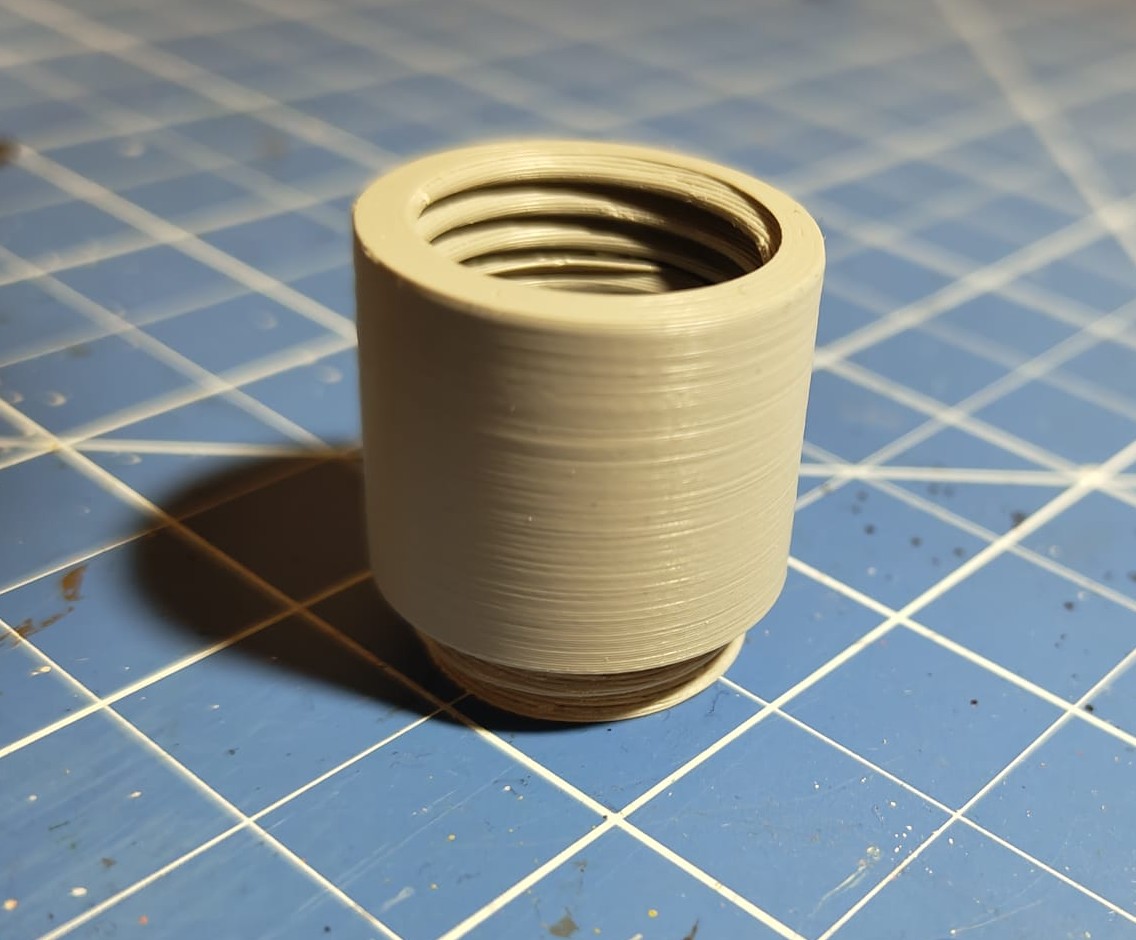

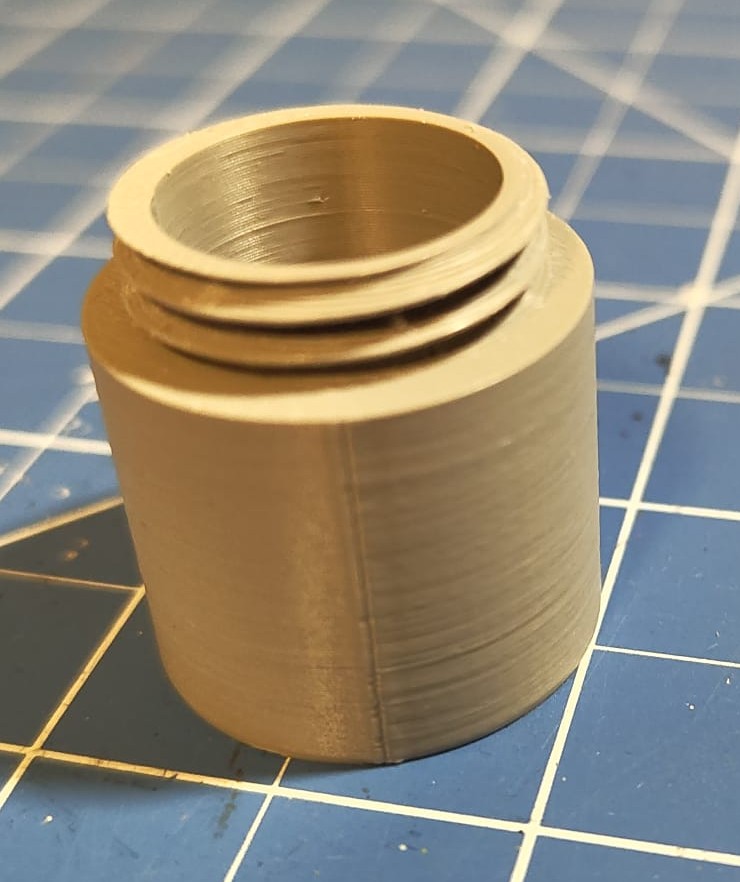

Pillar parts:

These should all be printable with:

• Socket side print bed.

• Without supports.

• Optional: Outer brim enabled.

I've used mostly 0.16mm layer height, gyroid 7%.

Base parts:

These should all be printable with:

• Flat side print bed.

• Without supports.

• Optional: Outer brim enabled.

I've used mostly 0.16mm layer height, gyroid 7%.

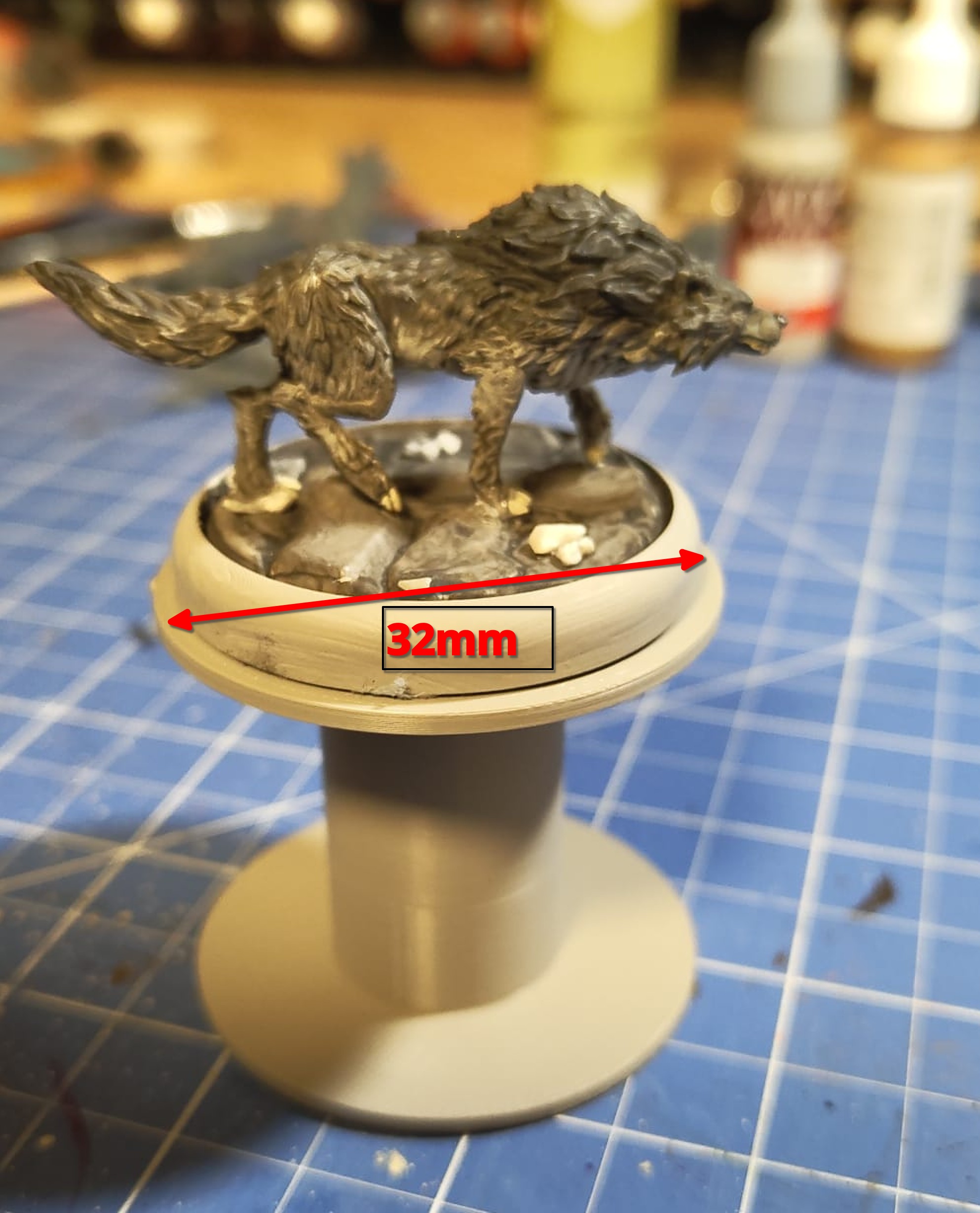

Note: Don't ask me why the Obsidian Earth elemental or (dire)wolf in the picture has flying skills...
