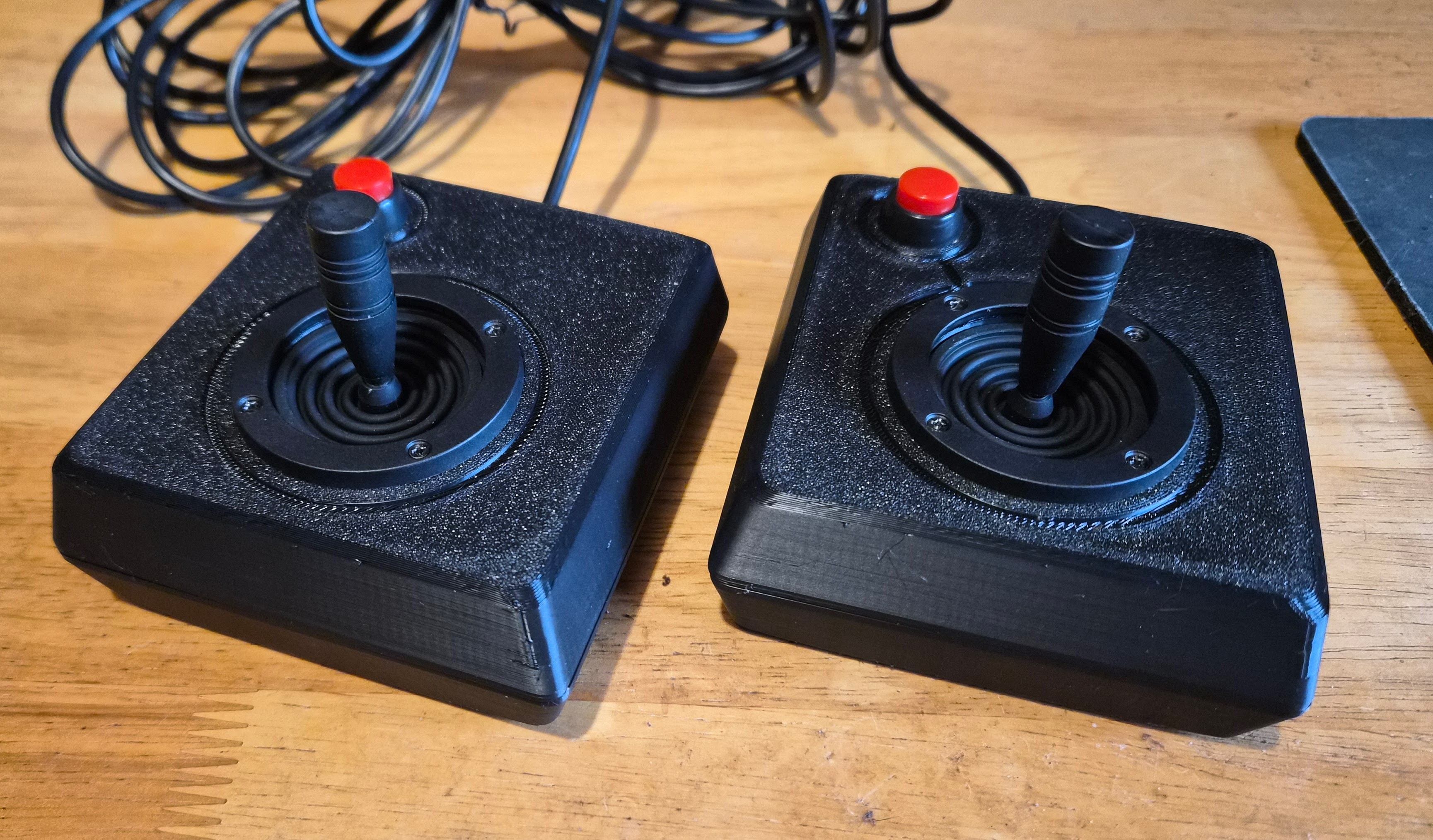

This design will house some standard Joystick components in a retro-inspired design. I've printed in PETG on a texture bed to give the top and bottom surfaces this dimpled design as the model is smooth.

The joysticks in these are "JH-D202X-R2/R4" - analogue 2-pot sticks which have four 2.5mm screws at the corners of a 32.5mm square on the top surface with a 41mm diameter hole in the middle.

The fire buttons have a 12mm diameter hole and secure with a nut on the back of the top surface.

The cable inlet is a 10mm hole and I've included a cord grip for the 5-core cable I've used and printed this in TPU, but it should be fine in other materials.

You need four M4 screws of about 20mm length to connect the two halves. I used cap-head hex screws,

All parts should print without support but you might want to enable support on the base half to get neater screw holes.

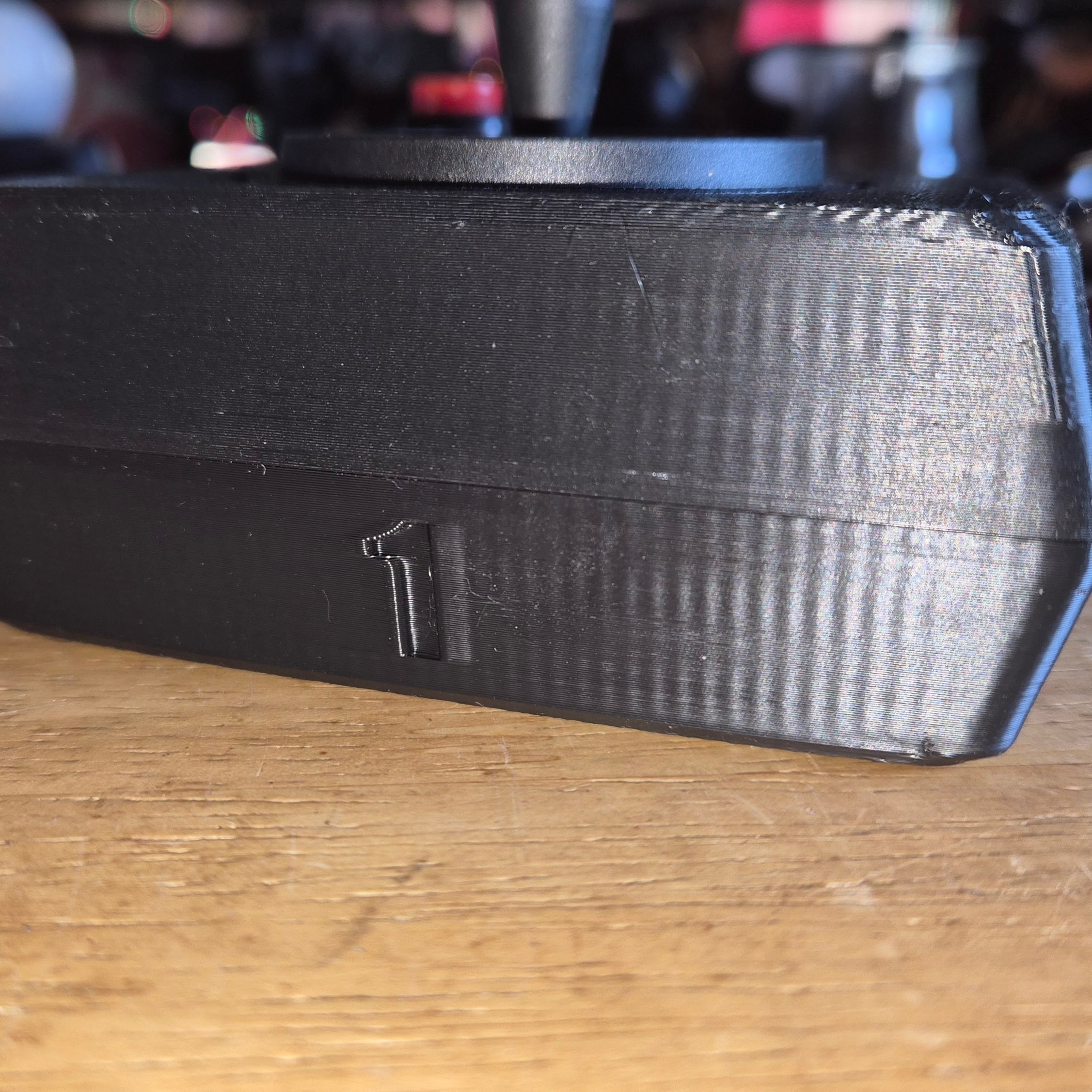

19th Jan 2026 - Added two alternative base halves with numbers "1" and "2" indented, in case you have two sticks and need to identify them.
