Illuminated box with Minecraft motif. For lighting I used approx 150cm ARGBW LED strip, which is glued along the walls of the box. The box is made in two versions of the back lid.

• Variant A is for using a ready-made "all in one" RGB strip.

  • The lid is attached with four M3x6 screws.

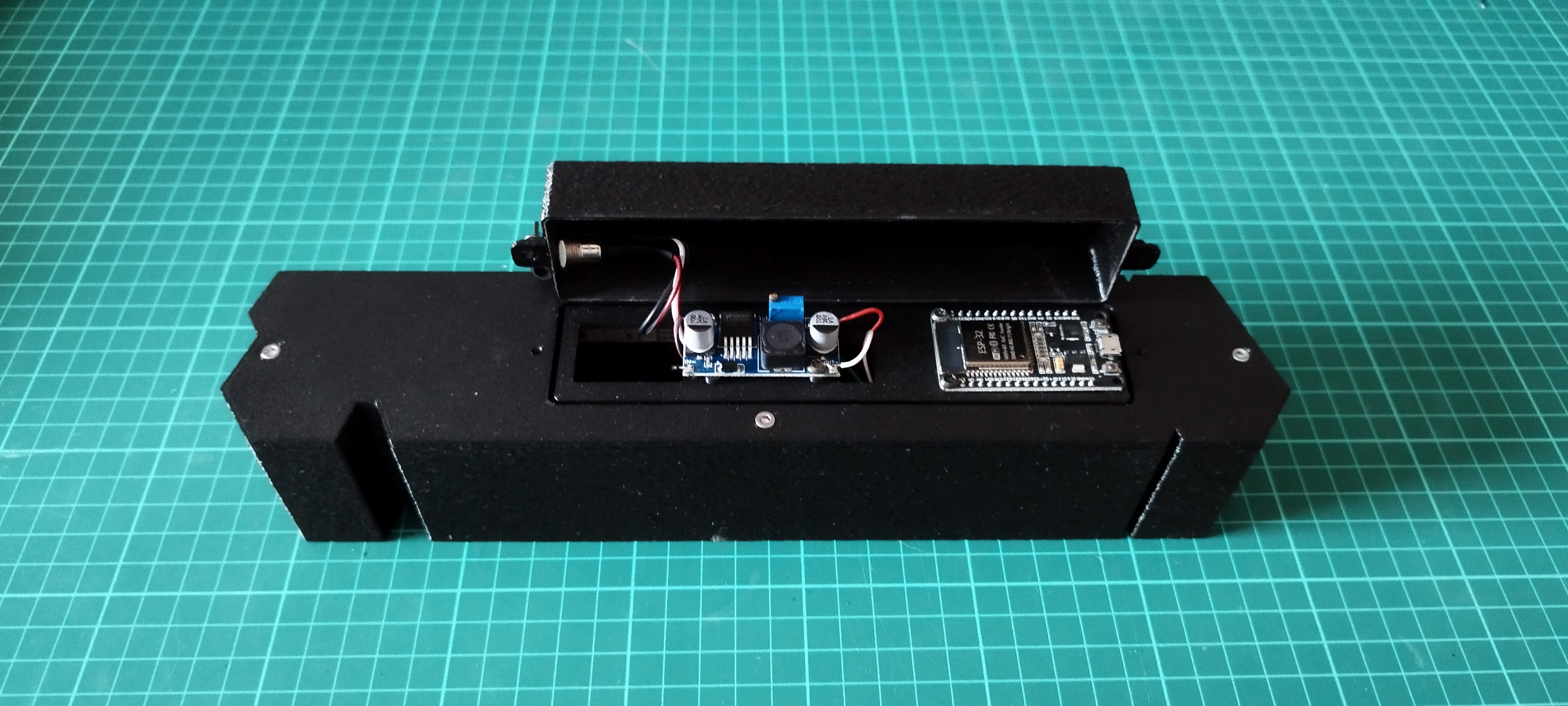

• Variant B is for use with ESP32 and voltage regulators for possible control of digital RGB strips

  • The lid is attached with four M3x6 screws.

  • ESP32, stepdown regulator and el. cover is attached every with two M3x5rT screws.

  • ESP32 board i use THIS

  • Step Down regulator i use THIS

  • DC connector to the panel i use THIS

  • Hole for connector in Cover ESP32 is 11,2mm diameter

I am using a voltage regulator because i use the 12V RGB strip. If you use a 5V RGB strip, the regulator is not needed and you can power the ESP32 board with the same power supply.

Thanks to the electronics used, I control everything through WLED and then it is easy to control everything from my phone and integrate it into Home Assistant, for example.

It may seem like the parts don't fit on the bed, you need to really slowly orient the large parts.

I used spacers because of the pin protrusions on the voltage regulator.
