Infinite customizable modular wall hook designed specifically for the prusaprinters Wall Hook contest.

Hang the central base with screw. Then, you can add as many hook as you need at any time : add any left base, any right base and any bottom base. Inifinite possibilities.

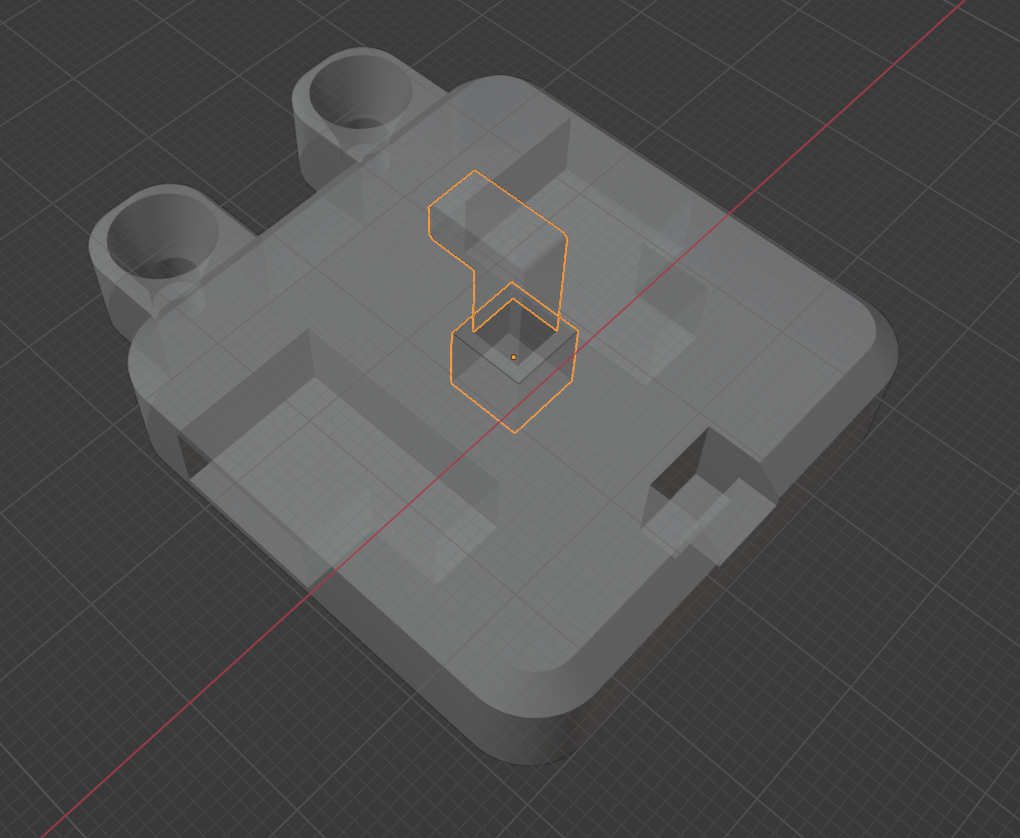

Pick any hook you want and plug it in the center hole.

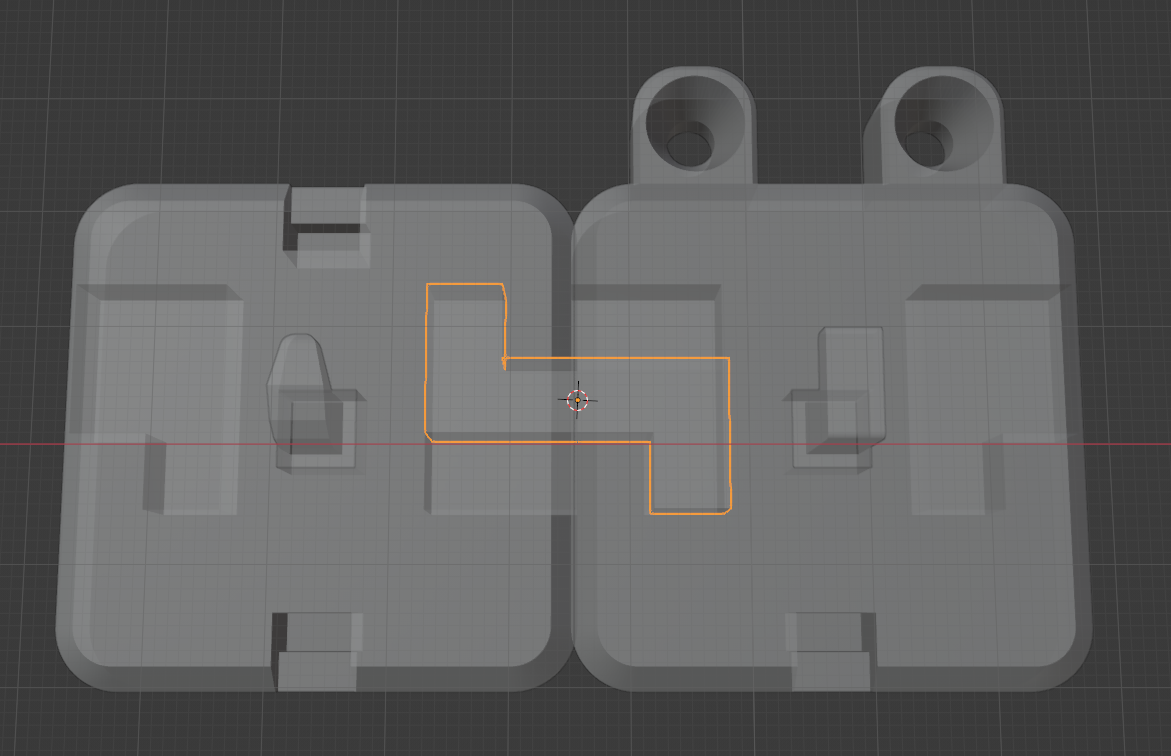

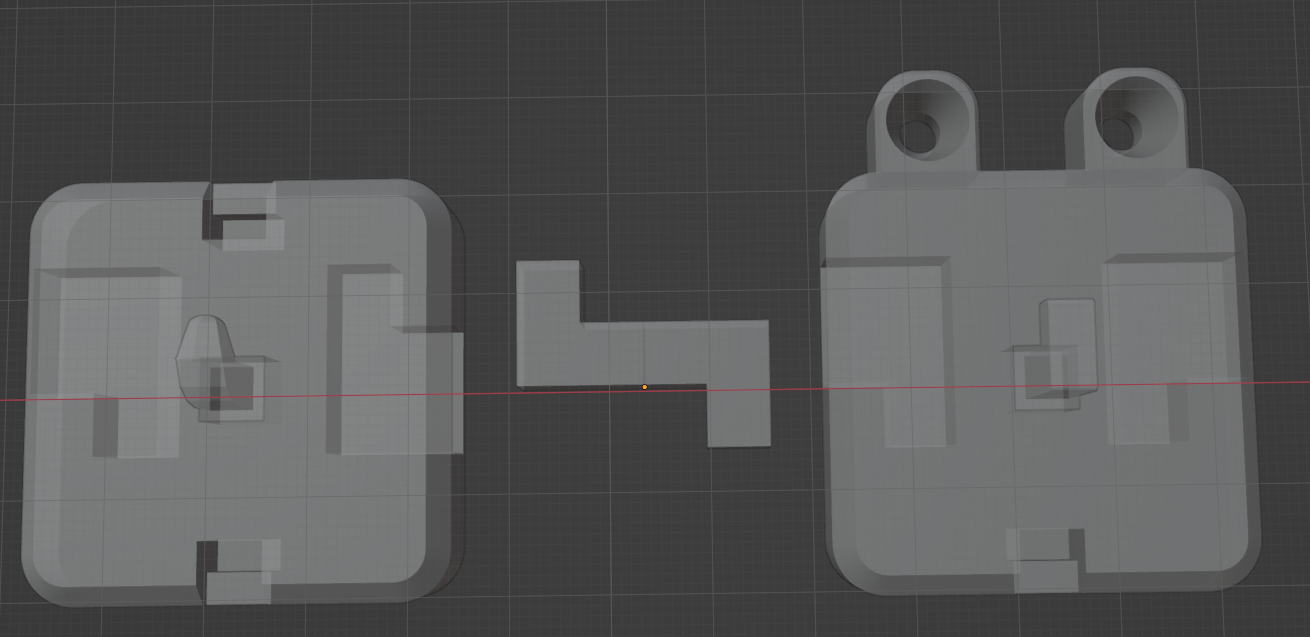

Use left join, right join and vertical join to join bases.

Screw diameter : 4mm.

I made 5 different hooks, but you can design your own hook remix : create a 6mm cube and make the shape you like.

Have a look on the pictures to understand the infinite modular system.

I can't print at the moment, but every part has been checked with Blender 3D Print plugin, PrusaSlicer and can be printed in place with no support.

Every measure “works” in the 3D model, but no tolerance has been added, so the result may depend on your printer quality and tolerance.
