Modelo 3D Parametric rectangular clamp / pipe bracket por WJN no Printables

Descrição

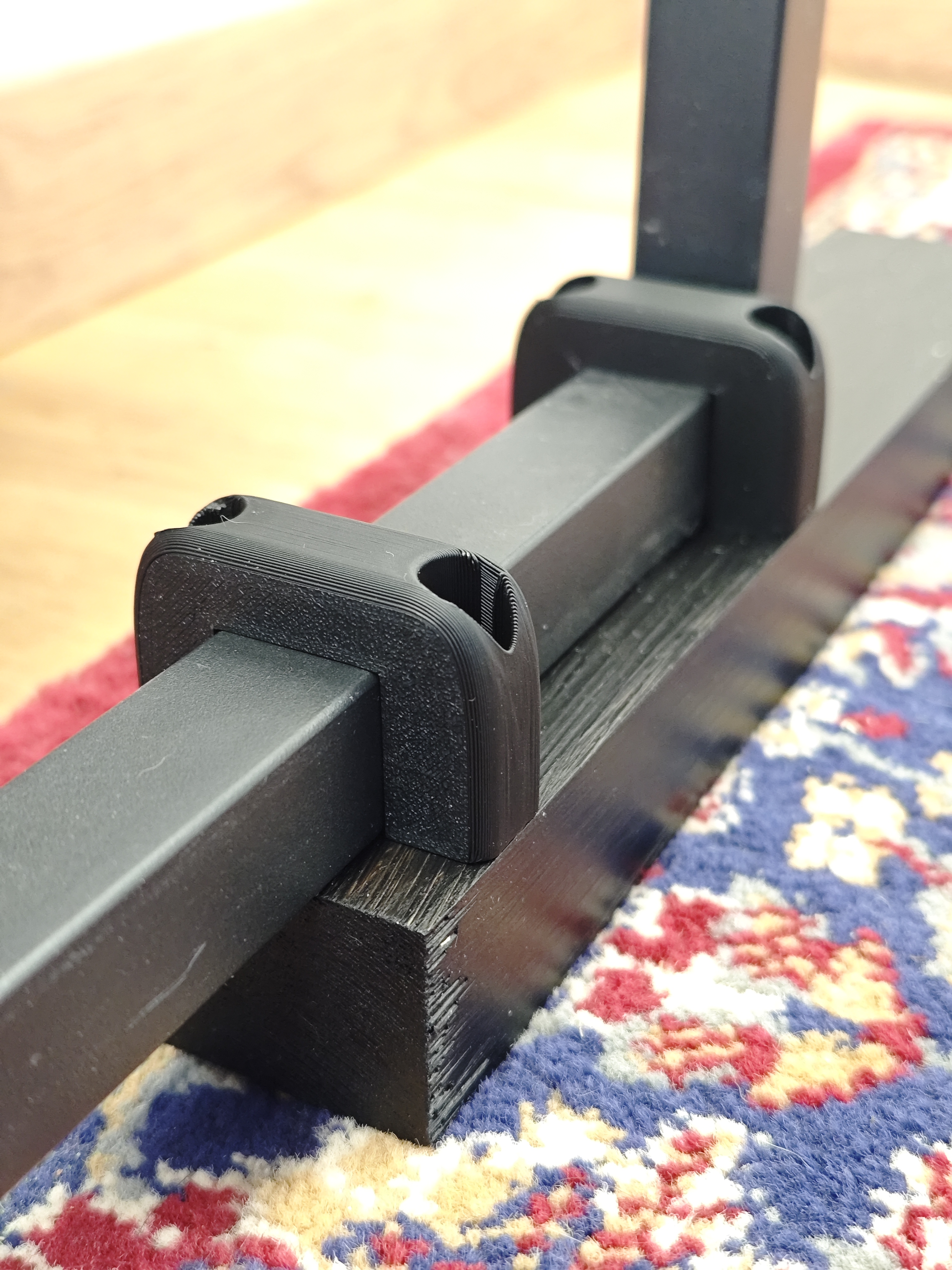

A simple, aesthetic, 2-hole bracket for universal mounting/clamping purposes of rectangular pipes or similar.

Print flat for max stability, no support needed.

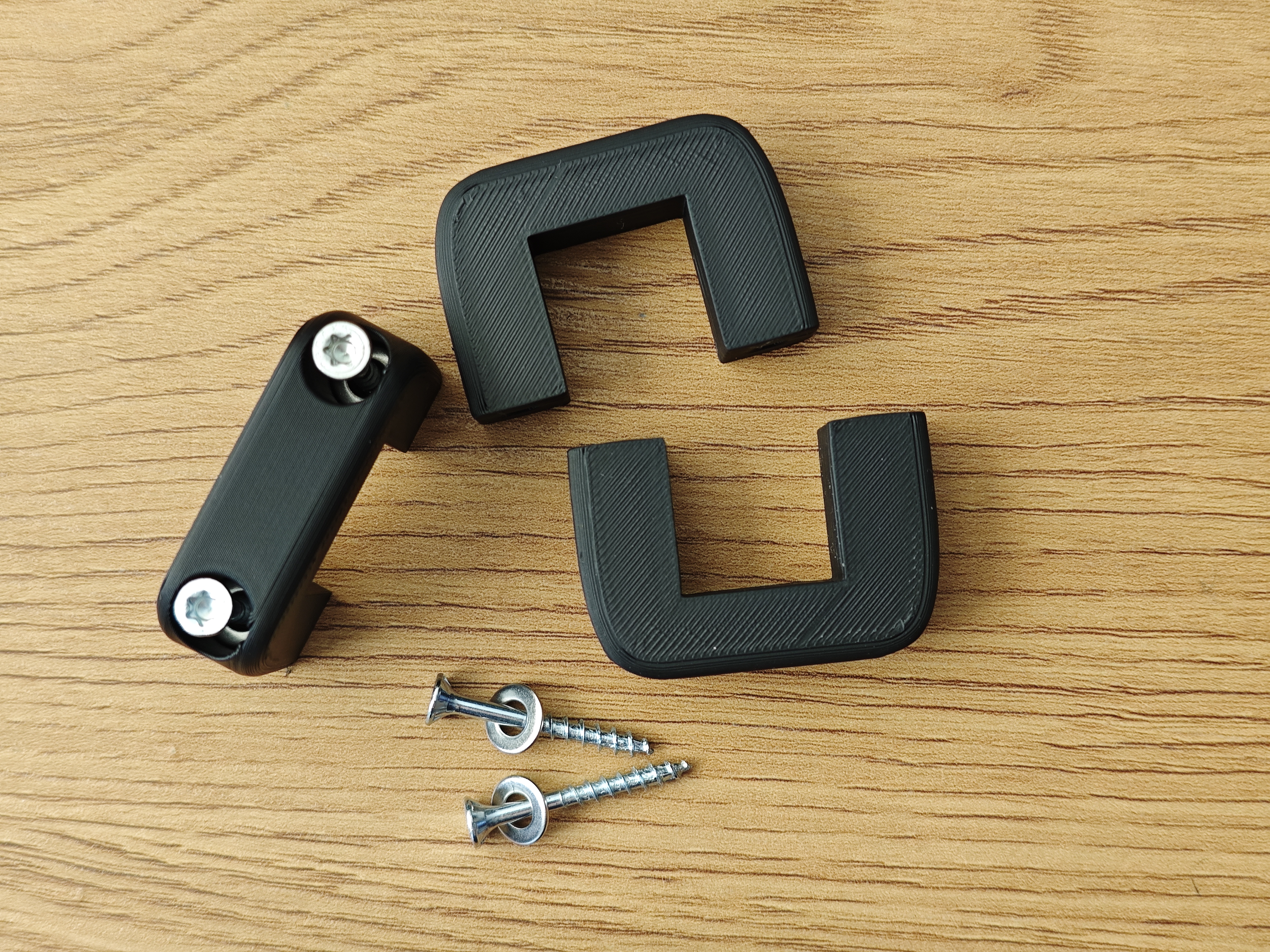

Use washers or barrel head screws, resp., avoid using countersunk screws directly. This allows the screw to be tightened securely without stressing or separating the printed layers.

The provided Fusion360 project adds 0.5mm to the selected washer_OD and the hole_dia automatically, as well as 0.2mm on top of the given inner_width. Play with the parameters as you need, but be aware that not all combinations work, of course. (Feel free to share your created models with me via PN, so I can add them to the download section!)

Some exemplary exports are given, following the naming scheme (all in mm):
...inner_heightxinner_width_clampWidthW_clampThicknessT_hole_diaHole_washer_ODWasher.stl

Printables

Parametric rectangular clamp / pipe bracket

Publicado em 22 de dez de 2025

3
Curtidas
15
Downloads
Categoria Mechanical Parts
Tags
bracket clamp pipeclamp screwmount rectangular
Licença Creative Commons — Attribution — Noncommercial
Arquivos (7)
Parametric_rectangular_clamp _v1_20x20mm_50mmW_16mmT_4mm5Hole_10mmWasher.stl 1.3 MB
Parametric_rectangular_clamp _v1_10x20mm_50mmW_16mmT_4mm5Hole_10mmWasher.stl 1.3 MB
Parametric_rectangular_clamp _v1_10x20mm_50mmW_15mmT_3mm5Hole_9mmWasher.stl 1.2 MB
Parametric_rectangular_clamp _v1_20x20mm_45mmW_14mmT_3mm5Hole_9mmWasher.stl 1.2 MB
Parametric_rectangular_clamp _v1_20x20mm_50mmW_15mmT_3mm5Hole_9mmWasher.stl 1.1 MB
Parametric_rectangular_clamp _v1_10x20mm_45mmW_14mmT_3mm5Hole_9mmWasher.stl 1.2 MB
Parametric_rectangular_clamp_v1.f3d 161.3 KB
