Modelo 3D Intel NUC NUC7I5DN Case por Kaworu no Printables

Descrição

Case for the NUC7I5DN Intel NUC motherboard, which along 8G of RAM and 64G SSD i could source for like 25$. Sadly they didn't come with a case, so made my own.

Notes:

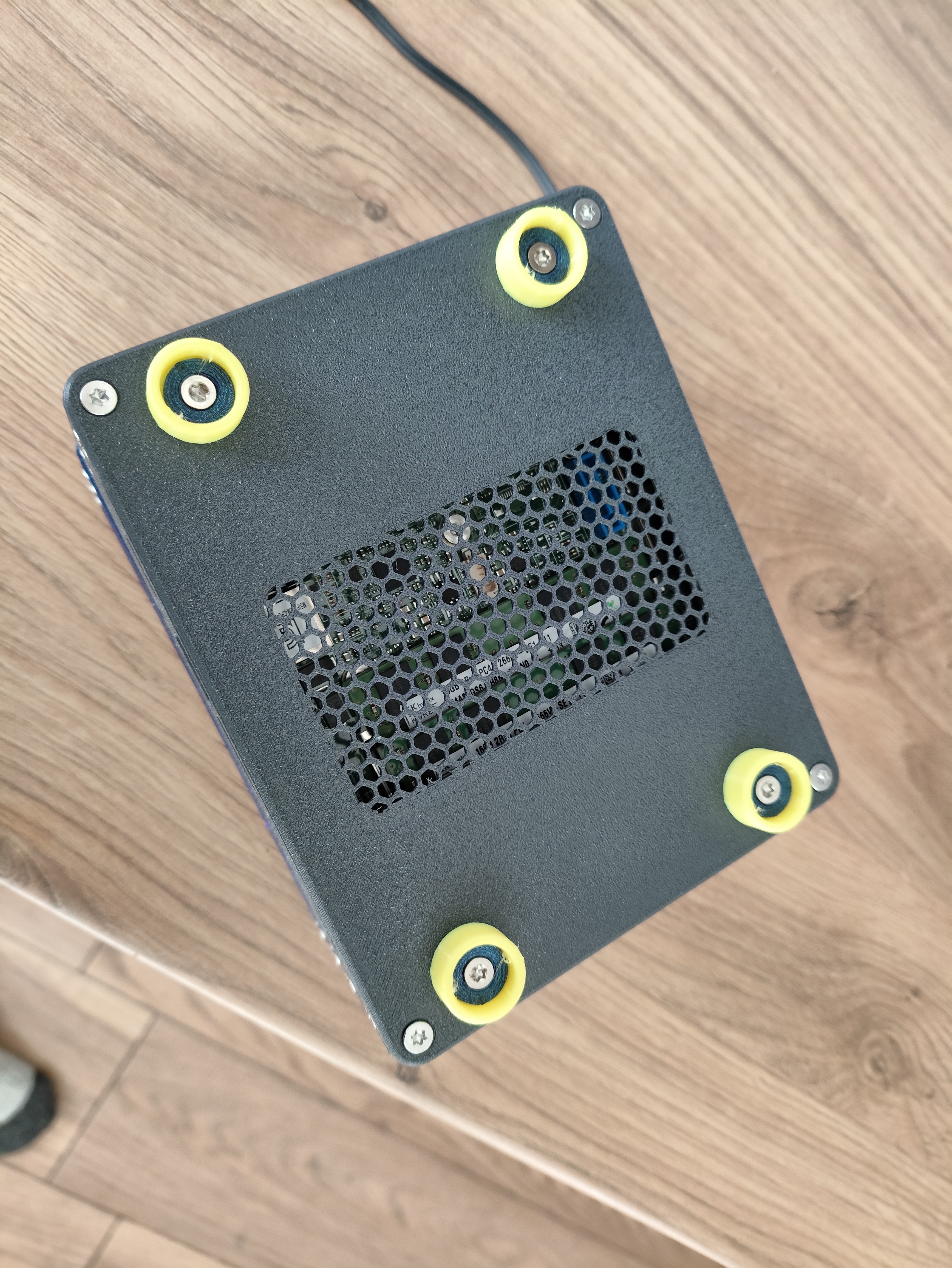

  • Feet required, air intake is on the bottom, so we could have some airflow over the RAM and VRM.

  • Intake and exhaust guards are meant to be printed with 0 top, bottom and wall loops, just ~20% infill

  • Feet ware made from TPU

  • Case is meant to be printed with some kind of semi-transparent material, like PET-G, so front LED would be visible.

  • If You use full opaque filament, well - drill a hole

  • Bottom cover & mainboard standoff holes should contain 4x3x3mm threaded inserts

  • Front & back panel mounting holes are meant to be tapped with M3 tap. But wood screws should be also fine here

  • It should fit any UCFF main board, but most likely You will need to make front & rear panels for it

  • Use internal WiFi antennas

Printables

Intel NUC NUC7I5DN Case

Publicado em 19 de dez de 2025

5
Curtidas
72
Downloads
1
Impressões
Categoria Computers
Tags
case computer nuc intel nuc7i5dn
Licença Creative Commons — Attribution — Noncommercial
Arquivos (6)
SimpleNUC-MainShell.3mf 117.3 KB
SimpleNUC-BottomCover.3mf 115.2 KB
SimpleNUC-PanelRear.3mf 54.7 KB
SimpleNUC-PanelFront.3mf 72.5 KB
SimpleNUC-Feets.3mf 34.3 KB
SimpleNUC-FeetLock.3mf 7.4 KB
