Update December 13, 2025: Forgot to upload the updated Quick Release Hub that didn't require a heat set insert

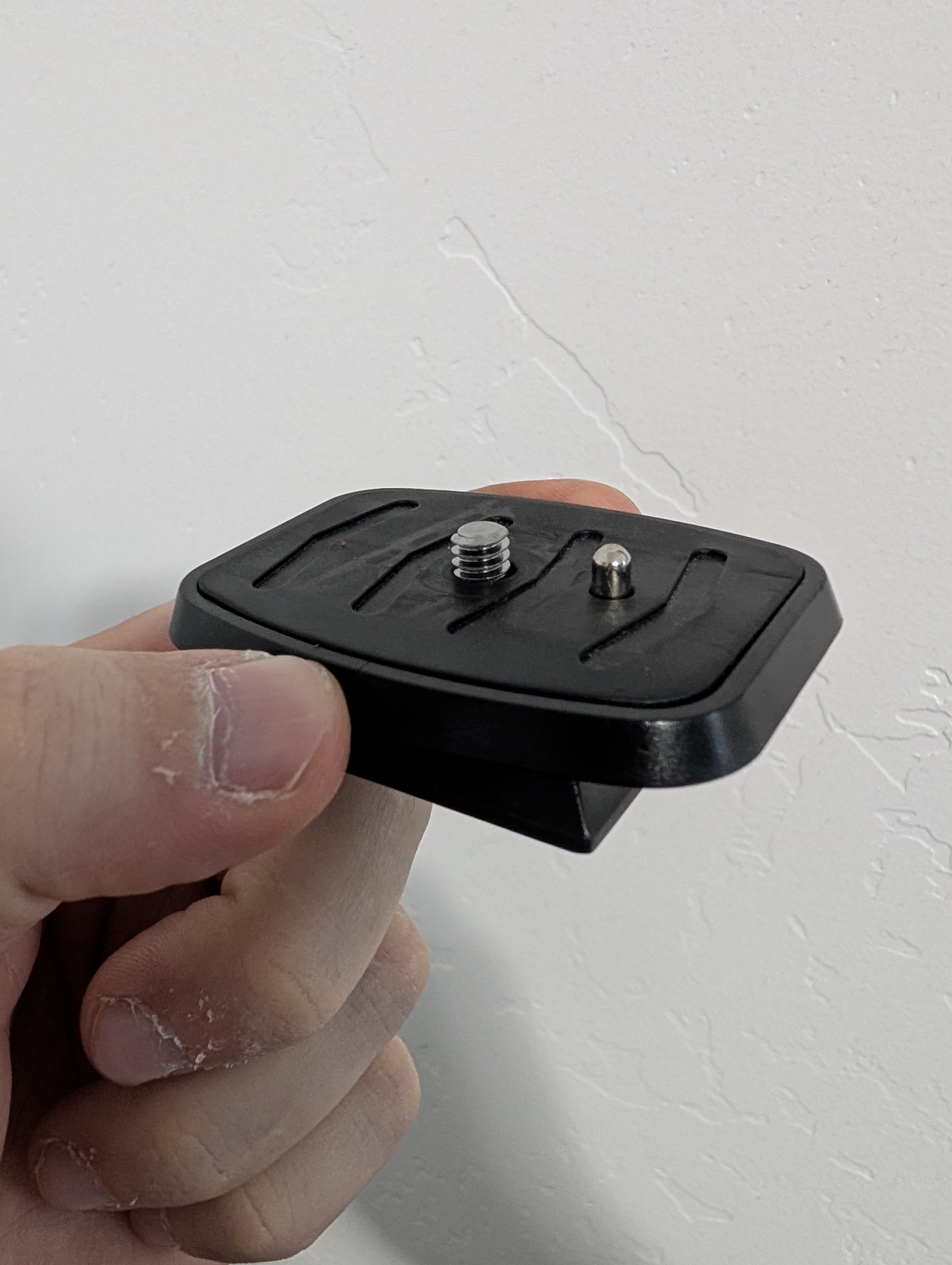

This is meant to be used with the following type of quick release mount:

This is assembled using the following hardware:

• 1 - Hex head screw - M5x40

• 2 - M5 Nylon Locknut

• 1 - M5x20 Countersunk Screw

• 2 - Wall anchors and screws to mount it to the wall

Printing Instructions:

• Supports: None

• Layer height: 0.2mm

  • I used variable layer height on Handle Pt1.stl and Handle Pt2.stl for a cleaner look



• Walls: 4

• Bottom Layers: 5

• Top Layers: 5

• Infill: 30% Adaptive Cubic

Assembly:

It is recommended to use glue to attach the Quick Release Hub Interface.stl to Quick Release Hub.stl.

Review the video above to see how it's assembled.

Make sure you insert the M5x40 Hex Head Screw into the handle before fully assembling it. Depending on the fitment of parts, you may need to use glue to assemble the handle.

The clearances are pretty tight. I found I needed to use some pliers to squeeze the handle around the hex head screw poking out of it so the threads could bite into it so I could slide the ring over it.
