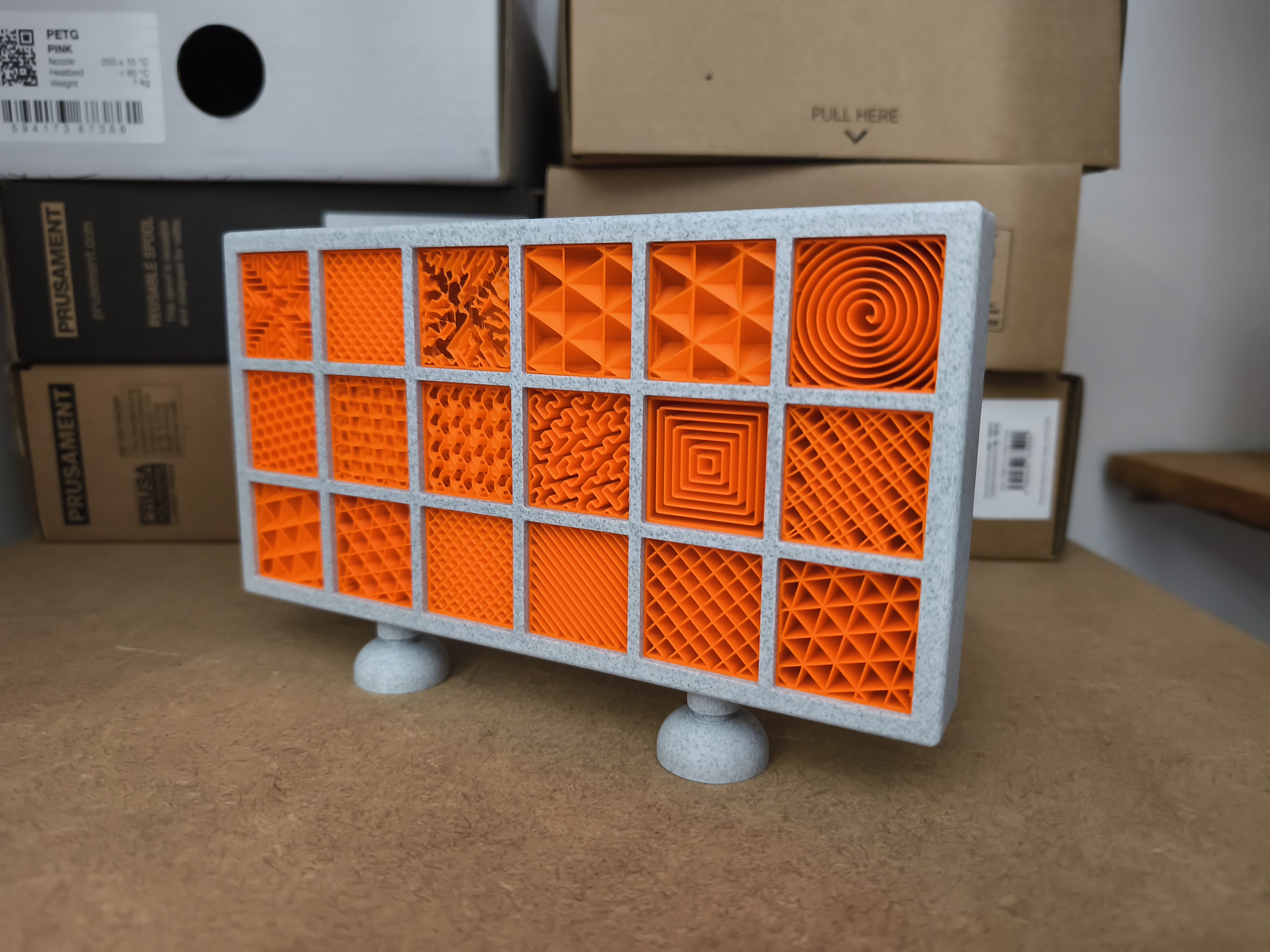

Display cubes showcasing different infill patterns generated in PrusaSlicer.

Each cube represents a different internal structure, making them suitable for visual comparison or educational purposes.

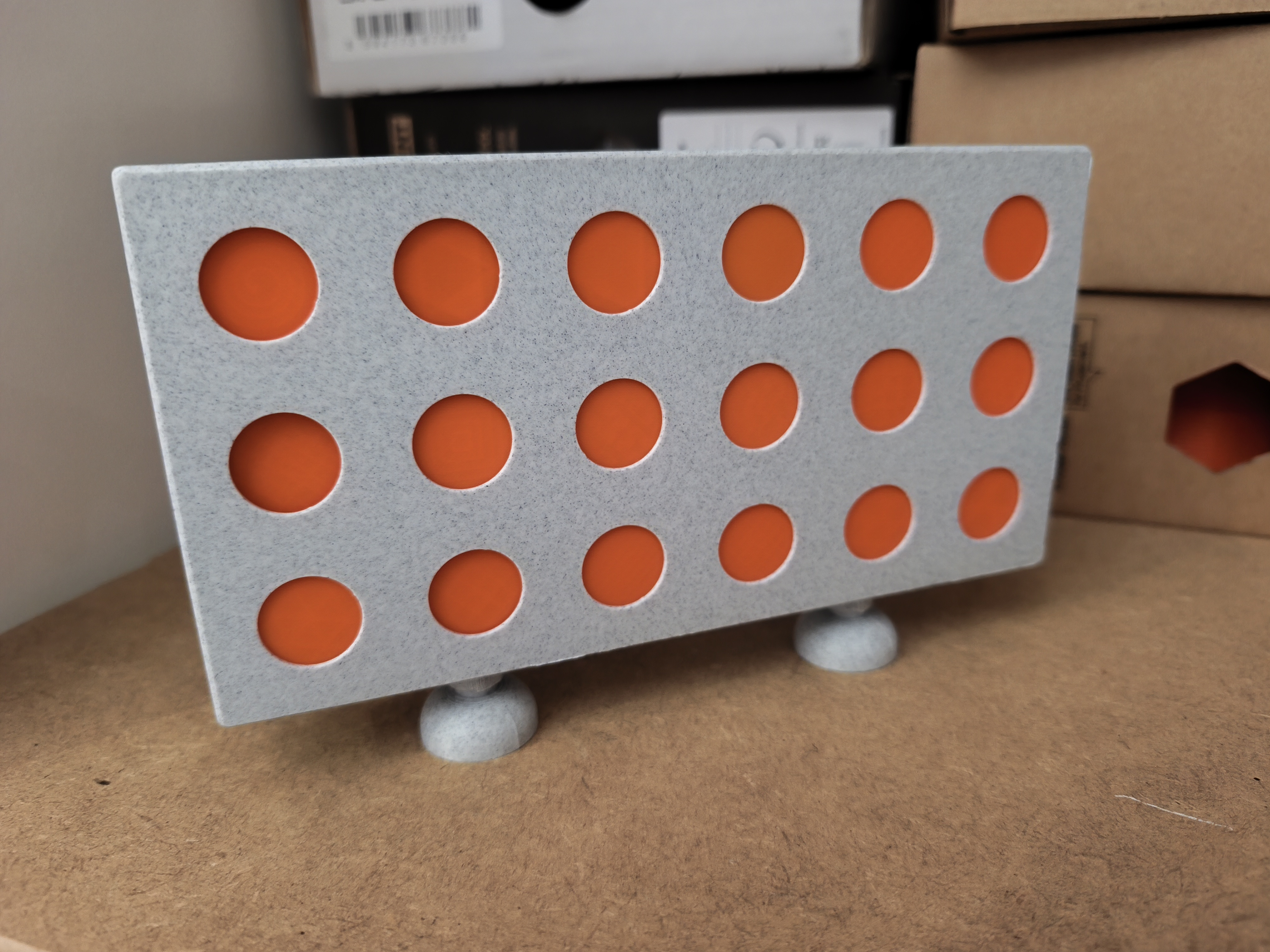

The holder features an ISO M9×1.25 thread, allowing you to replace the legs with your own custom design if desired.

Infill percentage varies based on type, so the difference is quite nicely visible. I suggest cutting a piece after printing from support and adaptive cubic to see the difference.

30x30x20mm cubes. Printed with 3 bottom layers and 1 perimeter. PLA was used at 0,15mm layer height and 0,4mm nozzle.

Octagram spiral - 20%

Zig Zag - 15%

Lightning - 30%

Support Cubic - 15%

Adaptive Cubic - 15%

Archimedean Chord - 20%

Honeycomb - 20%

3D Honeycomb - 10%

Gyroid - 15%

Hilbert Curve - 20%

Concentric - 20%

Line - 15%

Cubic - 15%

Stars - 20%

Rectlinear - 15%

Aligned Rectlinear - 20%

Grid - 20%

Triangles -  20%
