Descrição
Here is my take on stackable Gridfinity storage !
You can find 4 version of this model :

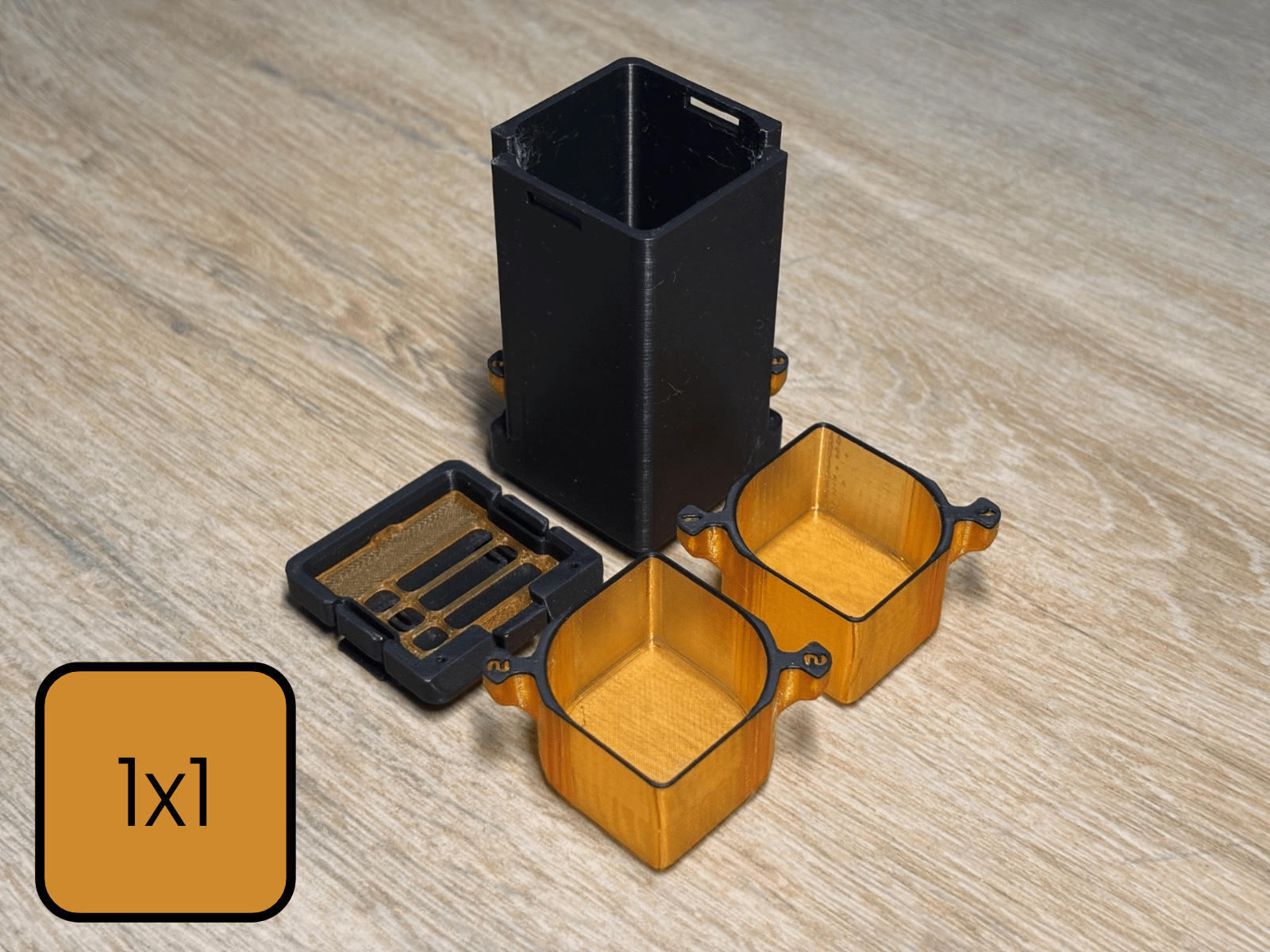

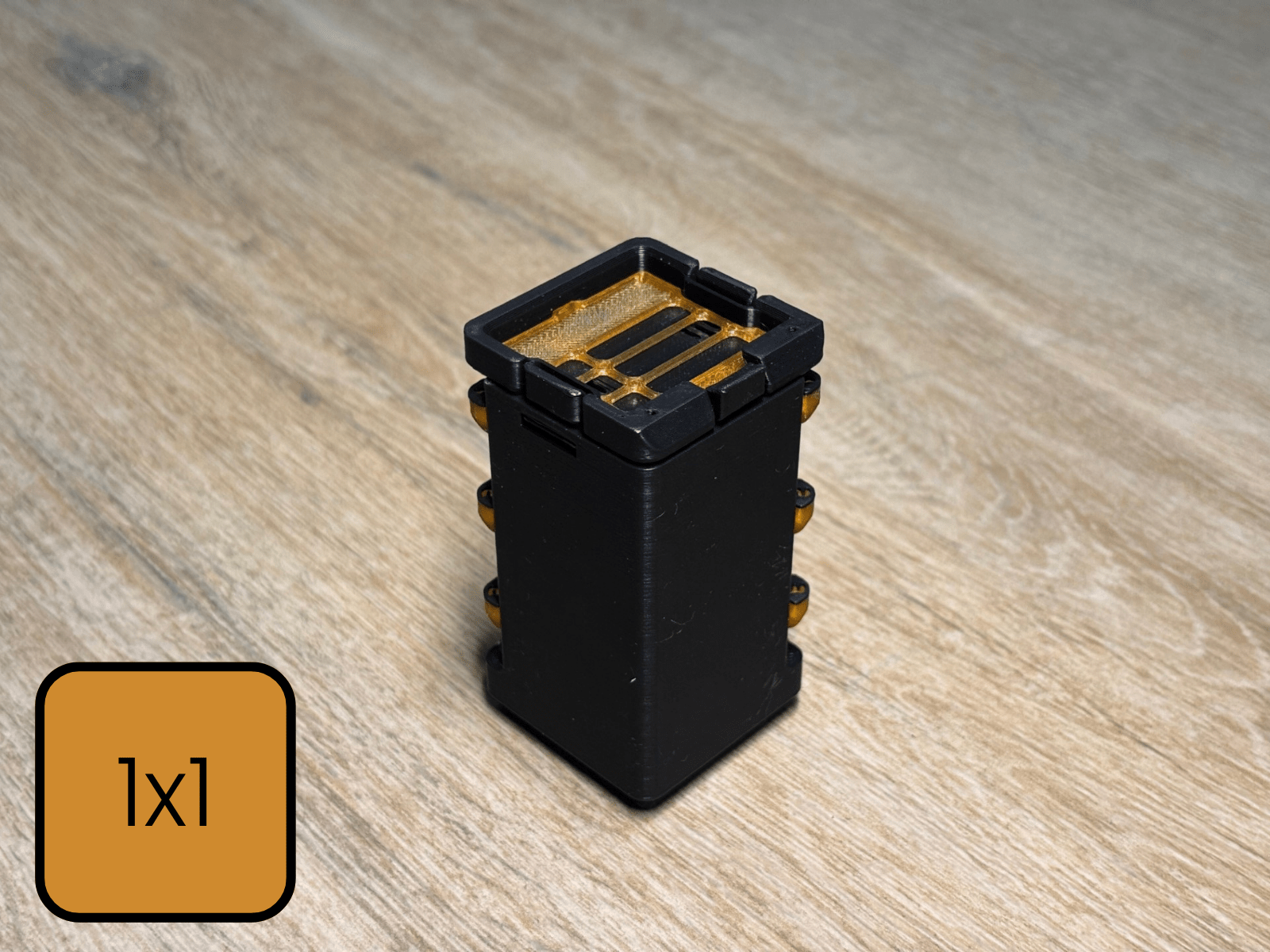

1x1 Gridifinity Size, with 3 Bins
1x1 Gridifinity Size, with 4 Bins

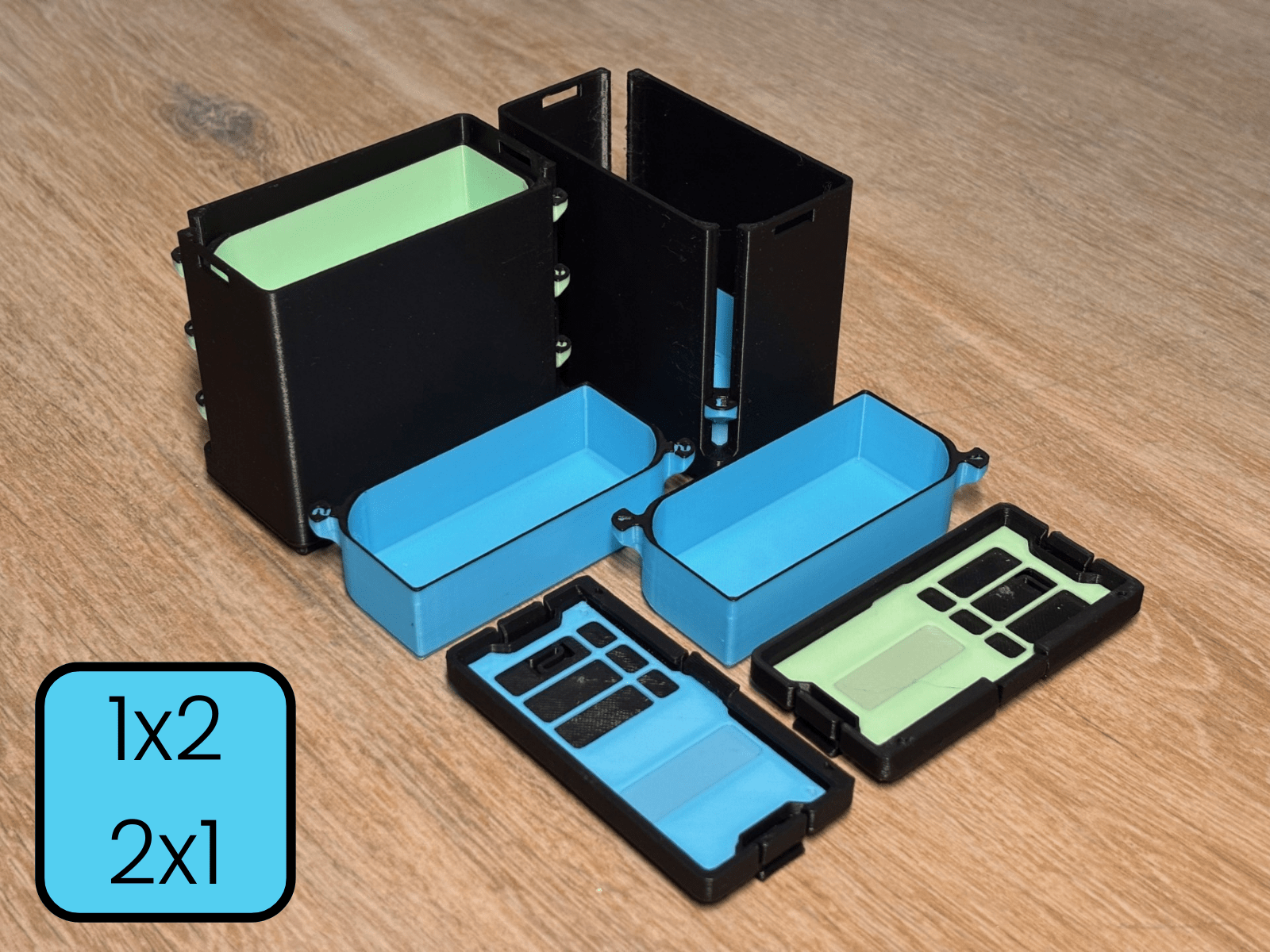

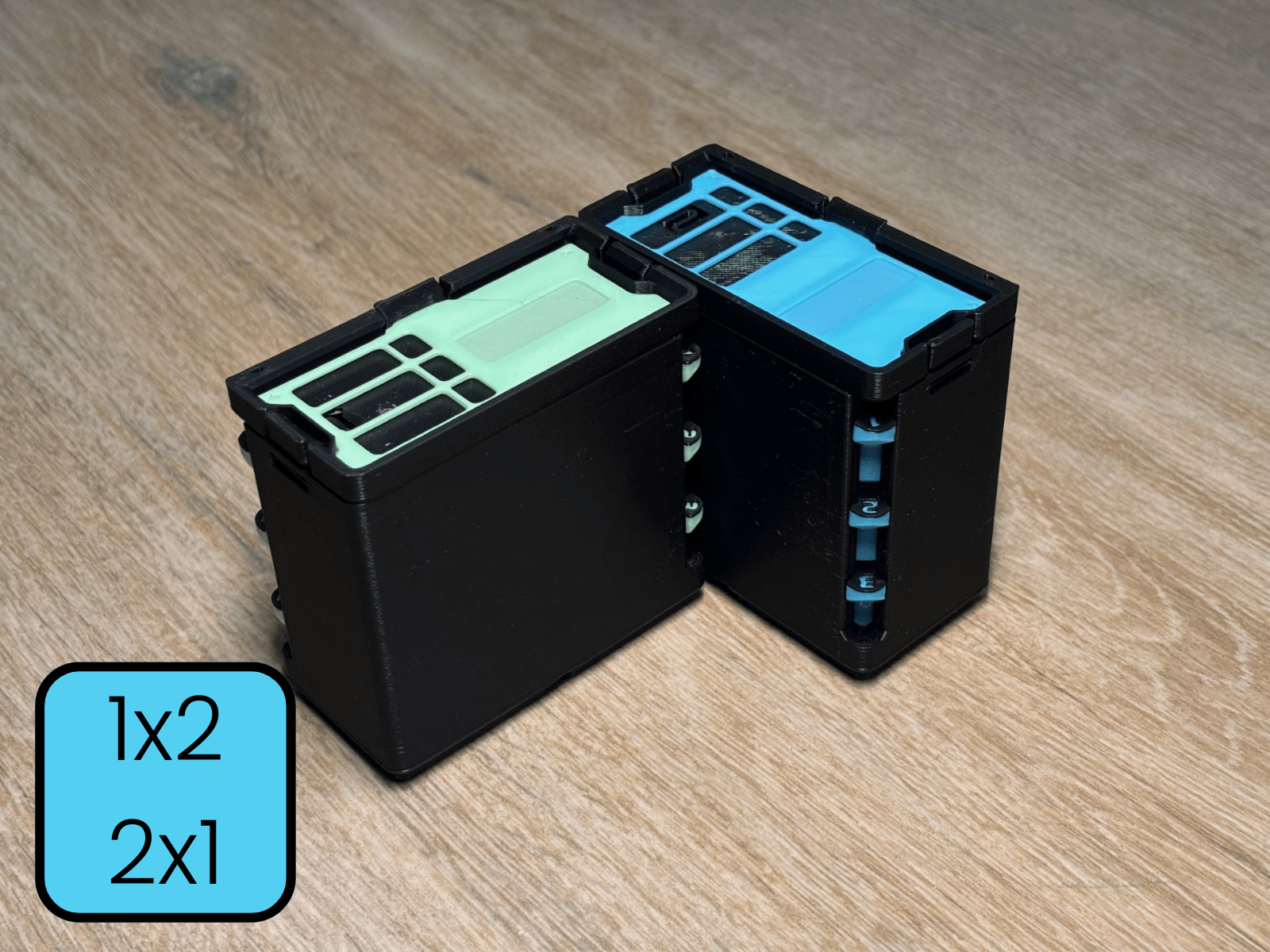

1x2 / 1x2 Gridifinity Size, with 3 Bins

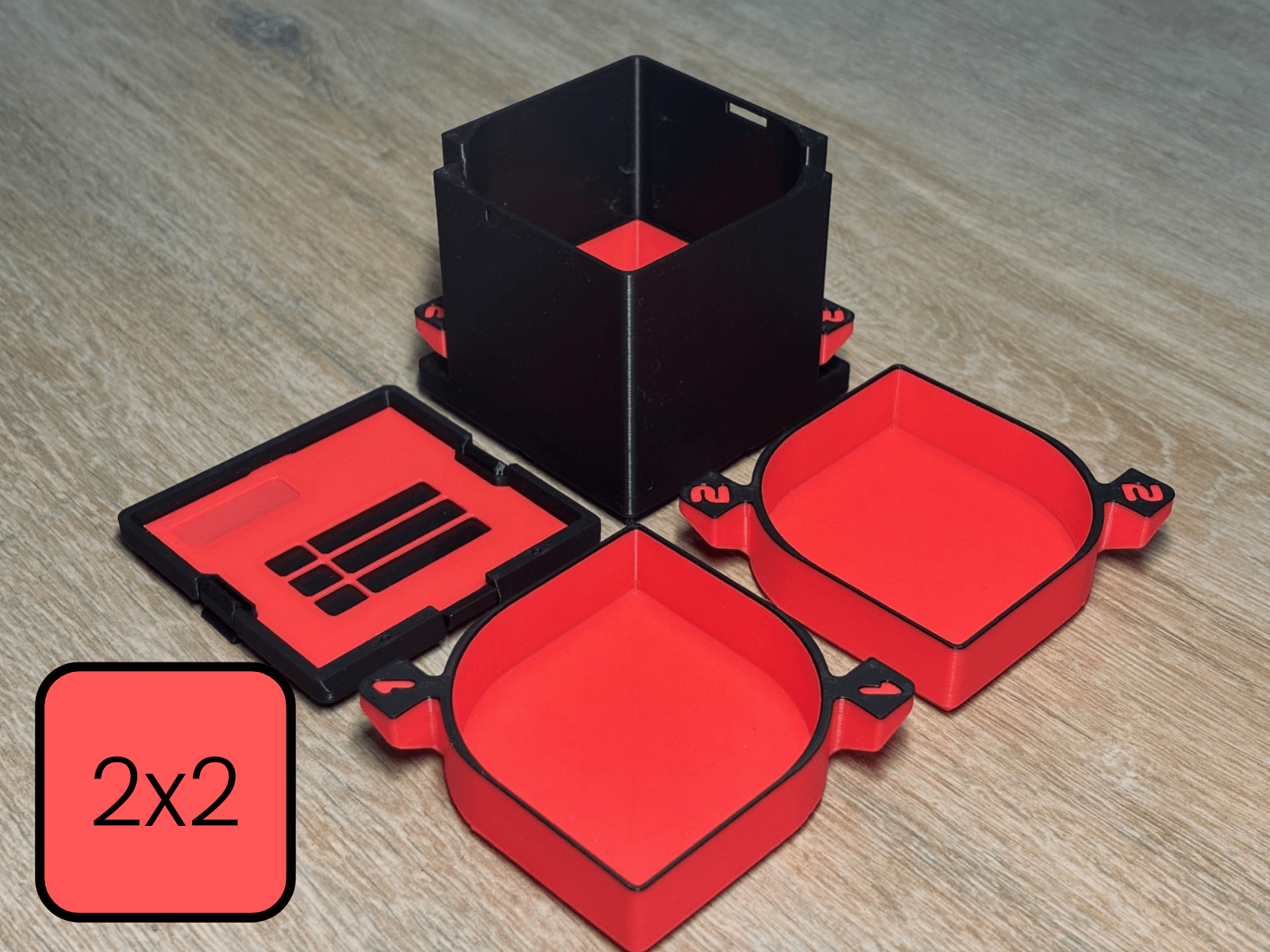

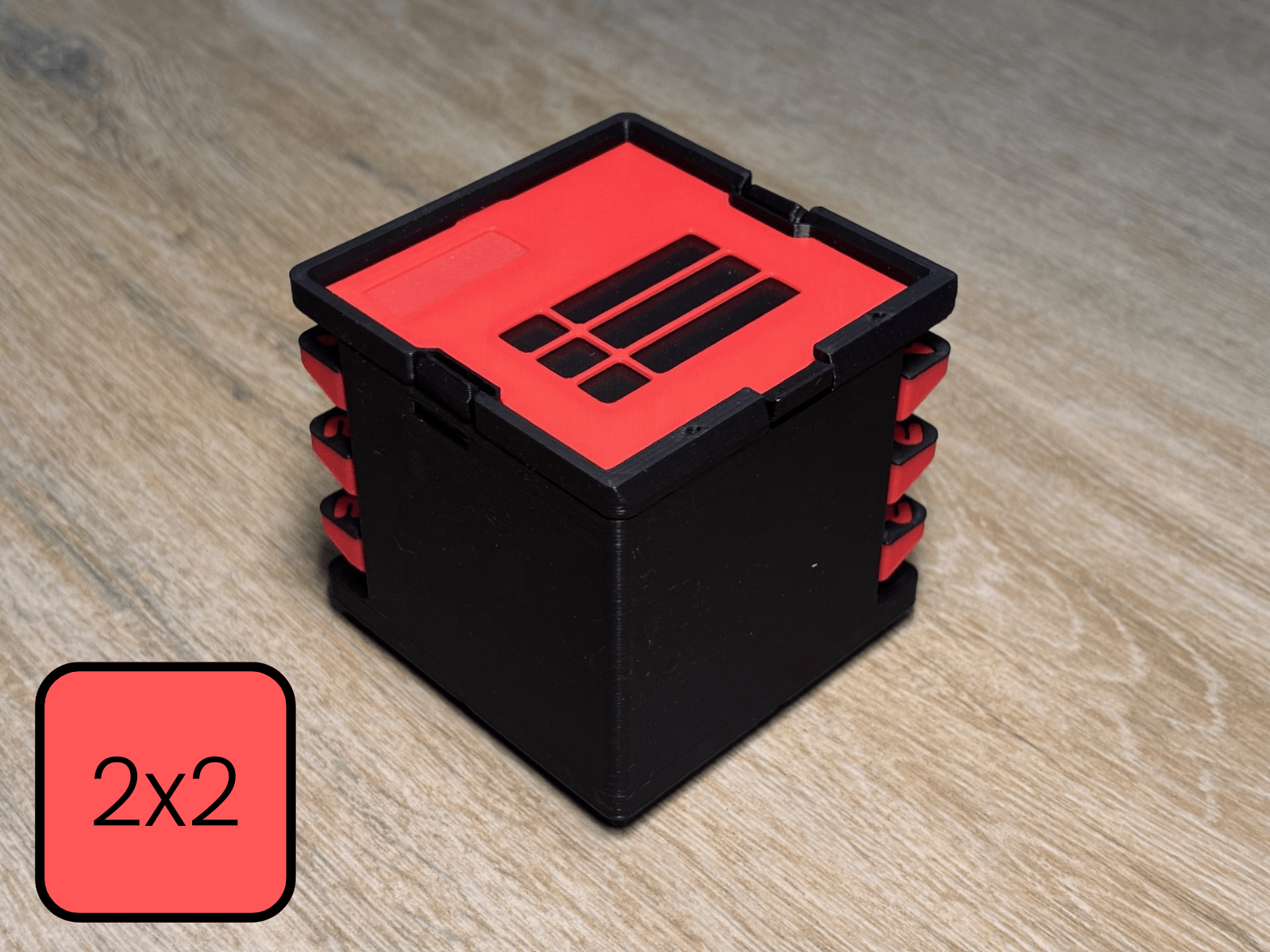

2x2 Gridifinity Size, with 3 Bins
For each model you can find the Lid that snaps onto the outer shell (outer bin) which you can slide each bin into. The outer shell is 9 units tall without the lid added on top. You can also print the label which you can snap onto the Lid using 2 notches back and front of it, do not forget to face the 2 triangle pairs for alignment. And a sticker measuring 30x50mm or 30x30mm can be placed underneath it to keep track of what's inside.
To achieve the best contrast, I suggest using the color scheme provided by the 3mf files.
Print Profile :
Layer Height : 0.2 mm
Use Arachne wall generation
I recommend ironing the topmost layer of each bin for better number visibility (60mm/s, 30% flow)
Support : Only needed for the "Lid" AND On build plate ONLY ( Normal Grid Support Recommended)
If you find any design flaws or would like to give me suggestions, please don’t hesitate to contact me.
