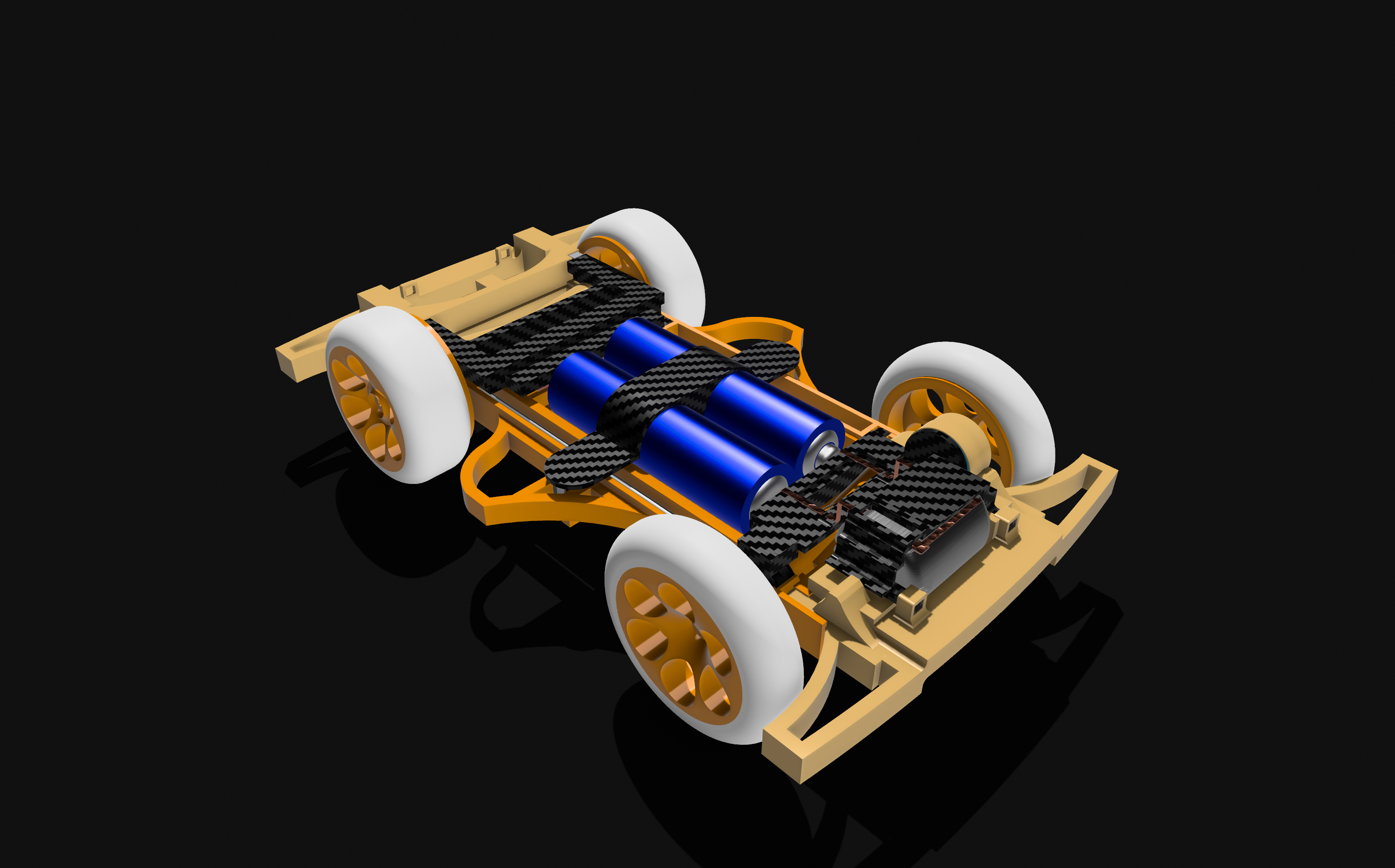

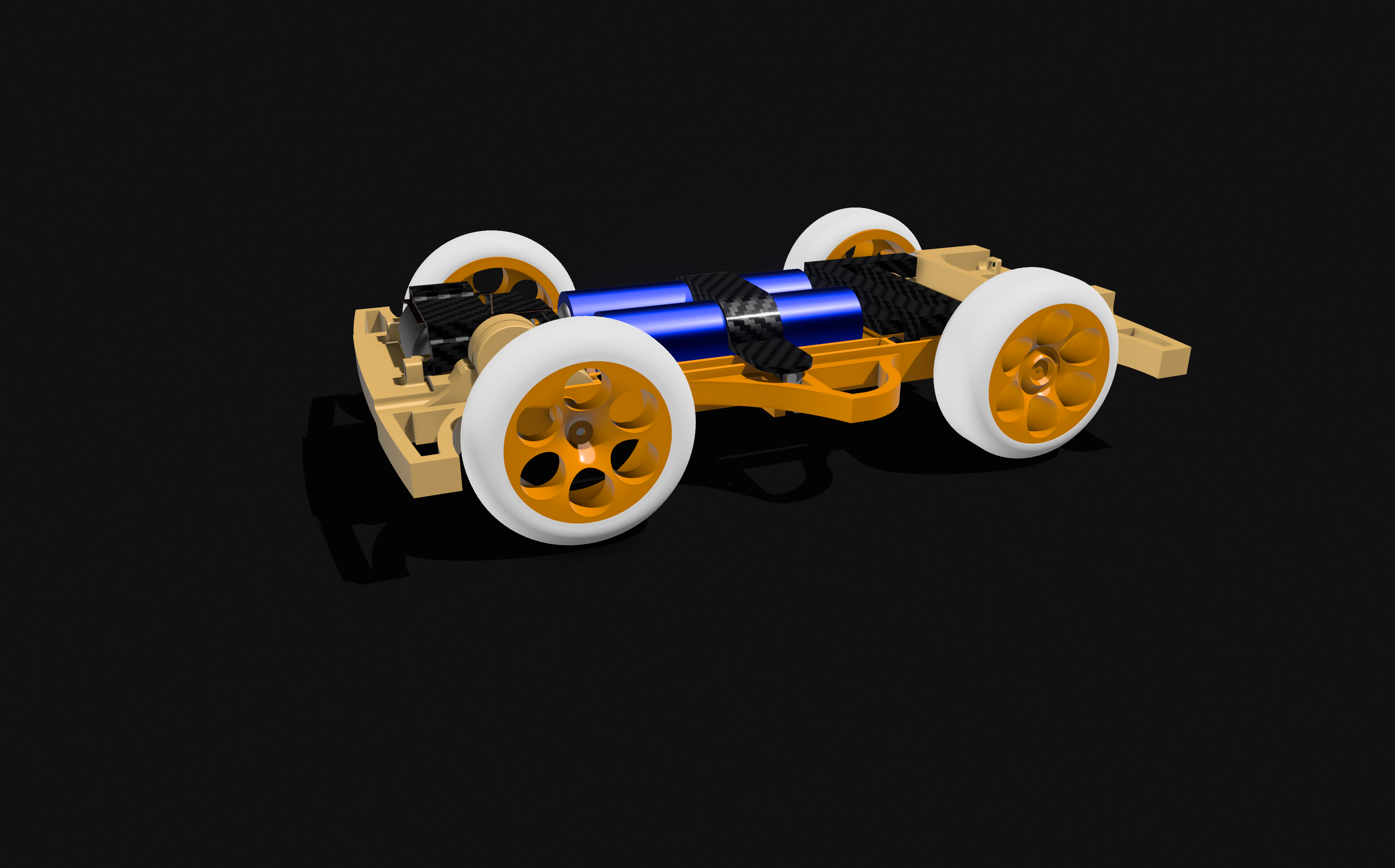

Front-Engine 4WD System (Scale 1:34) — Fully Elaborated Explanation

A 1:34 scale front-engine 4WD layout is a compact mechanical configuration where a miniature motor is positioned at the front section of the chassis and delivers power to all four wheels through a small-scale transmission system. Despite the tiny size, this layout imitates the drivetrain concept of real front-engine 4WD vehicles.

1. General Concept

In this configuration:

• The motor acts as the “engine,” placed at the front nose of the model.

• The front wheels receive direct or near-direct drive.

• The rear wheels receive power through:

  • a drive shaft,

  • a gear train, or

  • a belt system.

The design aims to replicate:

• Balanced traction,

• Forward weight bias,

• Stable acceleration,

• Compact mechanical packaging.

2. Motor & Engine Bay (Front Section)

Motor Specifications (Typical for 1:34 scale)

• N20 Micro DC Motor (most common)

• 030 Micro Motor (very small, high RPM)

• 050 Micro Motor (slightly larger, more torque)

Motor Orientation

Transverse mounting (sideways) is the most efficient, because:

• It shortens the chassis length,

• Aligns directly with a small spur gear,

• Improves front packaging and low center of gravity.

Motor Output

The shaft connects to:

• A pinion gear,

• Which drives a front differential gear or a front axle gear.

3. 4WD Transmission Types (Detailed)

At 1:34 scale, only micro-sized systems can fit. There are three proven methods:

A) Shaft-Drive System (Most Stable & Realistic)

This imitates real automotive design.

Flow:

Motor → Front Gearbox → Propeller Shaft → Rear Gearbox

Components:

• 1 mm / 1.2 mm steel shaft running along the center channel.

• Front bevel gear driving the shaft.

• Rear bevel gear converting shaft energy to the rear axle.

Advantages:

• Very low friction

• High durability

• High RPM efficiency

• Works well in rough tracks or off-road builds

Disadvantages:

• Requires precise alignment

• Needs a proper chassis tunnel

B) Gear-Train System (Best for 3D Printing)

A linear sequence of gears transfers power.

Flow:

Motor → Front Gear → Middle Gear → Rear Gear

Benefits:

• Simple to manufacture,

• Fits in small spaces,

• Easy to customize gear ratios.

Weaknesses:

• Increased noise and friction,

• Must align gears accurately or they will skip.

C) Belt-Drive System (Smooth & Quiet)

Uses a micro O-ring as a belt.

Flow:

Motor Pulley → Front Pulley → Belt to Rear Pulley

Benefits:

• Very smooth operation,

• Quiet drivetrain,

• Gentle on the gears.

Drawbacks:

• Belt may stretch or slip,

• Sensitive to chassis flex.

4. Chassis Architecture

The chassis design must support:

• Motor compartment,

• Front and rear gearbox housings,

• Central tunnel (for shaft/gear/belt),

• Wheel and axle supports.

Recommended Materials

• PLA – fast prototyping

• ABS – stronger, flexible

• Nylon PA12 – best for performance and durability

• Polycarbonate (PC) – premium injection mold material

Chassis Style

• Monocoque for stability

• Modular if easier assembly is needed

• Reinforced central spine to reduce flex

5. Wheel System & Axle Construction

Axles

• 1.0 mm steel wire (classic small scale)

• 1.2 mm steel wire (stronger)

Tires

• Diameter: 12–14 mm

• Material: soft rubber or lightweight foam

Wheel Hub

• Press-fit design

• Optional bearings (micro ball bearings)

Track Width

• 22–28 mm, depending on body type
  (sports car = narrower / off-road buggy = wider)

6. Handling Behavior & Driving Physics

Because the engine/motor is at the front, the model has:

Advantages

✔ Excellent forward traction
✔ Stable acceleration (no wheel lifting)
✔ Predictable steering behavior
✔ Balanced 4-wheel grip

Typical Driving Behavior

• Slight understeer due to front weight bias

• Very controlled corner entry

• Quick straight-line stability

• Equal power distribution reduces wheelspin

7. Application for This Type of Model

The 1:34 front-engine 4WD design is suitable for:

A) Micro 4WD Cars

• High-speed track model

• Mini rally car

• Small desert buggy

B) Display Models

• Mechanical showcase

• Engineering demonstration models

C) Industrial Design Projects

• Product prototypes

• Mechanical concept models

D) Collectible Scale Models

• Functional mini cars with rolling wheels

• Shelf display mechanical replicas

8. Optional Advanced Features

If you want to push the design further, you can add:

Miniature Suspension

• Torsion bar (thin steel wire)

• Swing-arm suspension

• Plastic leaf spring strips

Micro Steering System

• Static steering (fixed angle)

• Functional micro rack & pinion

• Micro servo if converting to RC

Cooling & Ventilation

• Air vents in the front

• Heat dissipation channels for motor
