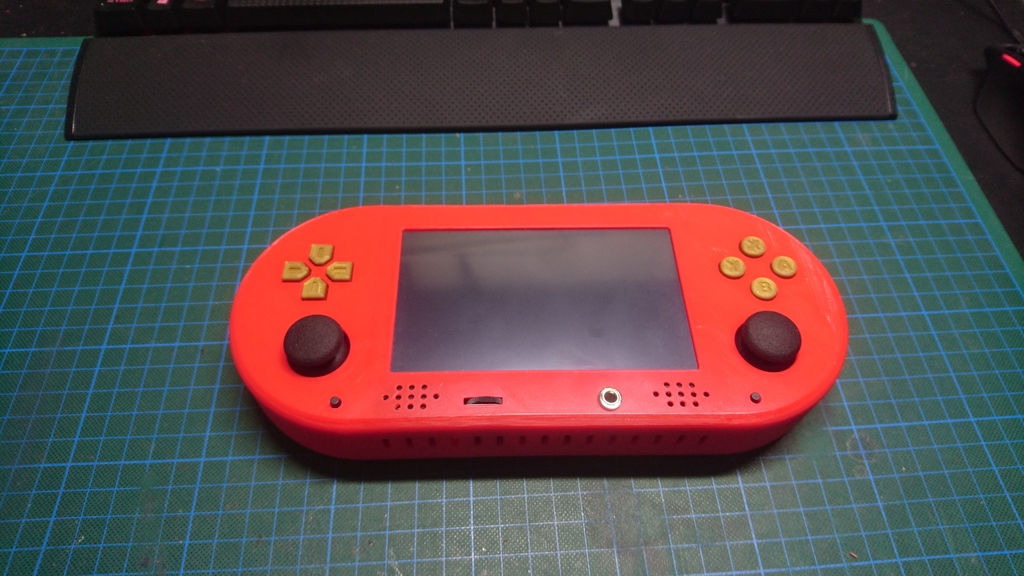

This is version 2.1 of my GamePi handheld console.

If you like the GamePi check out my page [https://www.fb.com/araymBox](https://www.fb.com/araymBox) for other versions and the upcoming devices. You can also post ideas on how to improve the design.

It's a mix of all my GamePi Versions and combines the best features:

• GamePi 1 ( [https://www.prusaprinters.org/prints/149809-gamepi](https://www.prusaprinters.org/prints/149809-gamepi) )
• GamePi 2 ( [https://www.prusaprinters.org/prints/149804-gamepi-2](https://www.prusaprinters.org/prints/149804-gamepi-2) )
• GamePi Zero ( [https://www.prusaprinters.org/prints/149801-gamepi-zero](https://www.prusaprinters.org/prints/149801-gamepi-zero) )

If you want to rebuild this GamePi check out the instrucatables of the GamePi 2 and GamePi Zero. I won't write another for this one.

[https://www.instructables.com/id/GamePi-the-Handheld-Emulator-Console/](https://www.instructables.com/id/GamePi-the-Handheld-Emulator-Console/) [https://www.instructables.com/id/GamePi-Zero-the-Favorable-Emulation-Station/](https://www.instructables.com/id/GamePi-Zero-the-Favorable-Emulation-Station/)

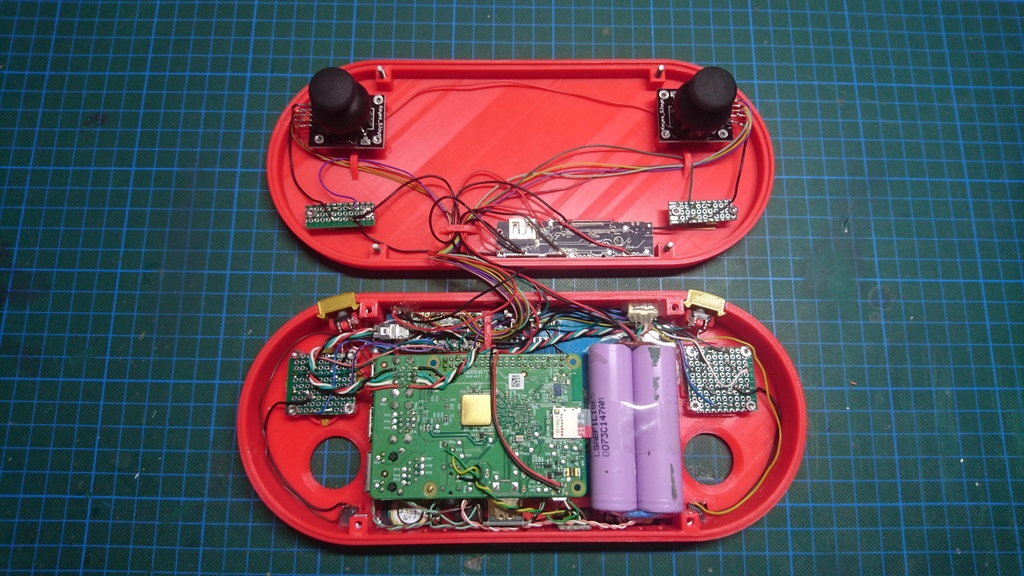

To avoid any further problems with powerbanks not being available anymore this case is designed for the separate powerbank-electronics and batteries:

• 1x PCB ( [https://www.aliexpress.com/item/5V-2-1A-Power-Bank-Charger-Module-Charging-Circuit-Board-PCB-Step-Up-Boost-Power-Module/32792636437.html](https://www.aliexpress.com/item/5V-2-1A-Power-Bank-Charger-Module-Charging-Circuit-Board-PCB-Step-Up-Boost-Power-Module/32792636437.html) )
• 2x 18650 LiPos ( [https://www.aliexpress.com/item/4PCS-liitokala-For-samsung-18650-3500mAh-13A-discharge-INR18650-35E-INR18650-35E-18650-battery-Li-ion/32807017443.html](https://www.aliexpress.com/item/4PCS-liitokala-For-samsung-18650-3500mAh-13A-discharge-INR18650-35E-INR18650-35E-18650-battery-Li-ion/32807017443.html) )

The buttons Start and Select do not need to be printed anymore since they take too much space. use 6x6mm tactile switches with a 6mm long button, e.g.: [https://www.aliexpress.com/item/50pcs-6-6x4-3mm-6X6X5mm-DIP-Tactile-Tact-Mini-Push-Button-Switch-Micro-Switch-Momentary-DIP/32842271522.html](https://www.aliexpress.com/item/50pcs-6-6x4-3mm-6X6X5mm-DIP-Tactile-Tact-Mini-Push-Button-Switch-Micro-Switch-Momentary-DIP/32842271522.html)

You can leave a tip (button left) if you like my stuff.
